Euphoria | SKU:
EXM8NSB

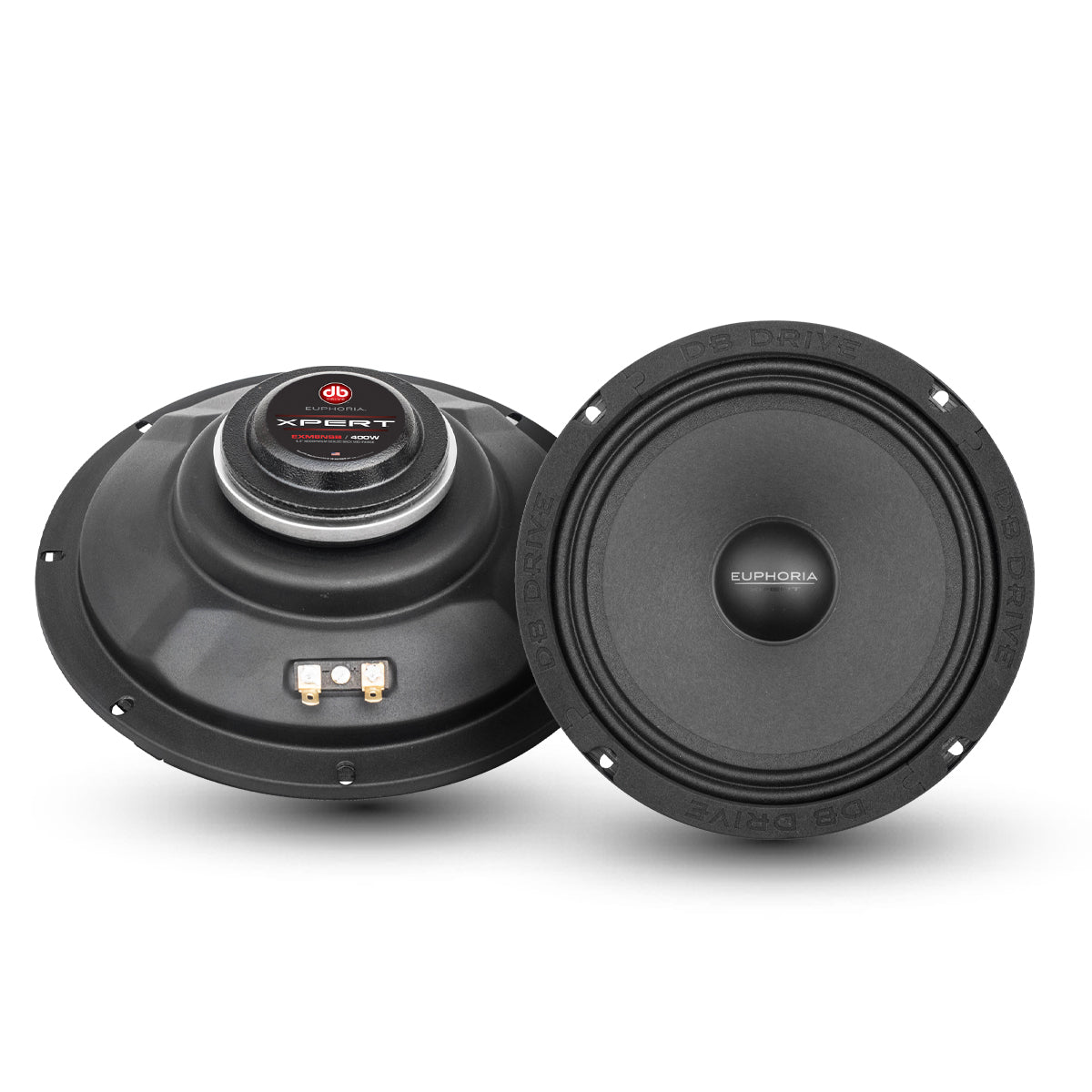

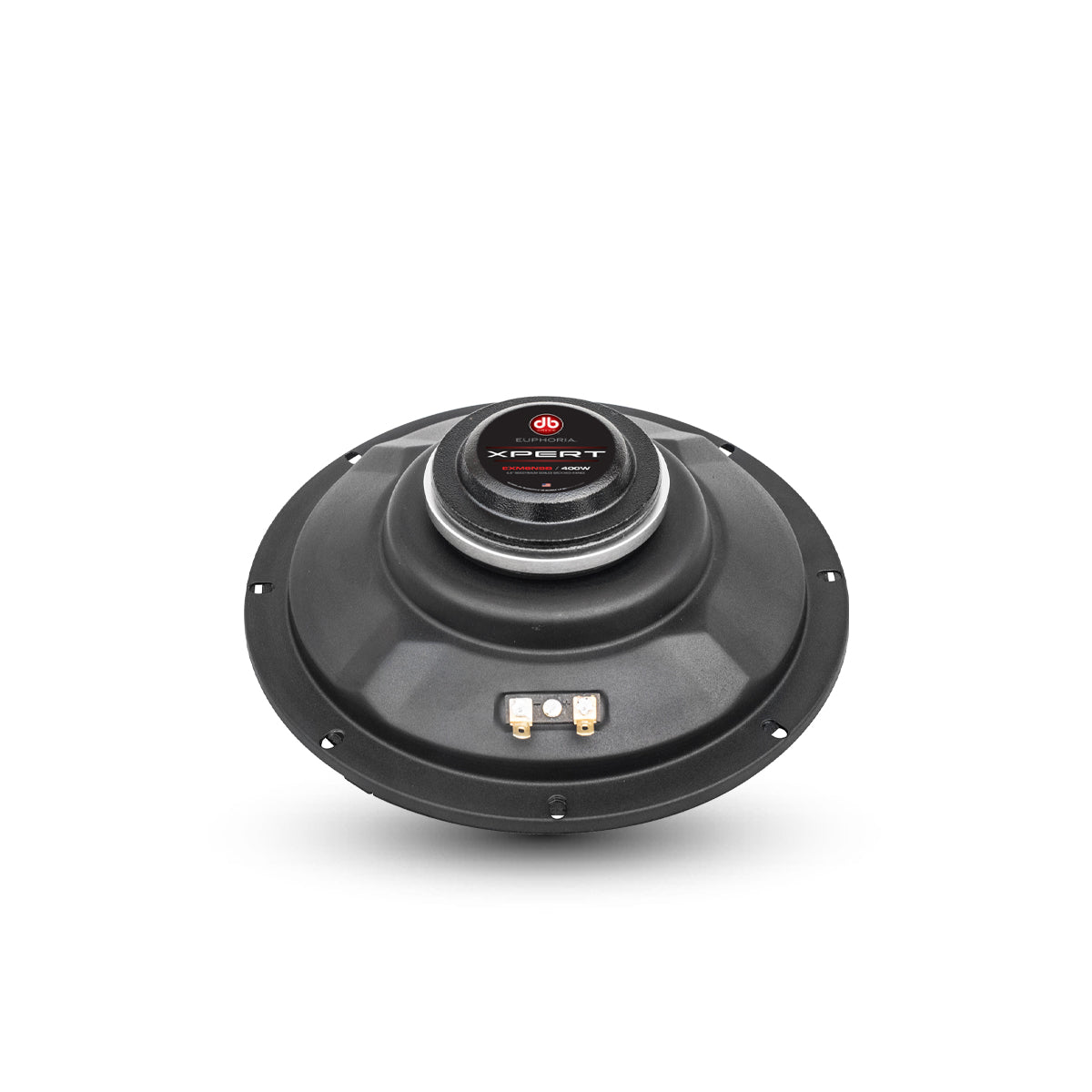

Euphoria Xpert 8" Sealed Back Midrange EXM8NSB
$0.00
Unit price
/
Unavailable
Shipping calculated at checkout.
Euphoria Xpert 8" Sealed Back Midrange EXM8NSB is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description
EXM8NSB
T/S PARAMETERS | |
---|---|
Resonant Frequency (fs) | 474.2Hz |
D.C. Voice Coil Resistance (Re) | 3.2Ω |
Mechanical Quality Factor (Qms) | 5.05 |
Electrical Quality Factor (Qes) | 1.76 |
Total Quality Factor (Qts) | 1.31 |
REPLACEMENT DIAPHRAGM: |
---|
ADDITIONAL SPECS | |
---|---|
Nominal Impedance | 4Ω |
Power Handling | 225 Watts |
Dynamic Wattage | 450 Watts |
Sensitivity (1w/1m) | 98.9 dB |
Frequency Response | 375Hz – 4.8KHz |
DIMENSIONS | |
---|---|
Mounting Depth: | 2.40″ (61mm) |
Cutout Diameter: | 7.04″ (179mm) |
T/S PARAMETERS | |
---|---|
Resonant Frequency (fs) | 474.2Hz |
D.C. Voice Coil Resistance (Re) | 3.2Ω |
Mechanical Quality Factor (Qms) | 5.05 |
Electrical Quality Factor (Qes) | 1.76 |
Total Quality Factor (Qts) | 1.31 |
REPLACEMENT DIAPHRAGM: |
---|
ADDITIONAL SPECS | |
---|---|
Nominal Impedance | 4Ω |
Power Handling | 225 Watts |
Dynamic Wattage | 450 Watts |
Sensitivity (1w/1m) | 98.9 dB |
Frequency Response | 375Hz – 4.8KHz |
DIMENSIONS | |
---|---|
Mounting Depth: | 2.40″ (61mm) |
Cutout Diameter: | 7.04″ (179mm) |
**Sold in pairs
