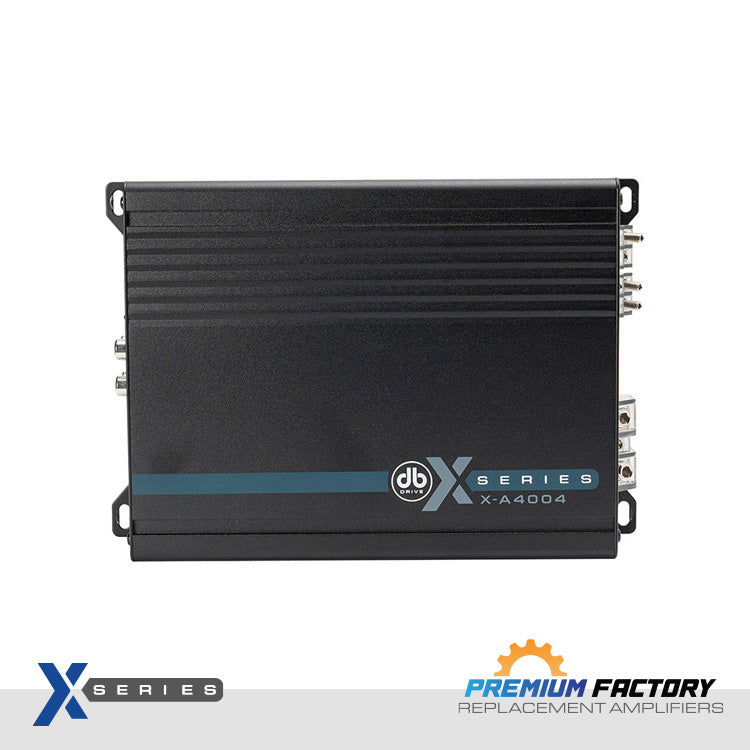

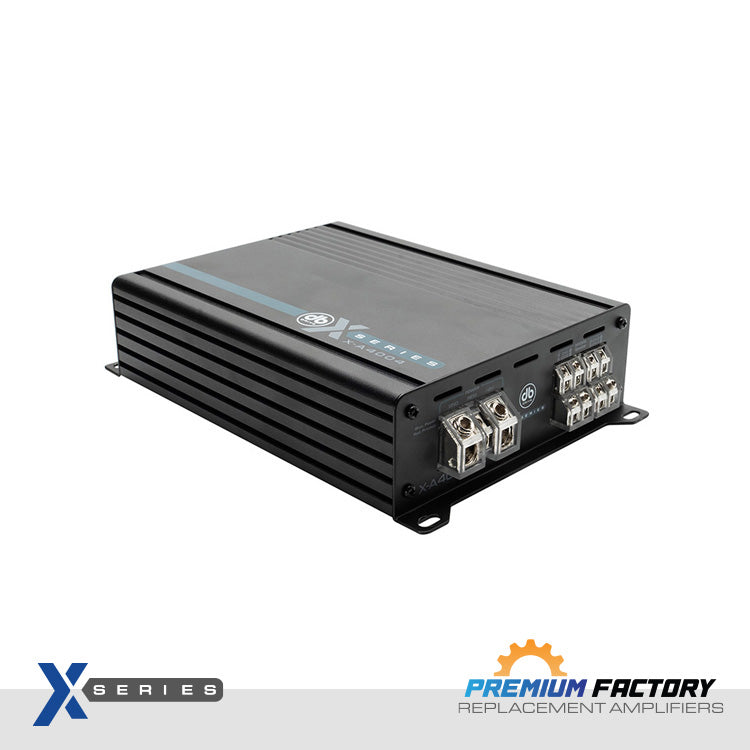

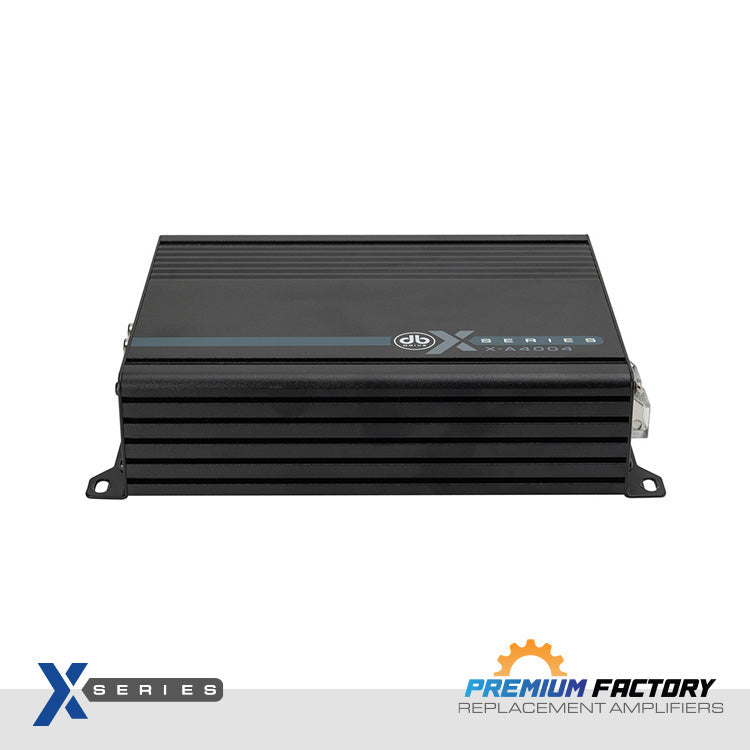

DB Drive X-A4004 : 4-Channel Class D Amplifier

Features

• Class D Technology

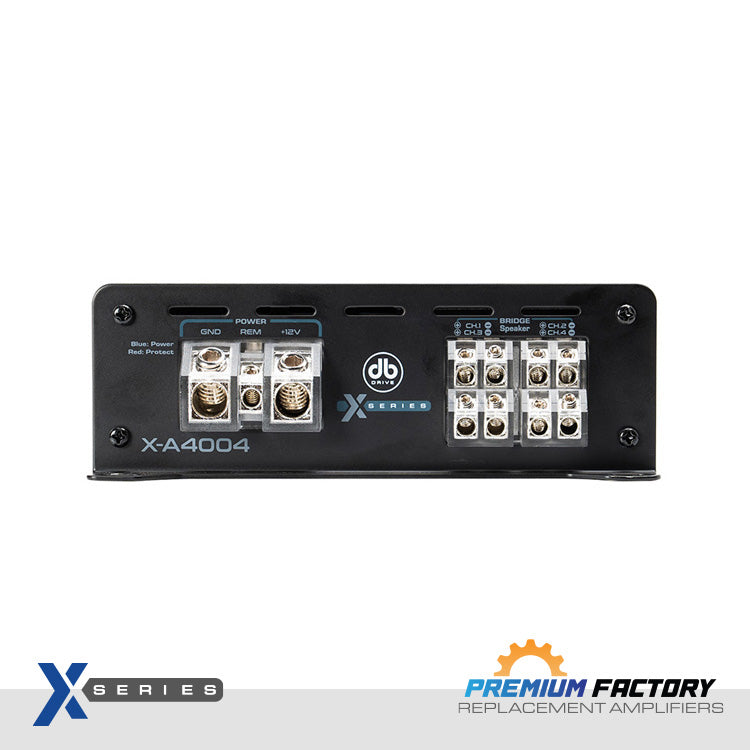

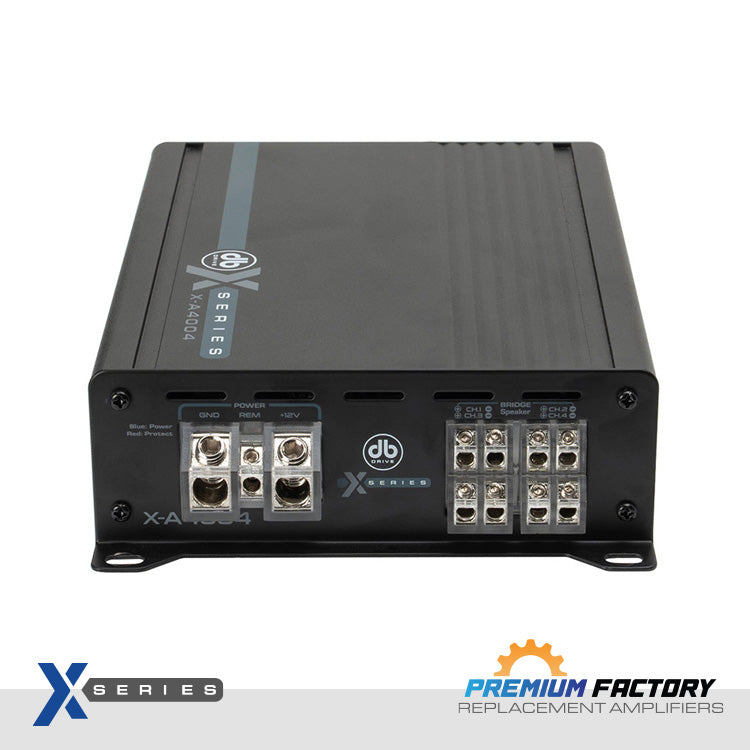

• Direct Connect Speaker Terminals

• Illuminated Large Gauge Power Wire Inputs

• PWM Mosfet Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

Specifications

• Total Dynamic Power output: 600 Watts

• 4 X 75 Watts @ 4 Ω Stereo

• 4 x 150 Watts @ 2 Ω Stereo

• 2 x 300 Watts @ 4 Ω Bridged

• Frequency Response: 20Hz - 20KHz

• Gain Level Control: 0.2-6V

• Input Impedance: 10K

• S/N Ratio: 90dB

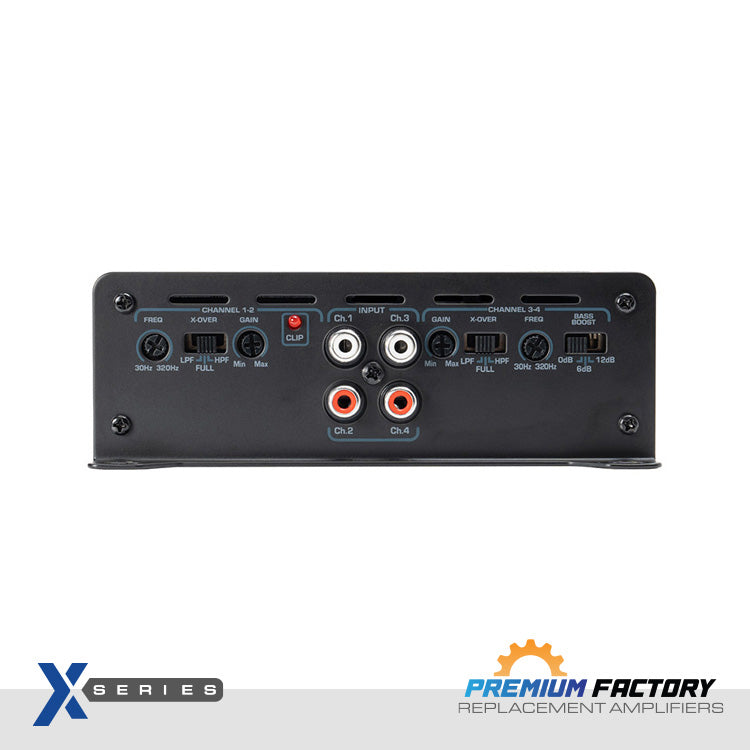

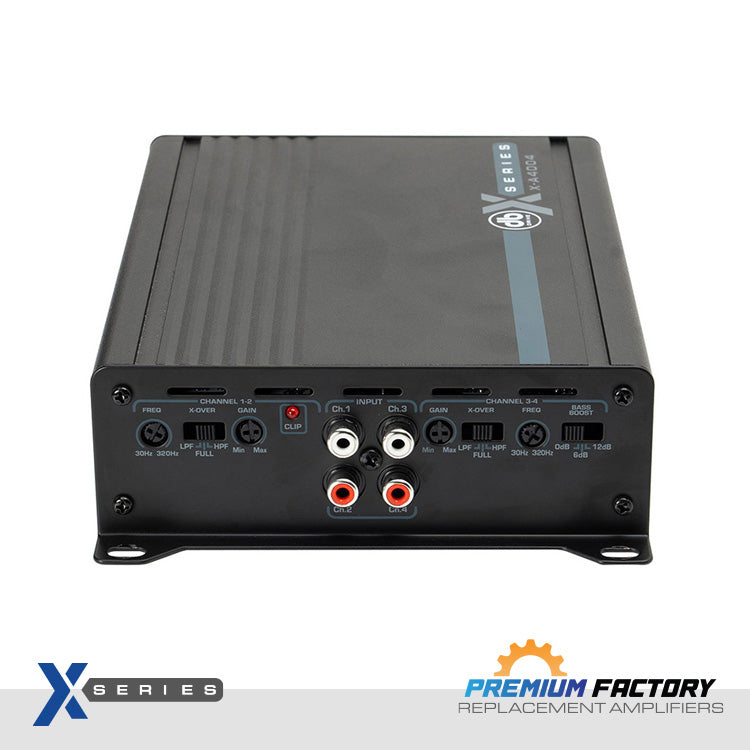

• High Pass Filter: 30Hz-320Hz

• Low Pass Filters: 30Hz-320Hz

• Variable Bass Boost: 0-12dB

Description

Want to upgrade the sound system in your vehicle, the DB DRIVE X-A4004 is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: •    Powerful Output: 75W x 4 at 4 ohms, 150W x 4 at 2 ohms, delivering clear, full-range sound. •    Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. •    High-Efficiency Circuit: Perfect for modern vehicles with compact electrical systems. •    Adaptive HP/Lp Crossover: Fine-tune your audio for optimal sound.. •    4-Layer PCB: Delivers cleaner, more accurate sound. •    Compact Design: Easy to install without compromising on power. Transform your car into a concert hall with the  X-A4004 for sound like never before.

Product Manual

Product Manual PDF
