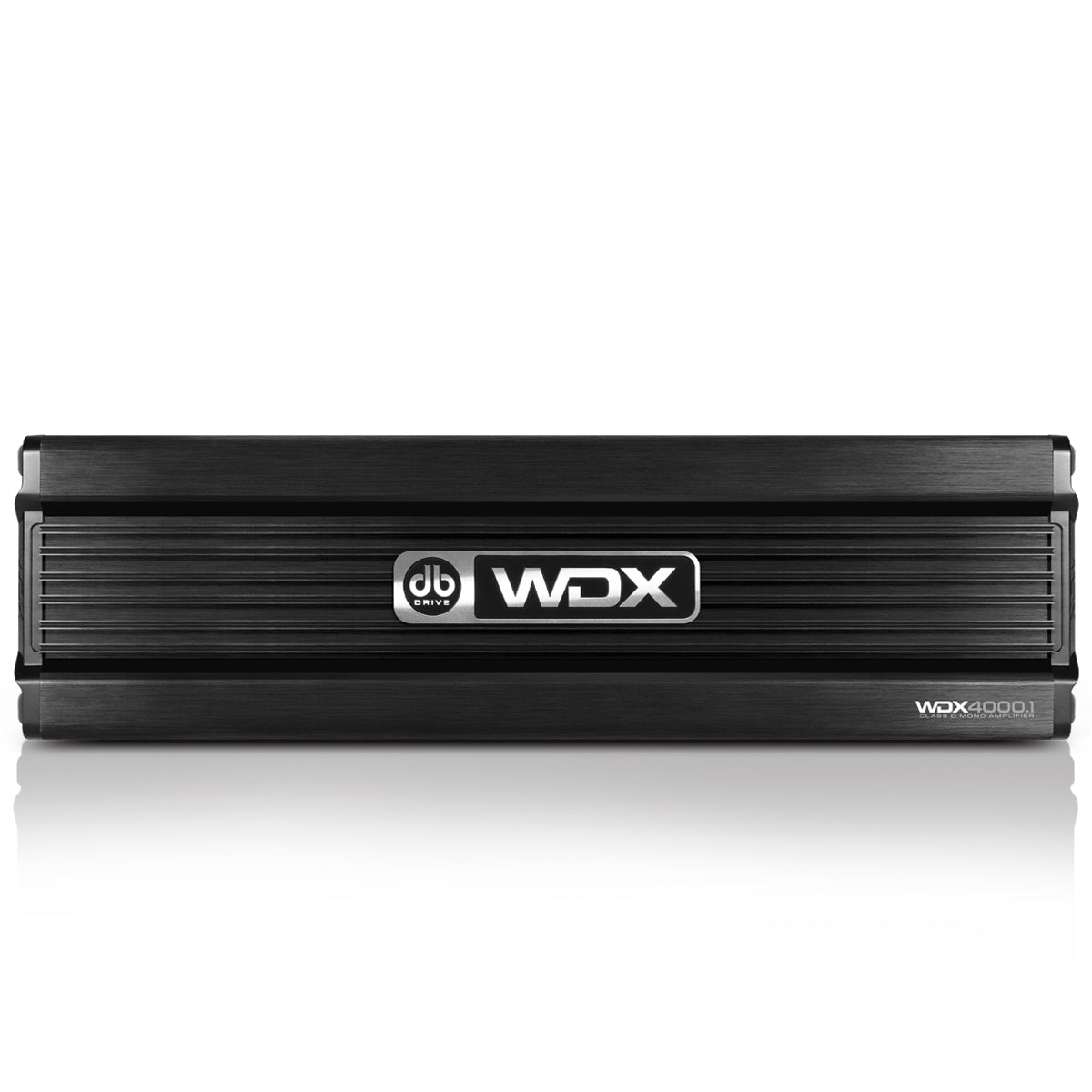

DB Drive WDX4000.1 : Mono Class D Amplifier

Features

• CLASS “D” CIRCUITRY

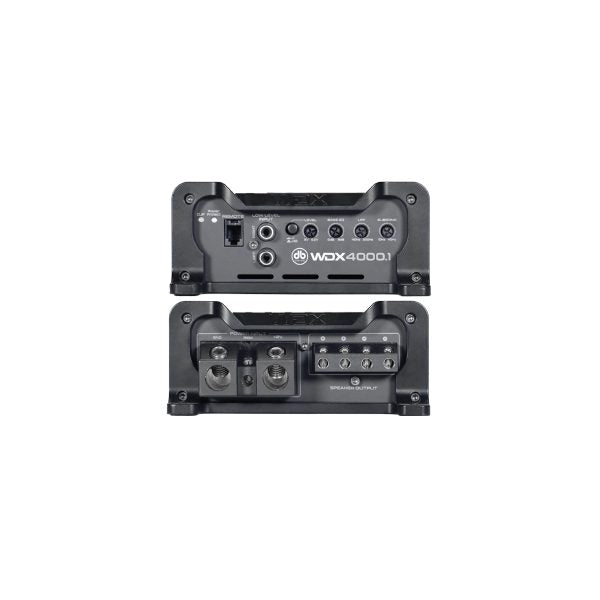

• Direct Connect Speaker Terminals
• 0 Gauge Power Wire Input
• CHM- Collective Heat Management
• ACT – Adaptive Crossover Technology
• SESI – Signal Evaluation Status Indicator
• APC – Audio Protection Circuit
• Included Remote Level Control

Specifications

Rated Power @14.4 Volts
	1 x 4000 Watts @ 1Ω
	1 x 2000 Watts @ 2Ω
	1 x 1000 Watts @ 4Ω

Parameters

Frequency Response	20Hz ~ 300KHz
S/N Ratio	< 95 dB
Low Level Input	6V - 0.2V
Variable High Pass Filter (@ 12dB Slope)	40Hz ~ 300Kz
Variable Low Pass Filter (@ 12dB Slope)	10Hz ~ 40Khz
Bass Equalizer	0dB - 9dB
Working Voltage	12 - 15 Volts

Description

Unleash the power of sound with the DB Drive WDX4000.1 Class D Mono Amplifier!

Elevate your audio experience to unprecedented heights with the DB Drive WDX4000.1 Class D Mono Amplifier. Boasting an impressive rated power of up to 4000 watts at 1Ω, this powerhouse guarantees to deliver exceptional sound quality and performance. Equipped with direct connect speaker terminals, 4 gauge power wire input, and a monoblock Class D internal circuitry, the WDX4000.1 ensures seamless and efficient power delivery. The amplifier features advanced adaptive crossover technology and a variable subsonic filter ranging from 10Hz to 40Hz, offering you precise control over your audio experience. With collective heat management and an audio protection circuit, your amplifier stays cool and protected, ensuring longevity and reliability. Whether you're an audiophile or a car audio enthusiast, the WDX4000.1 is engineered to transform your sound system, making every beat and note come alive. Discover the ultimate in audio amplification with DB Drive's WDX4000.1 and let your music resonate like never before!
