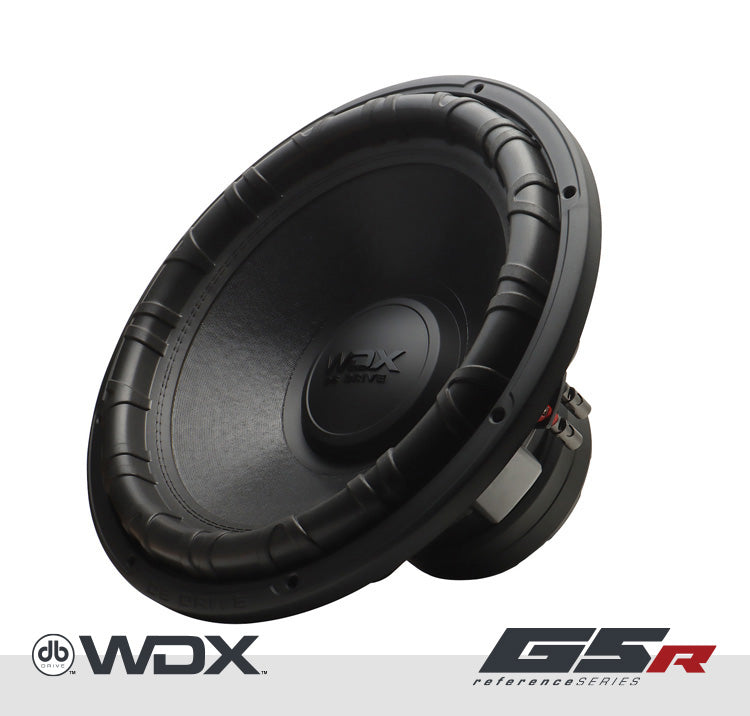

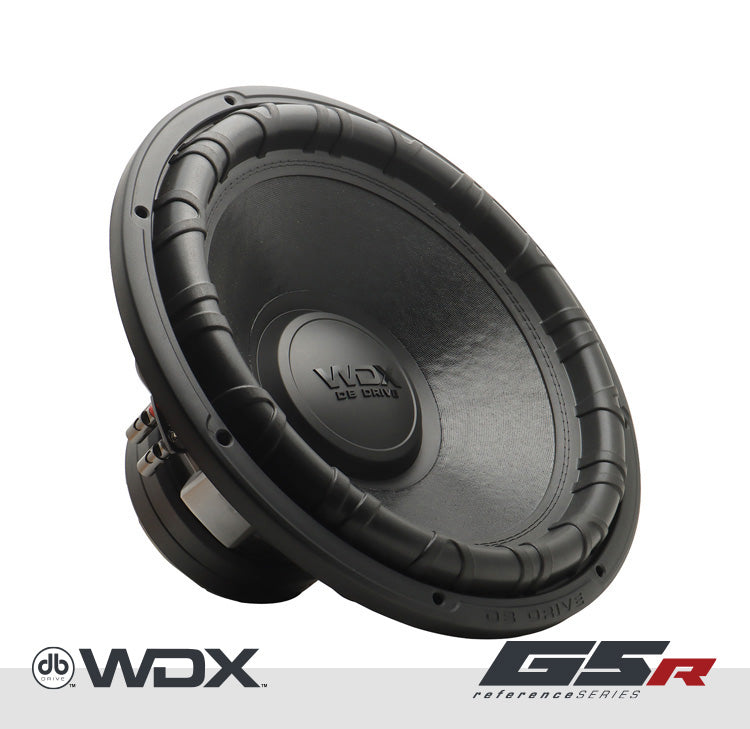

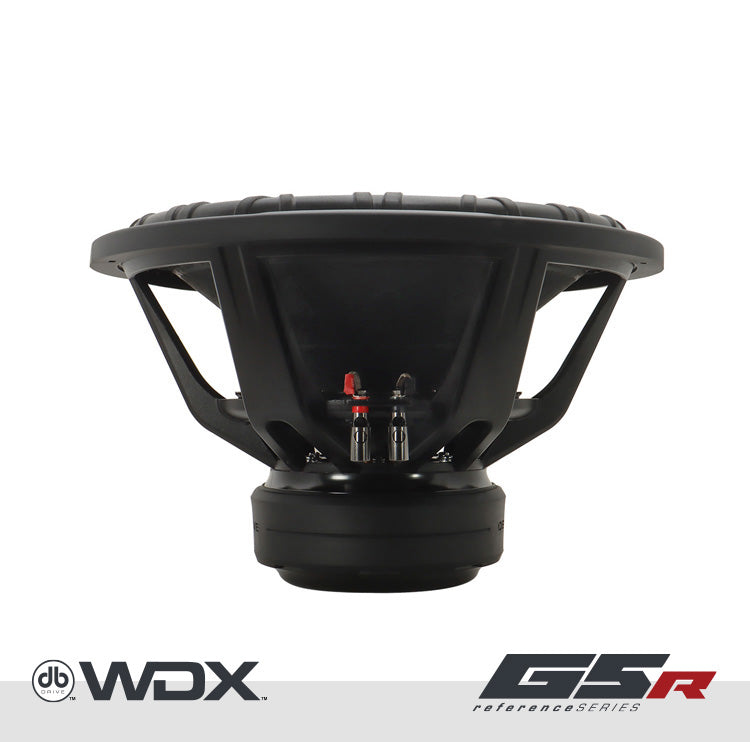

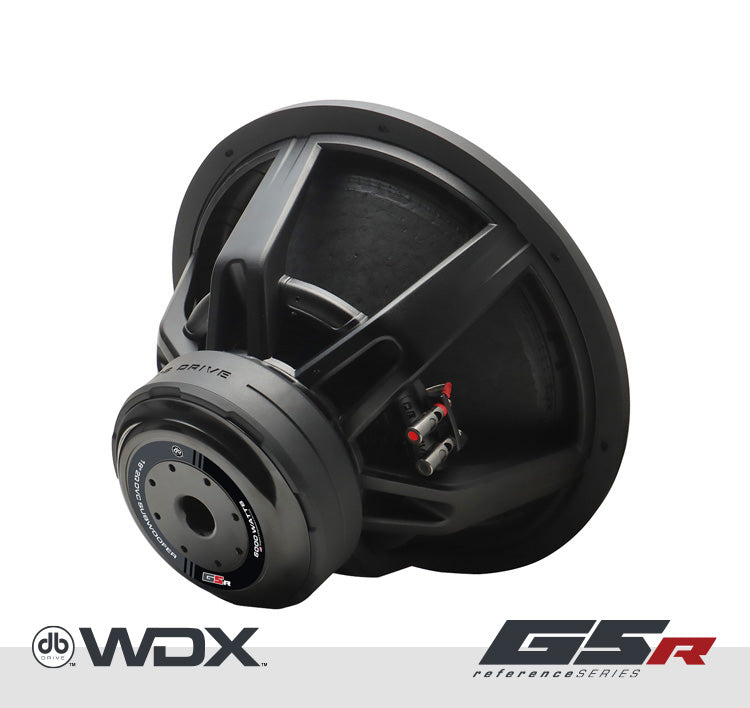

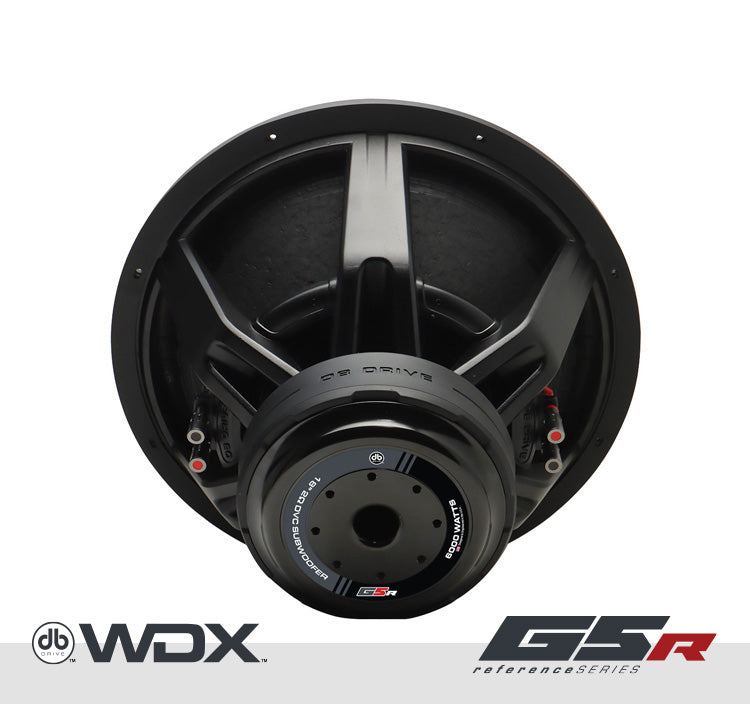

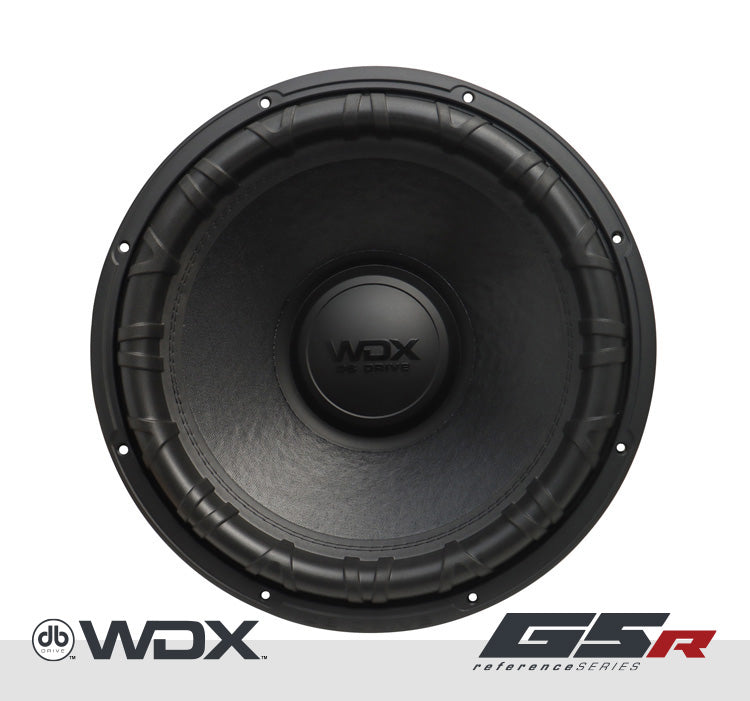

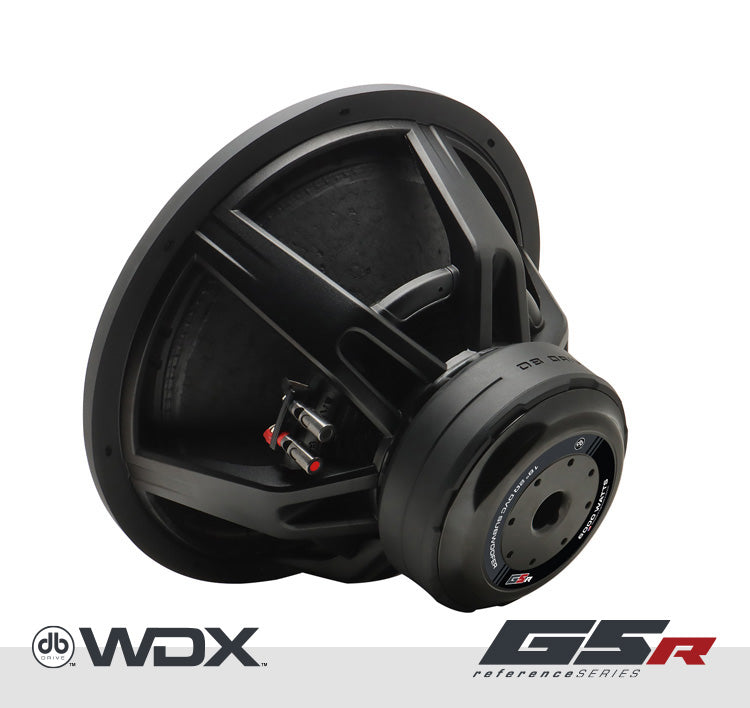

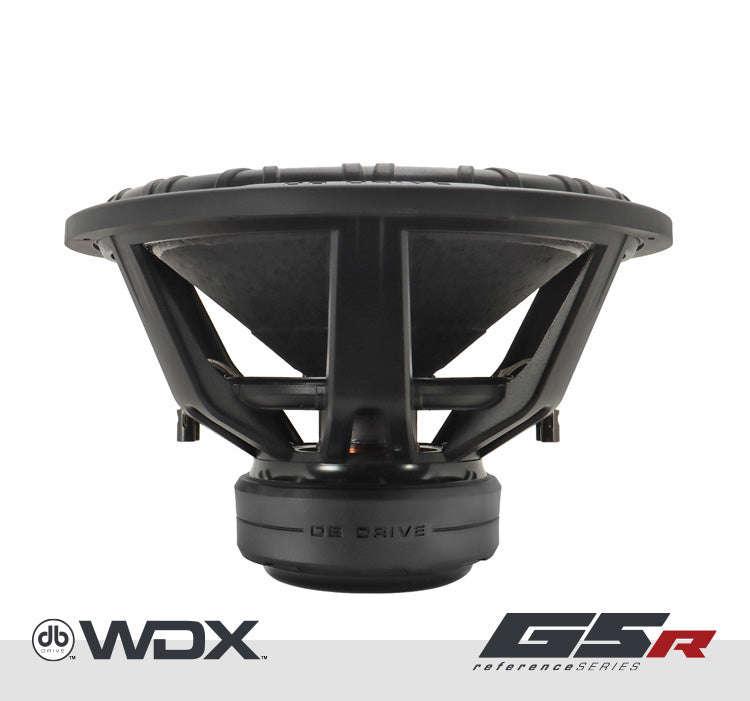

DB Drive WDX18G5R.2 : 18 in. Dual 2-Ohm Subwoofer

Features

• 3″ 4 layers Anodized aluminum high-temperature voice coil

• Non-pressed paper cone

• Double-stitched reinforced foam surround

• Dual poly-cotton dampeners

• Die-cast aluminum vented basket

• Rubber gasket trim ring

• Large gauge compression terminals

• Protective magnet cover

Specifications

• Dynamic Power Handling: 6000 Watts

• Nominal Power Handling: 3000 Watts

• Impedance: Dual 2Ω Voice Coil

• Resonant Frequency (fs): 27.38Hz

• D.C. Voice Coil Resistance (Re): 2 x 2Ω

• Mechanical Quality Factor (Qms): 3.68

• Electrical Quality Factor (Qes): 0.77

• Total Quality Factor (Qts): 0.64

• Equivalent Air Volume (Vas): 99.45 L

• Mechanical Compliance of Suspension (CMS): 49.075 mm/N

• Mass of Diaphragm/Coil (Mms): 688.56 g

• Force Factor (BL): 24.82

• Sound Pressure Level (SPL): 86.1 dB


Description

Designed for true bass enthusiasts, the WDX18G5R.2 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 6000 watts dynamic (3000 watts nominal) The WDX18G5R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?

Product Manual

Product Manual PDF
