DB Drive | SKU:
811536036469

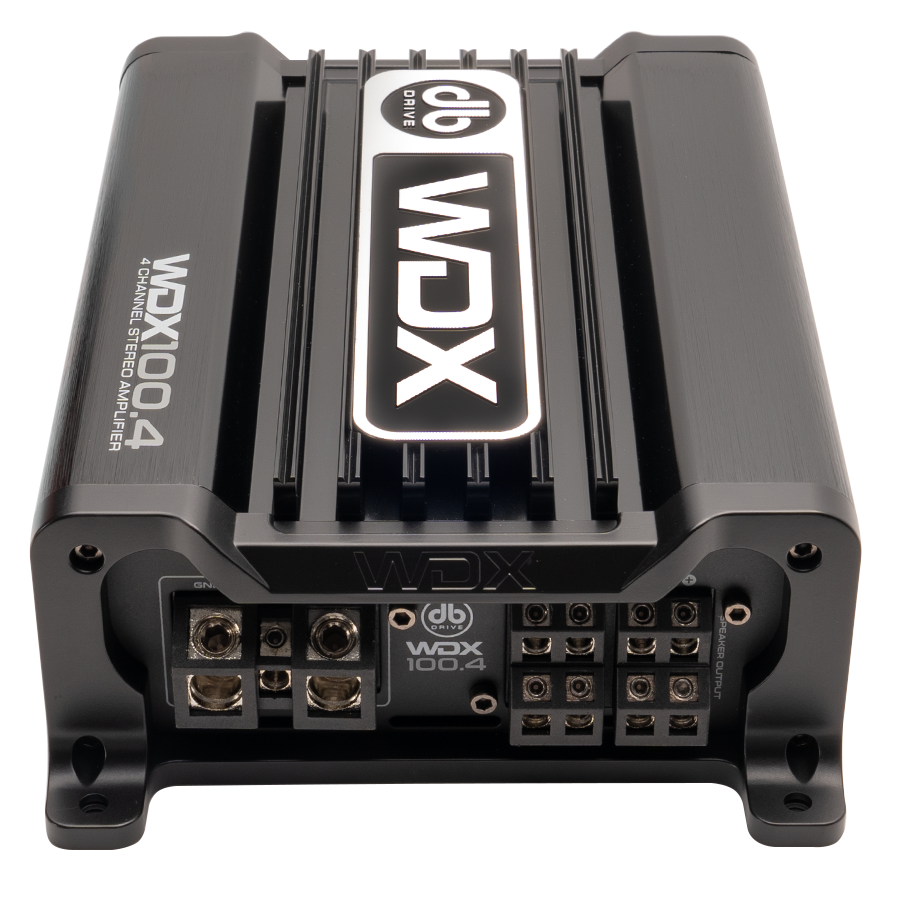

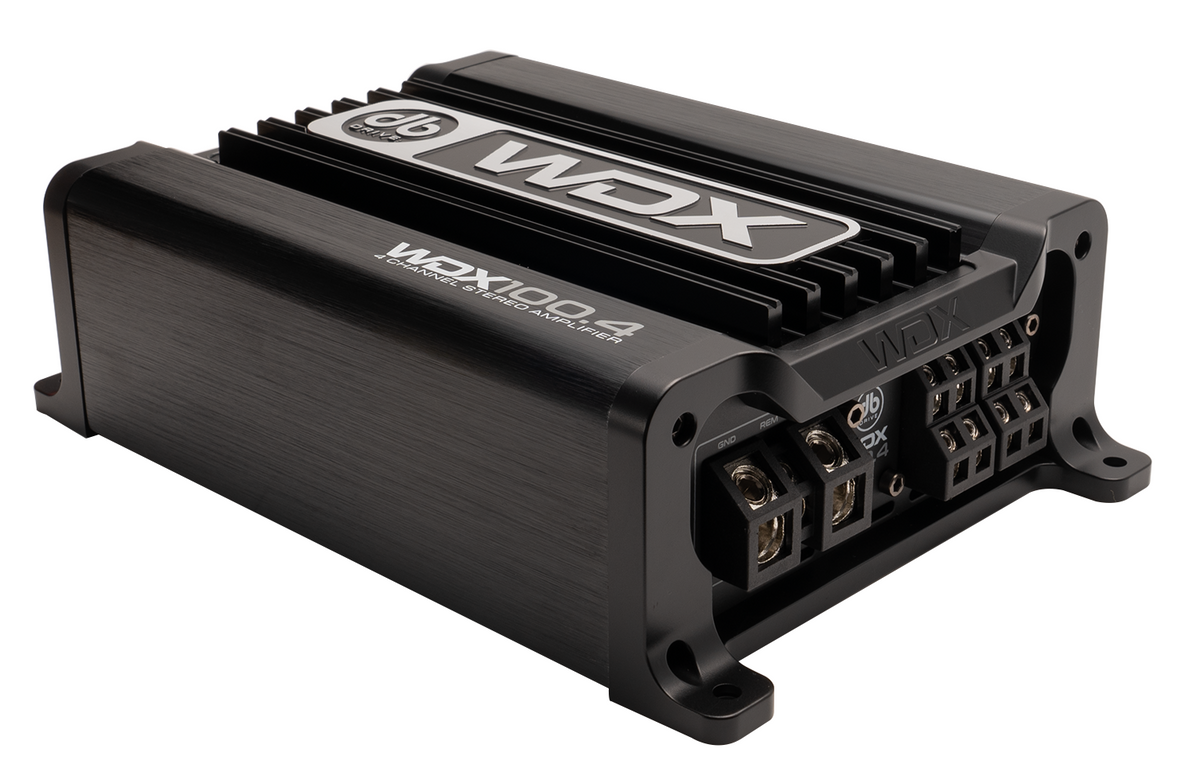

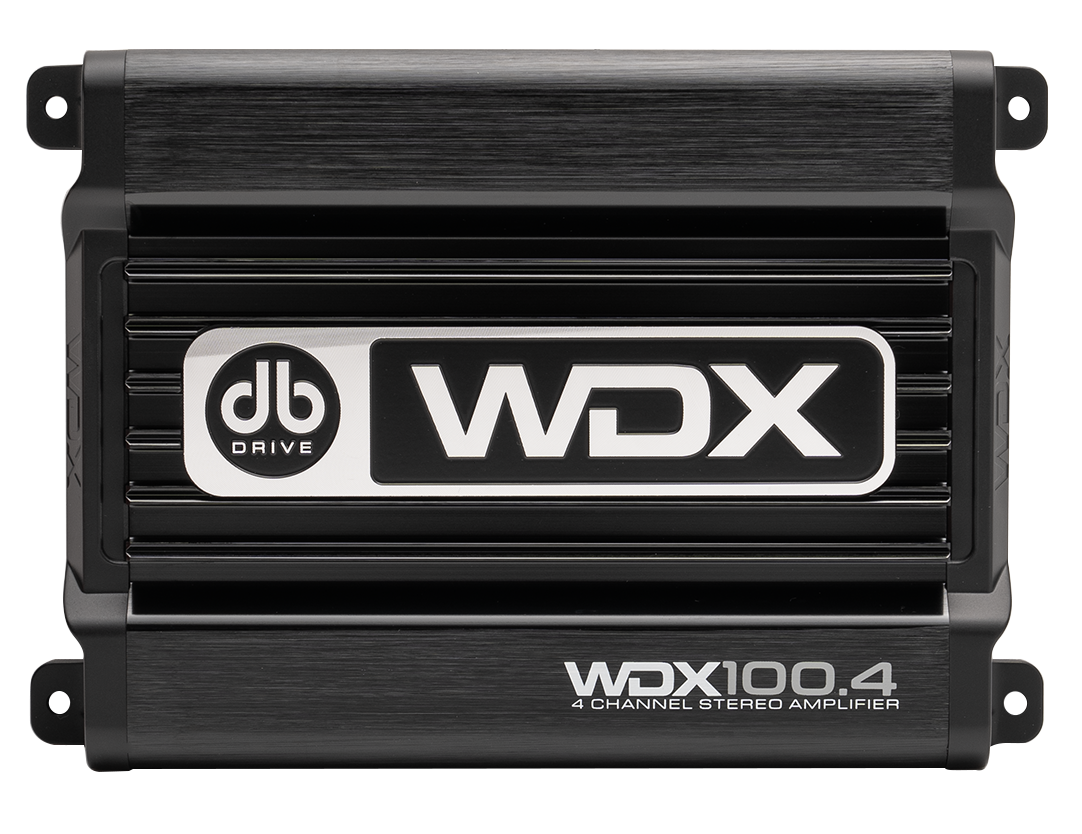

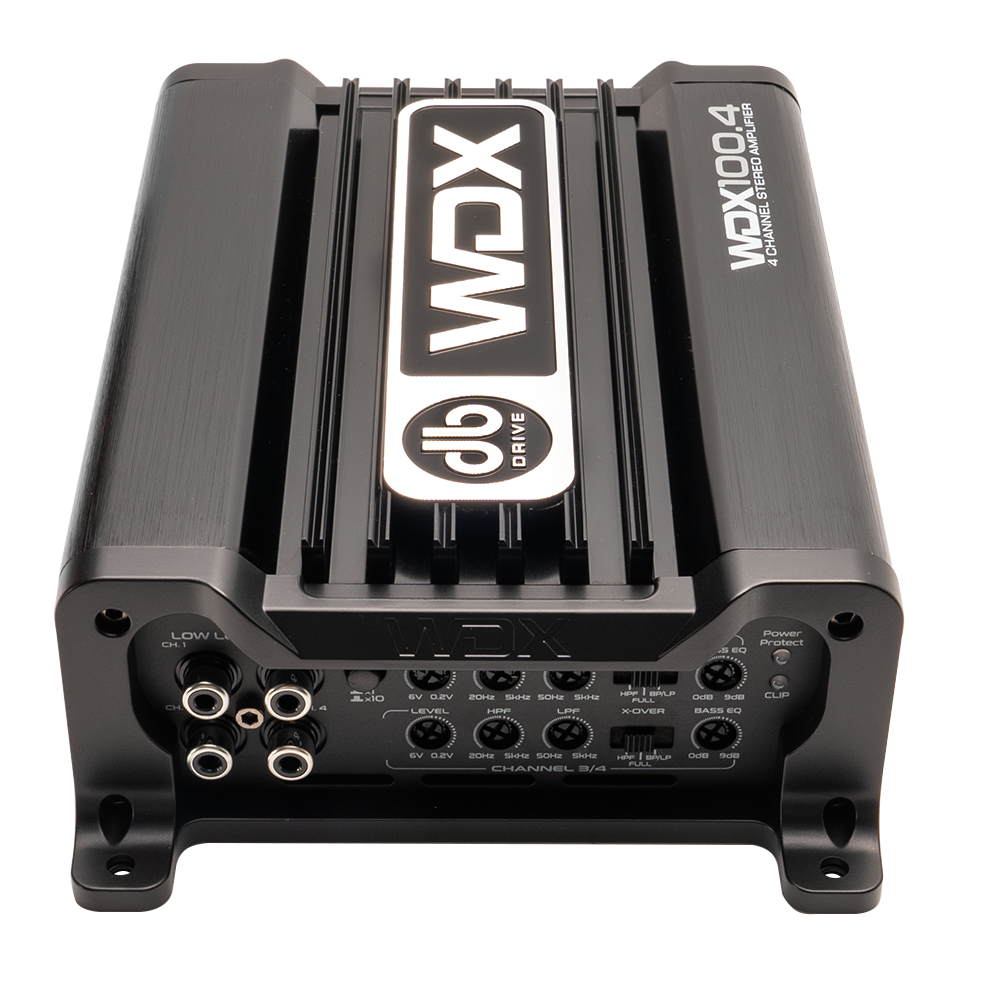

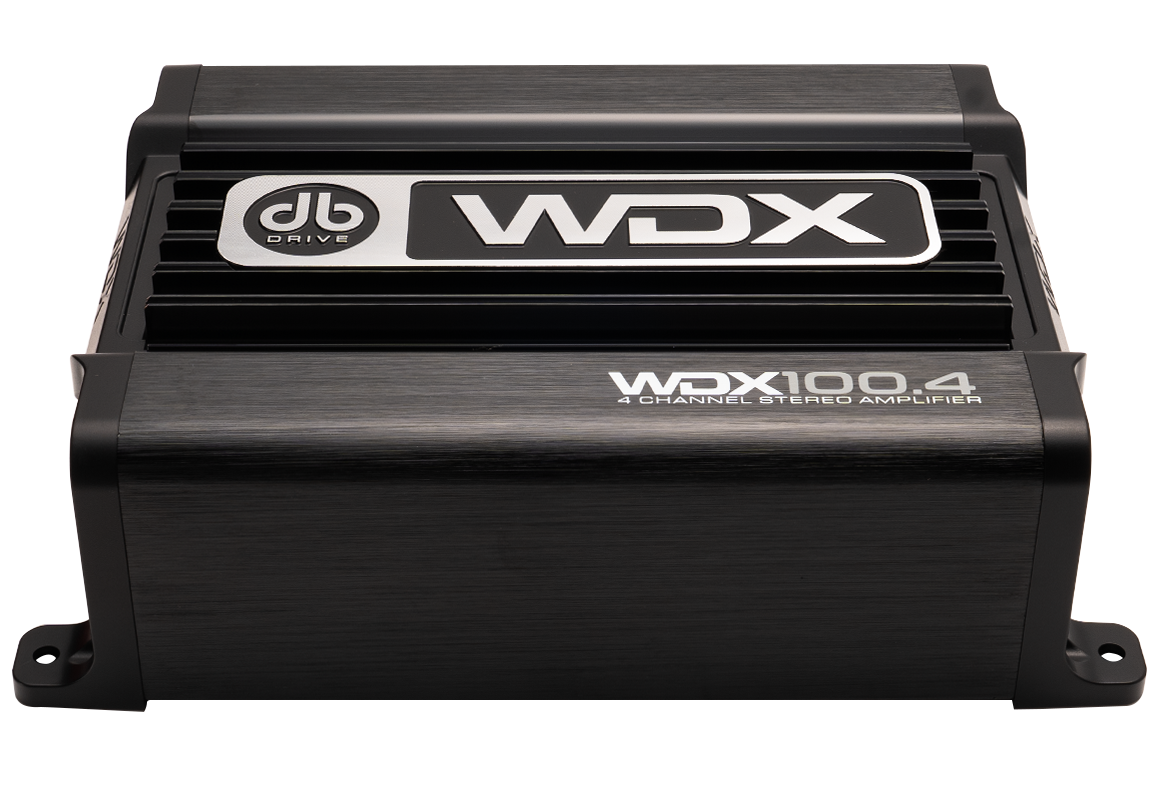

DB Drive WDX100.4 : 4-Channel Class D Amplifier
$229.98
Unit price
/
Unavailable
Shipping calculated at checkout.
DB Drive WDX100.4 : 4-Channel Class D Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description
Features
- CLASS “D” CIRCUITRY

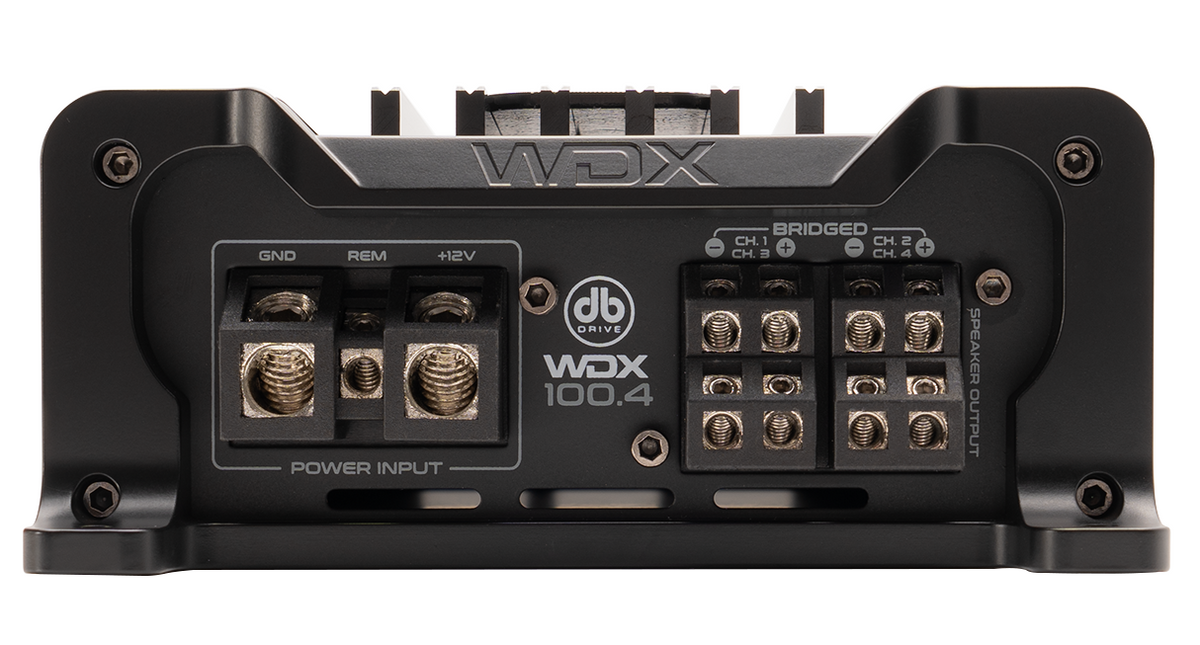

- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Input
- CHM- Collective Heat Management
- ACT – Adaptive Crossover Technology
- SESI – Signal Evaluation Status Indicator
- APC – Audio Protection Circuit
Specifications
|
Rated Power @14.4 Volts |
|
|---|---|
| 4 x 100 Watts @ 4Ω | |
| 4 x 150 Watts @ 2Ω | |
| 2 x 150 Watts @ 4Ω Bridged |
Parameters
| Frequency Response | 20Hz ~ 22KHz |
| S/N Ratio | < 105 dB |
| Low Level Input | 6V - 0.2V |

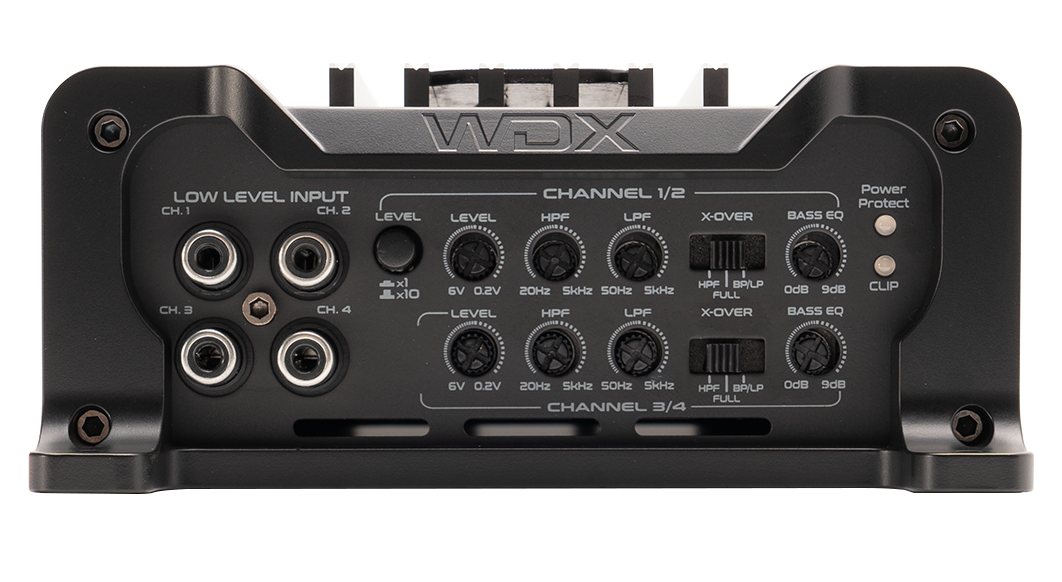

| Independent Selectable X-Over F/R | HPF / LPF / BP / FULL |
| Variable High Pass Filter (@ 12dB Slope) | 20Hz ~ 5Kz |
| Variable Low Pass Filter (@ 12dB Slope) | 50Hz ~ 5Khz |
| Bass Equalizer | 0dB - 9dB |
| Working Voltage | 12 - 15 Volts |
Description
Amplify Your World with the DB Drive WDX100.4!
Experience the ultimate sound performance with the DB Drive WDX100.4 4 Channel Class D Stereo Amplifier. Engineered with Direct Connect Speaker Terminals and a 4 Gauge Power Wire Input, this amplifier ensures seamless connectivity and powerful output. Its Adaptive Crossover Technology and Audio Protection Circuit guarantee precise sound quality and safeguard your audio equipment from damage. With the capability to operate at 2Ω Stereo or 4Ω Bridged, and delivering a formidable 4 x 150W power at 14.4 volts, the WDX100.4 is designed to meet the needs of any audiophile. Elevate your audio experience with the DB Drive WDX MINI AMPLIFIERS series and let every beat resonate with clarity and power.
Experience the ultimate sound performance with the DB Drive WDX100.4 4 Channel Class D Stereo Amplifier. Engineered with Direct Connect Speaker Terminals and a 4 Gauge Power Wire Input, this amplifier ensures seamless connectivity and powerful output. Its Adaptive Crossover Technology and Audio Protection Circuit guarantee precise sound quality and safeguard your audio equipment from damage. With the capability to operate at 2Ω Stereo or 4Ω Bridged, and delivering a formidable 4 x 150W power at 14.4 volts, the WDX100.4 is designed to meet the needs of any audiophile. Elevate your audio experience with the DB Drive WDX MINI AMPLIFIERS series and let every beat resonate with clarity and power.
Product Manual
Product Manual PDF
