DB Drive | SKU:
810180460972

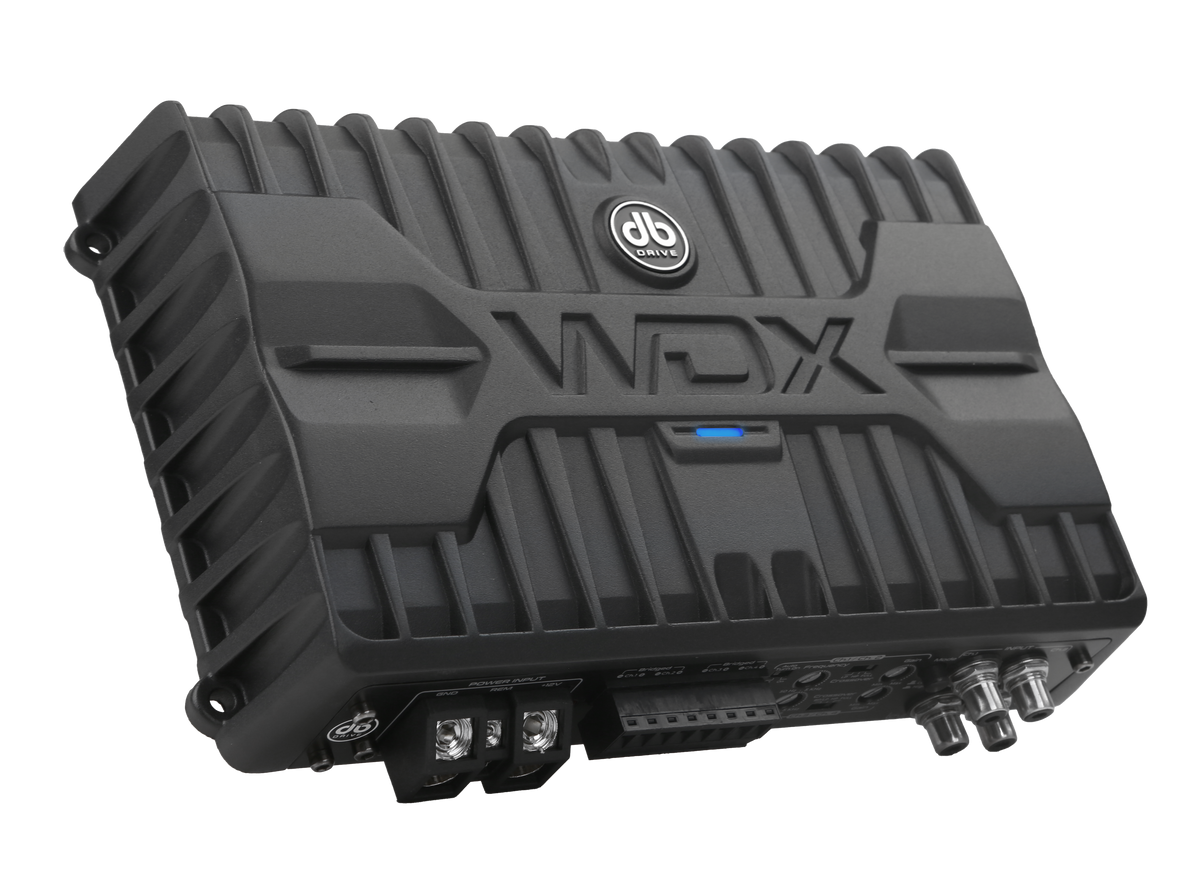

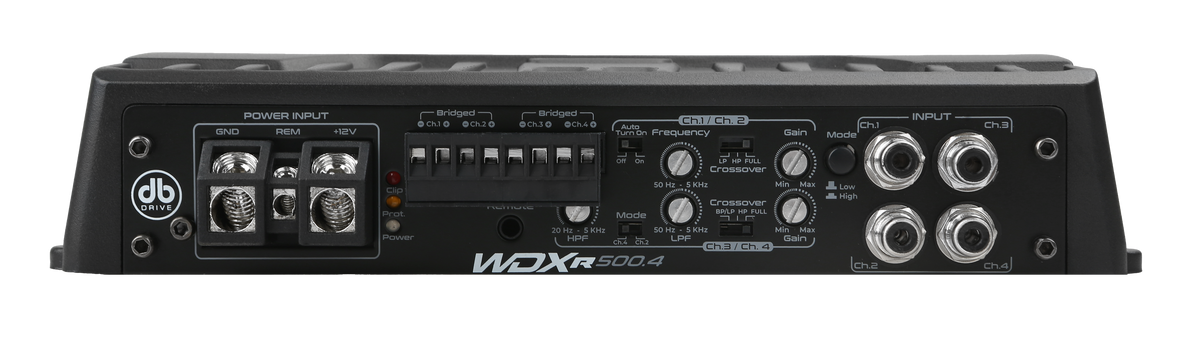

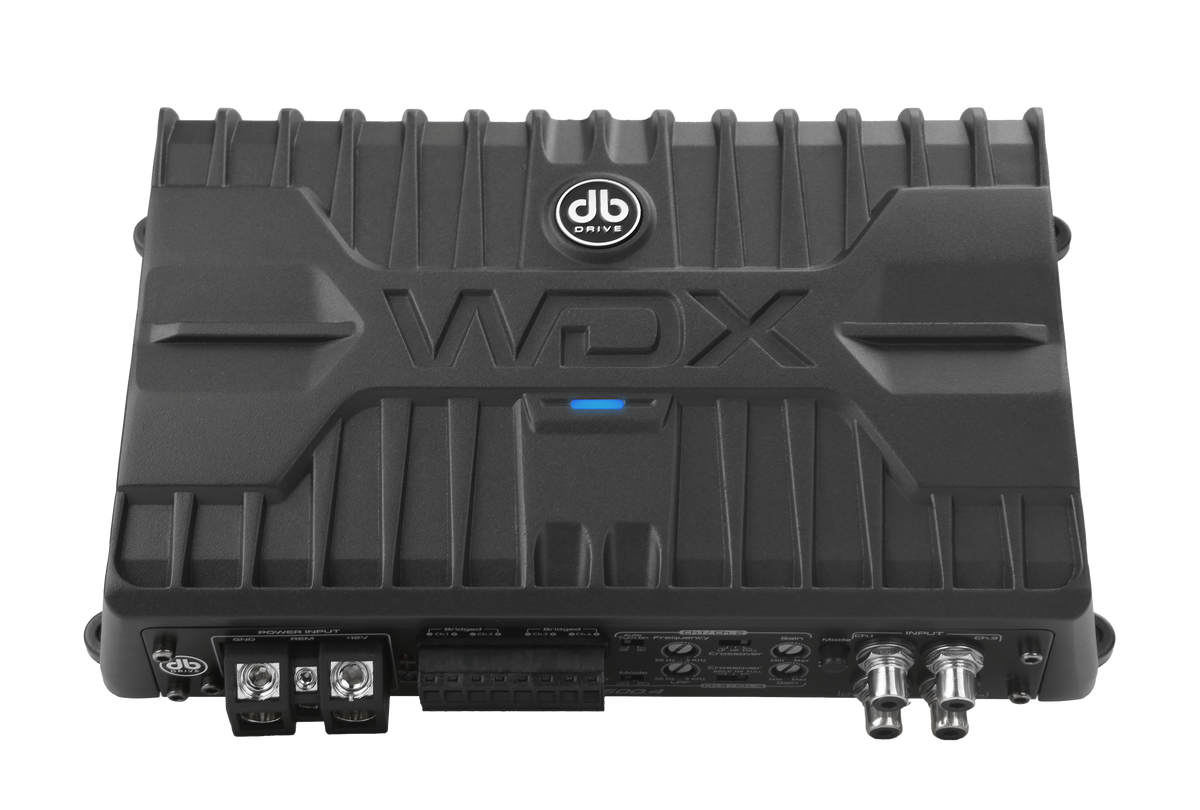

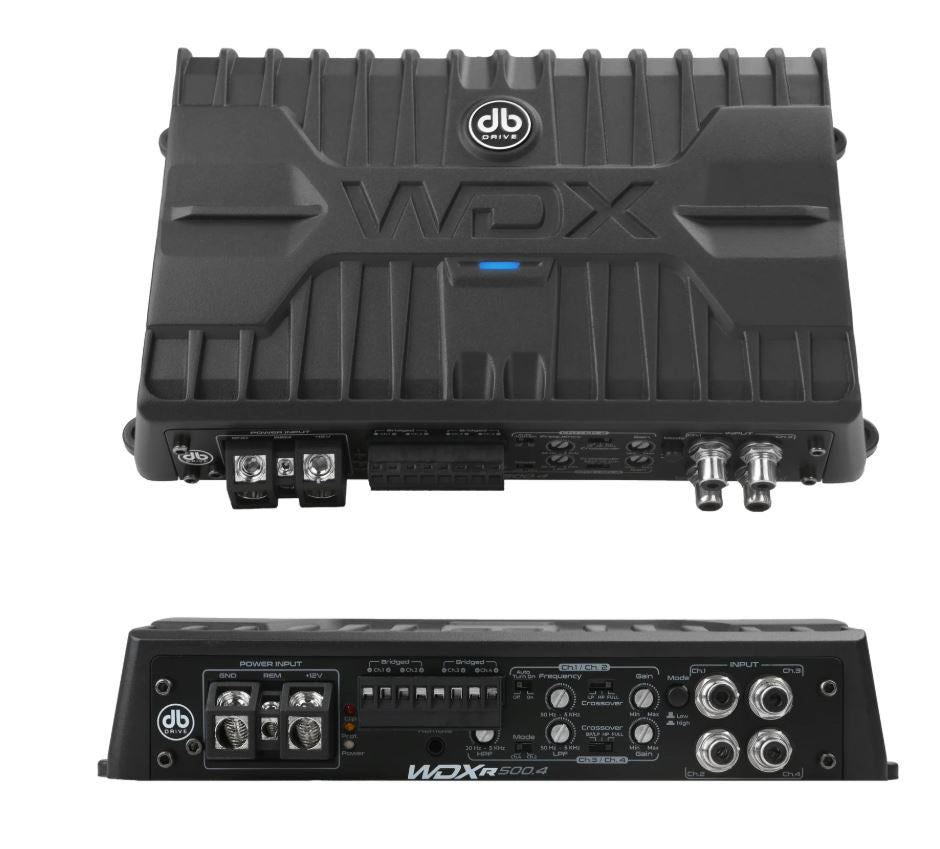

DB Drive WDX-R500.4 : WDX Reference Class-D 4 Channel Amplifier
$269.98
Unit price
/
Unavailable
Shipping calculated at checkout.
DB Drive WDX-R500.4 : WDX Reference Class-D 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
DB Drive WDX-R500.4 : WDX Reference Class-D 4 Channel Amplifier
$269.98
Unit price
/
Unavailable
Description
Description
Features
- Class D Technology
- Direct Connect Speaker Terminals
- Large Gauge Power Wire Inputs
- Selectable Low Level RCA Input Range
- ACT- Adaptive Crossover Technology
- PWM Mosfet Regulated Power Supply
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status indicator
- CHM - Collective Heat Management
- 2Ω stereo / 4Ω Bridged capability
Specifications
| Rated Power: 4 x 125 Watts @ 4Ω |
| Rated Power: 4 x 200 Watts @ 2Ω |
| Rated power: 2 x 420 Watts @ 4Ω (bridged) |
| Ch 1-2 High Pass Crossover: 50Hz- 5kHz |
| Ch 1-2 Low Pass Crossover: 50Hz- 5kHz |
| Ch 3-4High pass Crossover:20Hz- 5kHz |
| Ch 3-4Low pass Crossover: 50Hz- 5kHz |
| Crossover Slope @ 12 dB |
| Input Sensitivity: .425Mv -8.5V |
| Signal to Noise ratio :>90dB |
| DIMENSIONS: |
| L - 9.24"/ 234.6 mm |
| W - 5.51"/ 140 mm |
| H - 1.88"/ 47.7 mm |
