DB Drive | SKU:
810180460996

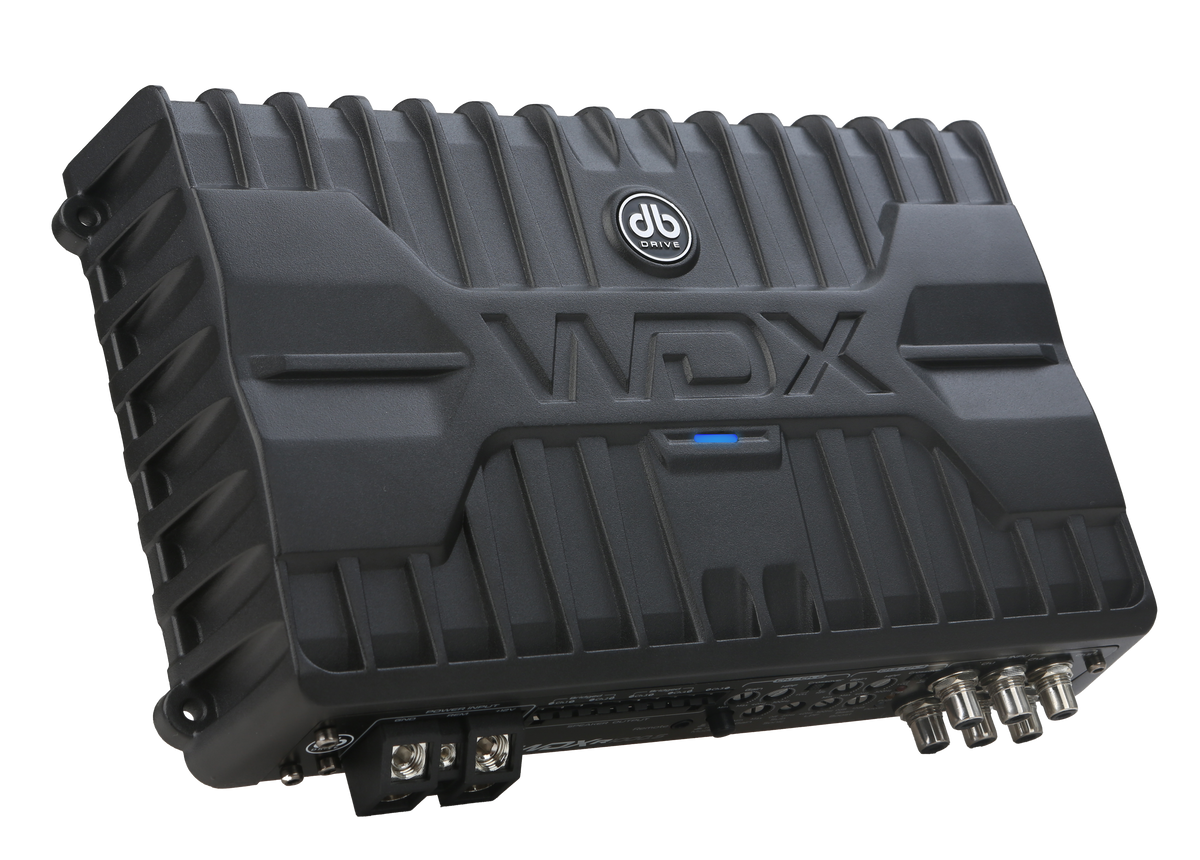

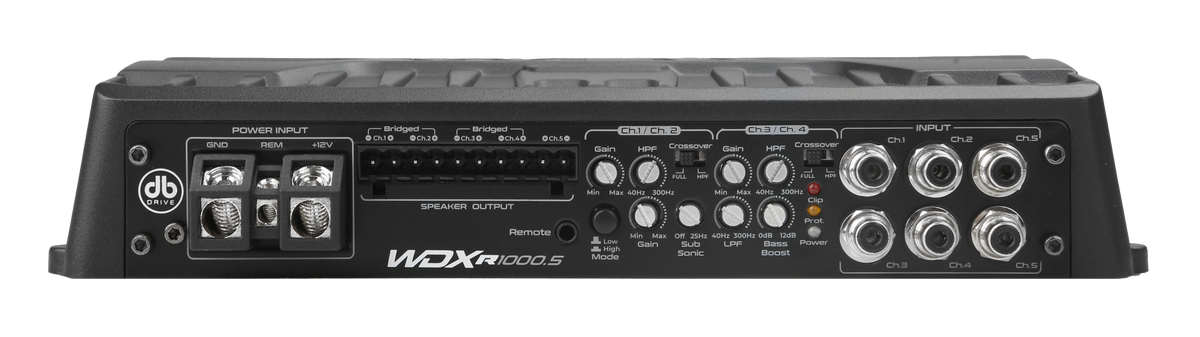

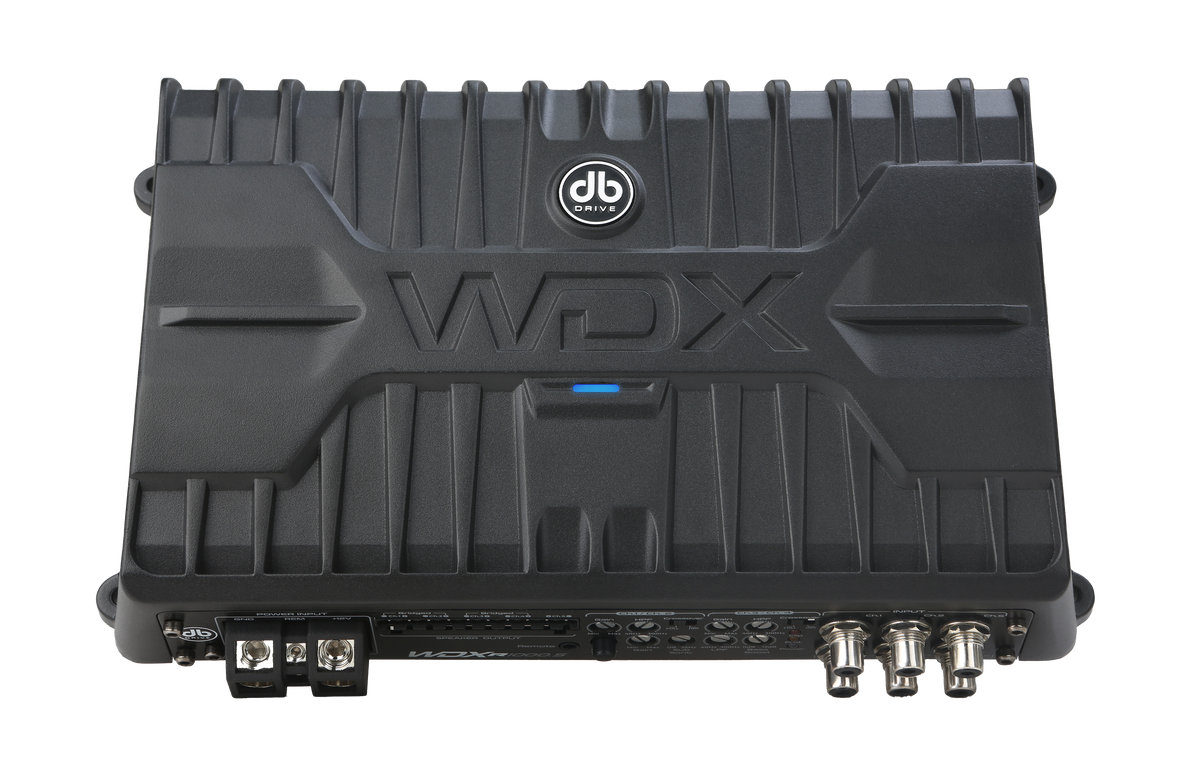

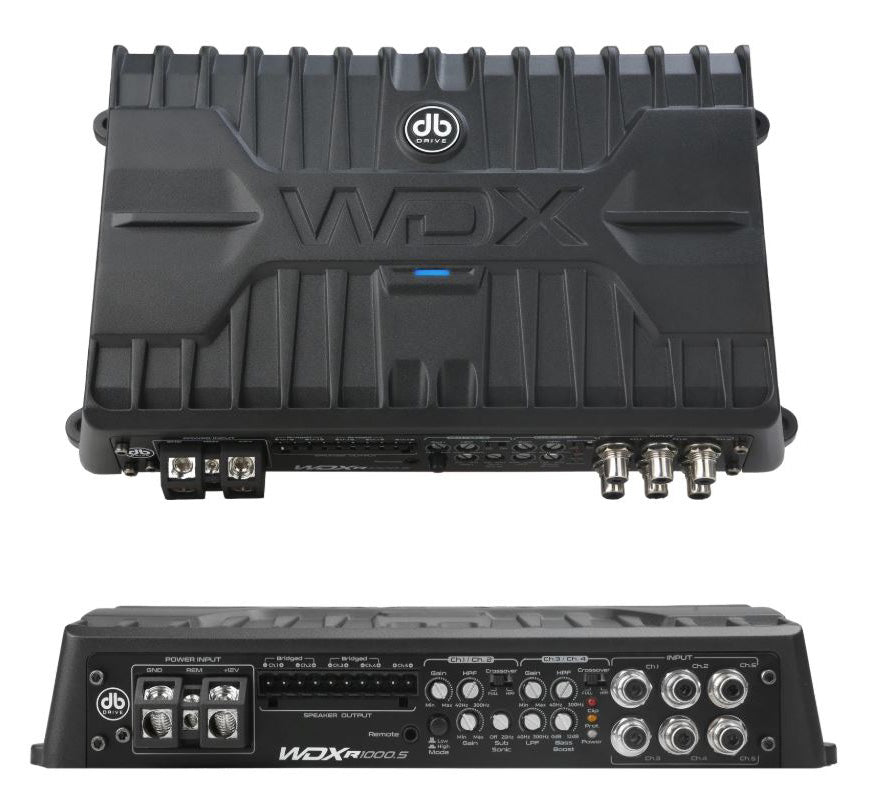

DB Drive WDX-R1000.5 : WDX Reference Class-D 5 Channel Amplifier
$449.98
Unit price
/
Unavailable
Shipping calculated at checkout.
DB Drive WDX-R1000.5 : WDX Reference Class-D 5 Channel Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
DB Drive WDX-R1000.5 : WDX Reference Class-D 5 Channel Amplifier
$449.98
Unit price
/
Unavailable
Description
Description
Features
- Class D Technology
- Direct Connect Speaker Terminals
- Large Gauge Power Wire Inputs
- Selectable Low Level RCA Input Range
- ACT- Adaptive Crossover Technology
- PWM Mosfet Regulated Power Supply
- APC - Audio Protection Circuit
- SESI - Signal Evaluation Status indicator
- CHM - Collective Heat Management
- 2Ω stereo / 4Ω Bridged capability
- Remote Bass Control Included
Specifications
| Rated Power:: 4 x 125 Watts + 250 Watts @ 4Ω |
| Rated Power: 4 x 200 Watts+ 500 watts@ 2Ω |
| Ch 1-2 High Pass Crossover: 40Hz - 300Hz |
| Ch 3-4 High Pass Crossover: 40Hz - 300Hz |
| Ch 5 Low Pass Crossover: 40Hz - 300Hz |
| Subsonic Filter: 0 - 25 Hz |
| Crossover Slope @ 12 dB |
| Bass Boost @ 45Hz : 0-12dB |
| Input Sensitivity: .425Mv -8.5V |
| Signal to Noise ratio :>98dB |
| DIMENSIONS: |
| L - 10.26"/ 260.7 mm |
| W - 6.12"/155.5 mm |
| H - 1.97"/ 50 mm |
