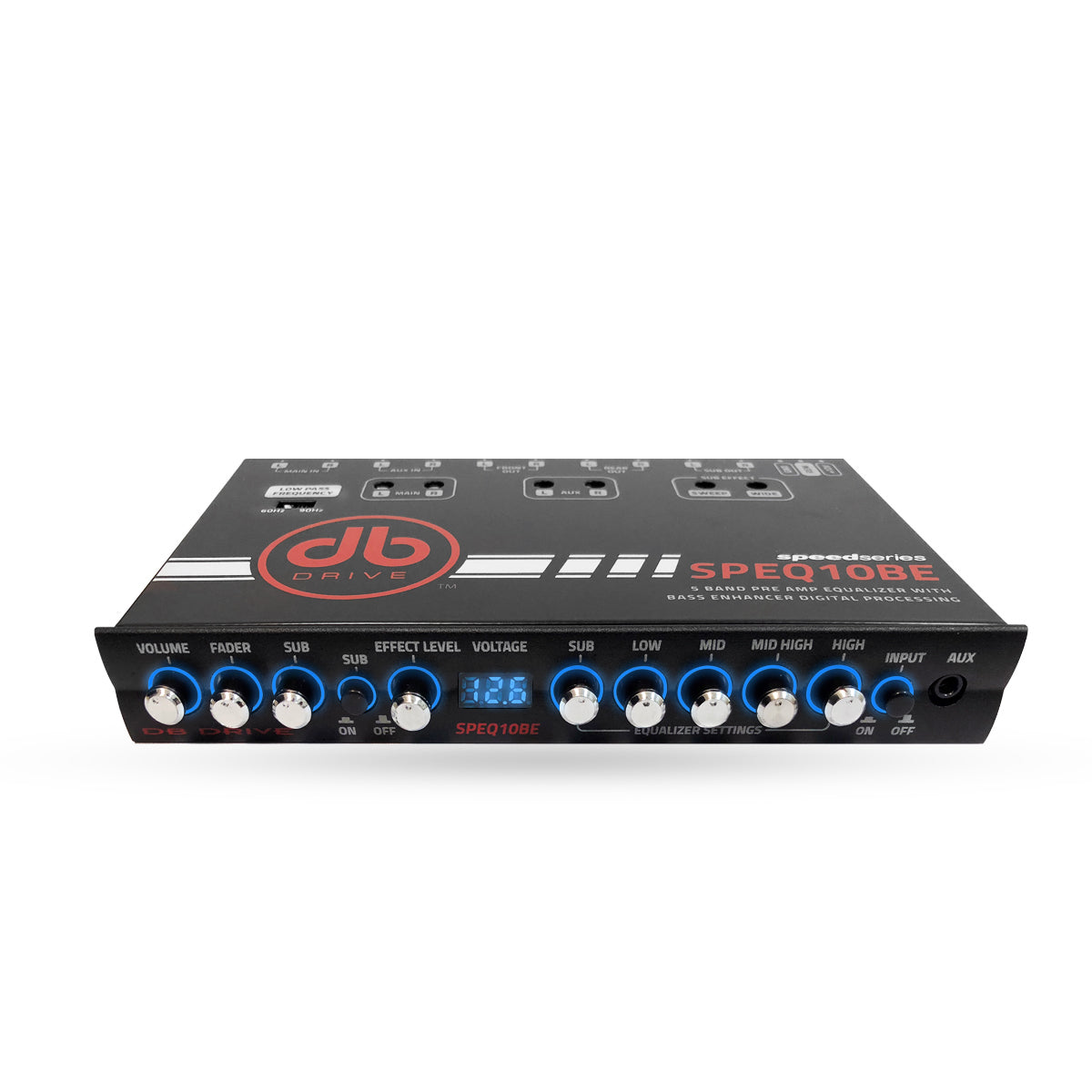

DB Drive SPEQ10BE : 5 Band Pre Amp Equalizer With Bass Enhancer Digital Processing

Features

• 5 Band Parametric Equalization
• (Sub-Low-Mid-Mid/High-High)
• Volume Gain with up to 8.5 Volts of Output
• Master Level Control
• Front and Rear Fader Control
• Subwoofer Output Level Control
• Adjustable Input Gains
• Battery Voltage Gauge
• Bass Enhancement Digital
• Processor with Level Control
• Aux RCA Rear Input
• 3.5mm Front Panel Aux Input
• Selectable 60Hz or 80Hz Low Pass
• Active Crossover
• Blue Illumination

Specifications

Size	W 7" x L 4.125" x H 1"
Boost/cut	12dB
S/N Ratio	100dB
Frequency Response	10Hz - 50KHz +/- 1dB
THD	0.005%
Input Sensitivity	58mV-3V
Head Room	20dB
Input Impedance	20KOhms
Output Impedance	2KOhms
Stereo Separation	82dB / 1KHz
Operating Voltage	11V - 15V Negative Ground

Description

"Elevate Every Note with the DB Drive SPEQ10BE Equalizer!"

Experience the ultimate in audio precision with the DB Drive SPEQ10BE: 5 Band Pre-Amp Equalizer with Bass Enhancer Digital Processing. Designed for those who demand nothing but the best from their sound systems, this equalizer offers unparalleled control over your audio experience. With its 5-band parametric equalization, you can fine-tune every frequency to perfection, from sub-lows to highs. The volume gain with up to 8.5 volts of output ensures your music hits hard and clear, while the master level control and front and rear fader control give you total command over your sound. The subwoofer output level control and adjustable input gains let you customize your bass for that perfect thump. Plus, with a built-in battery voltage gauge, you'll always know your system's status. The SPEQ10BE also features a bass enhancement digital processor with level control, aux RCA rear input, and a 3.5mm front panel aux input for ultimate connectivity. The selectable 60Hz or 80Hz low pass active crossover and blue illumination add the finishing touches to this powerhouse device. Elevate your audio experience to new heights with the DB Drive SPEQ10BE Equalizer!
