Rockford Fosgate 1000 W Compact Mono Class BD Element Ready Amplifier M5-1000X1
Rockford Fosgate 1000 W Compact Mono Class BD Element Ready Amplifier M5-1000X1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description
Rockford Fosgate 1000 W Compact Mono Class BD Element Ready Amplifier M5-1000X1
This new Rockford Fosgate 1000-Watt, ultra-compact M5-1000X1 mono amplifier features the next level of Element Ready design and performance from Rockford and it is built as rugged as the outdoor environment it's used in. The IPX6 rated M5 amplifiers provide superior protection and are built to stand up to all the elements including water, dust, mud, and UV rays. Rockford Fosgate is proving - once again - these M5 amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.

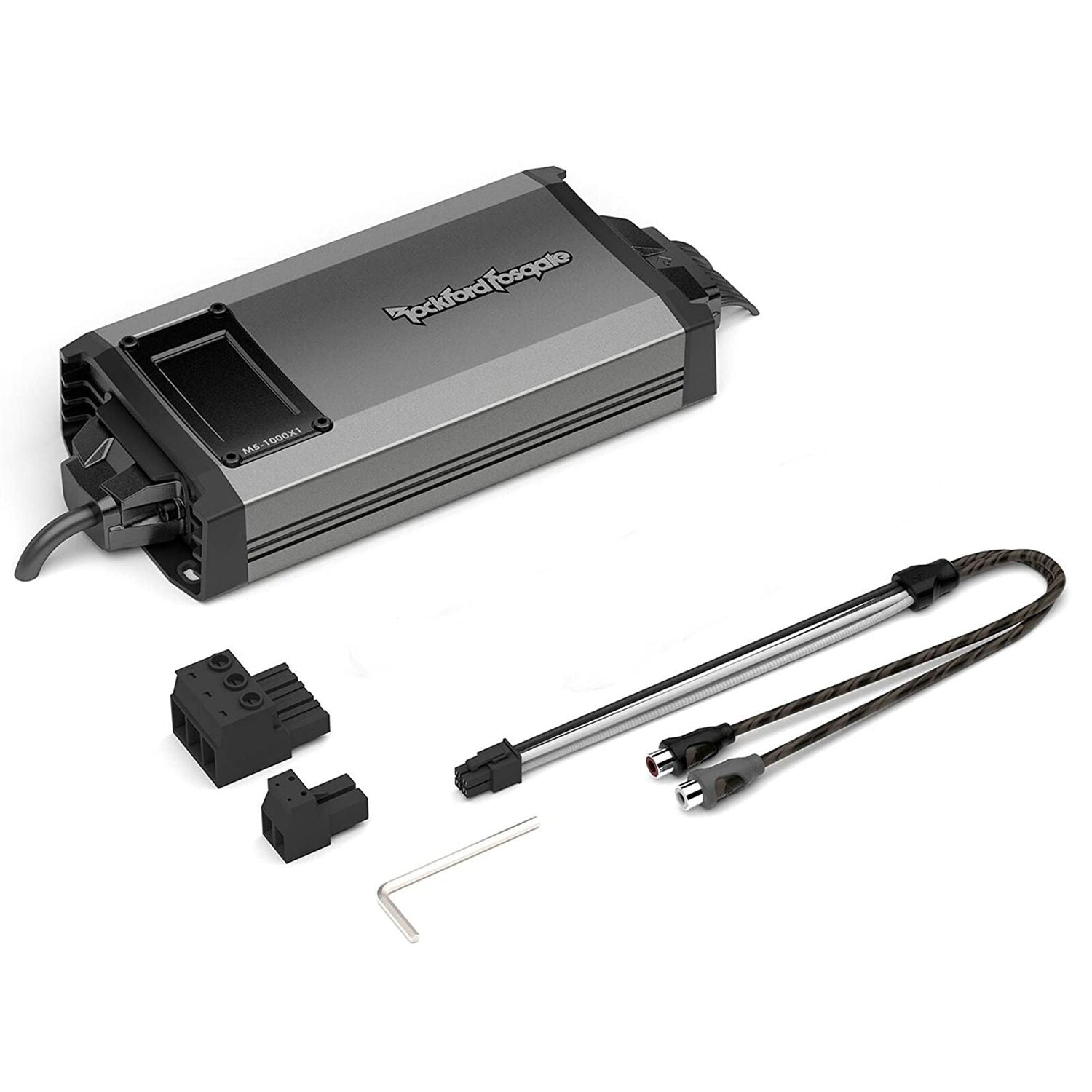

This Listing Includes:
(1) Rockford Fosgate M5-1000X1 Amplifier

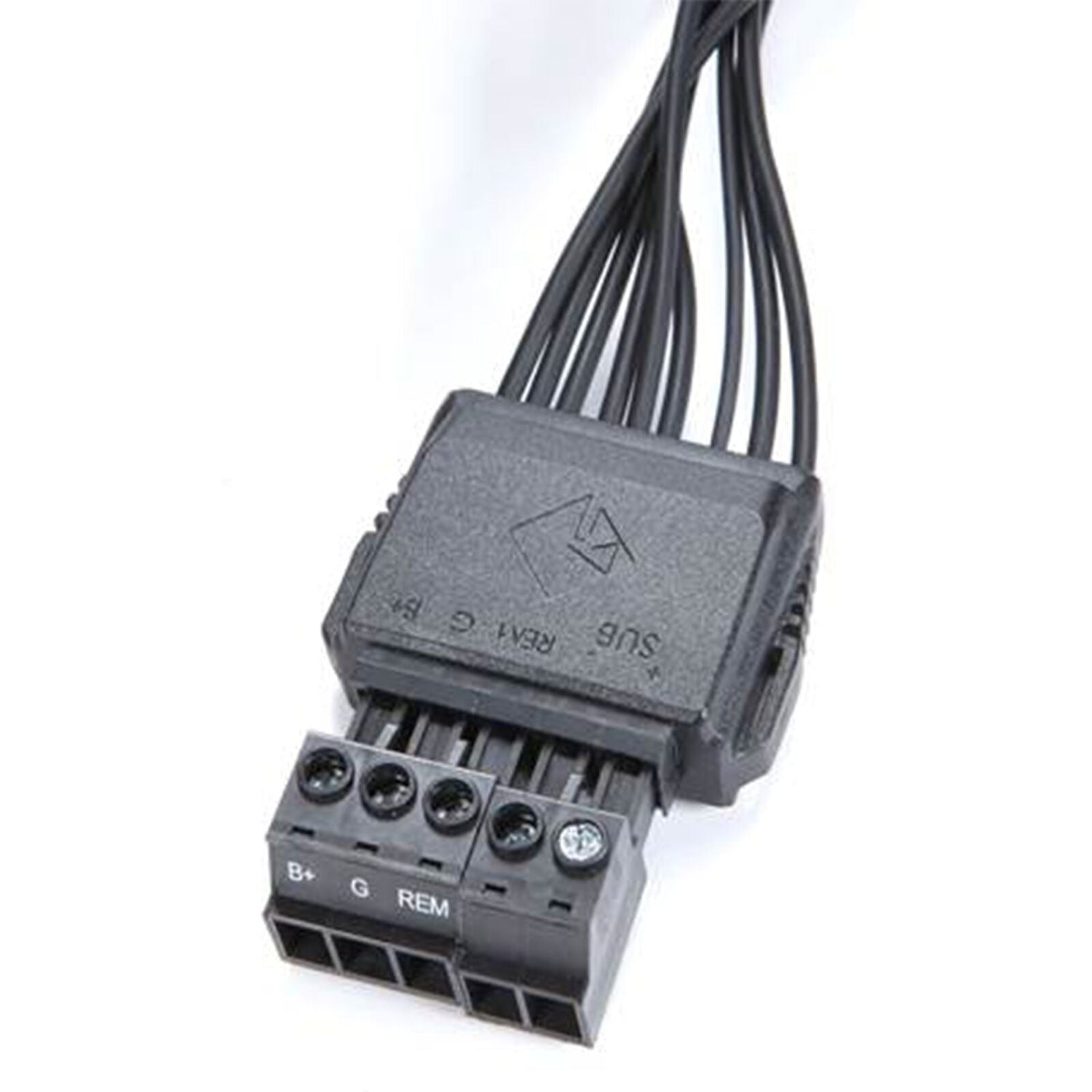

(1) Power/ground/turn-on plug
(1) Speaker output plug
(1) 14" Input harness (2 RCA to 4-pin Molex)
(1) 3mm Allen wrench
Features:
-IPX6 water intrusion rating
-Heavy-duty molded connectors protect wiring from water and dirt
-Element Ready design with integrated harness & panel seals
-PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
-Play all day, easy to integrate, and keep music playing for extended lengths of time
-C.L.E.A.N. input/output clip detection and indicator LEDs
-Constant Power provides instantaneous delivery of output over varying impedance loads
-Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

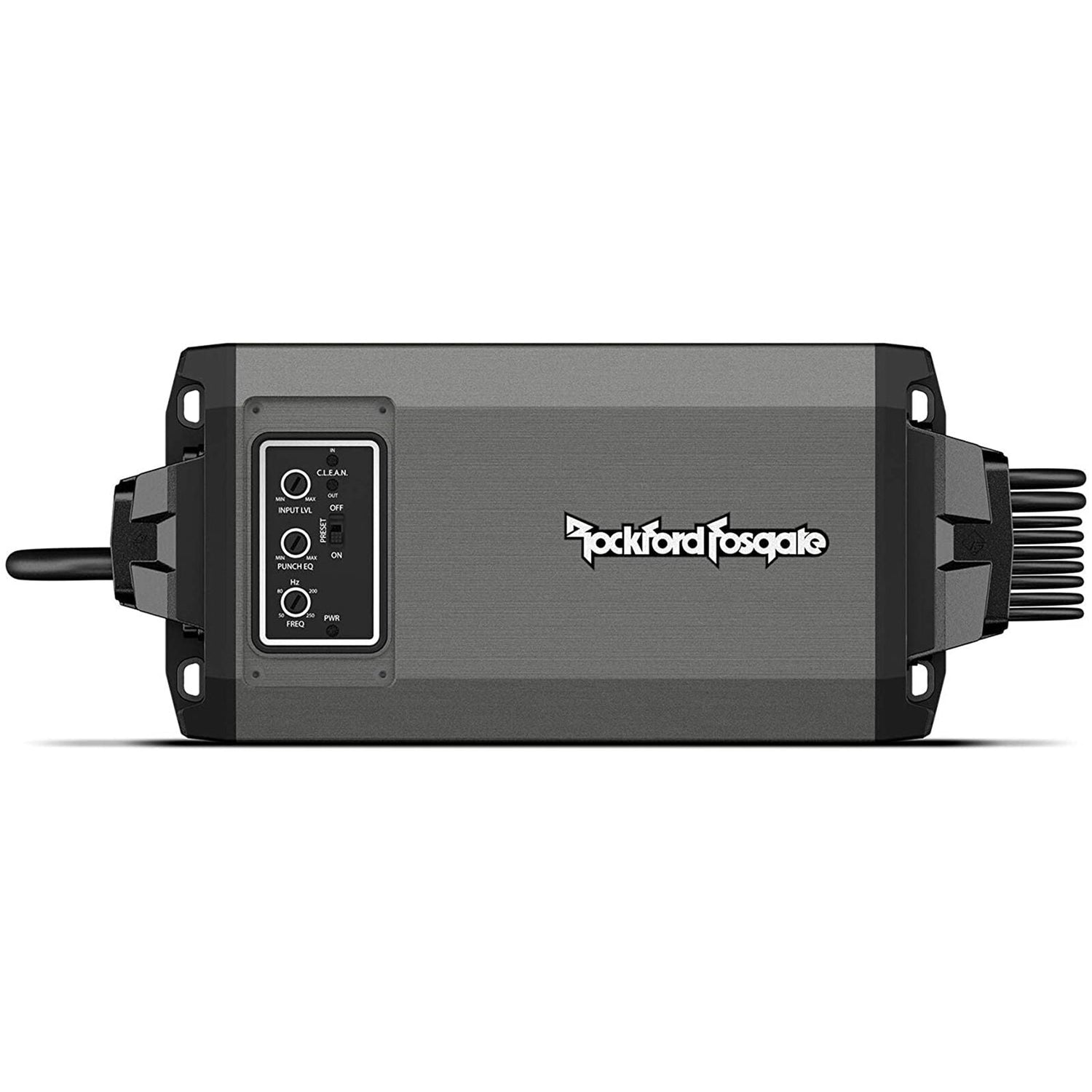

-Top mounted control panel with Element Ready smoked lens cover
-Low Impedance Stability
-Class-BD technology provides 75-80% efficiency over traditional class A/B designs
-MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
-Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
-Balanced Differential Inputs eliminates noise picked up by signal cables
Specifications:
Total Power (Sum of Rated Power):1000 Watts
Rated Power: (RMS Continuous Power)
500 Watts x 1 @ 4
750 Watts x 1 @ 2
750 Watts x 1 @ 1
less than 1.0% THD+N
Dynamic Power:
(PVC/PowerCube)
525 Watts x 1 @ 4
900 Watts x 1 @ 2
1000 Watts x 1 @ 1
Frequency Response: 30Hz - 245Hz
Input Sensitivity: 150mVrms - 12Vrms
Circuit Topology Class: Class-BD
Efficiency (average): Greater than 80%
Total Harmonic Distortion (THD+Noise): less than 0.1% THD+N @ 1 Watt
Signal Input: Low-Level: 2 RCA
High-Level: 4-Pin Molex
Tone Controls: Sub: 0-18dB @ 45Hz
Crossover Controls:Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
Infrasonic: 30 Hz @ 12dB/Octave Butterworth
Visual Indicators:
Power: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
Power Wire Gauge: 8 AWG
Power Input Connector: Compression Terminal Block
Speaker Wire Gauge:16 AWG
Speaker Output Connector:4-Pin Molex
Cooling: Convection
Heatsink: Extruded Aluminum
Operating Voltage: 9 - 16 VDC
Max. Current Draw (13.8V Sinewave)
45 A @ 4
75 A @ 2
100 A @ 1
Dimensions:
(H x W x D)1.7" x 4.25" x 8.41" (42.8 mm x 108 mm x 213 mm)
(Does not include harnesses)
