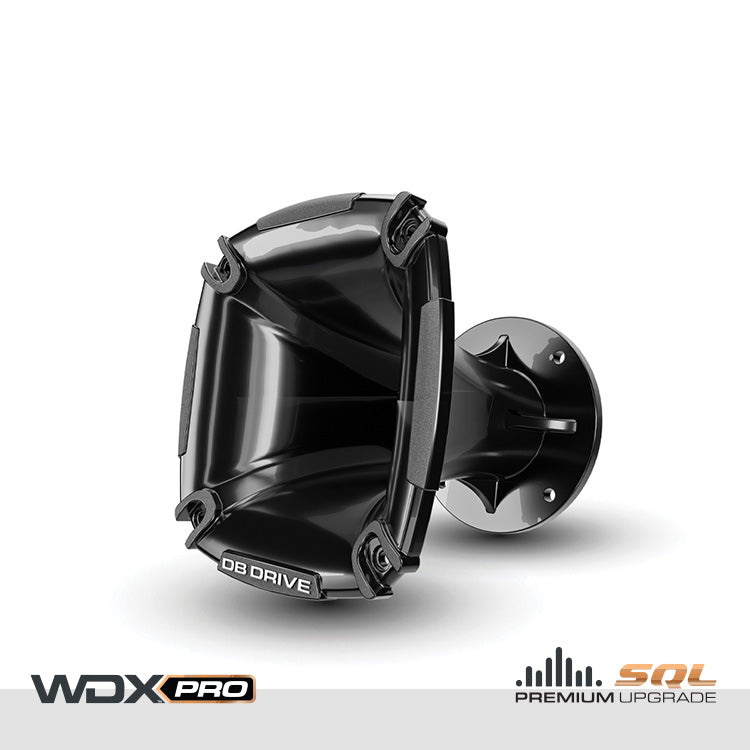

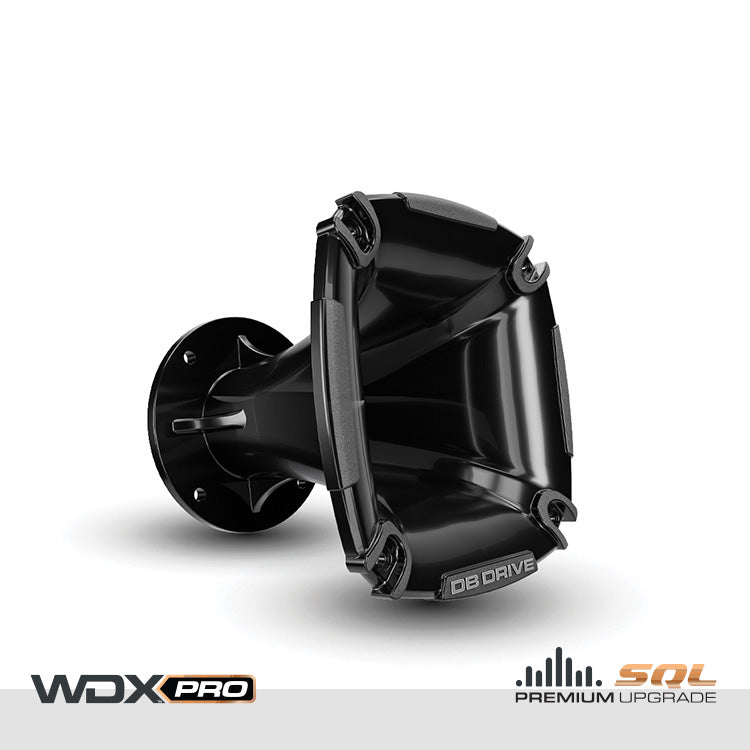

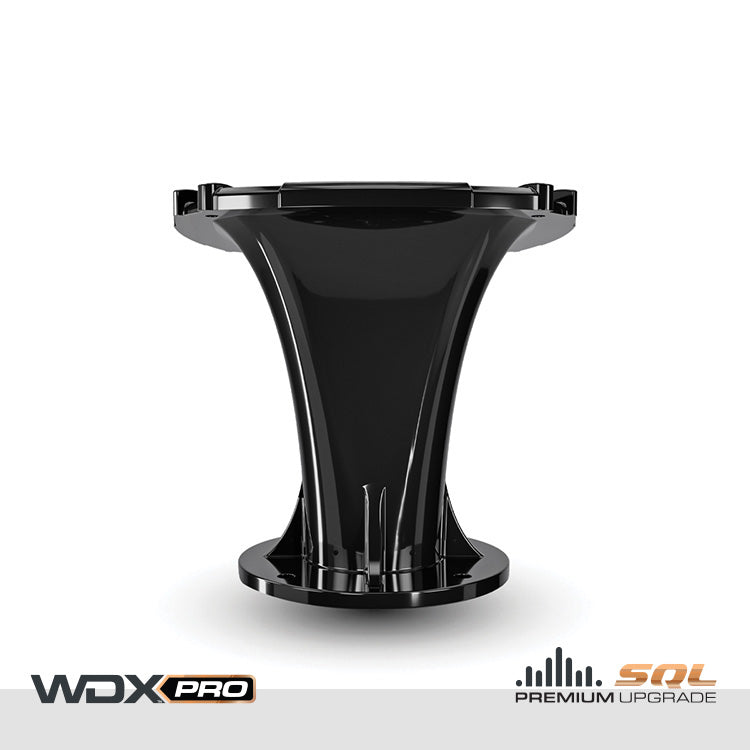

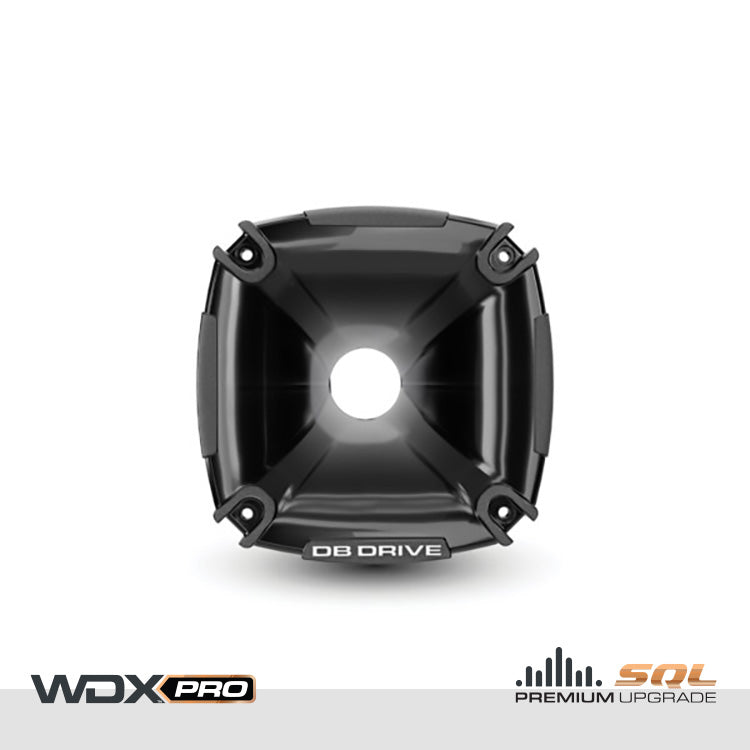

DB Drive PHT10 : 10" Waveguide Horn

Features

• Constant Directivity 10″ Conical Waveguide Horn
• Roll over wide dispersion flare design
• High output extended high-frequency range
• Heavy-duty ABS plastic construction
• 4-point mounting

Specifications

Throat Exit Diameter: 2"/ 51 mm Mounting Depth: 9.45"/ 240 mm Mounting Width: 6.97"/ 177 mm Cutout Diameter: 7.96"/ 202.26 mm

Description

DB DRIVE engineered the PHT10 waveguide horn to unlock the full potential of their compression drivers. The PHT10 horn provides precise loading for 2" exit compression drivers, extending performance down to 500 Hz while delivering an astonishingly long distance coverage pattern. Equipped with a standard 4-bolt mount, it is compatible with a wide range of popular wide-bandwidth compression drivers.
