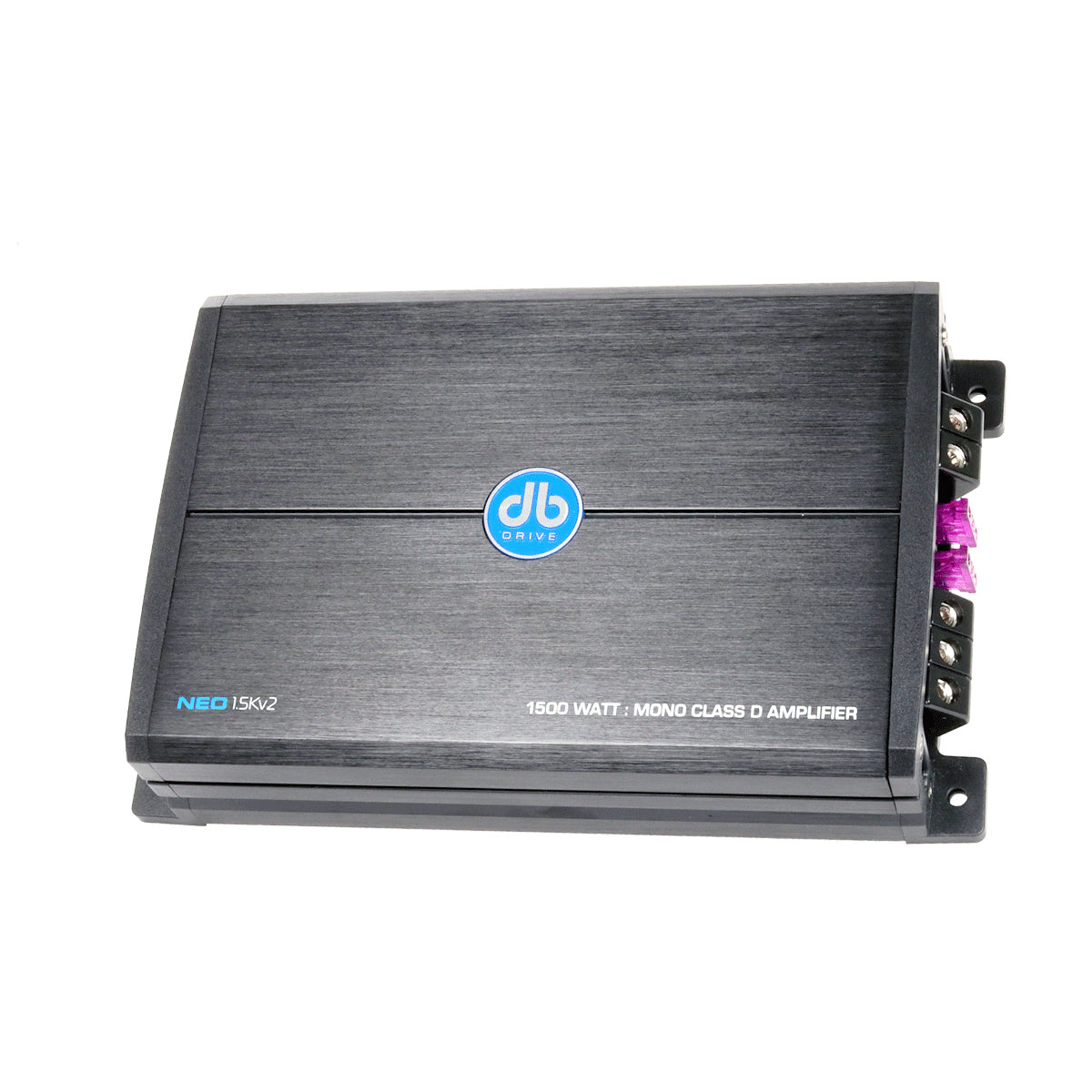

DB Drive NEO1.5KV2 : NEO Mono Class D Mini Amplifier
DB Drive NEO1.5KV2 : NEO Mono Class D Mini Amplifier is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
DB Drive NEO1.5KV2 : NEO Mono Class D Mini Amplifier
Description
Description
Features
The NEO Amplifiers include a built-in variable crossovers. The crossover features a variable frequency selection for precise low pass filtering for the NEO1.5Kv2. The NEO4v2 and NEO5v2 also feature the same frequency selection with the option or high pass or low pass filtering. For added low frequency performance the amplifiers are equipped with a selectable 6dB-12dB Bass Boost @ 45Hz.
- Mono Class D Technology
- 1Ω Mono load Capability
- Amphibious grade conformal coating on PCB
- Audiophile Grade RCA connectors
- Variable Low-pass crossover filter
- Variable Sub-sonic Filter
- Remote Dash Bass Control Included
- Double Sided Circuit tablet
- Compatible with any 1Ω Subwoofer load
Specifications
| Rated Power @14.4 Volts | |
|---|---|
| 1 x 750 Watts @ 1Ω | |
| 1 x 350 Watts @ 2Ω | |
| PARAMETERS | |
| THD (100Hz @1Ω) | 0.04% |
| Bandwidth (-3 dB) | 18Hz ~ 22KHz |
| Damping Factor (1KHz @ 4Ω) | 126 |
| S/N Ratio (as weighted @ 1 Volt) | 99db |
| Input Sensitivity | 0.20V ~ 9.0V RMS |
| Minimum Load Impedance | 1Ω |
| Input | Pre in RCA |
| Low Pass Filter Range | 30Hz ~ 150Khz |
| Sub-Sonic Filter Range | 15Hz ~ 55Hz |
| Sub-Sonic Filter Slope | 12dB |
Description
Product Manual
Product Manual PDF
