MMATS PRO AUDIO

MMATS LSX4000.1

MMATS LSX4000.1

Regular price $799.00 USD
Regular price Sale price $799.00 USD
Sale Sold out
Shipping calculated at checkout.

TECHNICAL SPECIFICATIONS
LSX4000.1D

Power @ 4Ω:
Power @ 2Ω:
Power @ 1Ω:
Operating Voltage:
Rated Power:
Current Draw (Music):
Current Draw (Max):
Recommended Fuse:
Efficiency @ Full Power:
Damping Factor:
Frequency Response (-3dB):
SNR:
THD + N:

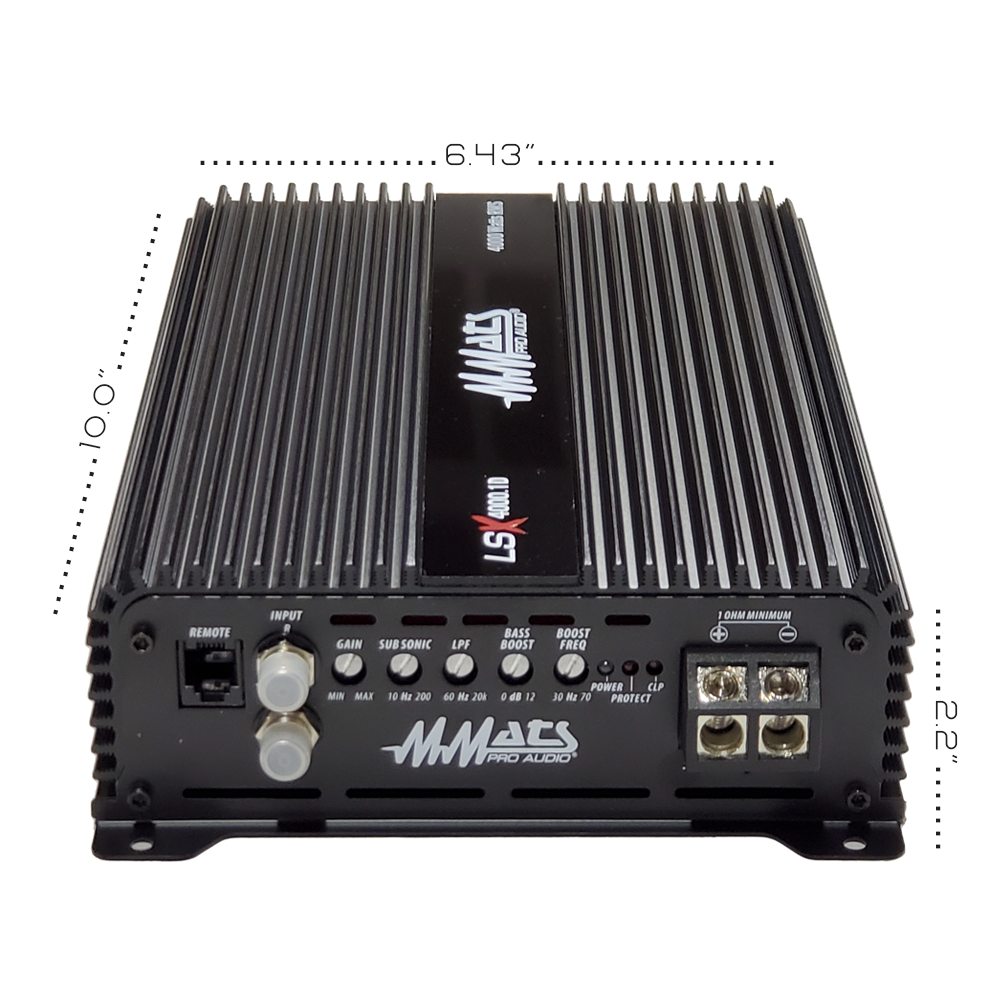

Product Dimensions:
1 x 1670 WRMS
1 x 2680 WRMS
1 x 4350 WRMS
8V – 16V
13.8V
175 A
375 A
200 A
82% @ 1-ohm Resistive
>1000
10Hz – 22Khz
96dB
0.1%
10 x 6.43 x 2.2 in

FEATURES

Gain:
Subsonic Filter:
LPF:
Bass Boost:
Variable Boost Freq:
Power, Protect, Clip
Remote Bass Knob:
ULTRA Efficient Heatsink
1-Gauge Battery Terminal
8-Gauge Speaker Terminal
Dual Cooling Fans
.2V – 10V
10Hz – 200Hz
60Hz – 20Khz
0dB – 12dB
30Hz – 70Hz
Blue – Red – Yellow
Included
Proprietary Tooling

NOTE: Power ratings have increased over the last year and this amplifier is as strong as some 5KW on the market rated at 14.4V. Pricing has remained unchanged.
