Insane Asylum Devito Rider Bags Xpert Audio Bundle

Custom made to order. Every part is built for your order, so please allow a 6–10 week lead time. Questions or custom specs? Call Audio Hoggz at 281-969-7399.

Devito Rider Bags Xpert Audio Bundle

Package Includes:

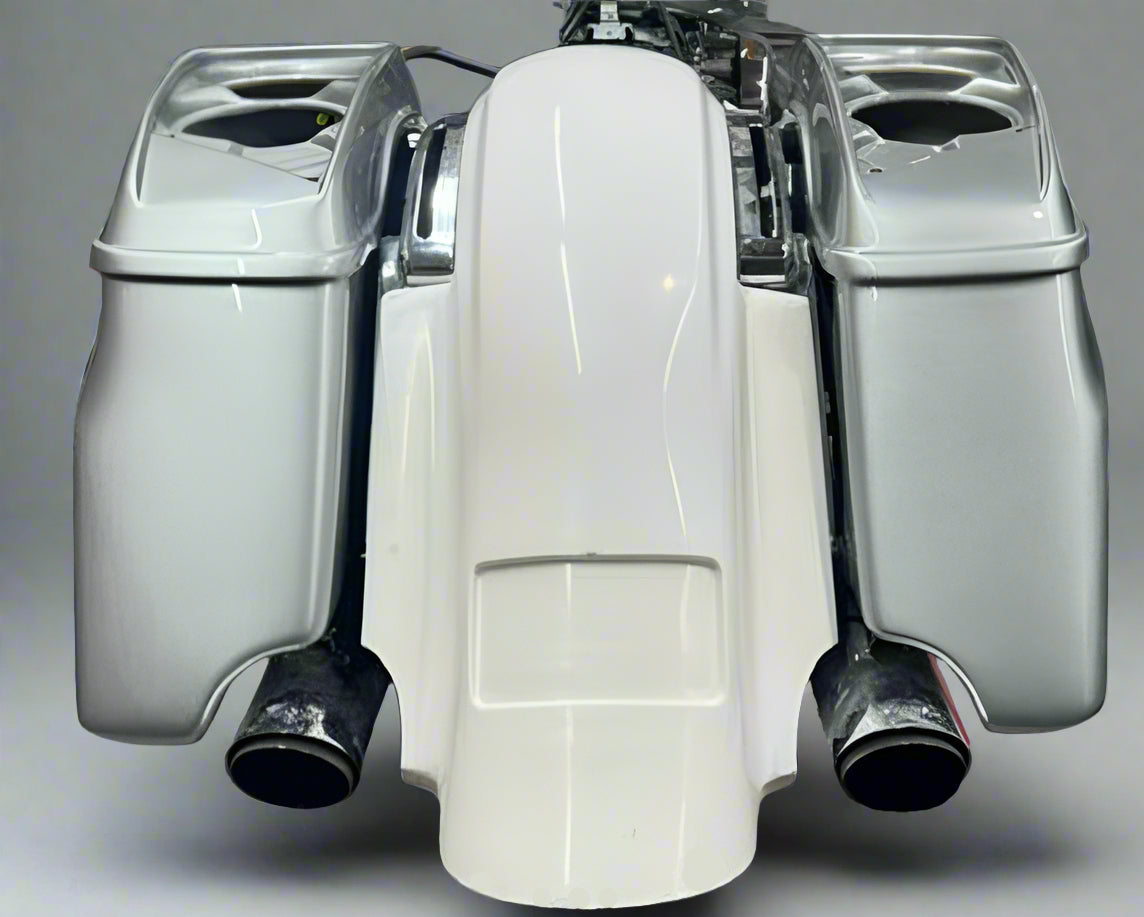

• Devito Factory Rail Bags
  • Direct replacement for factory Harley bags
  • 1.25 cu ft internal airspace with molded lids (.9 cu ft without)
  • 6.5" mounting depth with reinforced 10" molded rings
  • Ported design with adjustable 3" 90‑degree aero ports
  • Built for dual‑exhaust setups only

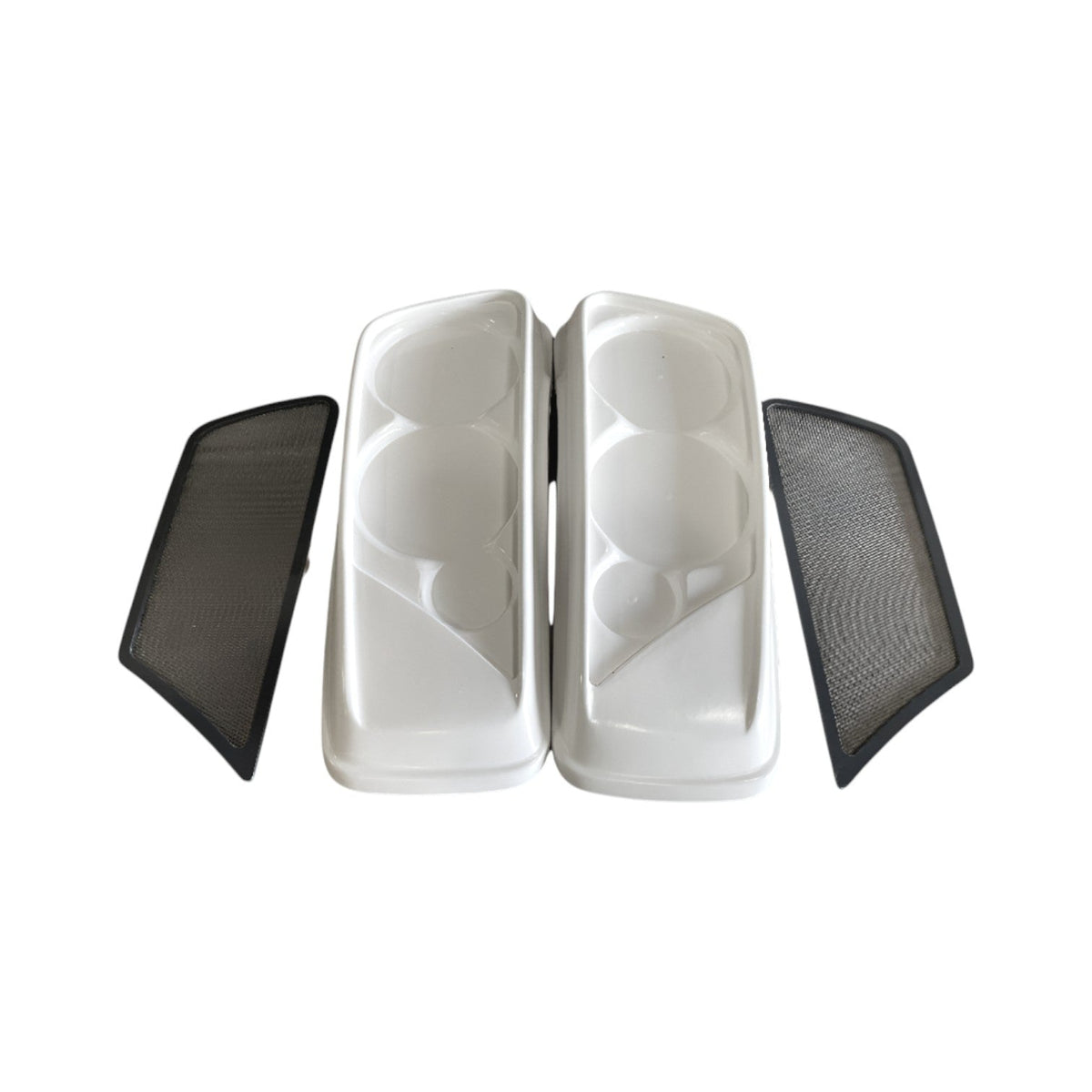

• D65B Dual 6.5" Bond‑On Lids
  • Dual 6.5" speaker lids molded directly to the bags
  • Engineered for clean fitment and strong projection
  • Professional labor included to mold lids to bags

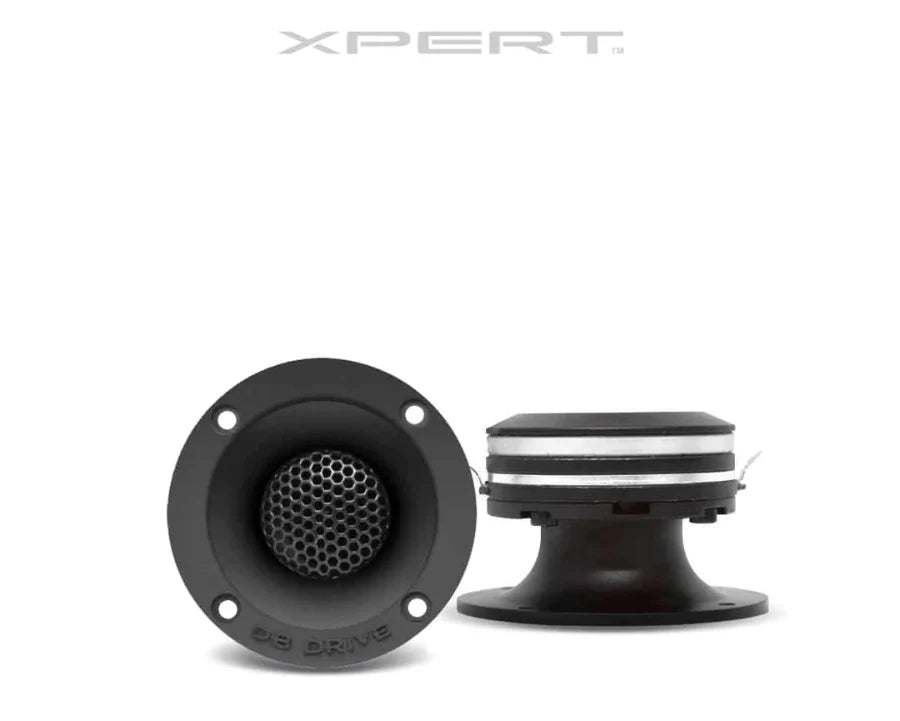

• Xpert EXT1NB – 1" Titanium Bullet Tweeter
  • Power handling: 85 watts (125W dynamic)
  • Sensitivity: 108 dB
  • Impedance: 4Ω
  • Recommended crossover: 3 kHz, 12 dB slope or higher
  • Delivers crisp, high‑output top end

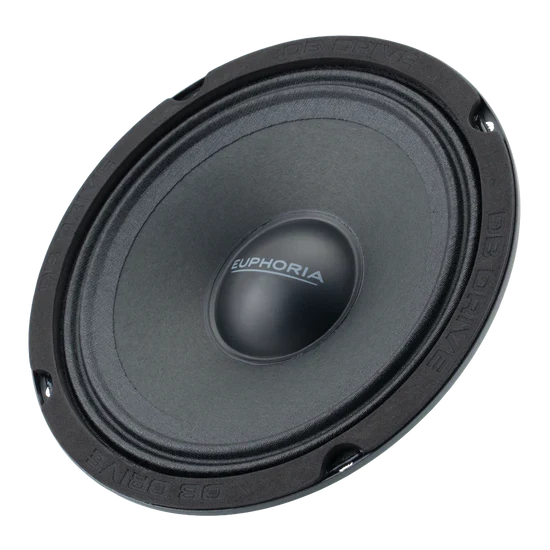

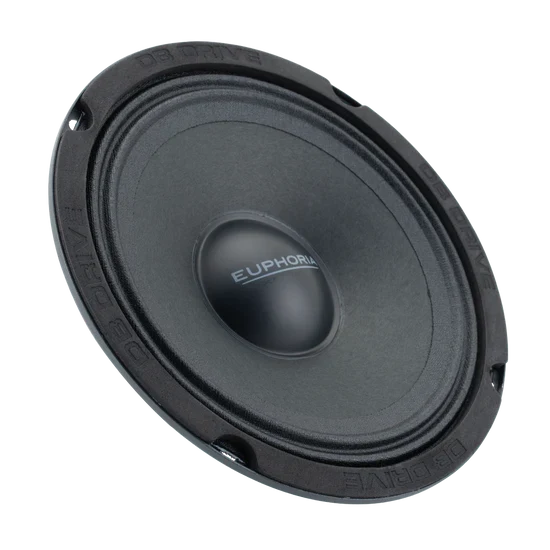

• Xpert EXM6NSB – 6.5" Neo Sealed‑Back Midrange (Two Pairs)
  • Resonant frequency: 629.7 Hz
  • Re: 3.2Ω
  • Qms: 5.53
  • Qes: 1.40
  • Qts: 1.12
  • Impedance: 4Ω
  • Power handling: 200 watts
  • Dynamic wattage: 400 watts
  • Sensitivity: 97.3 dB
  • Frequency response: 400 Hz – 5 kHz

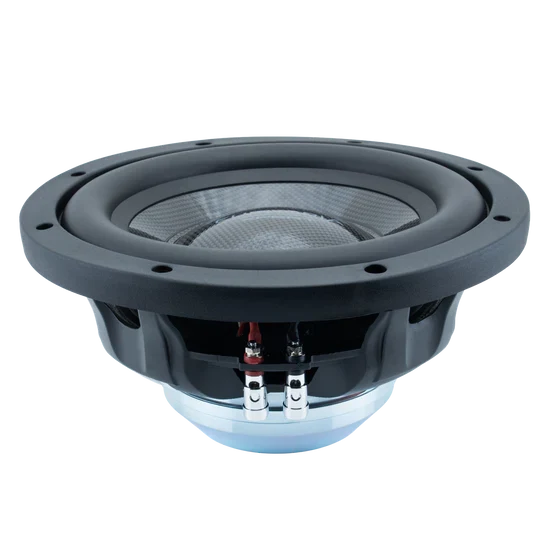

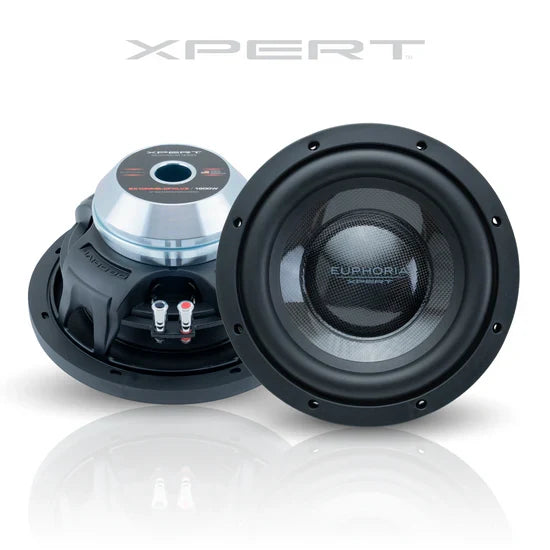

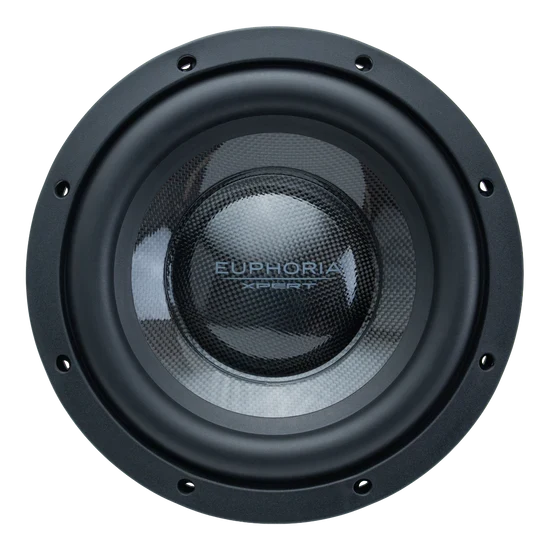

• Xpert EX10NMB‑CFXLV2 – 10" XL Midbass (One Pair)
  • Power handling: 800 watts
  • Dynamic wattage: 1600 watts
  • Resonant frequency: 78.70 Hz
  • Re: 3Ω
  • Qms: 4.04
  • Qes: 0.96
  • Qts: 0.77
  • Vas: 12.06 L
  • Cms: 70.46 mm/N
  • Sensitivity: 93 dB

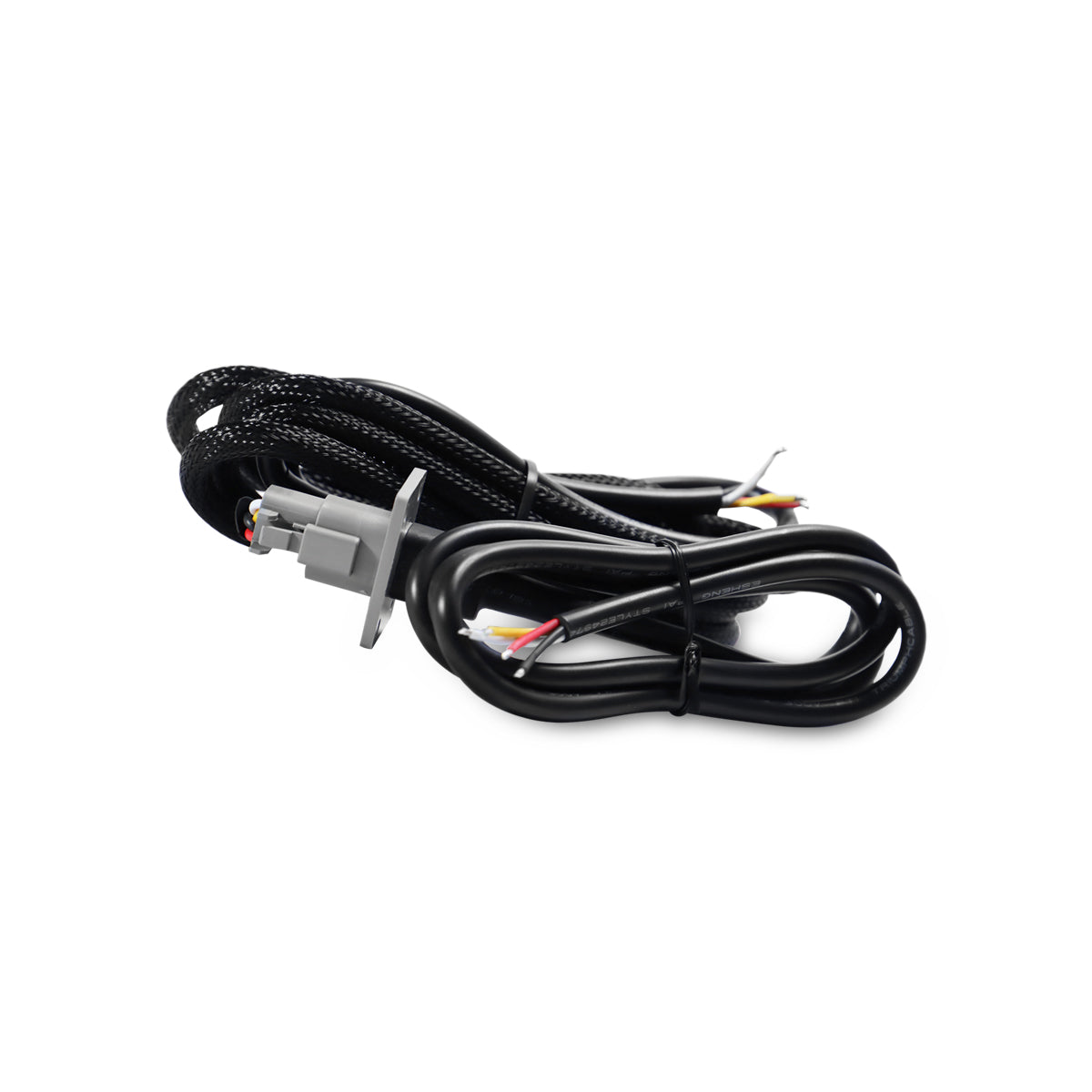

• DB Drive DBLHDH1 Waterproof Saddlebag Wire Harness
  • Pair of 4‑speaker harnesses
  • Weather‑tight quick‑disconnect plugs with mounting flanges
  • Four color‑coded 16‑gauge speaker wires per plug
  • Short side: 30" / Long side: 7 ft
  • Suitable for saddlebags or tour packs

This is a complete, professionally molded, high‑output bag system featuring dual 6.5" mids, 1.5" horn tweeters, and rare Xpert 10" XL midbass drivers.

Parts are built to order.

Parts come in a gel coat finish and require final fitment and prep before paint.
