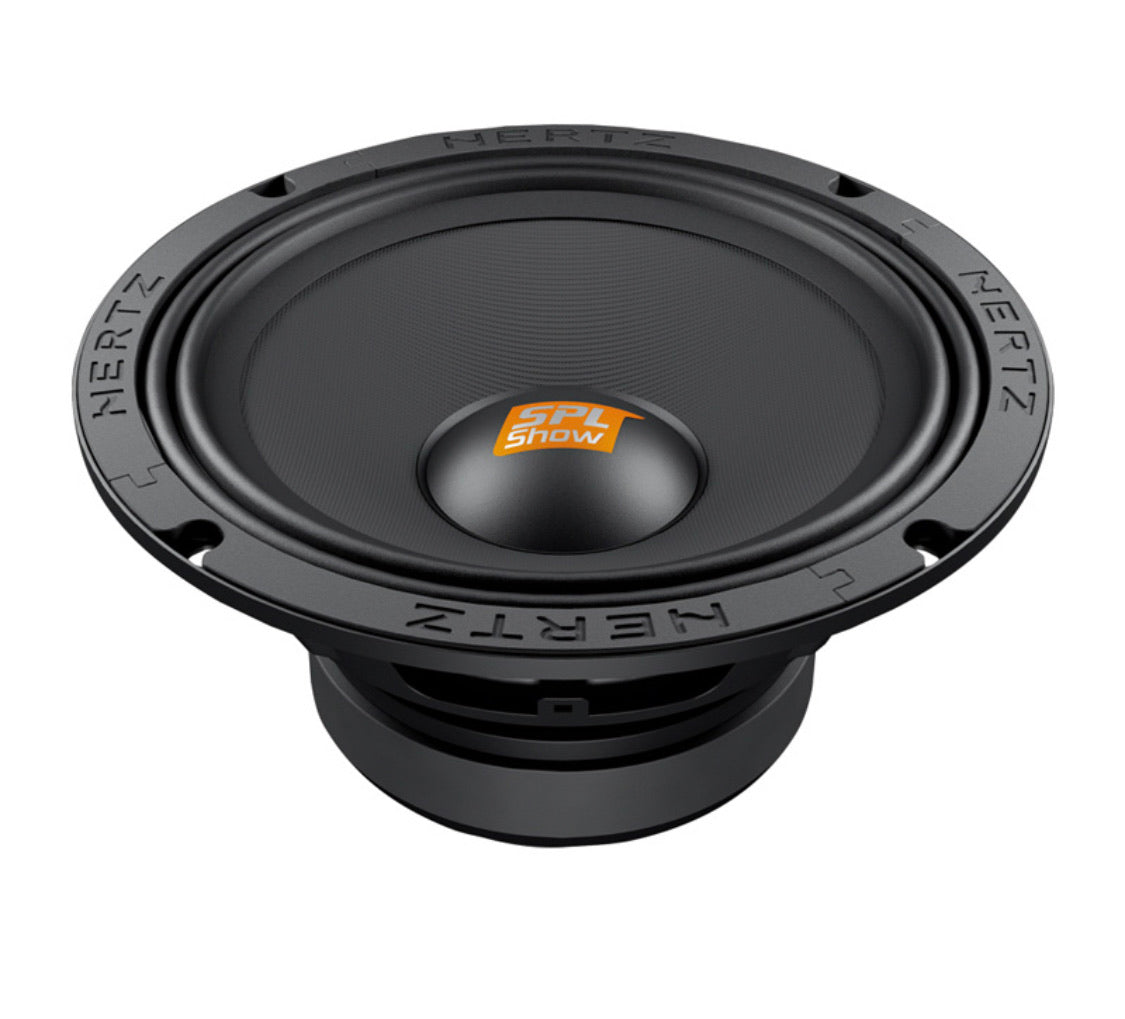

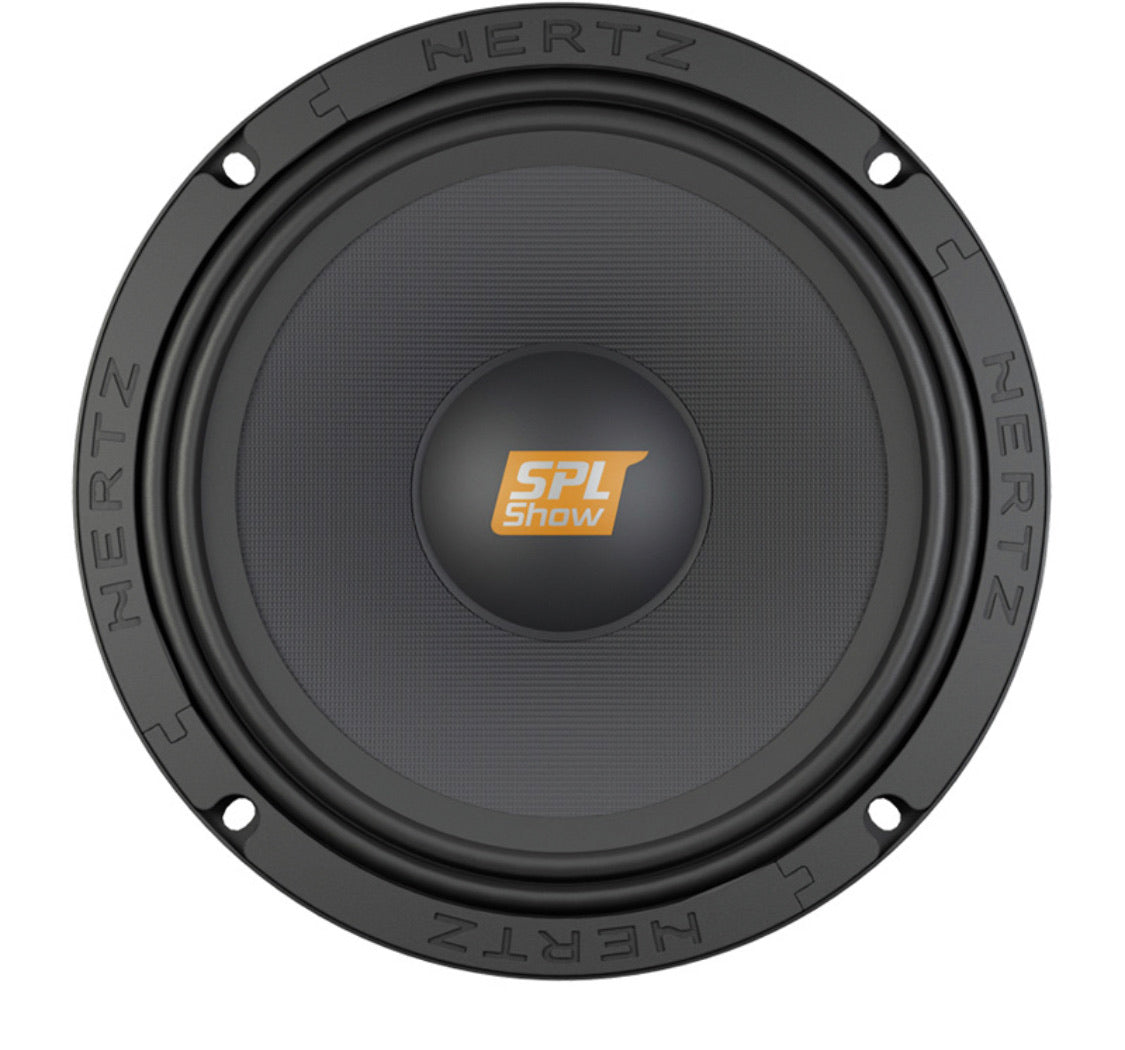

SV 200.1 8" SPL Midrange Speakers
The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
Component | SPL Midrange |
Size mm (in.) | 200 (8) |
Power Handling - Continuous W | 200 |
Power Handling - Peak W | 500 |
Impedance Ohm | 4 |
Voice Coil Ø | 38 (1.5) |
Frequency Response Hz | 100 ÷ 9k |
Magnet size D x d x h mm (in.) | 80 x 50 x 6 (3.15 x 1.97 x 0.24) |
Weight of one speaker kg (lb.) | 1,2 (2.65) |
Magnet | High density flux ferrite |
Cone | Ultra light pressed paper |
D mm | 168 |
Re Ohm | 3,2 |
Fs Hz | 103 |
Le mH | 0,06 |
Vas I | 8,1 |
Mms g | 19,9 |
Cms mm/N | 0,12 |
BL T*m | 8,8 |
Qts | 0,52 |
Qes | 0,55 |
Qms | 7,4 |
Spl dB | 100 |
