DB Drive  |  SKU: 811536036414

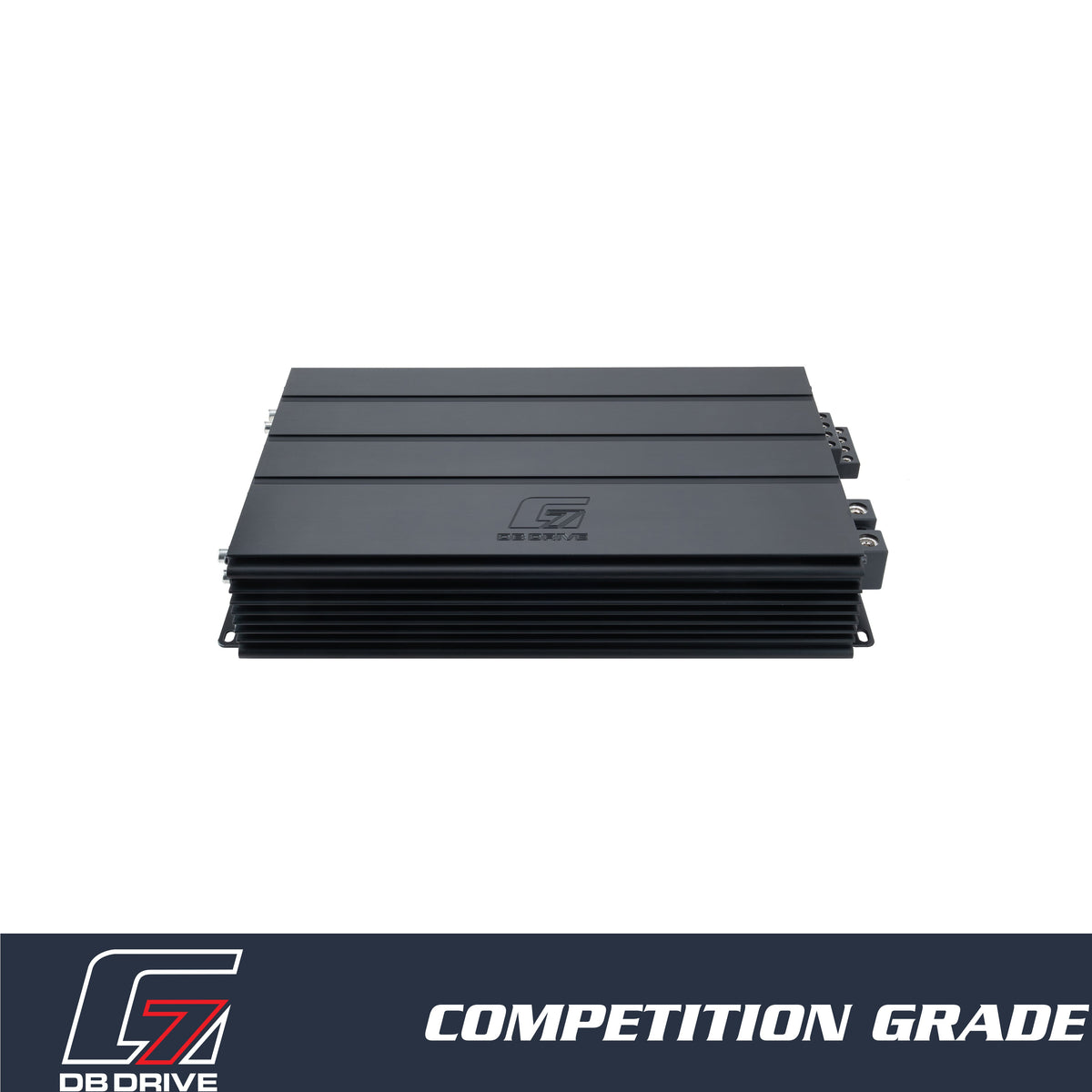

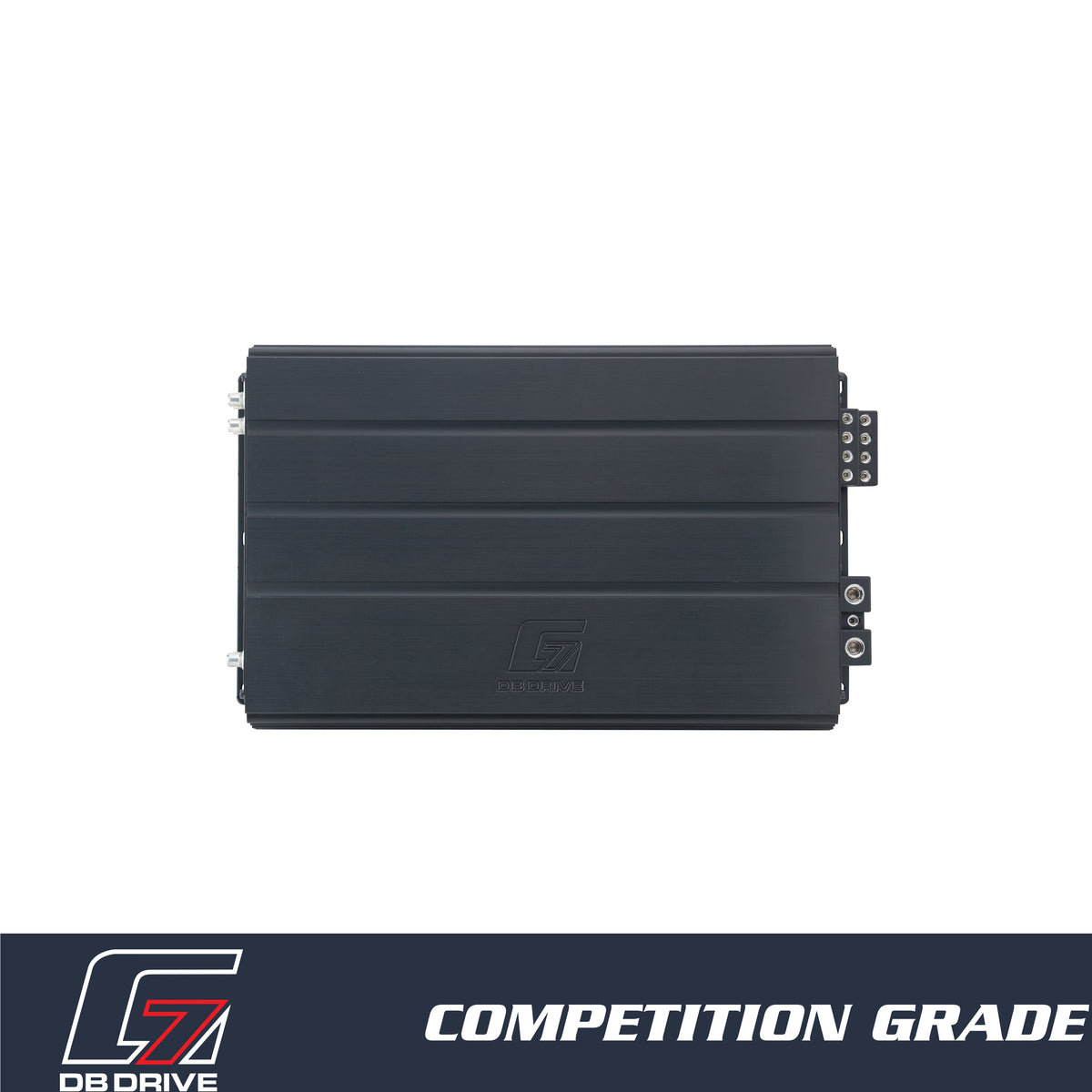

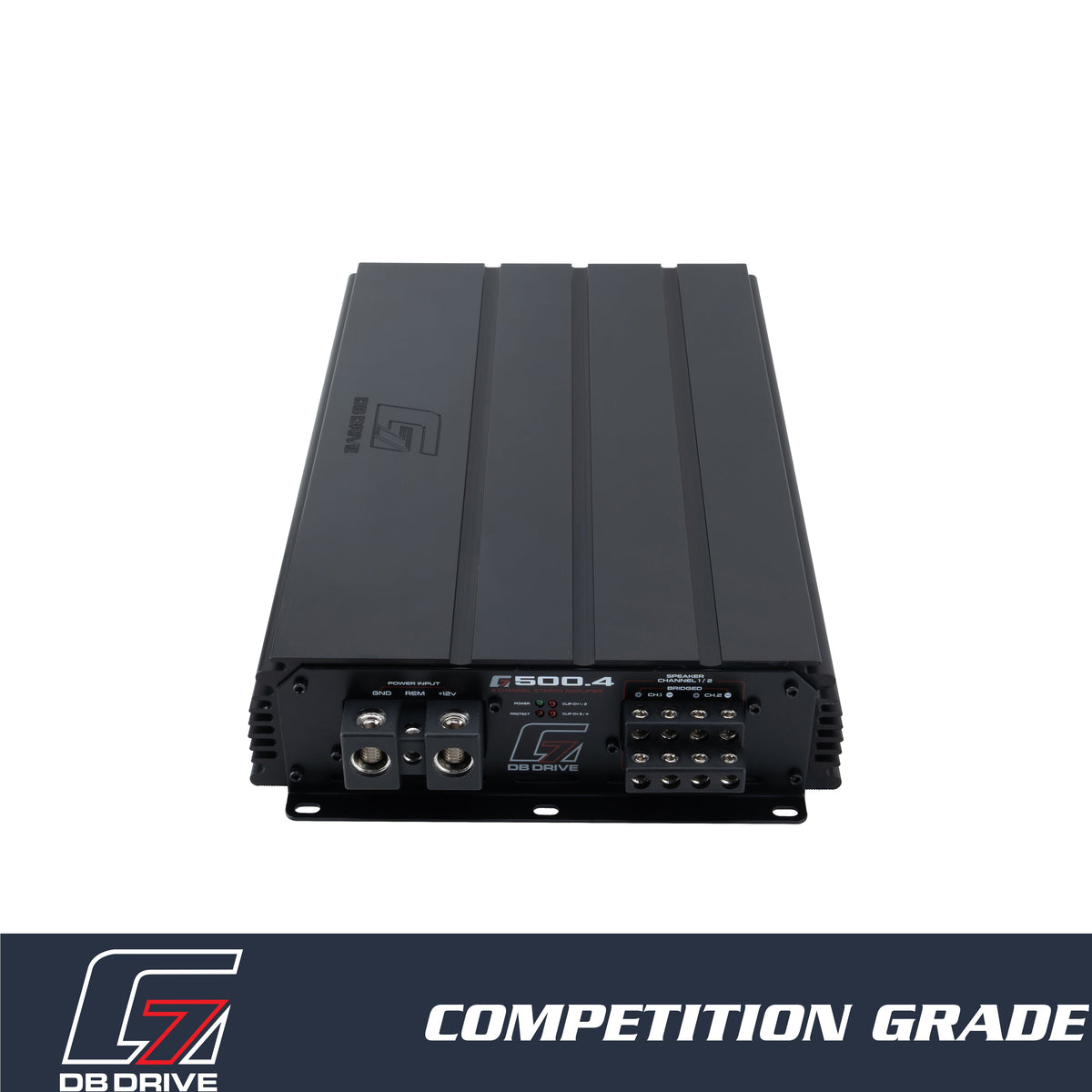

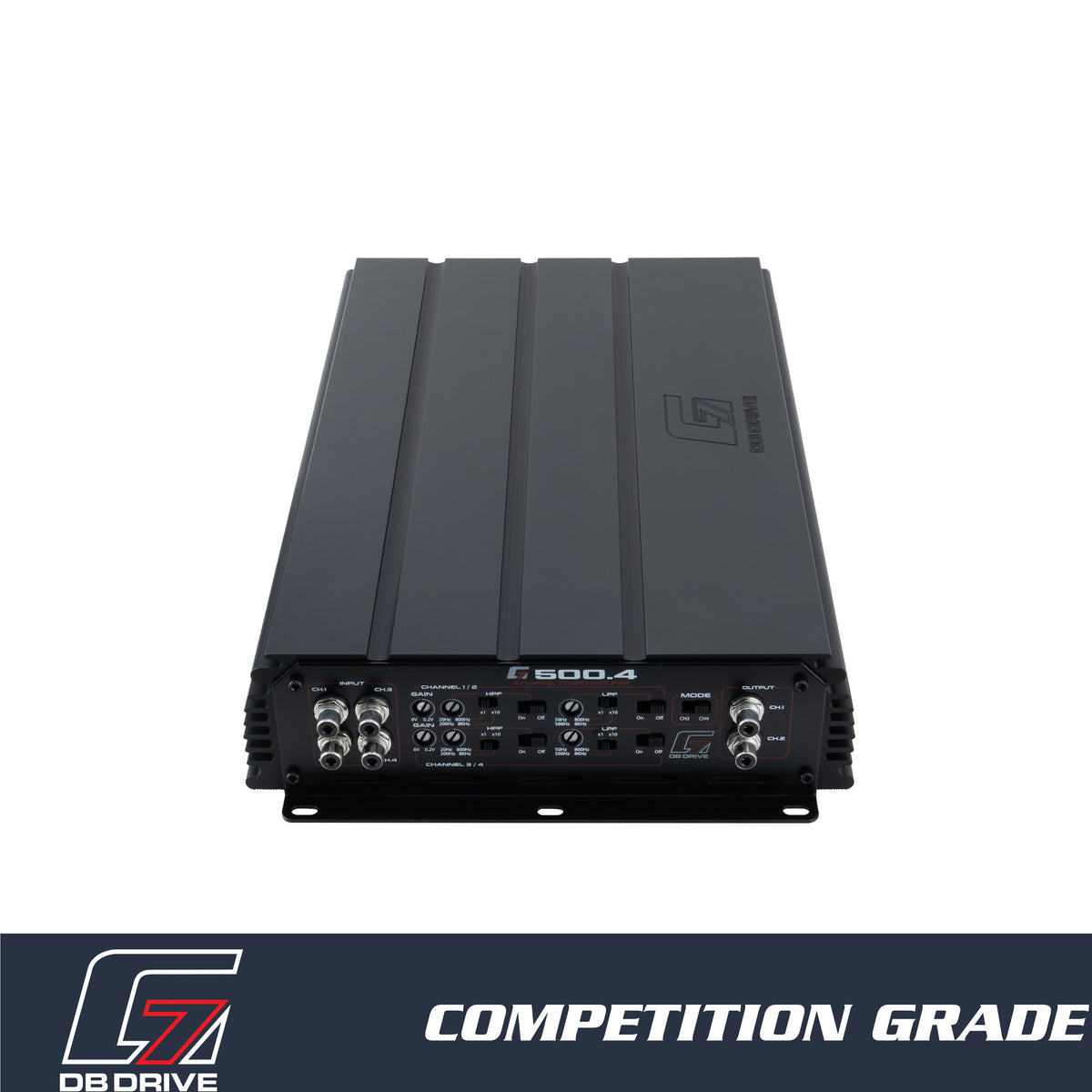

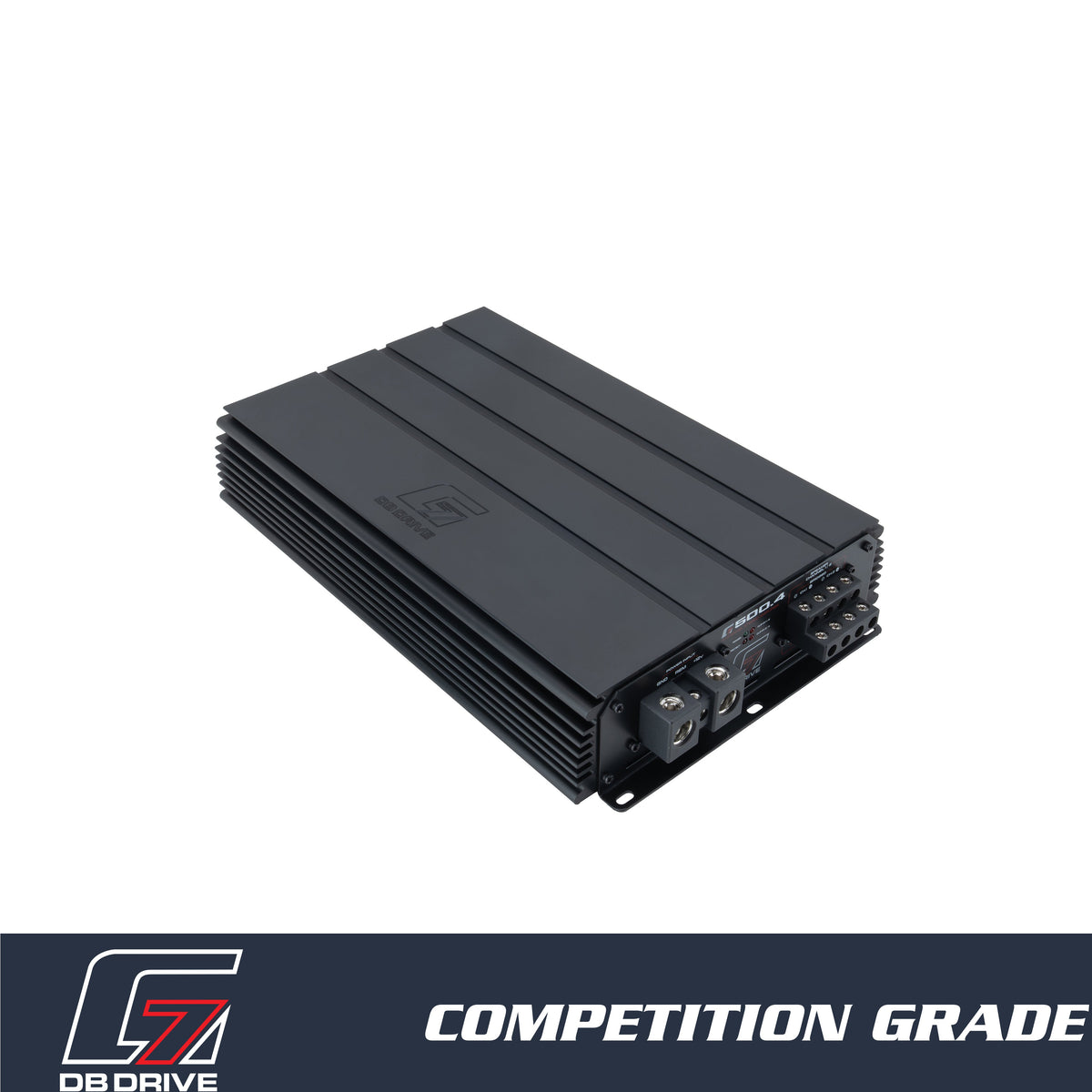

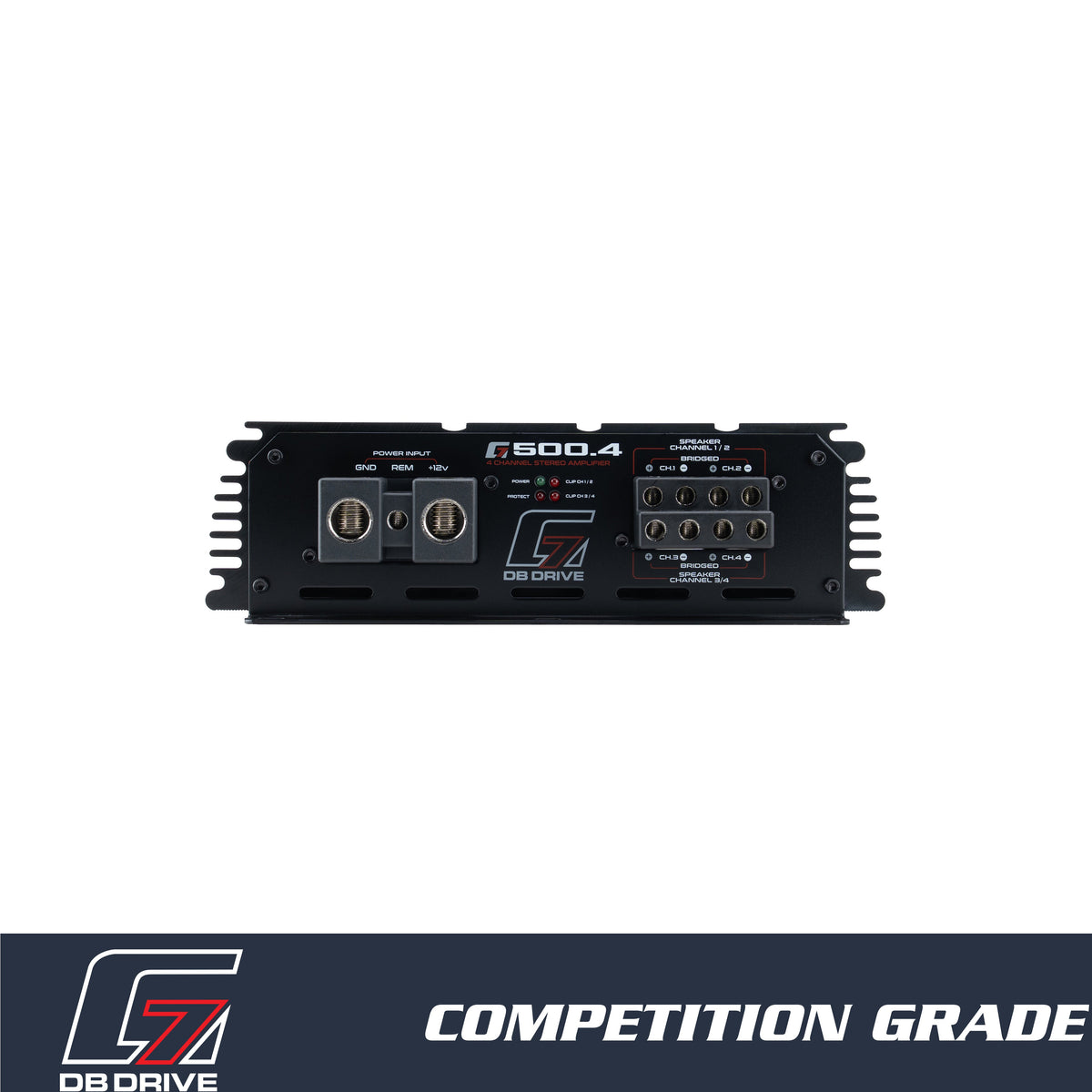

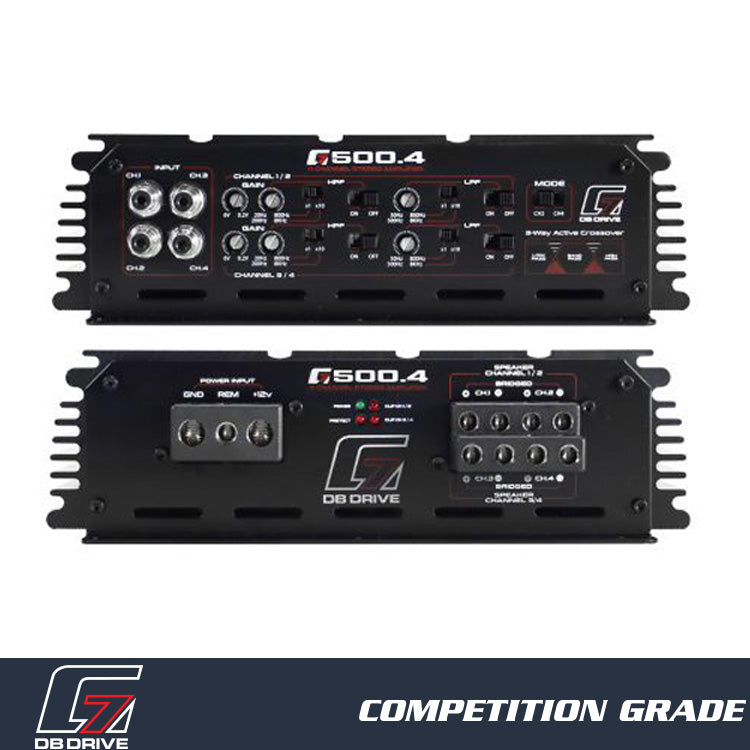

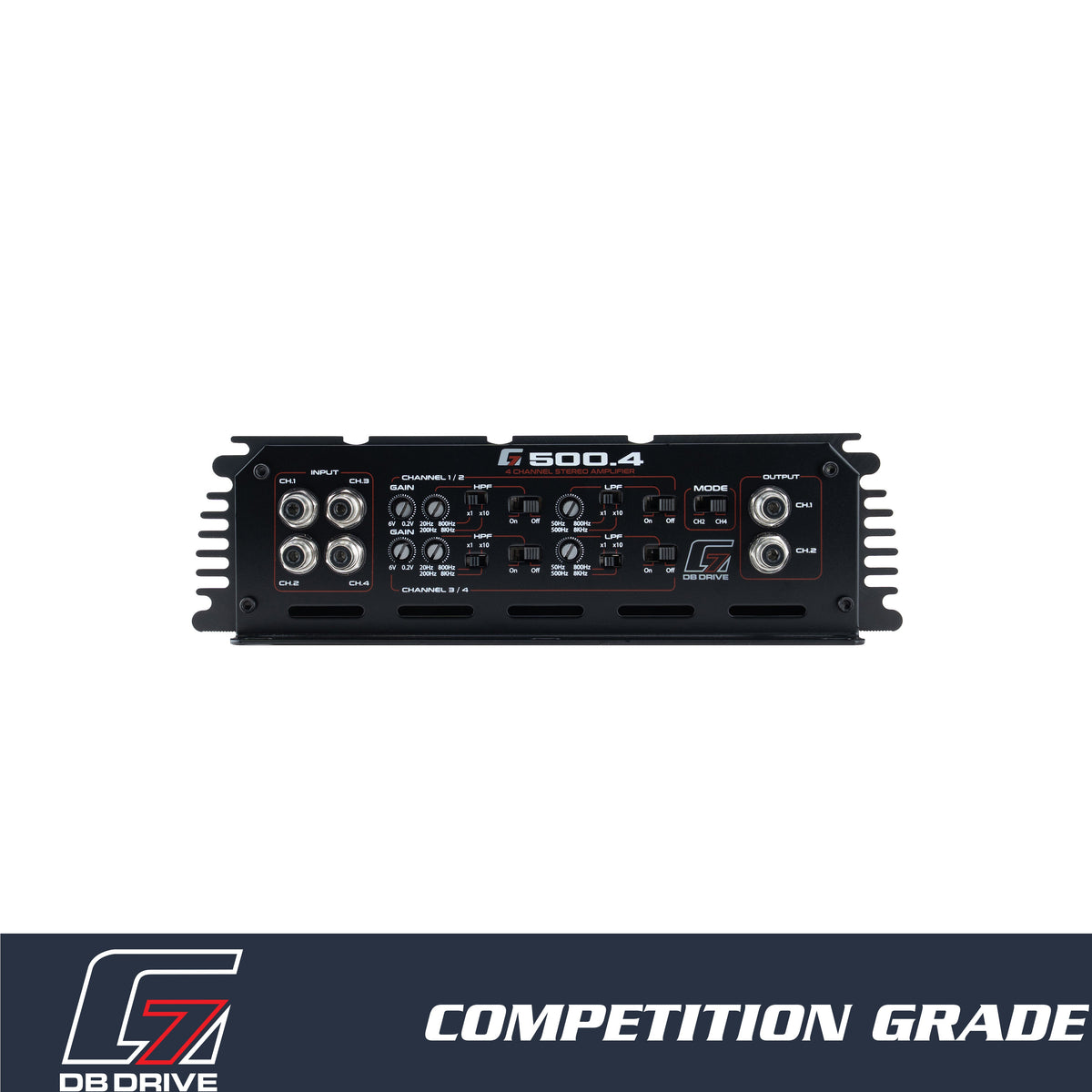

DB Drive G7 500.4 : 4-Channel Class D Amplifier

$999.98
Shipping calculated at checkout.


Delivery and Shipping

Please allow 2-3 business days for shipments to process.

Description

Features

  • ATC – Audiophile Grade Tiffany RCA Connectors
  • ACT – Adaptive Crossover Technology
  • High efficiency Class D Technology
  • Direct Connect Speaker Terminals
  • 4 Gauge Power Wire Inputs
  • APC – Audio Protection Circuit
  • SESI – Signal Evaluation Status Indicator
  • CHM – Collective Heat Management

Specifications

Rated Power @14.4 Volts
4 x 500 Watts @ 4Ω
4 x 1000 Watts @ 2Ω
2 x 2000 Watts @ 4Ω Bridged
SPECIFICATIONS
Working Voltage 9 - 16 Volts
Frequency Response 10Hz - 25KHz
Signal to Noise Ratio <90dB
Damping Factor 90dB<
Low Level Input 6V - 0.2V
ACT - Variable Crossover HP/BP/LP
Ch 1/2 High Pass Filter Variable 20Hz - 8KHz
Ch 1/2 Low Pass Filter Variable 50Hz - 8KHZ
Ch 3/4 High Pass Filter Variable 20Hz - 8Khz
Ch 3/4 Low Pass Filter Variable 50Hz - 8KHz
Minimum Working Impedance 2 Ohms
Dimensions

L = 13.38"/ 240 mm
W = 9.13"/ 232 mm
H =2.53"/  64.5 mm

Description

Get ready to supercharge your audio experience with the G7 500.4: Class AB 4 Channel Amplifier! This powerhouse of an amplifier boasts a stunning array of features that will elevate your sound system to audiophile-grade quality. With ATC – Audiophile Grade Tiffany RCA Connectors and ACT – Adaptive Crossover Technology, every note and beat is delivered with crystal-clear precision. The high-efficiency Class D Technology ensures that you get the most out of your power, while the Direct Connect Speaker Terminals and 4 Gauge Power Wire Inputs make installation a breeze. But that's not all – the APC – Audio Protection Circuit and SESI – Signal Evaluation Status Indicator keep your system safe and sound, while the Variable 12dB 3-Way Active Crossover and Collective Heat Management ensure optimal performance. With a frequency response of 10Hz - 25KHz and a Signal to Noise Ratio of less than 90dB, you're guaranteed a listening experience like no other. Plus, with rated power of up to 4 x 1000 Watts at 2Ω and bridgeable to 2 x 2000 Watts, this amplifier is a true beast. Don't miss out on the G7 500.4 – the ultimate amplifier for those who demand nothing but the best in their audio setup!

Product Manual

Product Manual PDF
