DB Drive | SKU:
811536036285

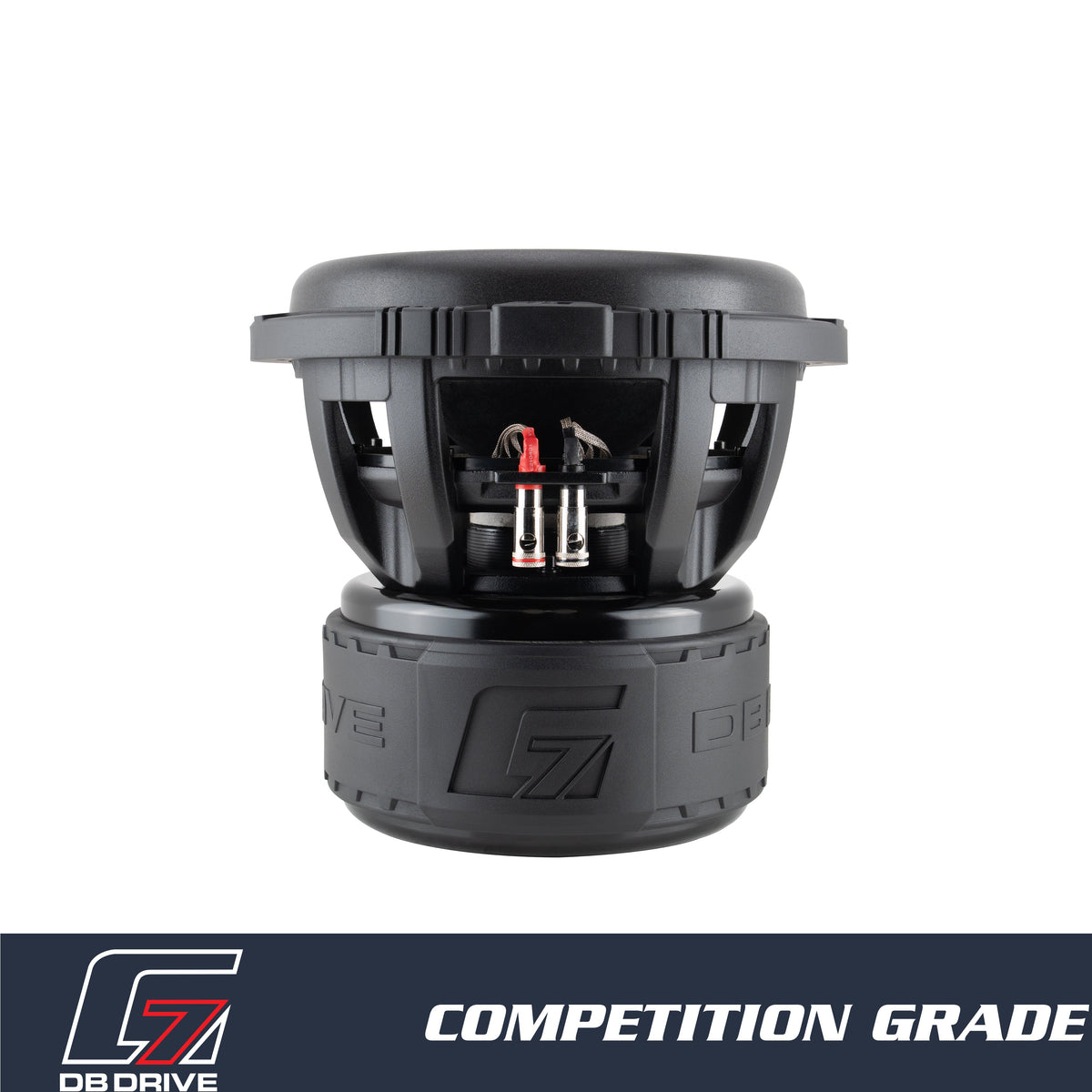

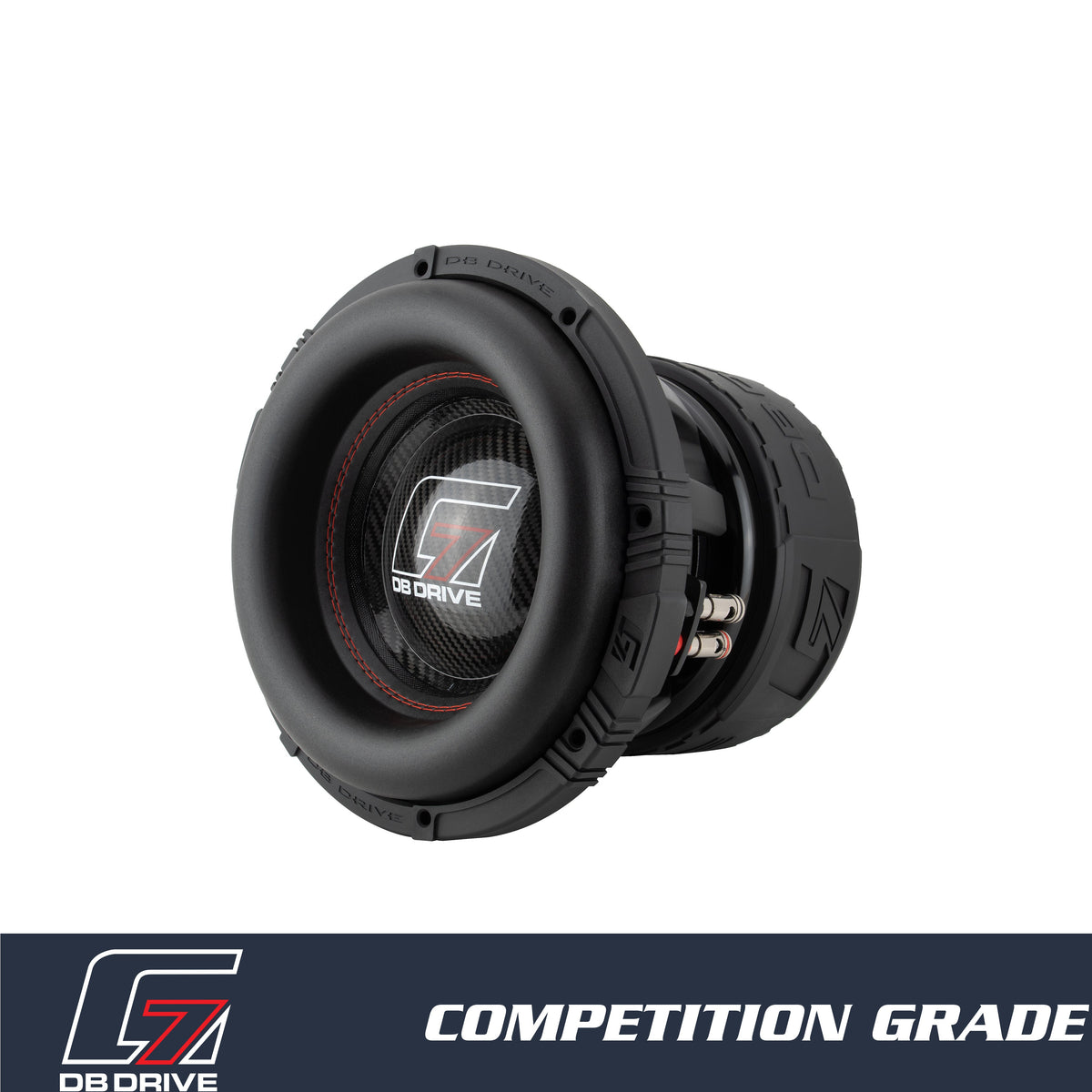

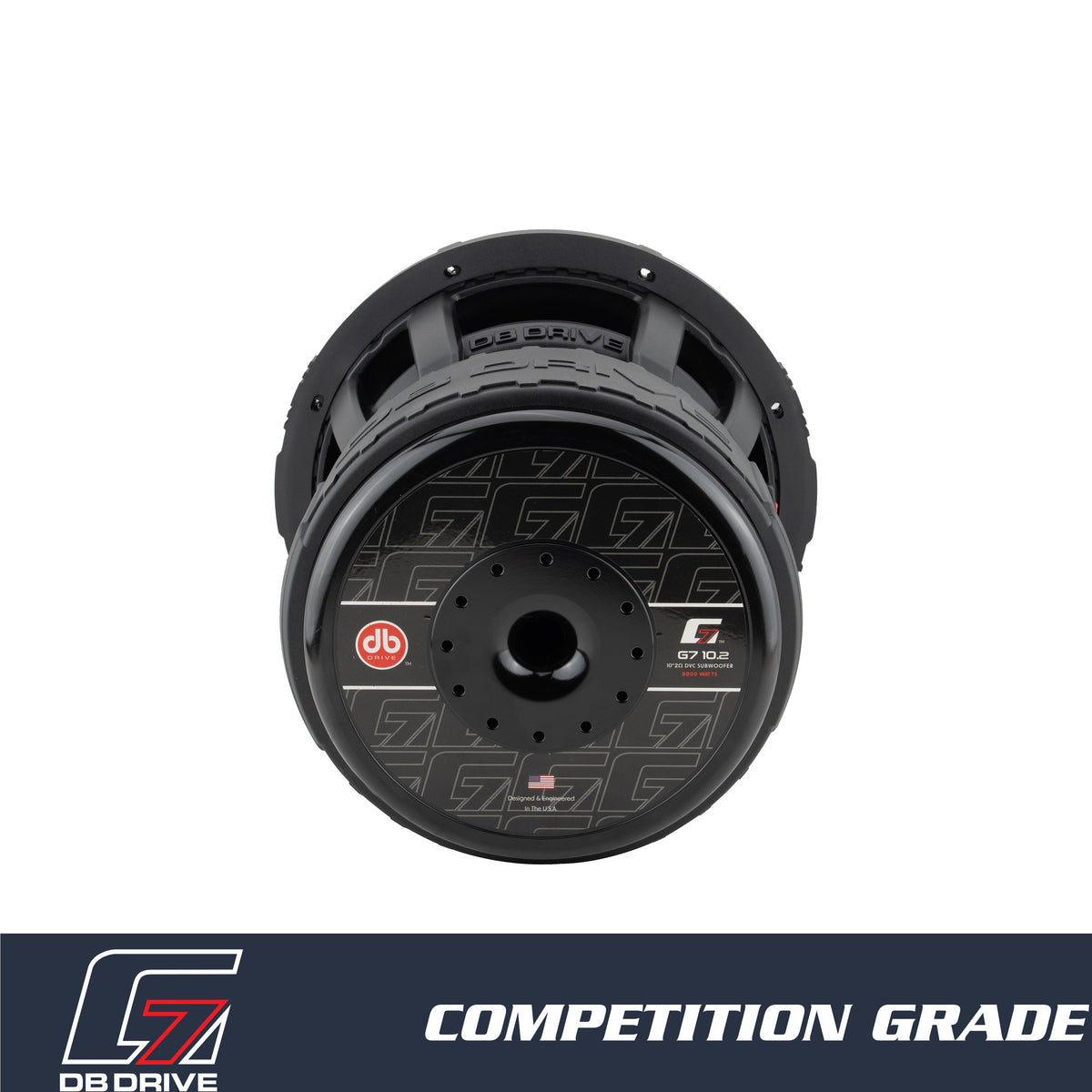

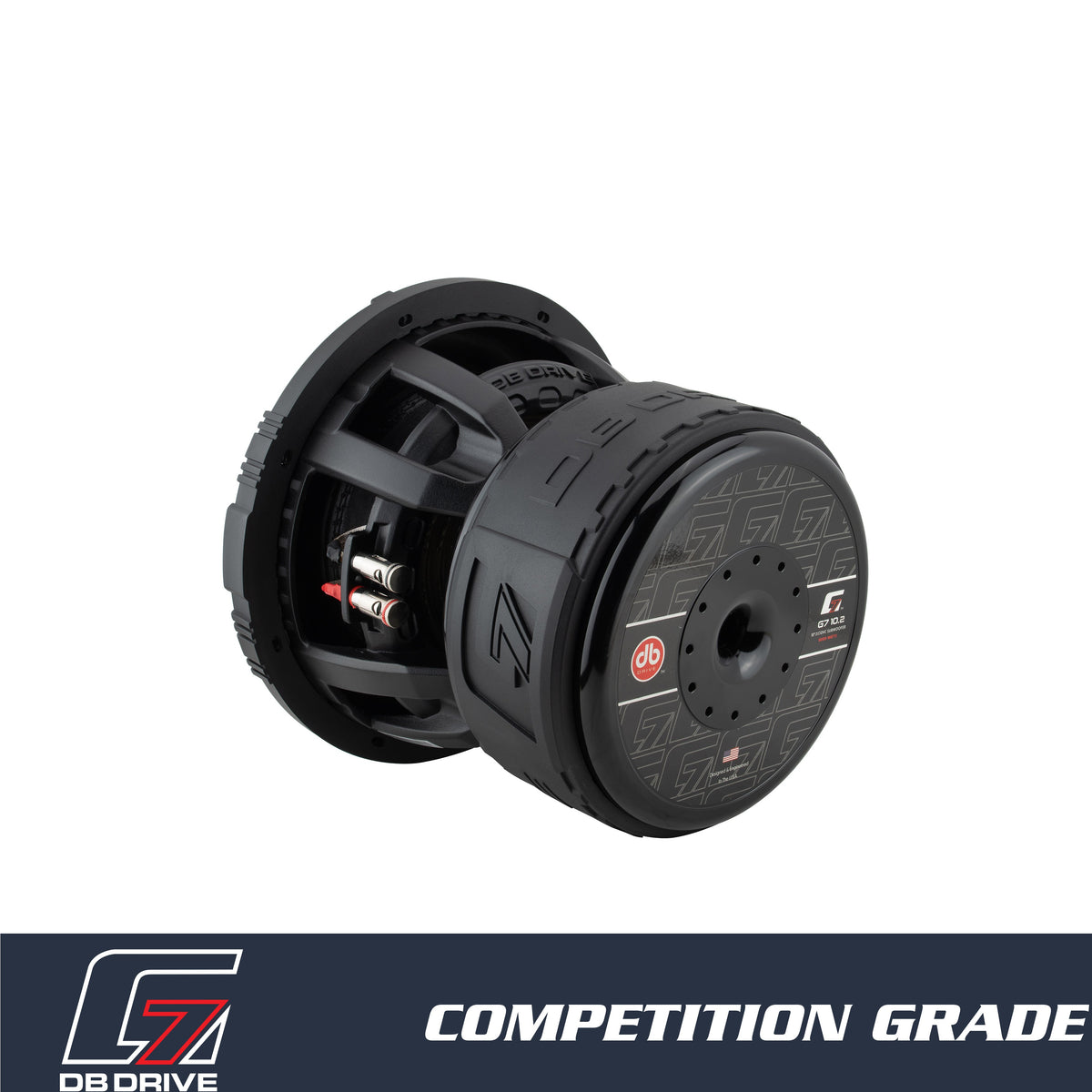

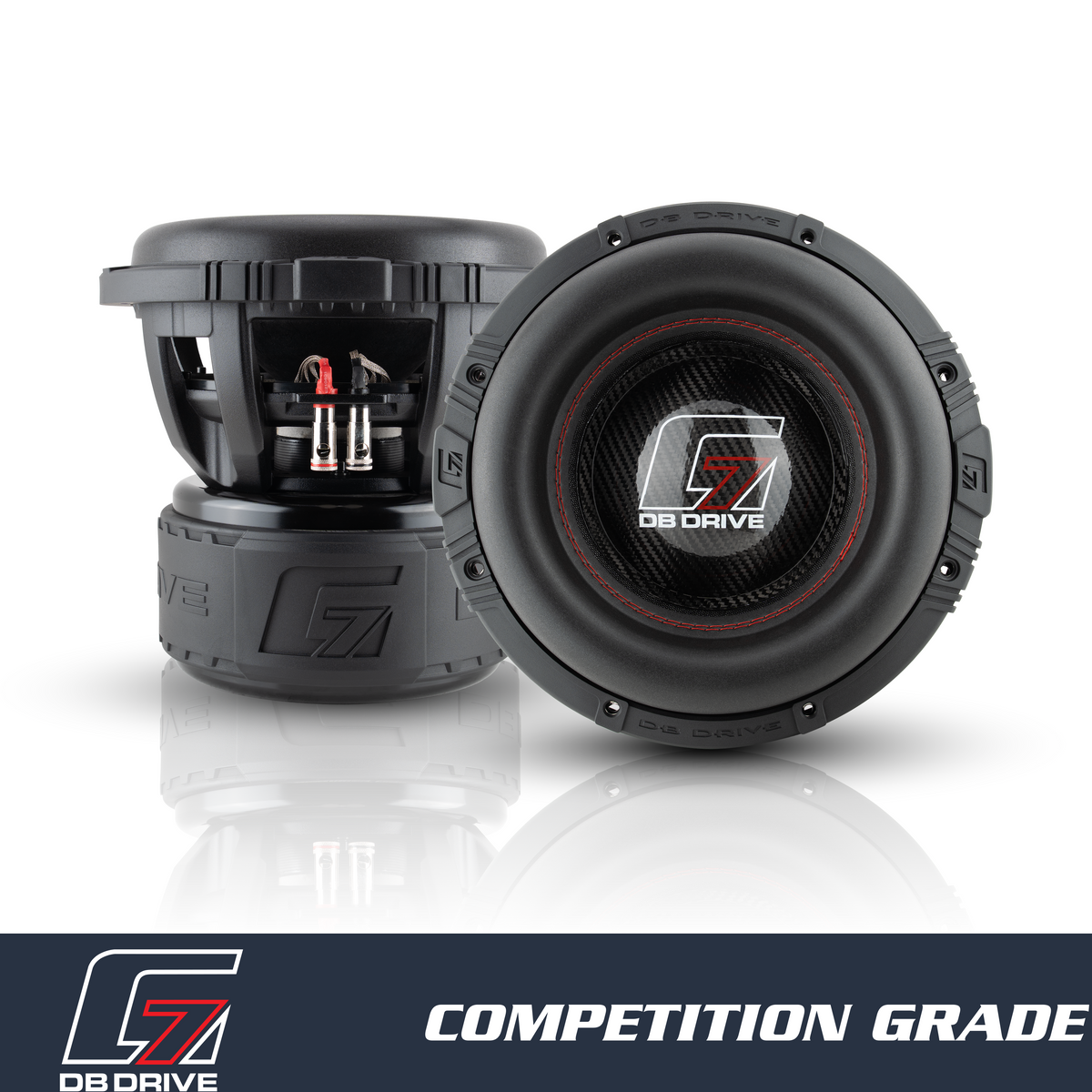

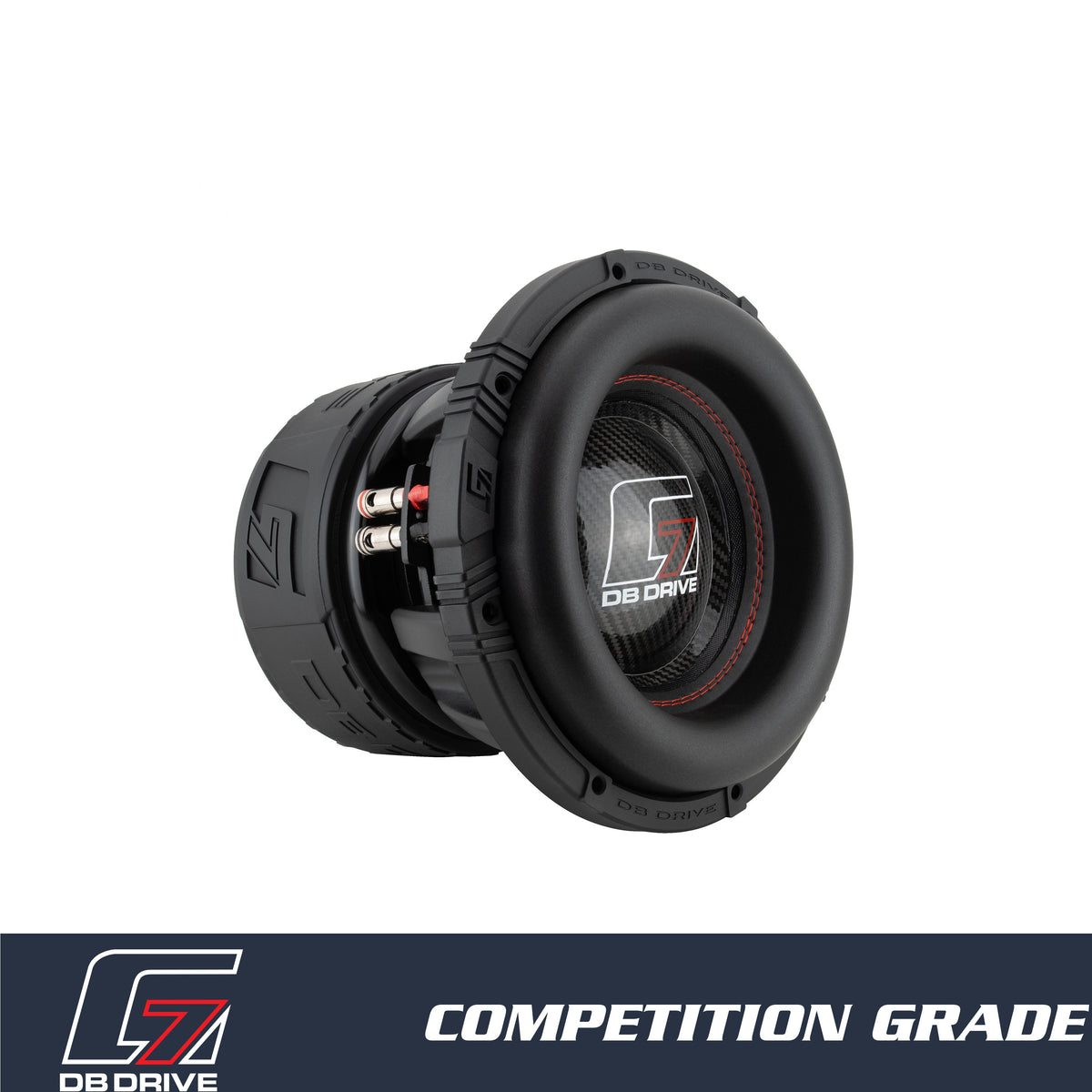

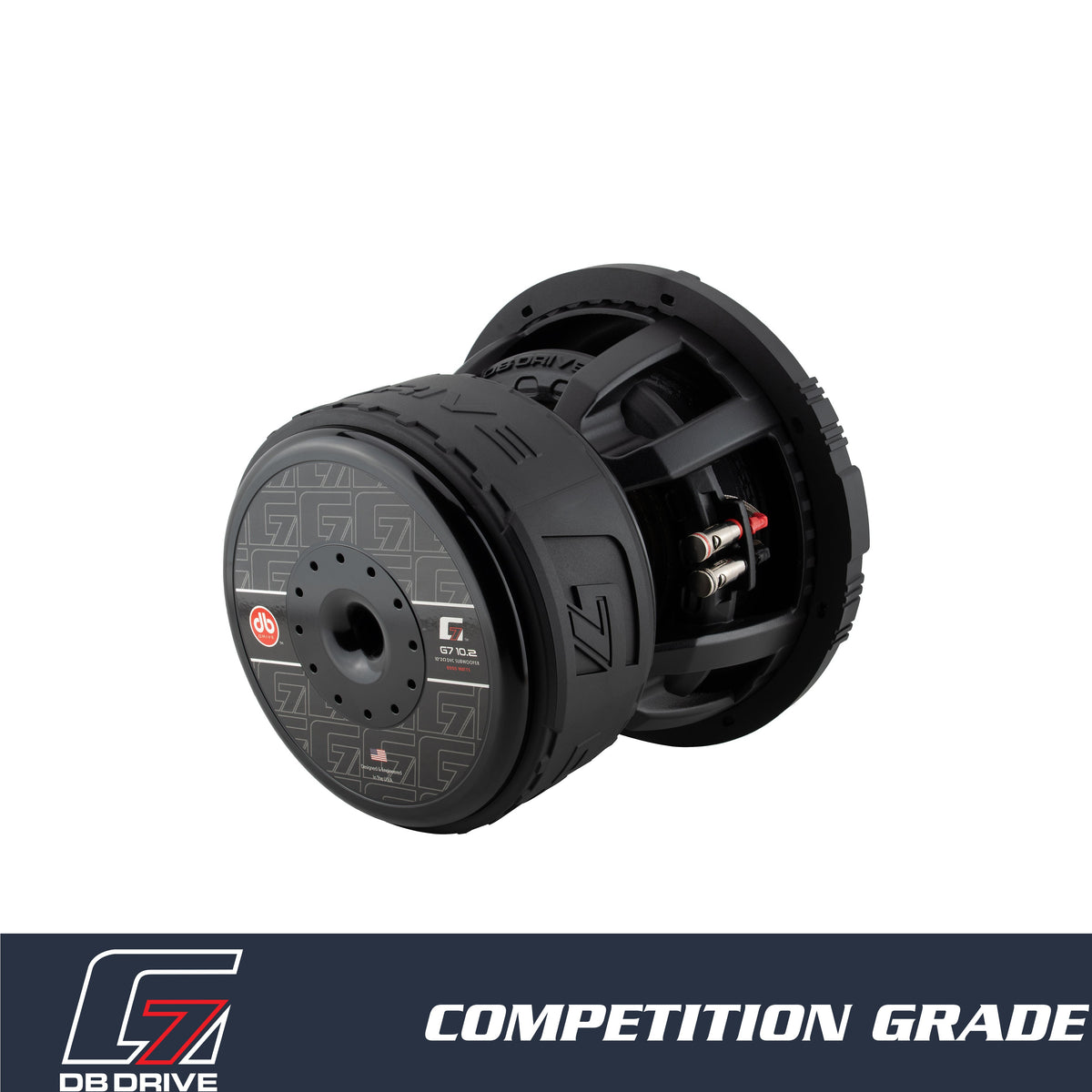

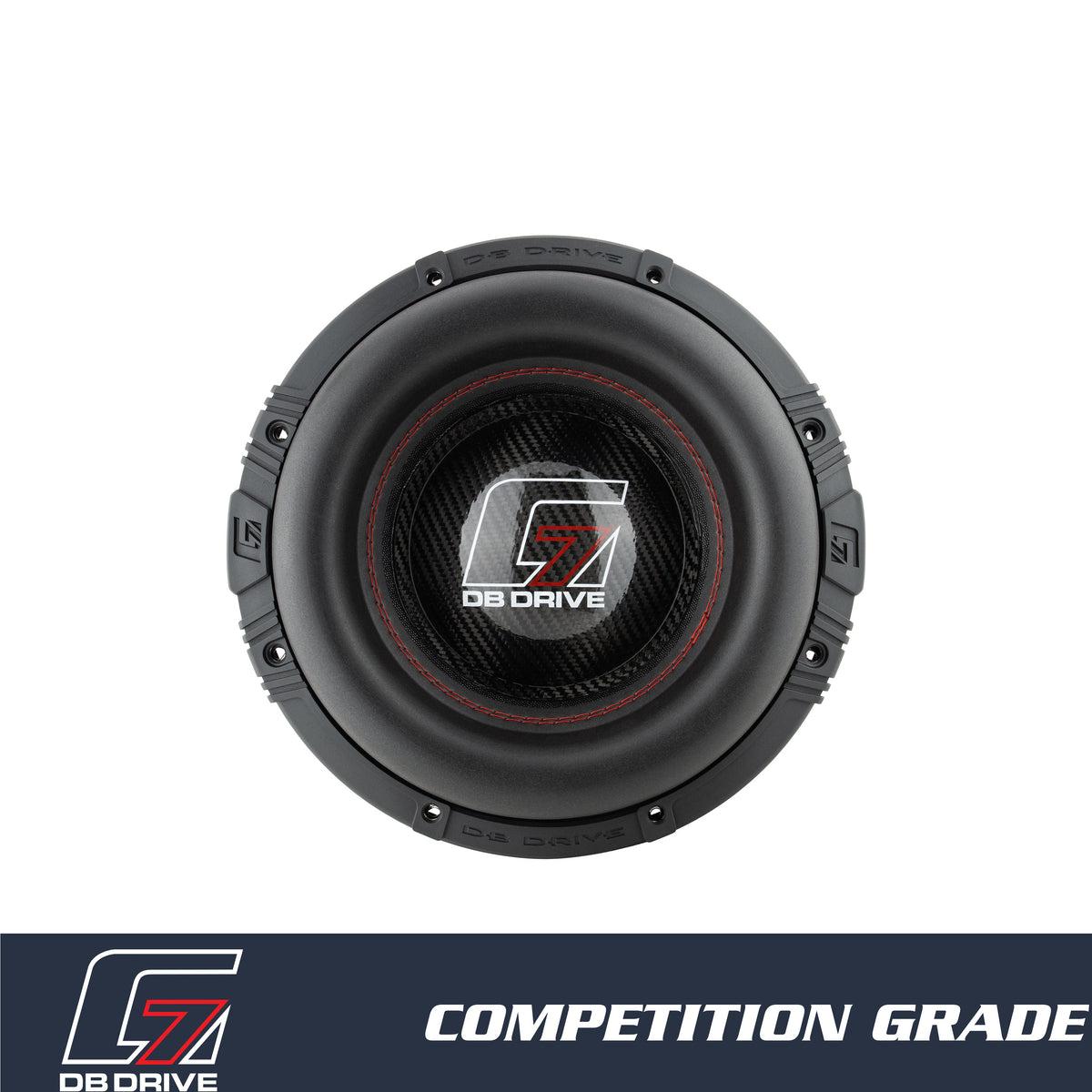

DB Drive G7 10.2 : 10" Dual 2-Ohm Subwoofer
$1,099.98
Unit price
/
Unavailable
Shipping calculated at checkout.
DB Drive G7 10.2 : 10" Dual 2-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description

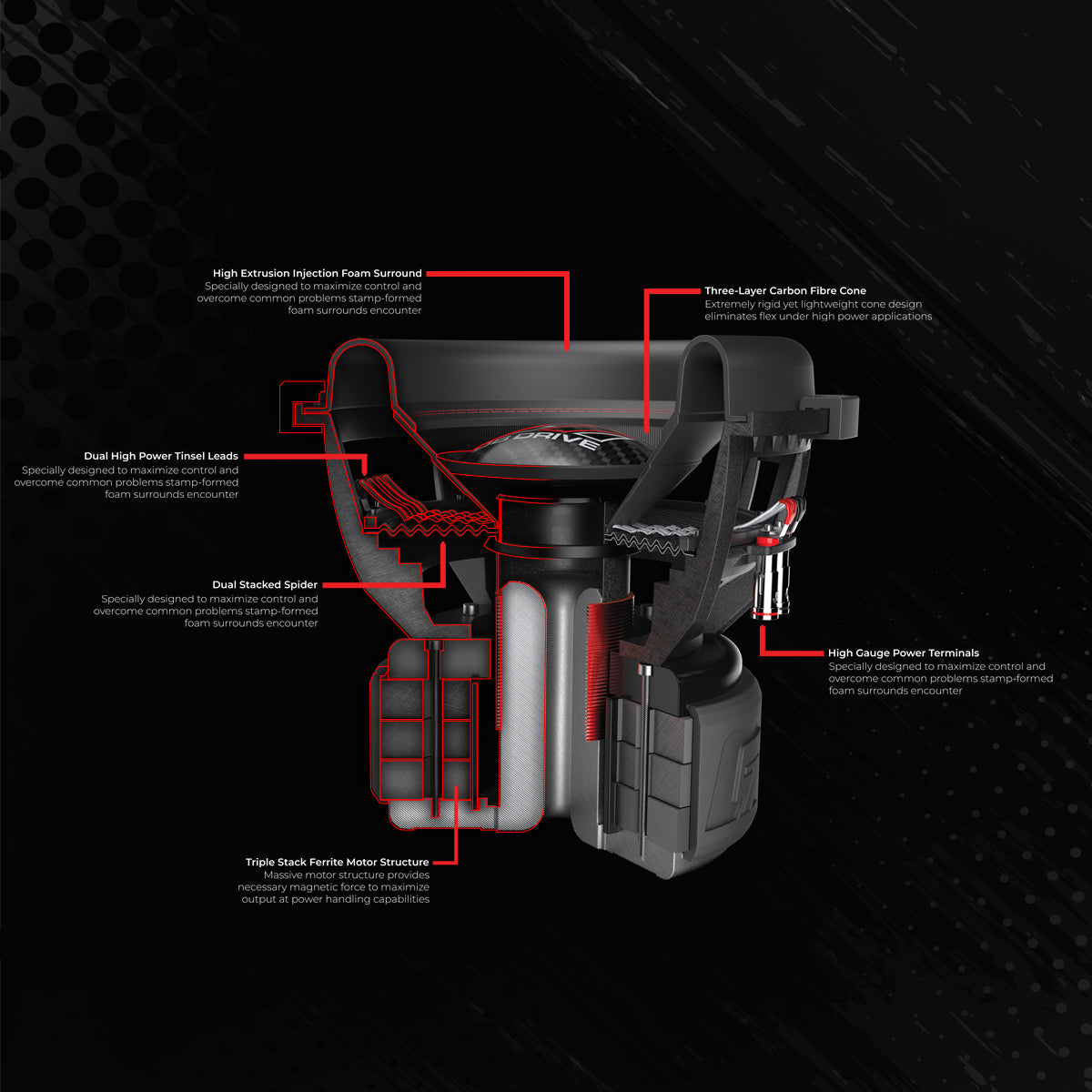

Features
- Xtreme Excursion Surround
- True Carbon fiber dust cap
- Proprietary Reinforced Aluminum Die-Cast Basket
- Tri-Layer Progressive Dampeners with Integrated Tinsel Leads
- 8 Gauge Push Spring Input Terminals
- 4-Layer Aluminum Flat Wire Voice Coil
- Custom Rubber protective magnet band
- Triple Stacked Ferrite Magnets
- Excursion Induced Motor Cooling
- Radial Balanced Paper Glass Fibrillated Mixed Cone
- Aluminum Anodized Former With Reinforced Triple Joint
Specifications
| Structure | 12" (30.48cm) Woofer |
|---|---|
| Dynamic Power Handling | 8000 Watts |
| Nominal Power Handling | 4000 Watts |
| Impedance | 2Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 35.925Hz |
| D.C. Voice Coil Resistance (Re) | 2 x 2Ω |
| Mechanical Quality Factor (Qms) | 2.542 |
| Electrical Quality Factor (Qes) | 0.717 |
| Total Quality Factor (Qts) | 0.559 |
| Equivalent Air Volume to Cms (Vas) | 13.164 L |
| Mass of Diaphragm/Coil (Mms) | 317.218 g |
| Force Factor (Bl) | 17.881 |
| Sound Pressure Level (SPL) | 81.2 dB |
Dimensions
Overall Diameter: 12"/ 304.8 mm
Mounting Depth: 9"/ 228.6 mm
Cutout Diameter: 10.25"/ 260.35 mm
Description
Introducing the G7 10.2, the ultimate 10-inch subwoofer designed to take your audio experience to the next level! Boasting an impressive max power of 8000 Watts and a nominal power of 4000 Watts, this beast is built to deliver earth-shattering bass that you can feel in your bones. The G7 10.2 features a Dual 2Ω Voice Coil for superior sound quality and versatility. With its competition-grade build, including an Xtreme Excursion Surround and True Carbon Fiber Dust Cap, this subwoofer is engineered for those who demand nothing but the best. The Proprietary Reinforced Aluminum Die-Cast Basket and Tri-Layer Progressive Dampeners with Integrated Tinsel Leads ensure durability and long-lasting performance, while the 8 Gauge Push Spring Input Terminals make installation a breeze. The G7 10.2 also comes equipped with a 4-Layer Aluminum Flat Wire VC, Custom Rubber Protective Magnet Band, and Triple Stacked Ferrite Magnets for unparalleled sound clarity and power. Experience the thrill of Excursion Induced Motor Cooling and the precision of the Radial Balanced Paper Glass Fibrillated Mixed Cone, all housed in a sleek, Aluminum Anodized Former with Reinforced Triple Joint. Whether you're a hardcore audiophile or just looking to upgrade your car's sound system, the G7 10.2 is the subwoofer you've been waiting for. Get ready to feel the power and hear the difference with the G7 10.2 Subwoofer!
Product Manual
Product Manual PDF
