db Drive

Euphoria Xpert EX2K Amplifier

Euphoria Xpert EX2K Amplifier

Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

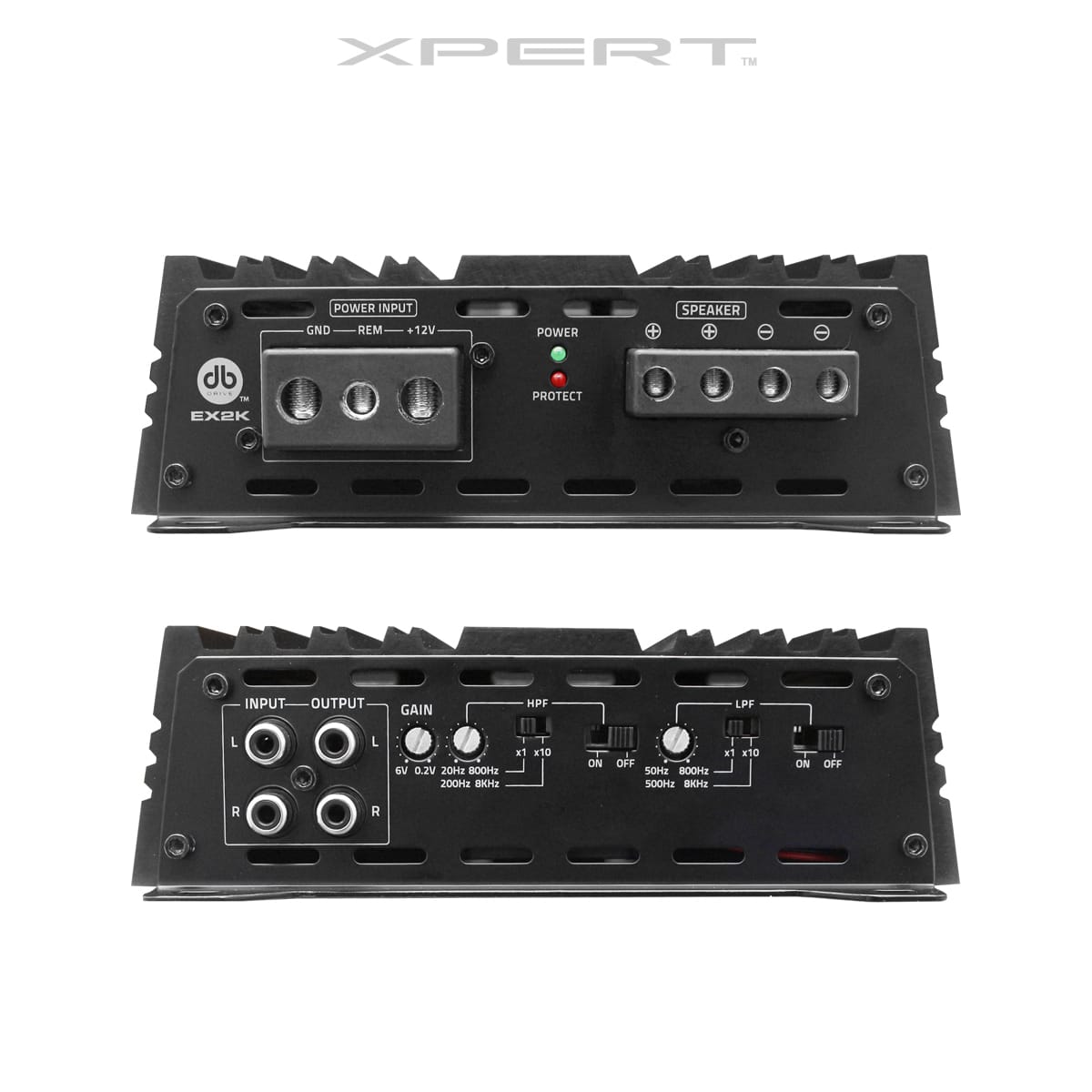

  • Audiophile Grade tiffany RCA connectors
  • Buffered full range RCA pass through outputs
  • Selectable Low-Pass, Band-Pass or High-Pass x-over
  • High efficiency full range Class D Technology
  • Direct Connect Speaker Terminals
  • Large Gauge Power Wire Inputs
  • Speaker Short Circuit Protection
  • Conformal coated moisture resistant PCB
Length (A) 5.90″ (150mm)
Width (B) 6.9″ (174mm)
Height (C) 2.11″ (53.6mm)



GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts 1 x 500 Watts @ 4Ω
1 x 1000 Watts @ 2Ω
1 x 2000 Watts @ 1Ω
PARAMETERS
Frequency Response 20Hz – 35KHz
S/N Ratio < 95dB
Low Level Input 6V – 0.2V
High Pass Filter Variable 20Hz ~ 8KHz
Low Pass Filter Variable 50Hz ~ 8KHz
Working Voltage 10V ~ 16V
