Euphoria

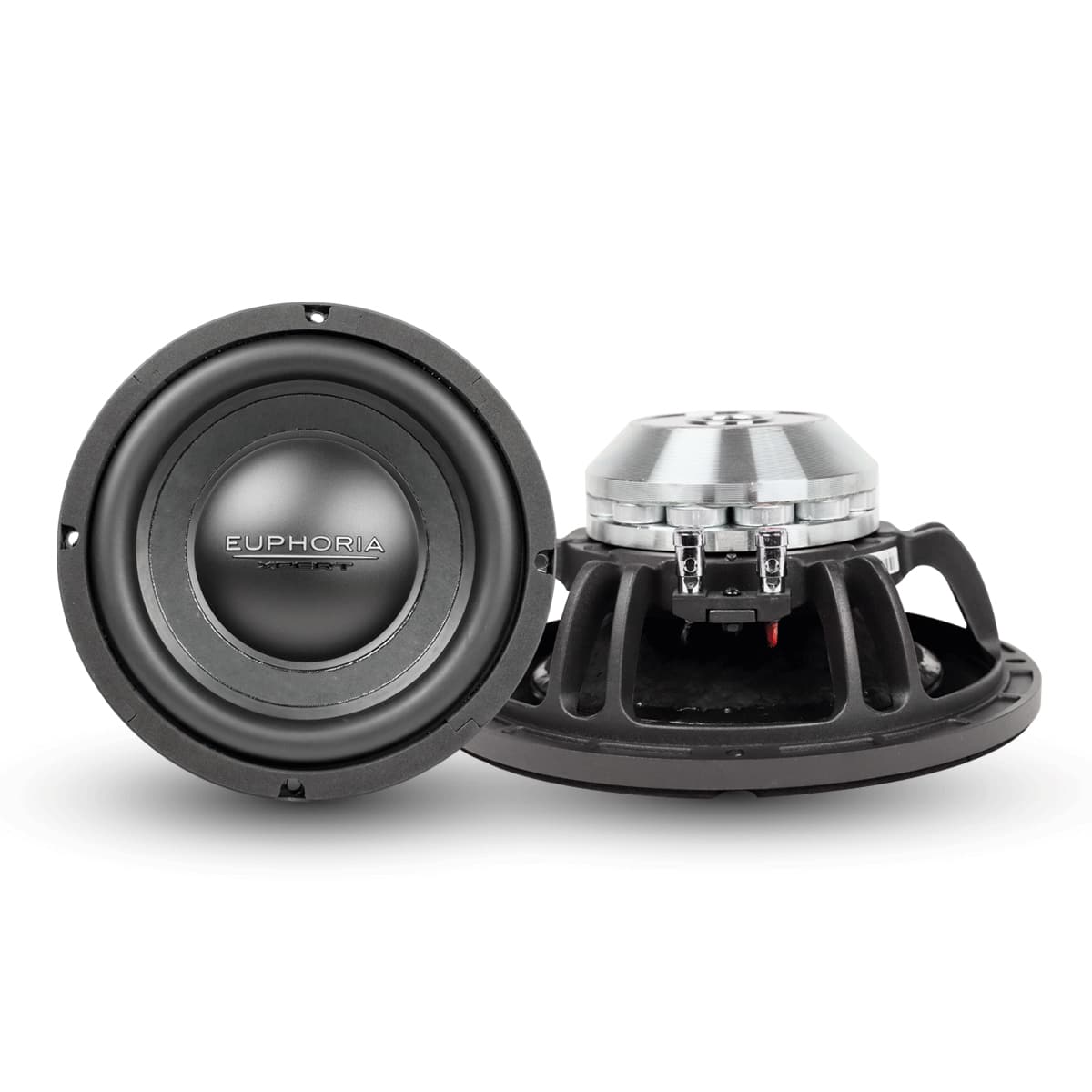

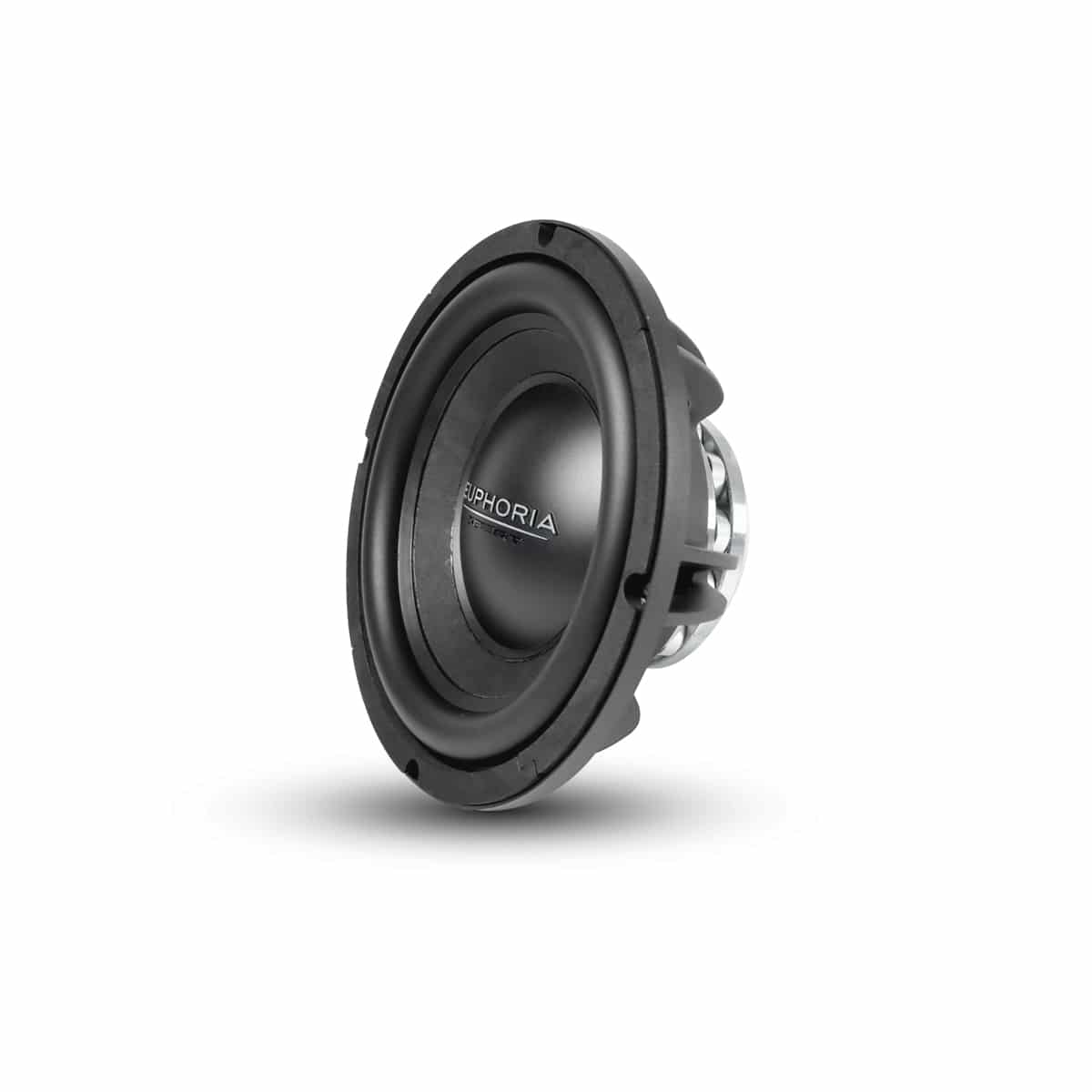

Euphoria Xpert EXM10NMB 10" Midbass

Euphoria Xpert EXM10NMB 10" Midbass

Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

EX10NMB


  • 10″ Neodymium Series MidBass
  • 2.5″ (63.5mm) Midrange Voice Coil
  • Neodymium 12 Piece Radially Equalized Magnet Assembly
  • IP52 Rated Paper Cone with Treated Rubber Surround
  • Die-Cast Aluminum Basket with Radial Venting Dimensions
  • Sold in Singles
T/S PARAMETERS
Resonant Frequency (fs) 40Hz
D.C. Voice Coil Resistance (Re)
Mechanical Quality Factor (Qms) 2.913
Electrical Quality Factor (Qes) 0.485
Total Quality Factor (Qts) 0.416
Compliance Equivalent Volume (Vas) 25.94L
Mechanical Compliance (Cms) 167.735 mm/N
Efficiency (1W/1M) 92 dB



ADDITIONAL SPECS
Nominal Impedance
Power Handling 400 Watts
Dynamic Wattage 800 Watts
Sensitivity (1w/1m) 92 dB
Voice Coil Diameter 2.5″ (63.5mm)


DIMENSIONS
Mounting Depth: 4.27″ (108.5mm)
Mounting Diameter: 9″ (230mm)
