Euphoria

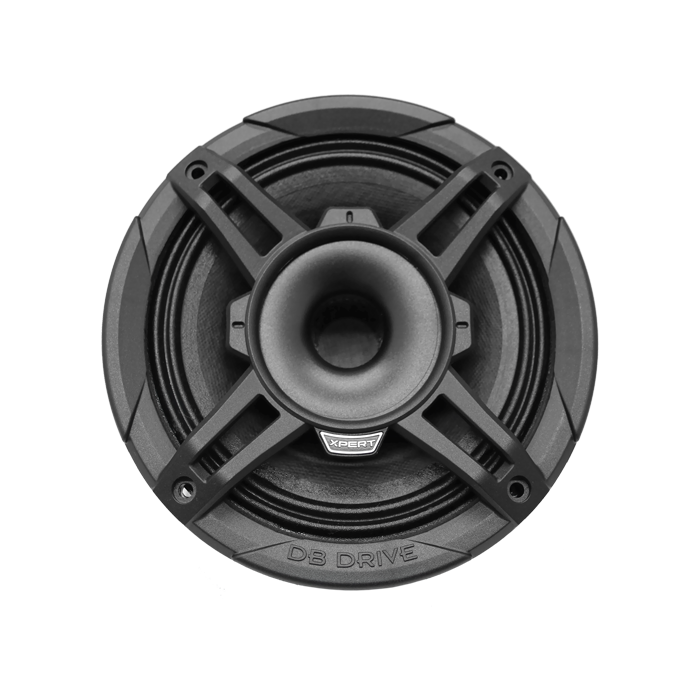

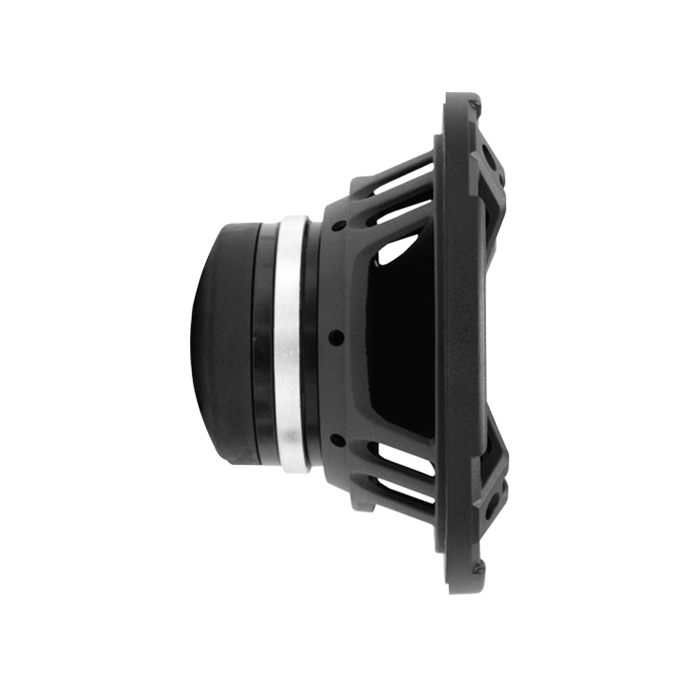

Euphoria Xpert 6.5" EX6NCD Pro Audio Coax

Euphoria Xpert 6.5" EX6NCD Pro Audio Coax

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Euphoria Xpert EX6NCD

  • 2″ (51mm) Midrange Voice Coil
  • Neodymium Ring Magnet Assembly
  • Rear Mounted Full Sized Compression Driver
  • IP52 Rateed Paper Cone With Treated Cloth Surround
  • Die-Cast Aluminum Basket With Radial Venting
  • 1.4″ (36mm) Polyester Tweeter Diaphragm
  • Wide Dispersion Conical HF Waveguide

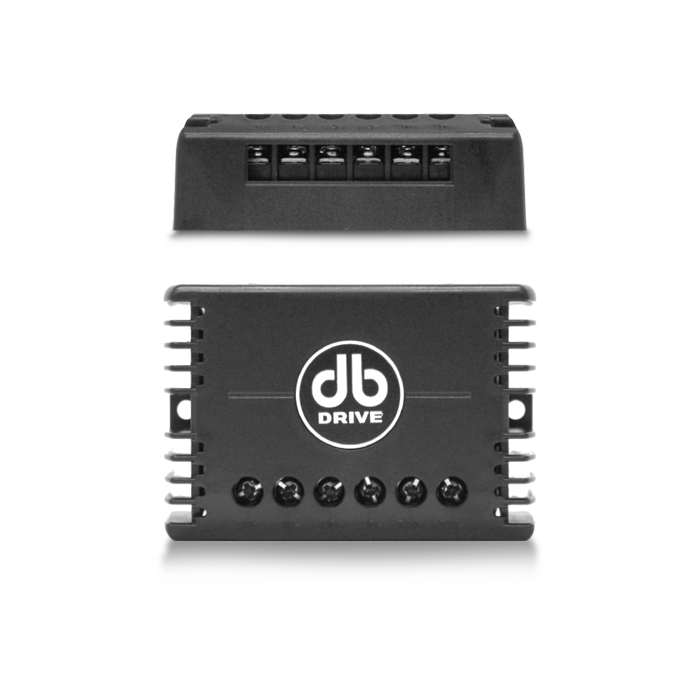

  • 12dB Passive Crossover Included
  • Protective Grills Included
T/S PARAMETERS
Resonant Frequency (fs) 61.2Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 4.82
Electrical Quality Factor (Qes) 0.32
Total Quality Factor (Qts) 0.30
Compliance Equivalent Volume (Vas) 6.3L
Mechanical Compliance (Cms) 0.28 mm/N
Efficiency (1W/1M) 105.7 dB
