Euphoria

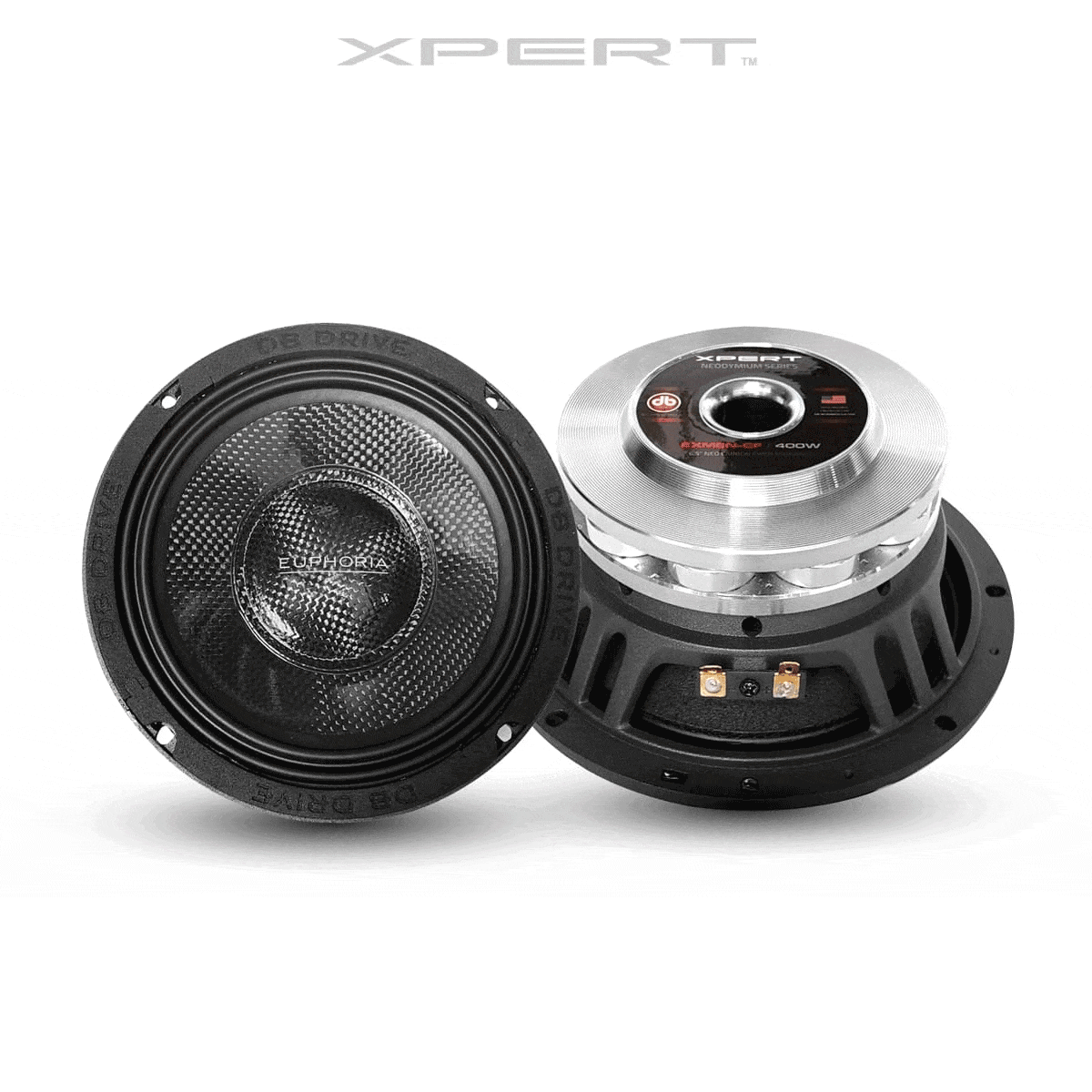

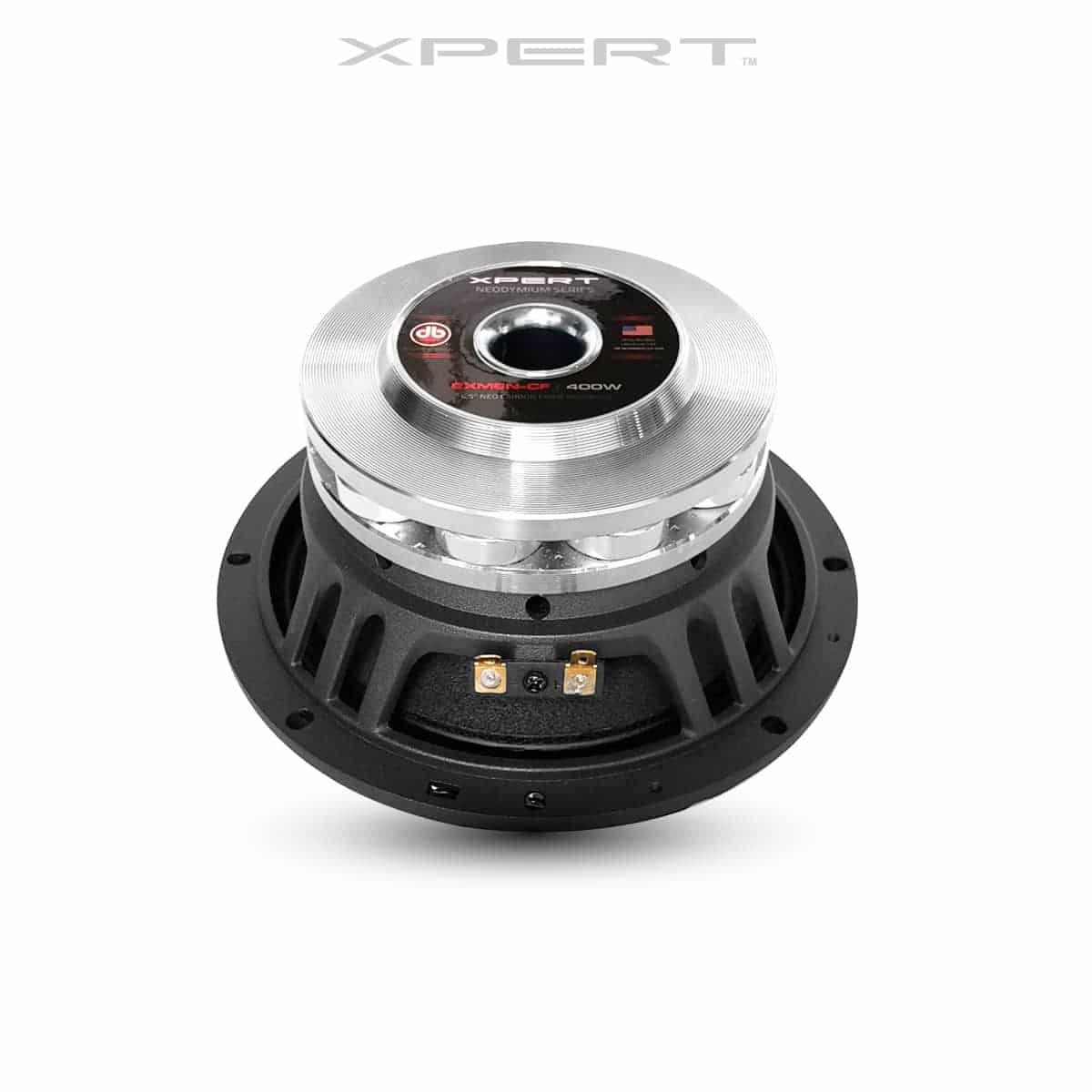

Euphoria Xpert 6.5" Mid EXM6N-CF

Euphoria Xpert 6.5" Mid EXM6N-CF

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

EXM6SN-CF

  • 6.5″ Neo Carbon Fiber midrange
  • 2.0″ (51mm) Midrange Voice Coil
  • 10 Neodymium Ring Magnet Assembly
  • IP65 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
  • Die-Cast Aluminum Basket with Radial Venting
  • SOLD IN SINGLES
T/S PARAMETERS
Resonant Frequency (fs) 61.2Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 4.82
Electrical Quality Factor (Qes) 0.32
Total Quality Factor (Qts) 0.30
Compliance Equivalent Volume (Vas) 6.3L
Mechanical Compliance (Cms) 0.28 mm/N
Efficiency (1W/1M) 98.1 dB
ADDITIONAL SPECS
Nominal Impedance
Power Handling 200 Watts
Dynamic Wattage 400 Watts
Sensitivity (1w/1m) 98.1 dB
Voice Coil Diameter 2.0″ (51mm)



DIMENSIONS
Mounting Depth: 2.76″ (70mm)
Mounting Diameter: 5.71″ (145mm)
