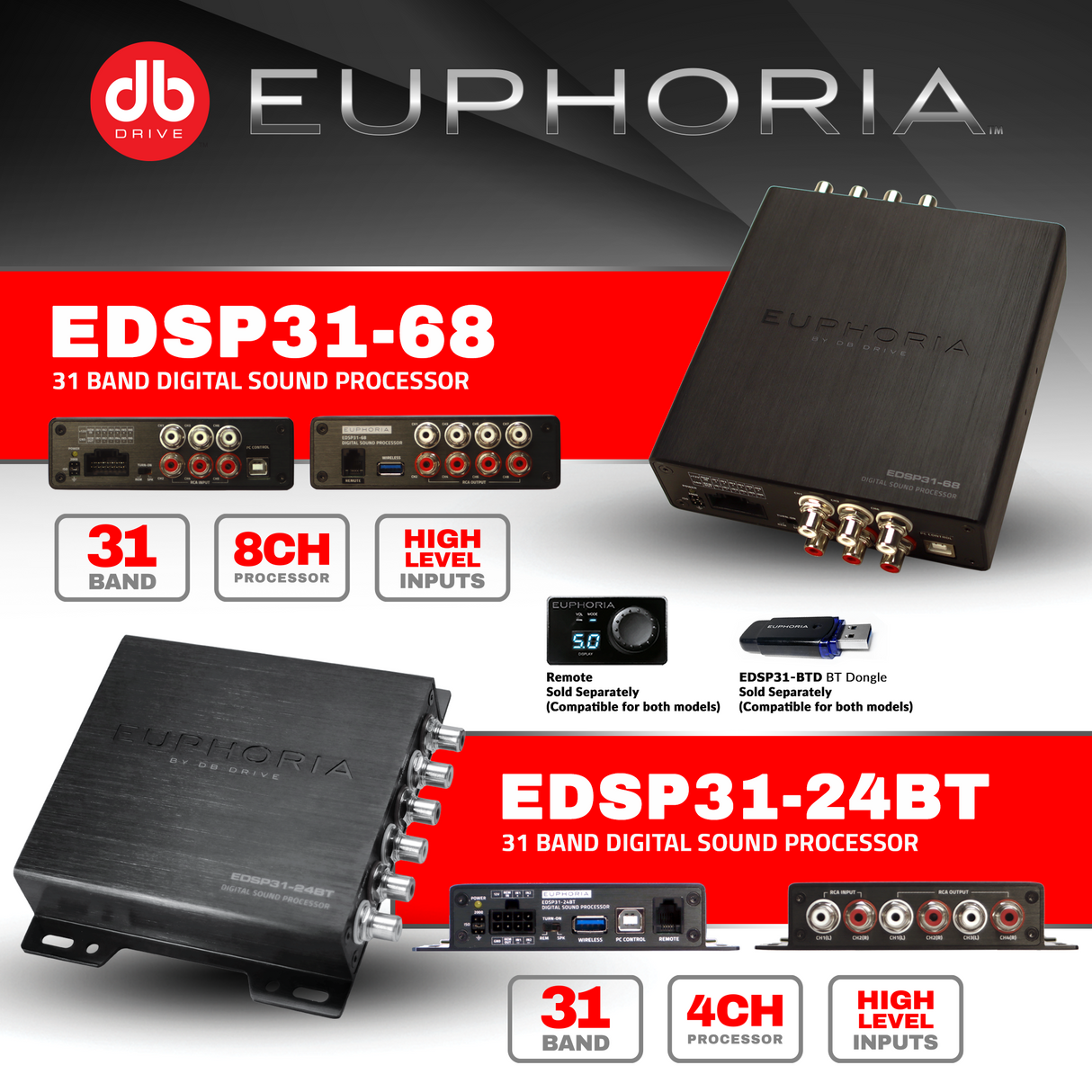

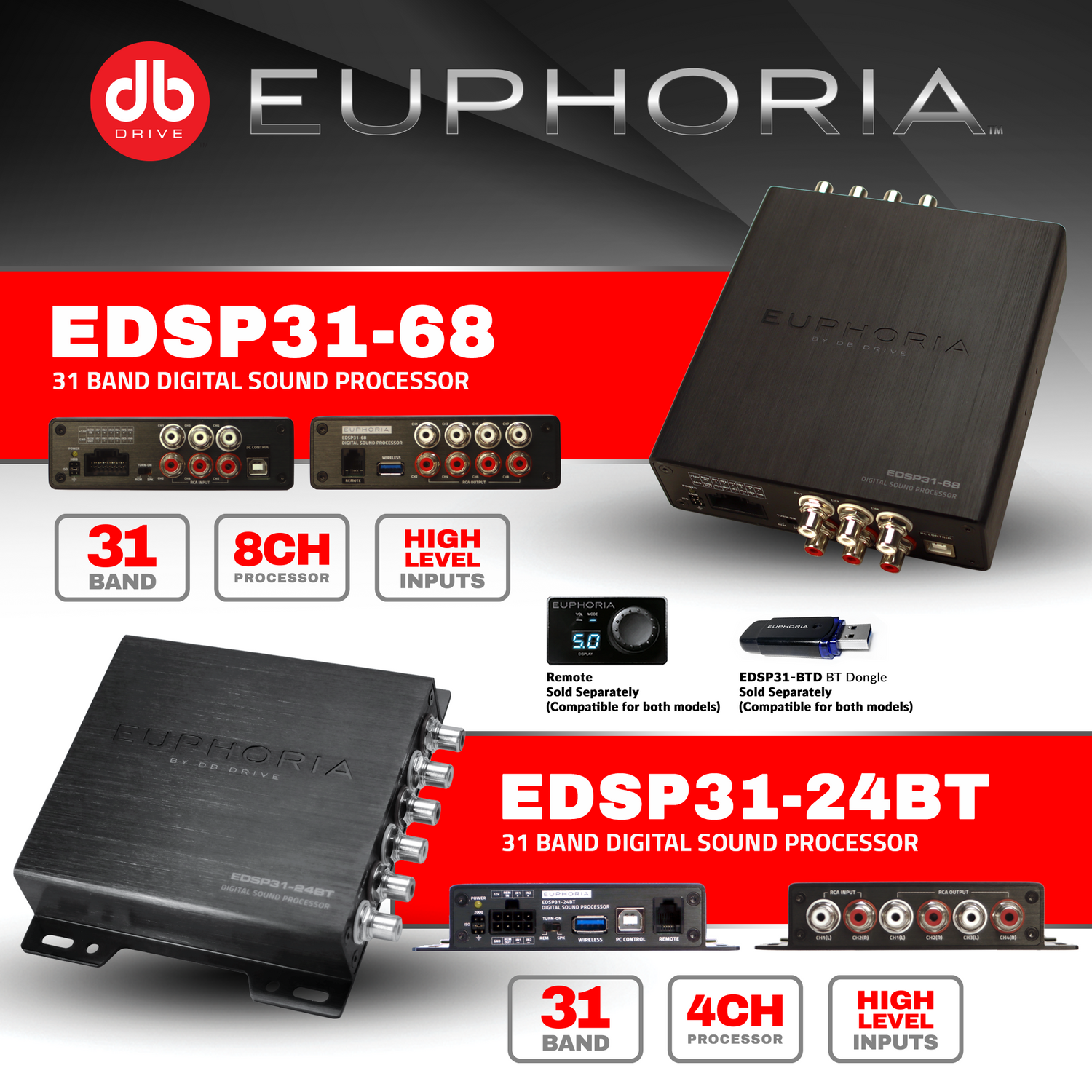

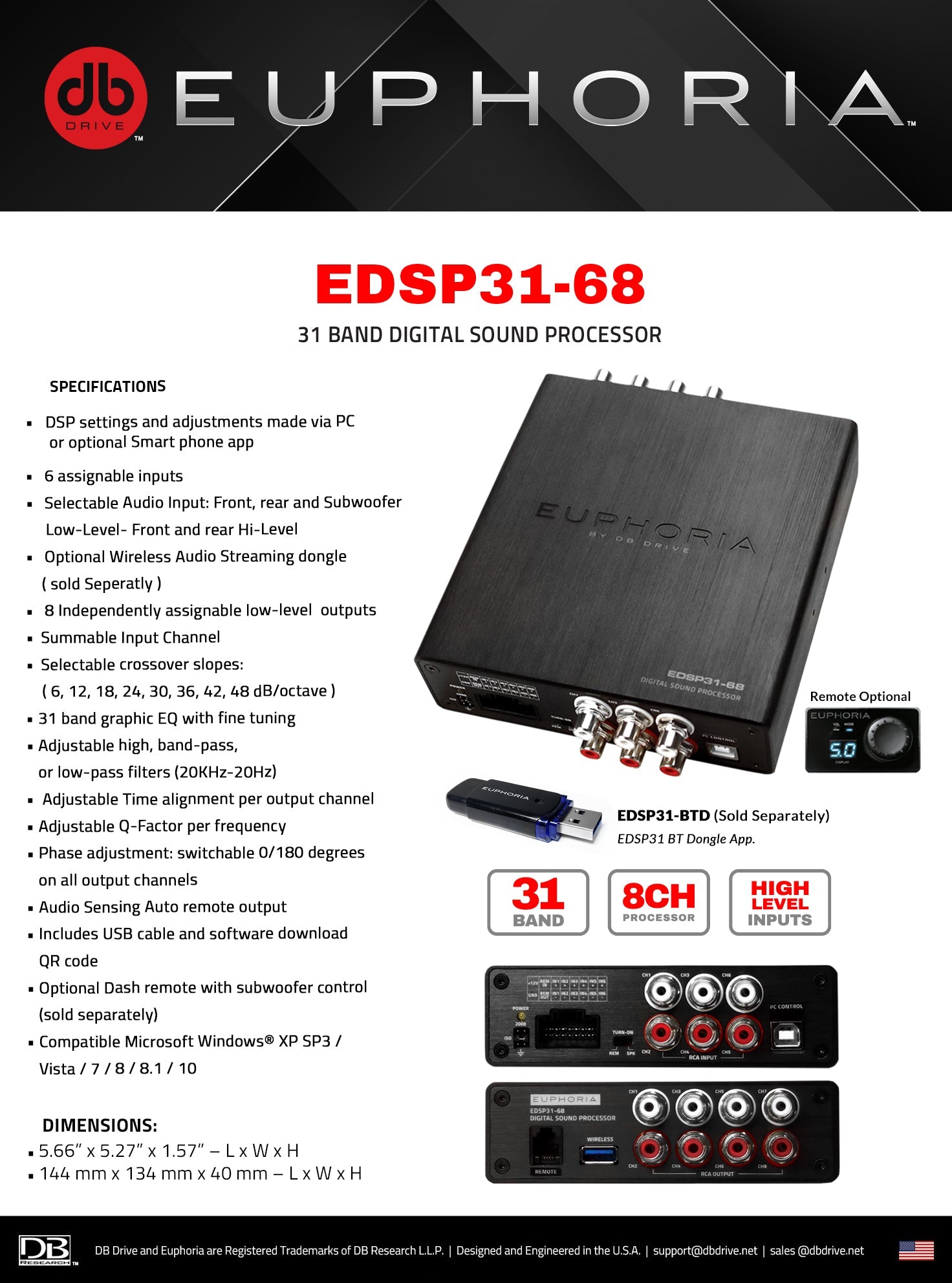

Euphoria Xpert EDSP31-68 8-CH DSP

Specifications

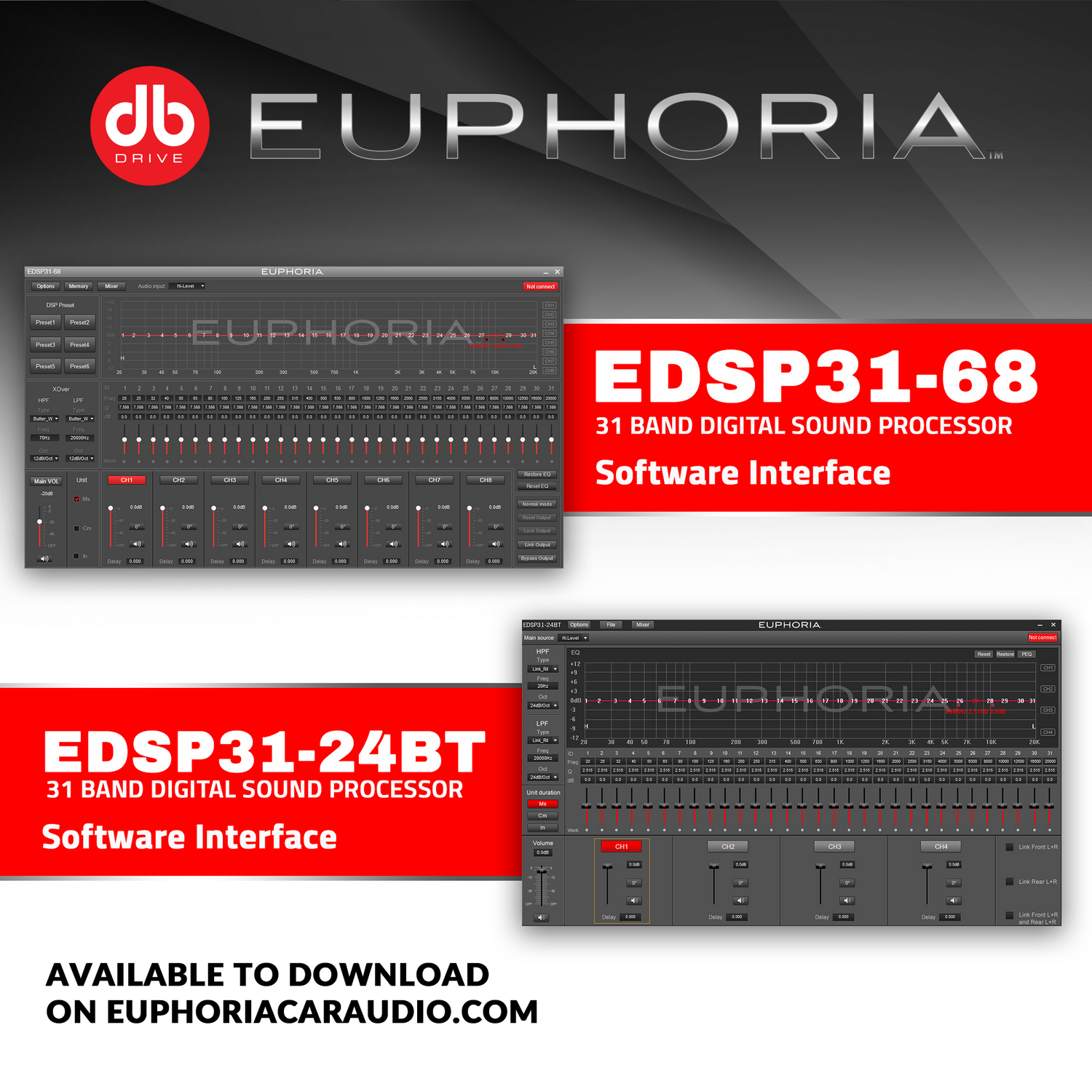

• • DSP settings and adjustments made via PC or optional Smart phone app
  • 6 assignable inputs
  • Selectable Audio Input: Front, rear and Subwoofer Low-Level- Front and rear Hi-Level
  • Optional Wireless Audio Streaming dongle ( sold Separately )
  • 8 Independently assignable low-level outputs
  • Summable Input Channel
  • Selectable crossover slopes: ( 6, 12, 18, 24, 30, 36, 42, 48 dB/octave )
  • 31 band graphic EQ with fine tuning • Adjustable high, band-pass, or low-pass filters (20KHz-20Hz)
  • Adjustable Time alignment per output channel
  • Adjustable Q-Factor per frequency
  • Phase adjustment: switchable 0/180 degrees on all output channels
  • Audio Sensing Auto remote output
  • Includes USB cable and software download QR code
  • Optional Dash remote with subwoofer control (sold separately)
  • Compatible Microsoft Windows® XP SP3 / Vista / 7 / 8 / 8.1 / 10

Dimensions

• 5.66” x 5.27” x 1.57” – L x W x H
• 144 mm x 134 mm x 40 mm – L x W x H
