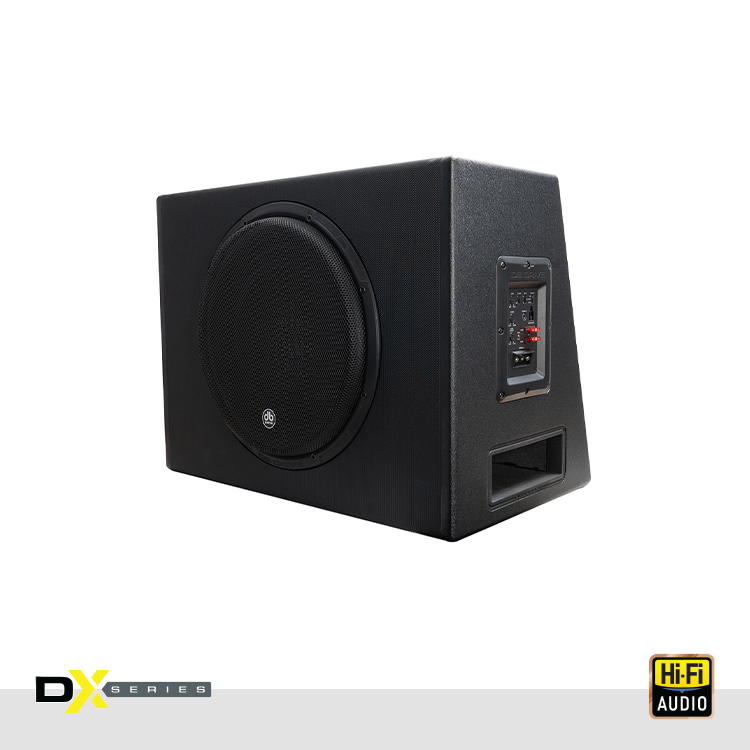

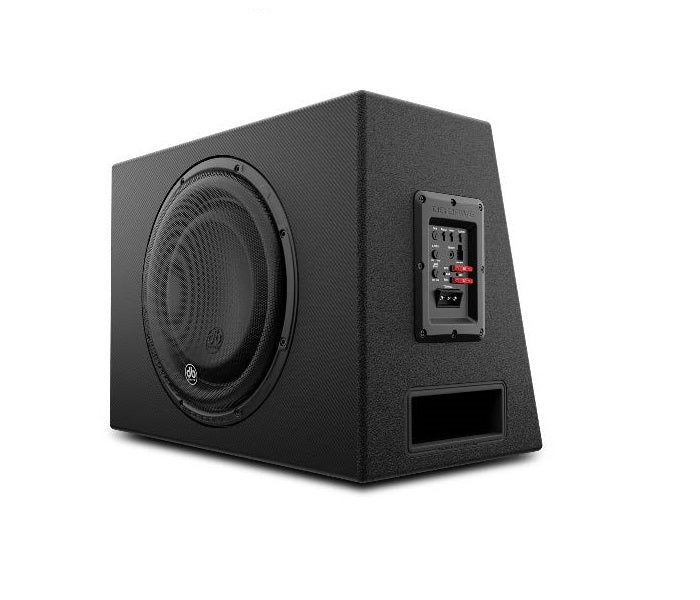

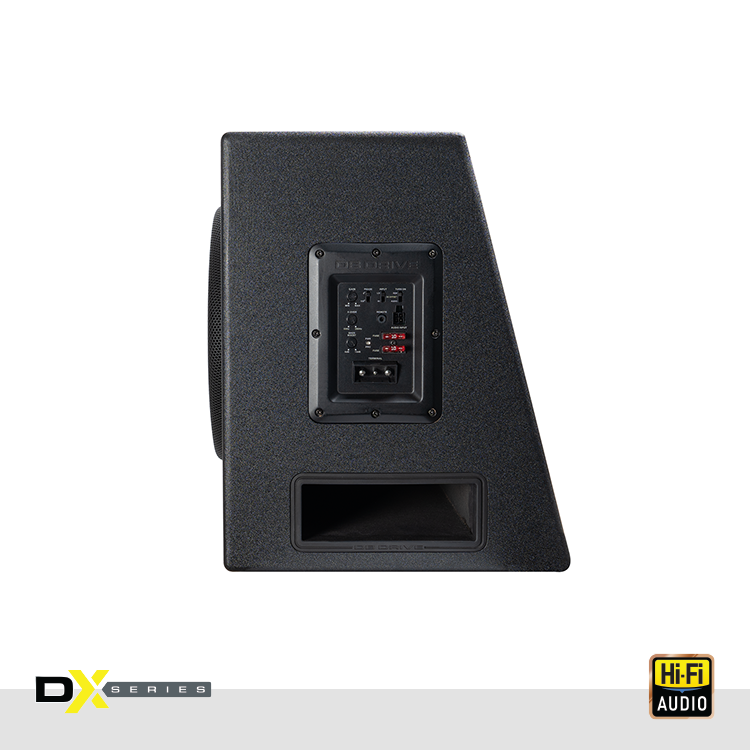

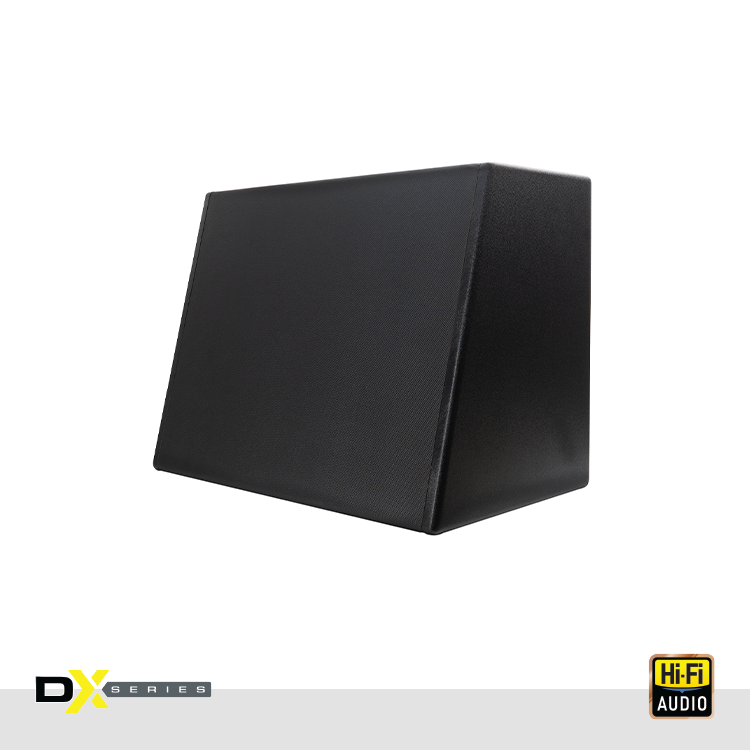

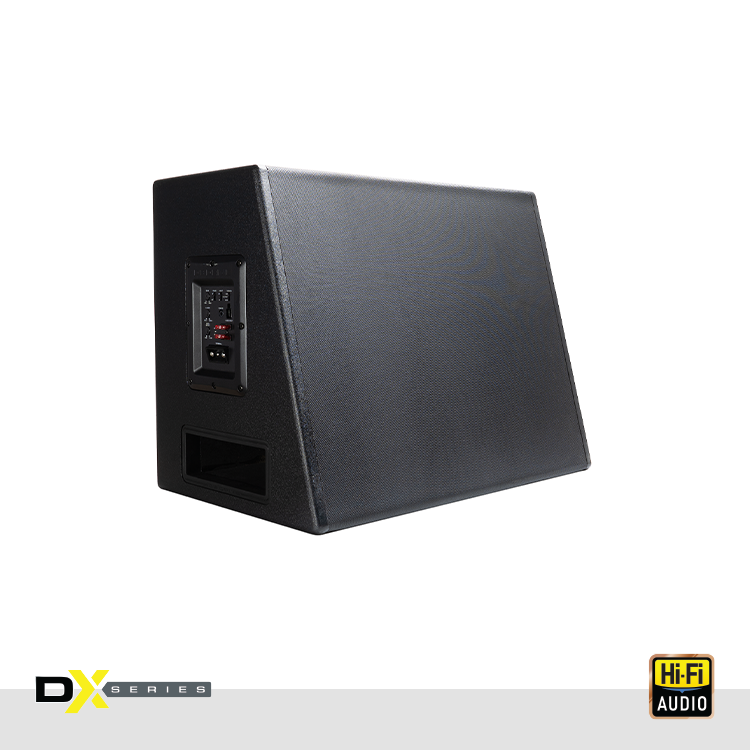

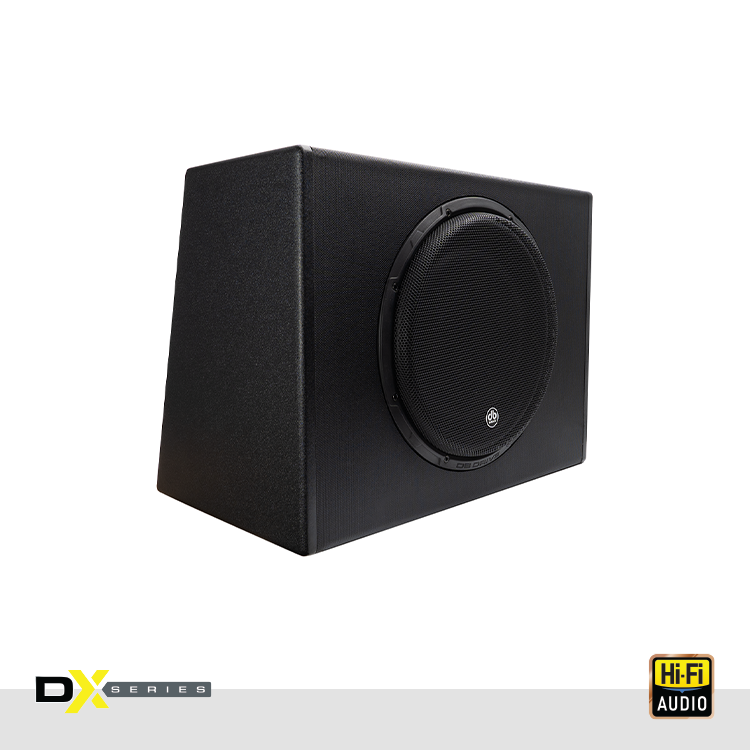

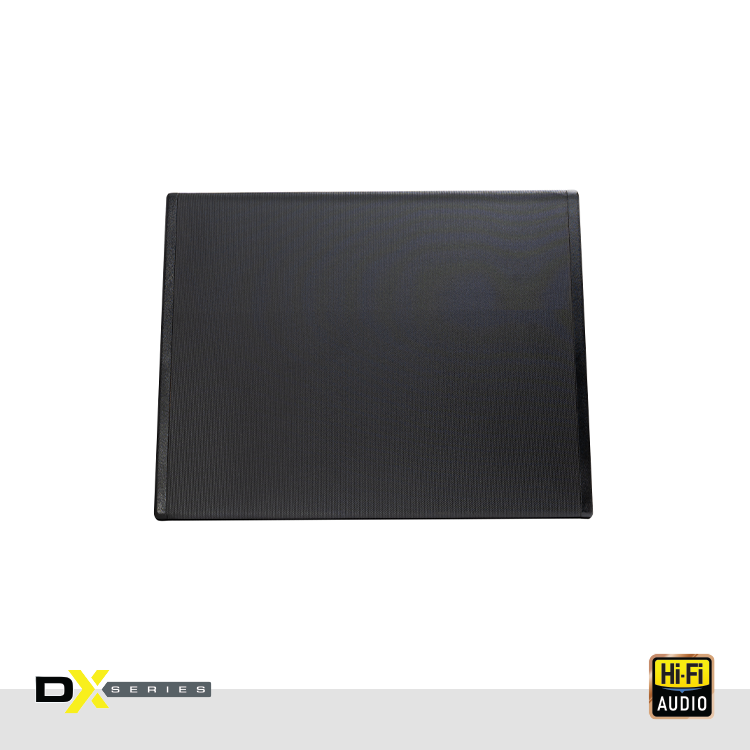

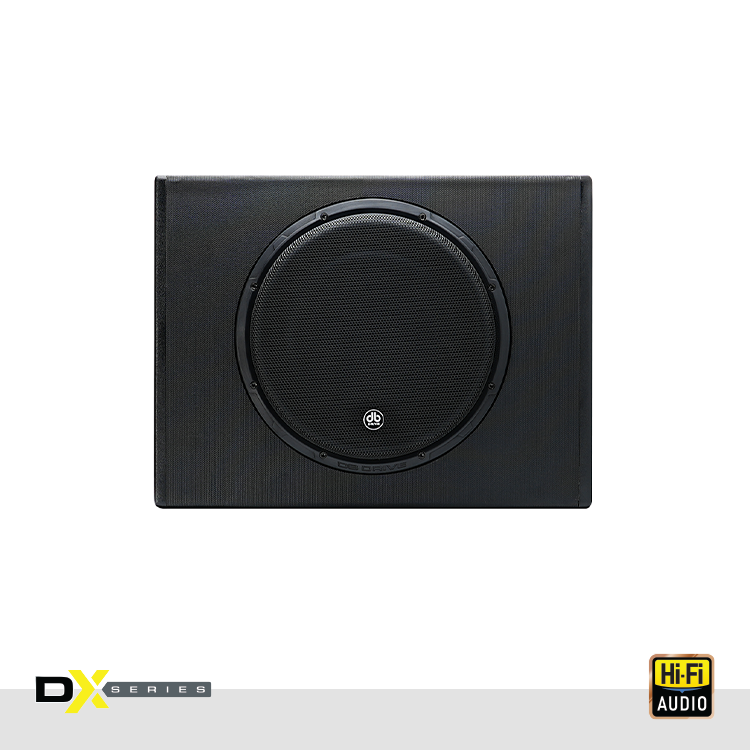

DB Drive DX-BC12A : 12" Amplified Bass Crate Enclosure

Features

• High output 12" subwoofer

• With Built-in 300 watt amplifier

• RCA low level inputs

• High level (factory radio)inputs

• Selectable 0°/180° phase switch

• Separate low level and speaker level inputs

• Variable bass boost EQ @ 45Hz

• Variable 12db/Octave low pass crossover

• Audio Sensing auto remote turn on/off function

• Thermal and over/under voltage protection

• Remote bass level control included

• Detachable large Power/Ground input connector

• High grade vinyl covering

• Heavy Duty multi-layer MDF construction

Specifications

• Frequency Response: 20HZ - 250Hz

• Crossover Frequency: 50Hz - 200Hz

• Phase Shift: 0 - 180

• Fuse: 10A

• Voltage: 11 - 15 A

Dimensions:
L = 20.20"/ 513 mm
W = 13.27"/ 337 mm
H = 15.24"/ 387 mm

Description

Enhance your car’s audio with the DB DRIVE DX-BC12A powered enclosures, delivering deep bass and crystal-clear sound.  Key Features:  300-Watt Amplifier: Powers the 12-inch subwoofer for high-performance sound. Phase Control: Fine-tune phase alignment for optimal audio quality. Flexible Connectivity: Dual input options for seamless integration. Adjustable Low-Pass Crossover: Customize frequency range for ideal performance. Bass Boost EQ: Add extra punch with adjustable low-end boost. Auto Turn-On/Off: Automatically powers on and off with audio detection. Remote Bass Control: Adjust bass levels from the driver’s seat. Superior Power Transfer: Large AWG input terminals for enhanced efficiency. Durable Construction: Built with 5/8” MDF for long-lasting durability. Elevate your sound with DB DRIVE’s DX-BC12A enclosures, delivering powerful and reliable performance.
