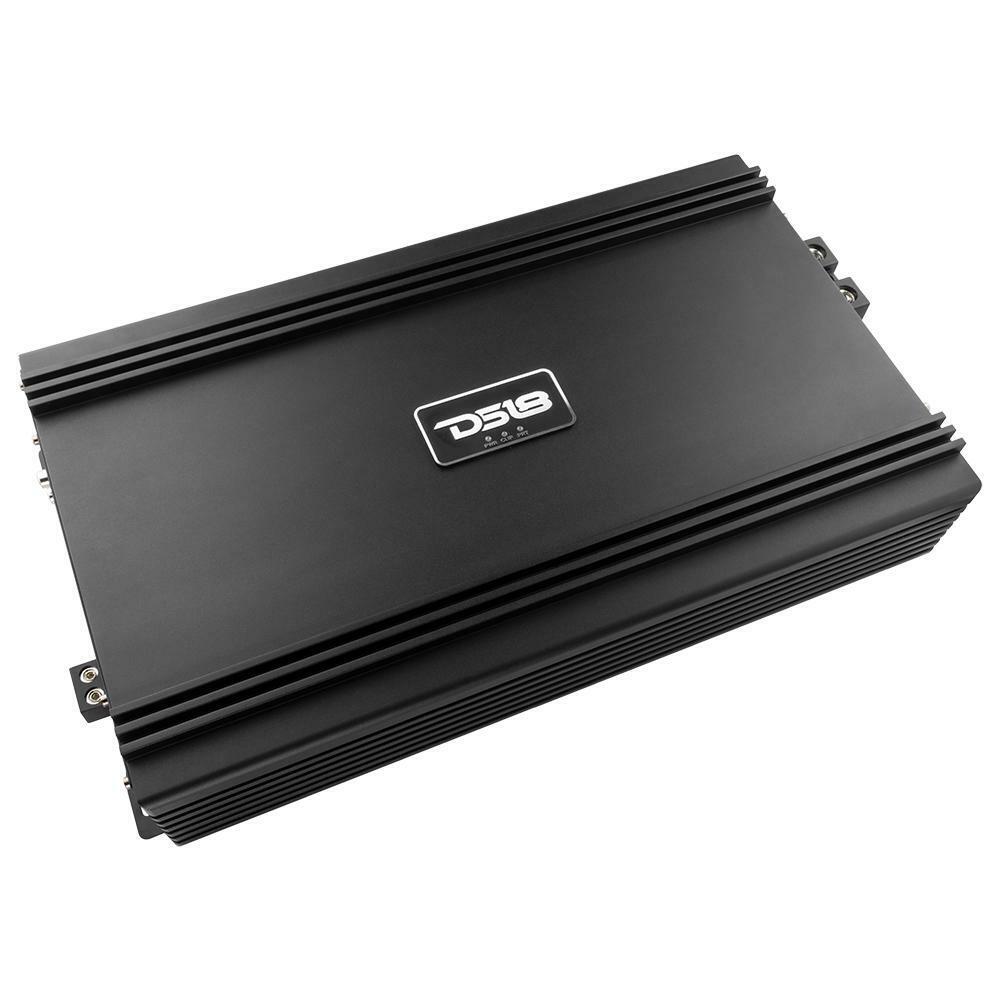

DS18 GFX Series Monoblock 8000 Watts 2 Ohm Class D Full Range Amplifier GFX-8K2
DS18 GFX Series Monoblock 8000 Watts 2 Ohm Class D Full Range Amplifier GFX-8K2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description
DS18 GFX Series Monoblock 8000 Watts 2 Ohm Class D Full Range Amplifier GFX-8K2
The DS18 GFX series of amps are for the enthusiast that is serious about squeezing every watt possible out of your sound system for a concert hall type of sound that can be heard for miles away!
This Listing Includes:
(1) Amplifier
Features:
- Full range Capable Class - D Amp
- Compact Size and wide Band Crossover for more applications
- Variable Full Crossover Filter
- Surface Mount Component
- Audio Precision Quality Control Verification
- Stable & Reliable Four Layers PCB Trace Layout
- Heavy Duty Heat-sink Chassis and Forced Cooling System Build In
Specifications:
Model - GFX-8K2
Power @ 2 ohms (14.4V) - 8000W
Power @ 4 ohms (14.4V) - 5000W
Minimum Speaker Load - 2 OHM
THD - 1%
Input Sensitivity - 0.5-8V
Hi Pass Crossover (12dB/Oct) - 15Hz-2KHZ
Lo Pass Crossover (12dB/Oct) - 50Hz-20KHZ
Frequency Response - 15Hz-20KHZ
Bass Boost - 0-12dB
Bass Boost Frequency - 35Hz-70Hz
Working Voltage - 9-15V
Input Terminal Size - 1/0AWG
Output Terminal Size - 8 AWG
Dimensions
(mm) 416 x 236 x 72
