DS18 Car Audio 4 Channel Full Range Amplifier 8400 Watt Class D G8400.4D

DS18 Car Audio 4 Channel Full Range Amplifier 8400 Watt Class D G8400.4D

Regular price $499.99 USD
Regular price Sale price $499.99 USD
Sale Sold out
Shipping calculated at checkout.
DS18 Car Audio 4 Channel Full Range Amplifier 8400 Watt Class D G8400.4D

The GEN-X Series returns with an extremely powerful amplifier for supercharged builds that like it LOUD! After extensive revision, the GEN-X Series is back and better than ever! The G8400.4D comes with variable full crossover filter for crystal clear audio whenever you want it! Fully adjustable High Pass, Low Pass, and Full Filters give you control over your sound! Surface mount component technology allows for creative control over the placement and design of your build! Protect your equipment effectively with Protection, Clipping, and Power Indicator LED?s that notify you when your amplifier has reached it?s limit!

Anyone looking to turbocharge every piece of equipment in their system is sure to be satisfied by this amplifier! The G8400.4D has power ratings of 2 x 1700W at 4 ohms bridge, 4 x 1000W at 2 ohms, and 4 x 700W at 4 ohms, and 8400W MAX for pristine power on demand! This amplifier would be a great addition to any sound system looking to get it loud and keep it there!

Highlights:
- Compact Size For Easy Installation Anywhere.
- Variable Full Crossover Filter For Crystal Clear Audio On Demand.
- Fully Adjustable HP, LP, Full Filters.

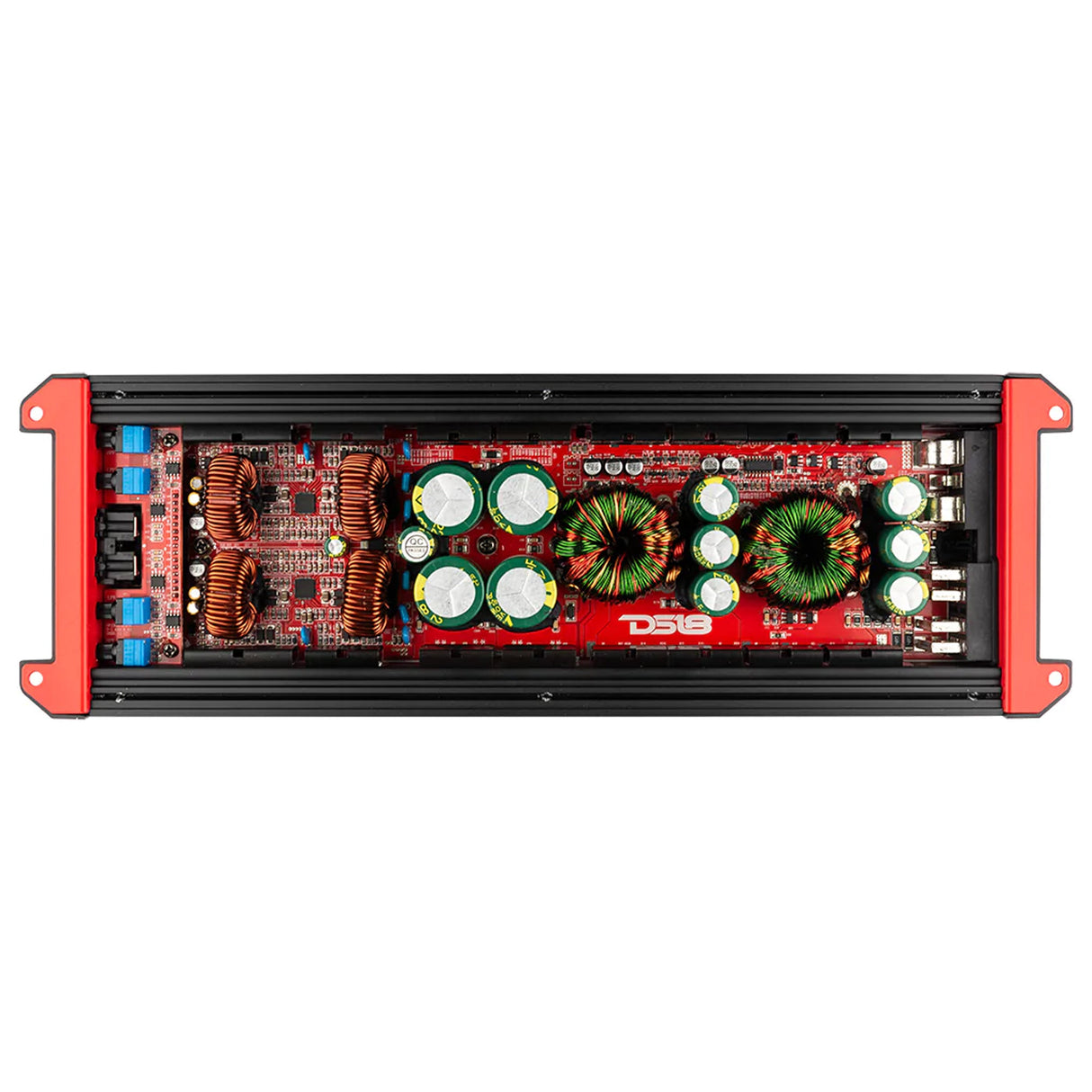

- Surface Mount Component Technology.
- Audio Precision Quality Control Verification.
- Stable and Reliable Digital Circuit Design.
- Protection, Clipping, And Power Indicator LED?s.
- High and Low Voltage Protection.

Great For:
- Pro Audio
- Car Audio

This listing includes:
(1) DS18 4 Channel Amplifier G8400.4D

Total Watts (Peak): 8400 Watts
RMS Power @ 4 OHM: 4 x 700 Watts
RMS Power @ 2 OHM: 4 x 1000 Watts
RMS Power @ 1 OHM: N/A
RMS Power @ 4 OHM Bridge: 2 x 1700 Watts

AUDIO SPECIFICATIONS:
Frequency Response: 20Hz ~ 20KHz
Signal To Noise Ratio: >90dB
Efficiency @ 4 OHM: 80%
Damping Factor: 78
Input Impedance: 22 K
Channel Separation: 70dB
Total Harmonic Distortion (THD): 0.01%
Low Level Input Range: 0.25 ~ 6V
High Level Input: No

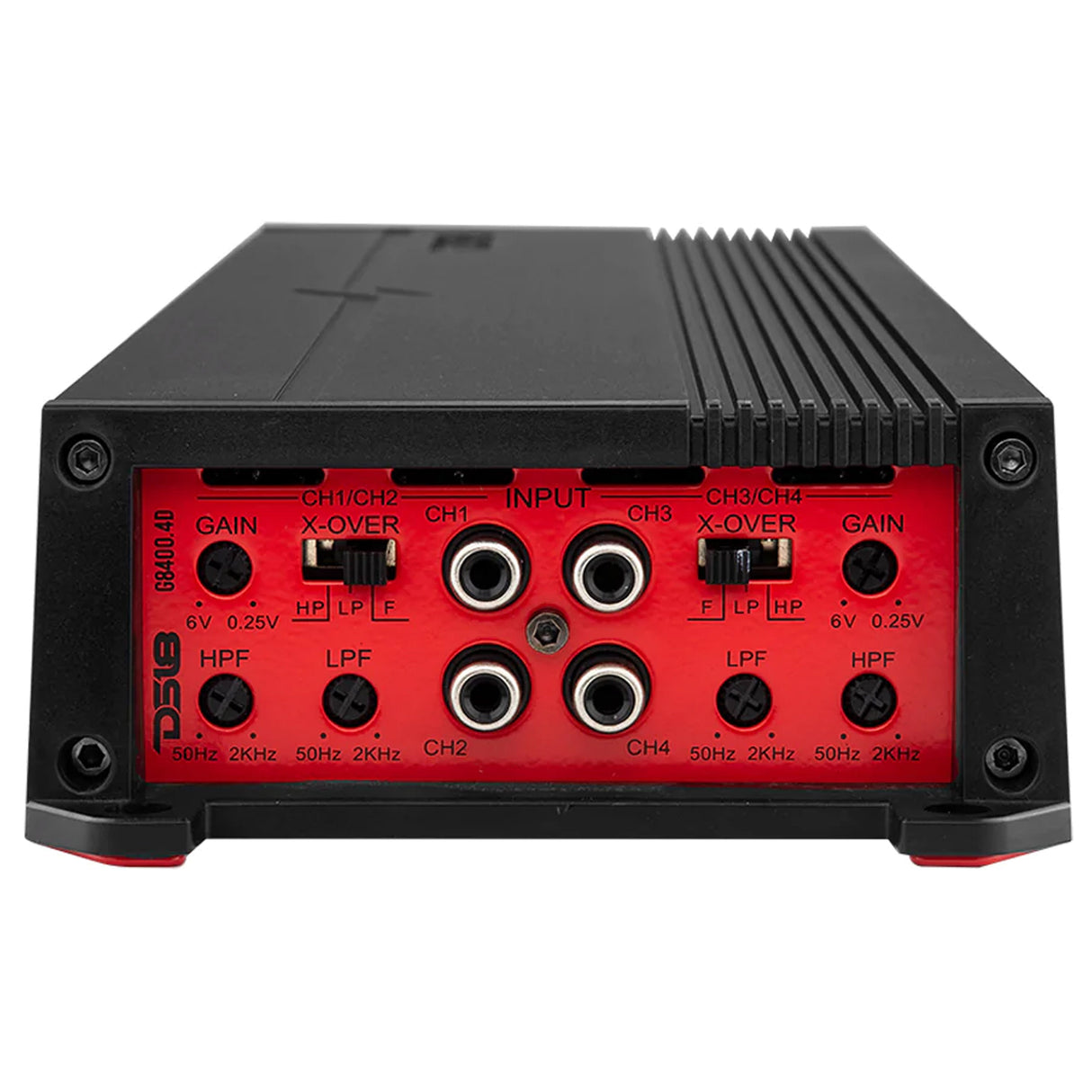

Selectable X-over: LPF/FLAT/HPF
X-over Filter Range: 50Hz ~ 250Hz

FEATURES:
Amplifier Class: Digital (D)
Amplifier Type: 4CH Full Range
Number Of Channels: 4
Minimum Impedance: 2 Ohm / 4 Ohm Bridged
Led Indicator: Power / Protection / Clip
Fuse Size: External 240A
Remote Level Control: N/A
Thermal Protection: Yes
Over-Load Protection: Yes
Dc Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Clipping Protection: Yes
Body Color | Finish: Matte Black

DIMENSIONS:
Overall Length: 14.37? (365mm)
Overall Width: 4.72? (120mm)
Overall Height: 1.96? (50mm)
Heatsink Length: 12.51? (318mm)
Unit Weight: 5.73 lbs (2.6 kg)
