DS18 8" Midrange Speaker 550 Watt 4 Ohm w/ RGB LED Bullet PRO-X8.4BMRGB

DS18 8" Midrange Speaker 550 Watt 4 Ohm w/ RGB LED Bullet PRO-X8.4BMRGB

Regular price $64.97 USD
Regular price Sale price $64.97 USD
Sale Sold out
Shipping calculated at checkout.

DS18 8" Midrange Speaker 550 Watt 4 Ohm w/ RGB LED Bullet PRO-X8.4BMRGB

DS18 is always innovating and dominating the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X8.4BMRGB. This amazing speaker shares all the characteristics of our very popular X8.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 275w RMS and 550w peak power with a 96db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambiance aesthetic to match your mood or color scheme.

This Listing Includes:
(1) DS18 8" Midrange Speaker PRO-X8.4BMRGB

- High power pro audio speaker handling 275w RMS and 550w peak power.

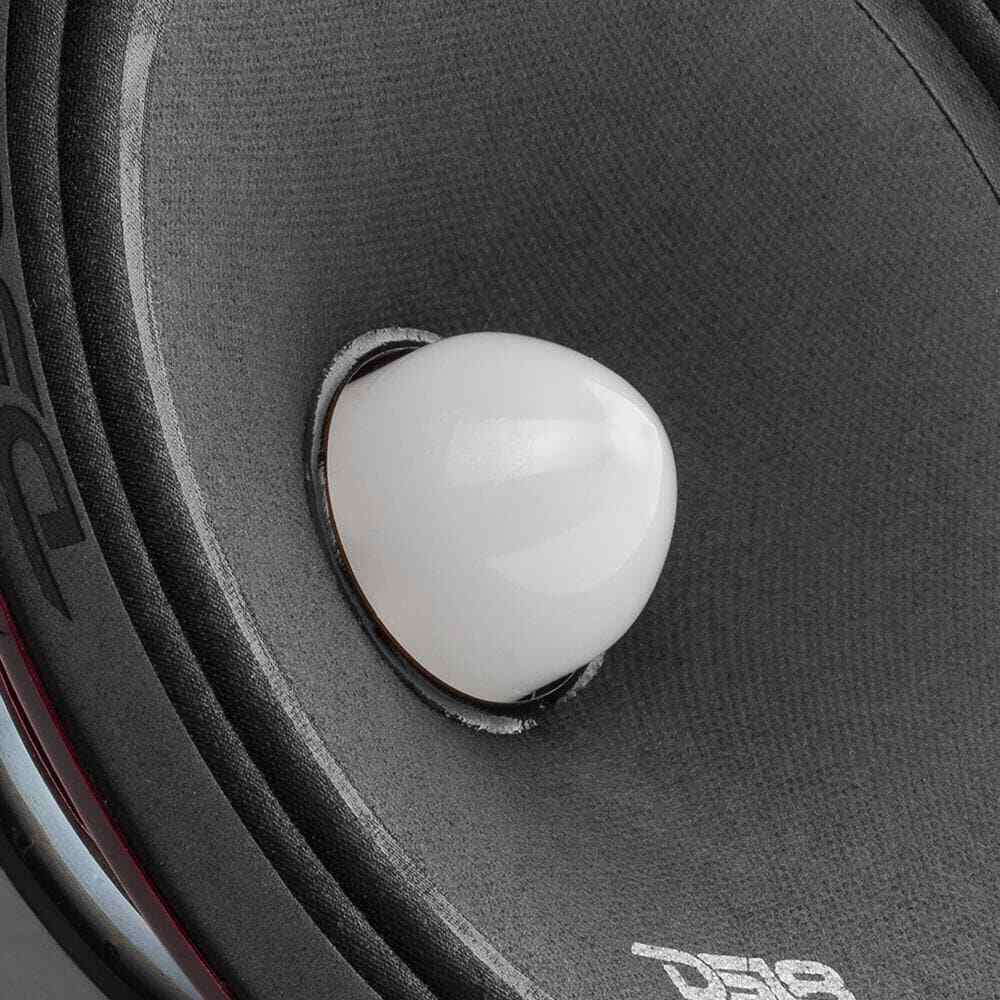

- Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.
- Strong ferrite magnet with CCA high wattage voice coil and 96db sensitivity.
- You can use one color at a time or add the LED-BTC ?to have multiple colors!

Nominal Diameter: 8"
Nominal Impedance: 4 Ohm
RMS Power Handling: 275 Watts
MAX Power Handling: 550 Watts
Sensitivity (1w/1m): 94dB
Frequency Response: 125Hz-16KHz
Recommended HI Pass Crossover: 120 Hz
Voice Coil Diameter: 38.6mm / 1.5"
Voice Coil Former Material: Kapton
Winding Material: CCAW
Cone Material: Paper
Bullet Material: Translucid ABS with RGB LED
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 30 Oz
Displacement Volume: 0.046L
Equivalent Volume: Vas 7.1226L
Excursion (one way): Xmax 9.3mm
Free Air Resonance: Fs 114Hz
Mechanical Factor: Qms 9.052
Electrical Factor: Qes 0.877
Total Factor: Qts ?0.8
Mechanical Mass?? ?Mms: 17.699g
Mechanical Compliance: Cms 0.11 m/N
BL Factor: BL 6.945
Voice Coil Inductance: Le 5.31mH
Cone Area: Sd 213.82 cm2
CD Resistance: Re ?3.2 ohms

Overall Diameter: 8.19" / 208mm
Overall Depth: 3.42" / 87mm
Front Mount Baffle Cutout: 7.16" / 182mm
Mounting Depth: 3.18" / 81mm
Motor Diameter: 4.72" / 120mm
