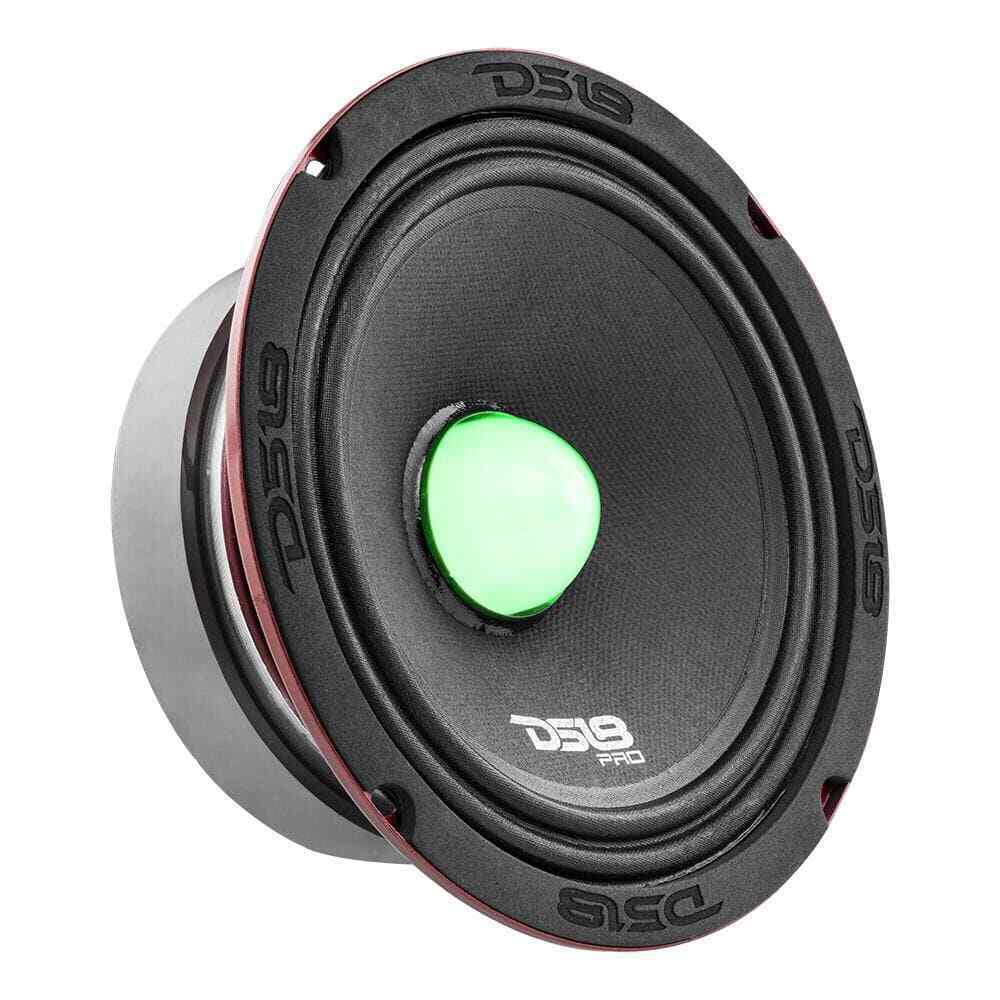

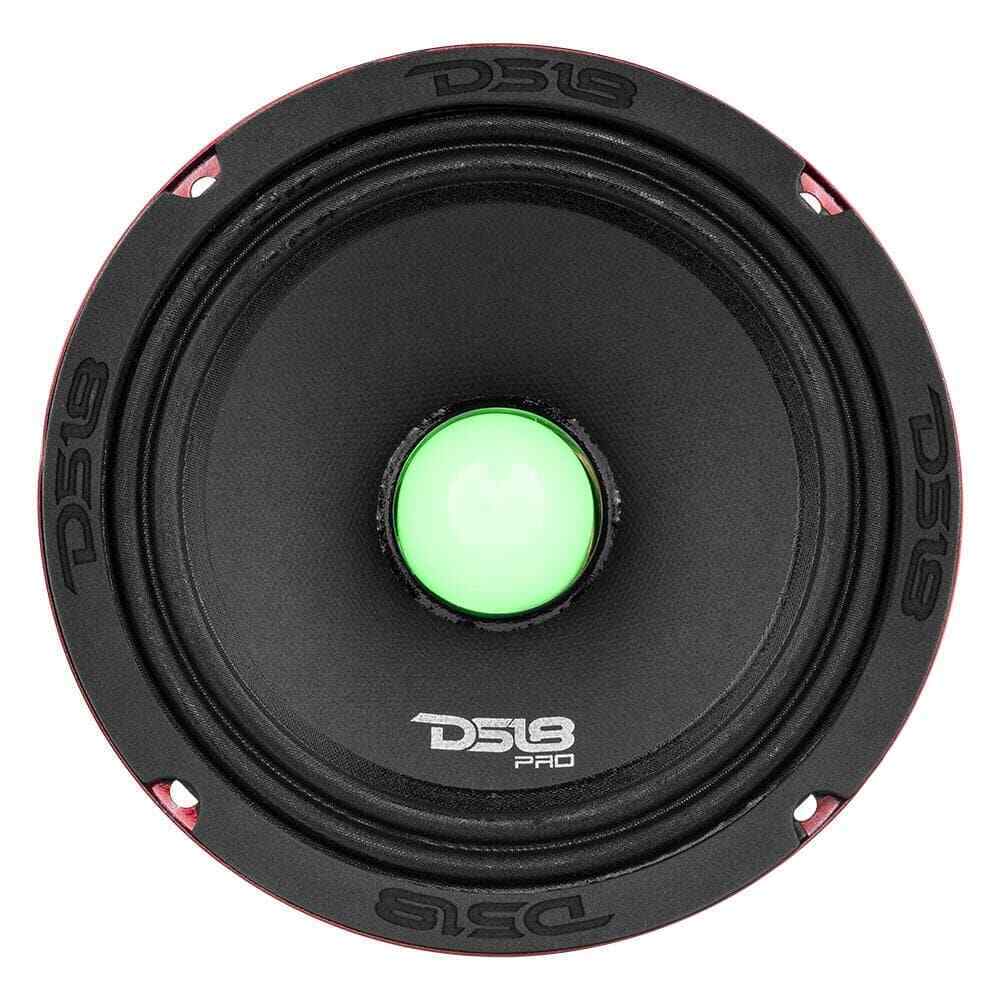

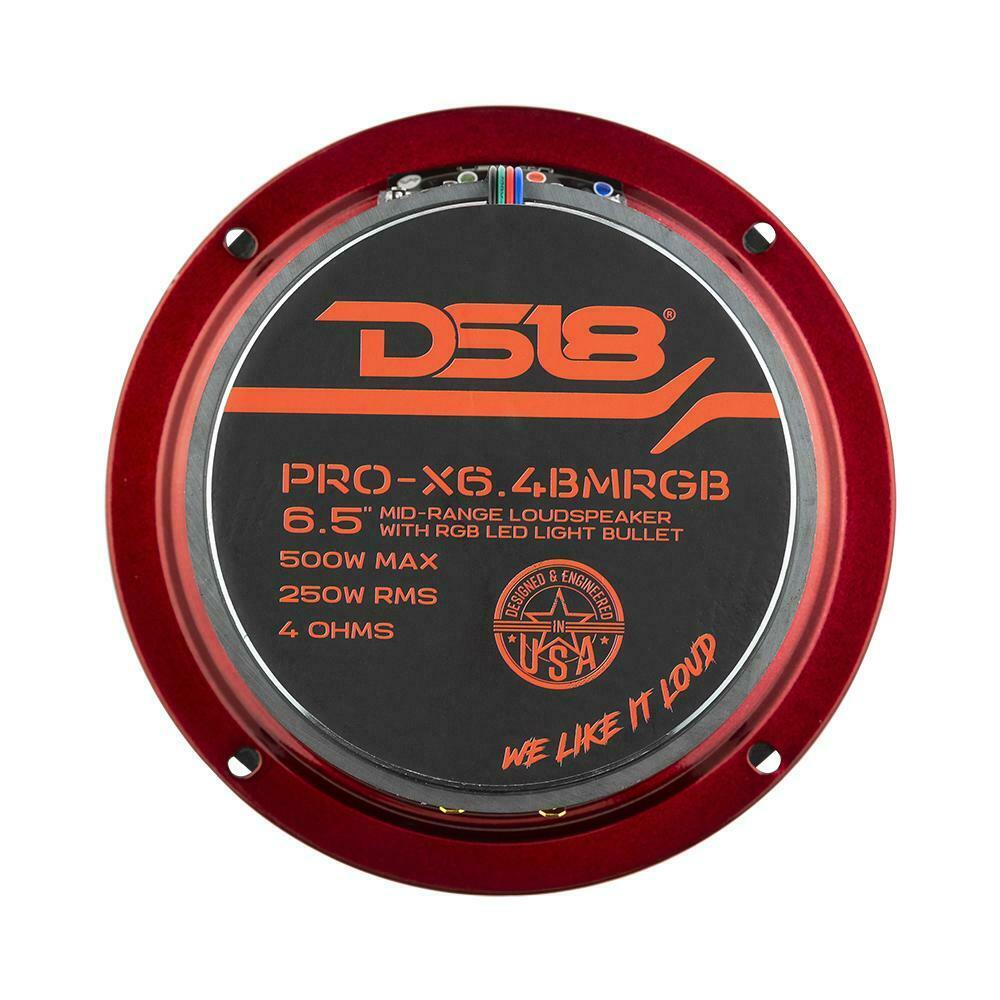

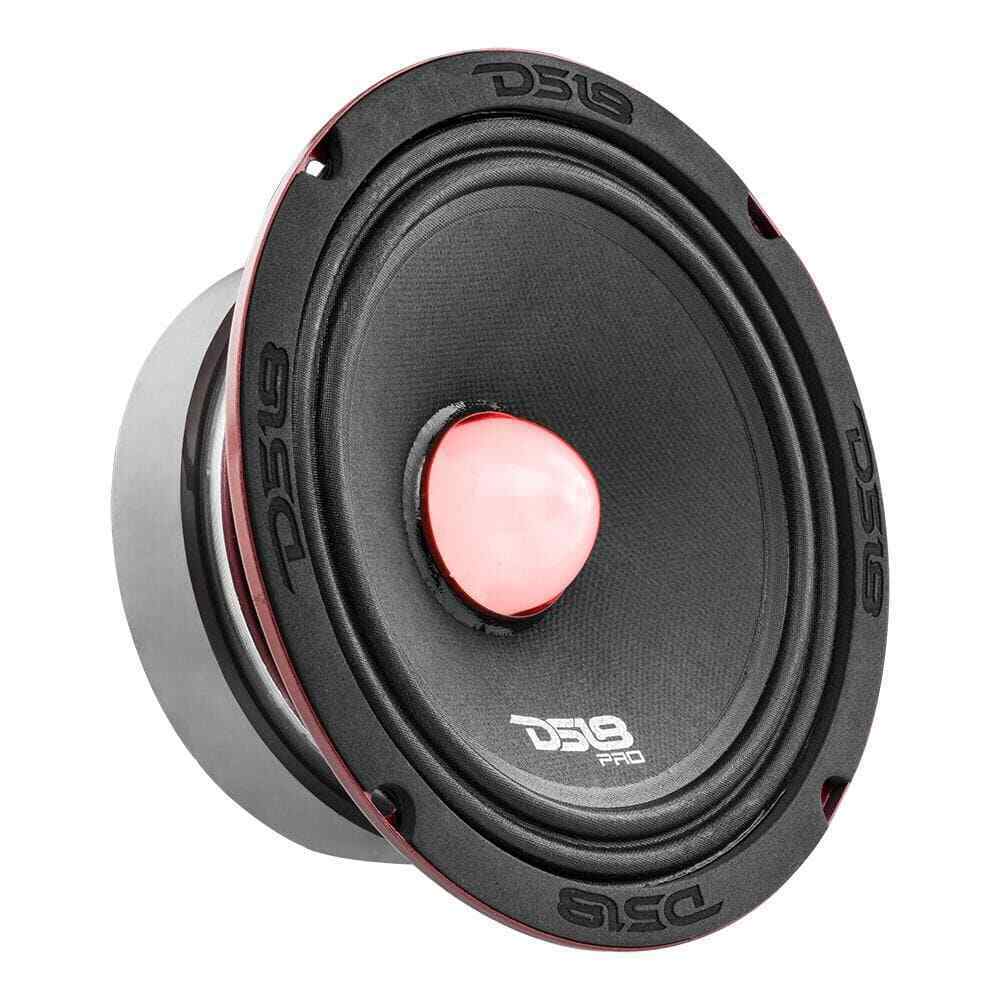

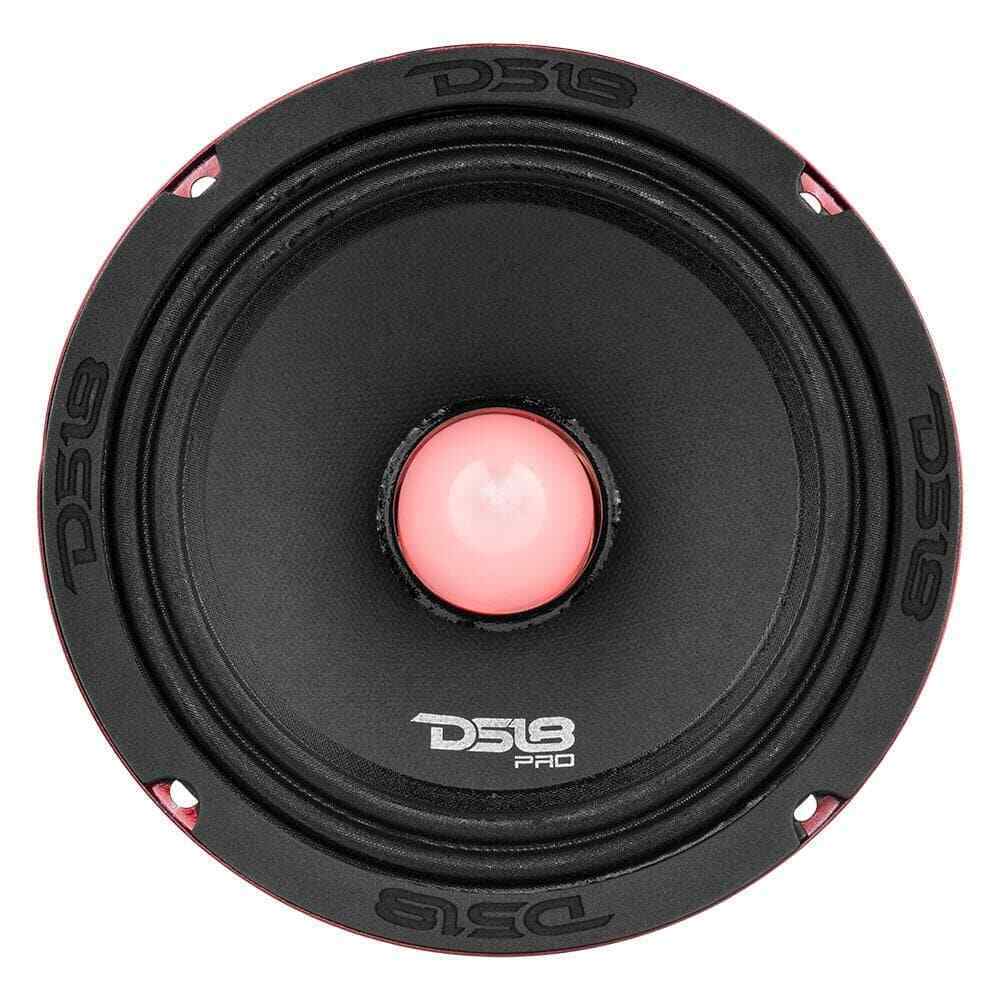

DS18 6.5" Midrange Speaker 500 Watt 4 Ohm w/ RGB LED Bullet PRO-X6.4BMRGB

DS18 6.5" Midrange Speaker 500 Watt 4 Ohm w/ RGB LED Bullet PRO-X6.4BMRGB

Regular price $51.95 USD
Regular price Sale price $51.95 USD
Sale Sold out
Shipping calculated at checkout.
DS18 6.5" Midrange Speaker 500 Watt 4 Ohm w/ RGB LED Bullet PRO-X6.4BMRGB

DS18 is always innovating and dominating the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X6.4BMRGB. This amazing speaker shares all the characteristics of our very popular X6.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 250w RMS and 500w peak power with a 94db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambiance aesthetic to match your mood or color scheme.

This Listing Includes:
(1) DS18 6.5" Midrange Speaker PRO-X6.4BMRGB

Features:
- High power pro audio speaker handling 250w RMS and 500w peak power.
- Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.
- Strong ferrite magnet with CCA high wattage voice coil and 94db sensitivity.
- You can use one color at a time or add the LED-BTC to have multiple colors!

Specifications:
Nominal Diameter: 6.5"
Nominal Impedance: 4 Ohm
RMS Power Handling: 250 Watts
MAX Power Handling: 500 Watts
Sensitivity (1w/1m): 94dB
Frequency Response: 125Hz-12KHz
Recommended HI Pass Crossover: 135 Hz
Voice Coil Diameter: 38.6mm / 1.5"
Voice Coil Former: Material Kapton
Winding Material: CCAW
Cone Material: Paper
Bullet Material: Translucid ABS with RGB LED
Surround Material: Cloth
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 30 Oz
Displacement Volume: .032L

Thiele and small parameters:
Equivalent Volume: Vas 2.349L
Excursion (one way): Xmax 8.2mm
Free Air Resonance: Fs 135Hz
Mechanical Factor: Qms 7.707
Electrical Factor: Qes 0.789
Total Factor: Qts 0.716
Mechanical Mass: Mms 10.718g
Mechanical Compliance: Cms 0.094 m/N
BL Factor: BL 6.689
Voice Coil Inductance: Le 4.22mH
Cone Area: Sd 132.73 mm2
CD Resistance: Re 3.2 ohms

Dimensions:
Overall Diameter: 6.61" / 168mm
Overall Depth: 2.83" / 72mm
Front Mount Baffle Cutout: 5.70" / 145mm
Mounting Depth: 2.64" / 67mm
Motor Diameter: 4.68" / 119mm
