DS18

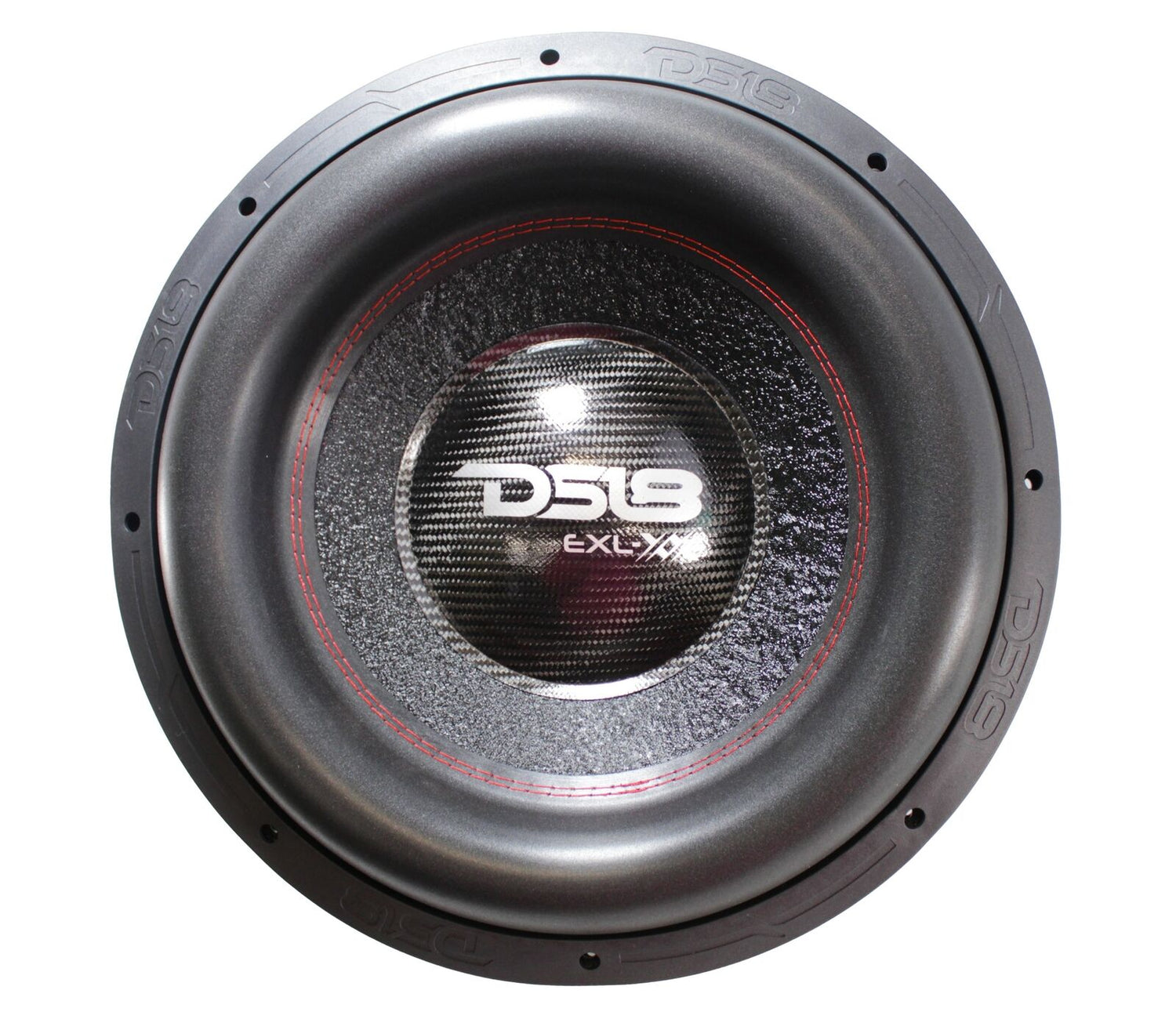

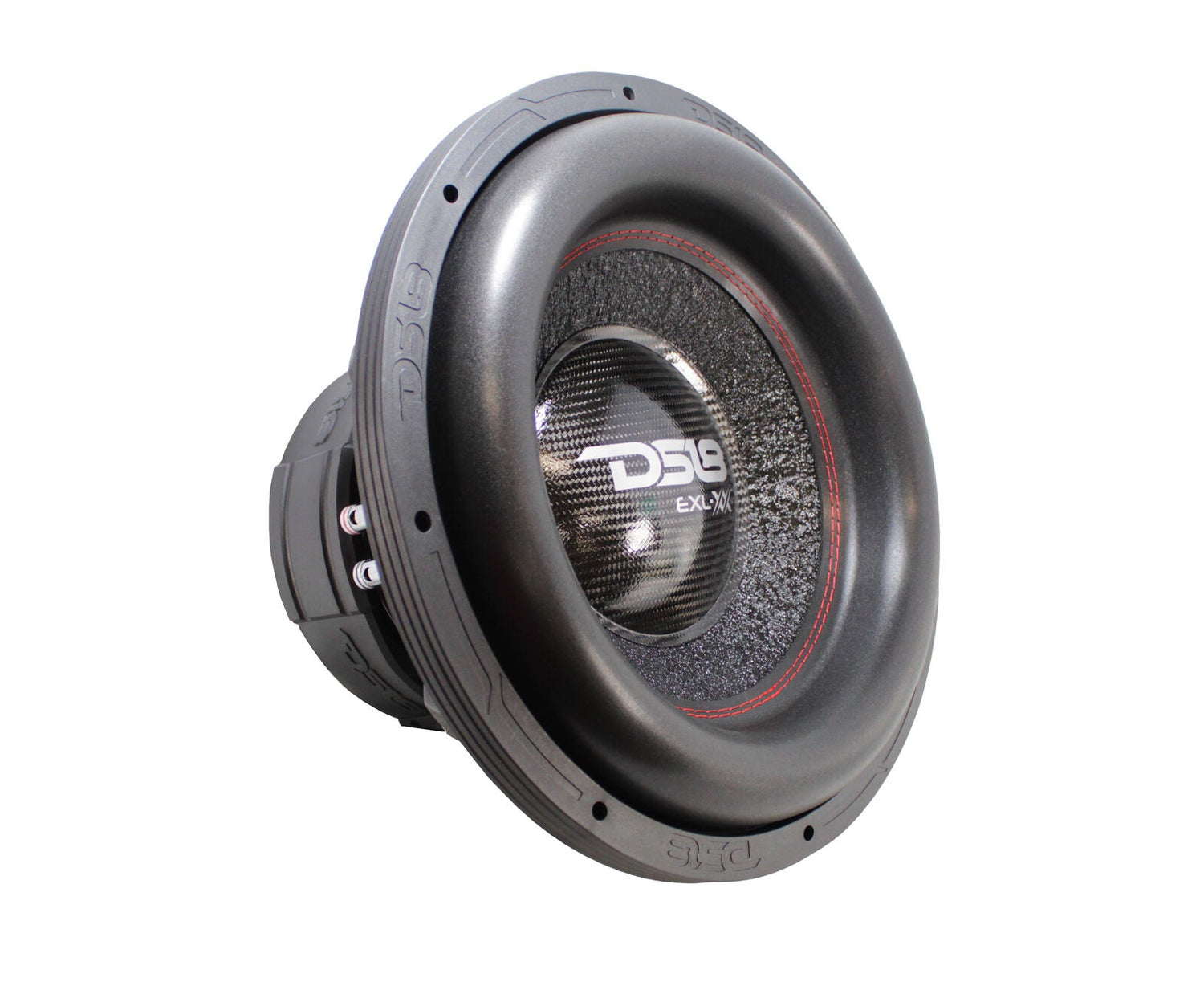

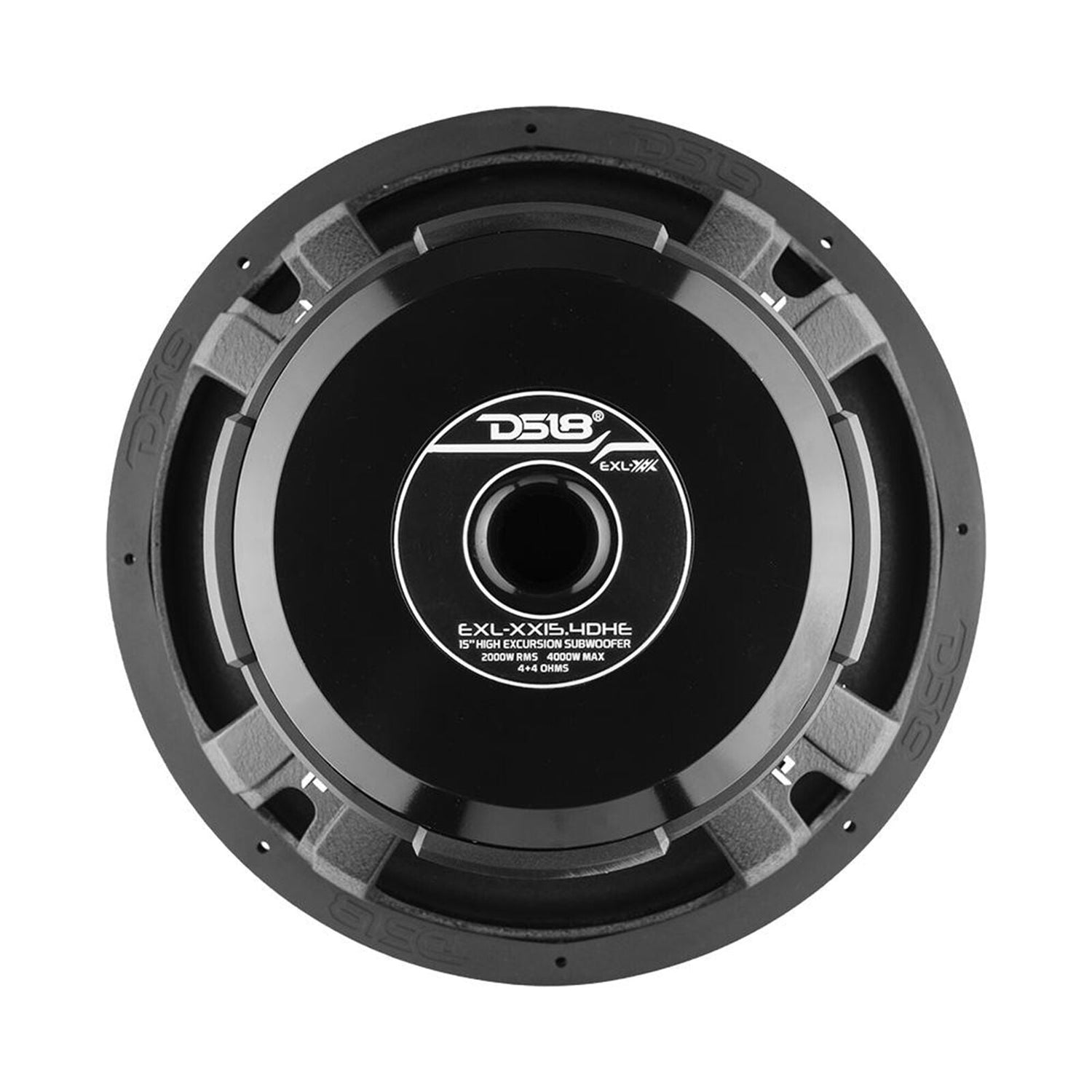

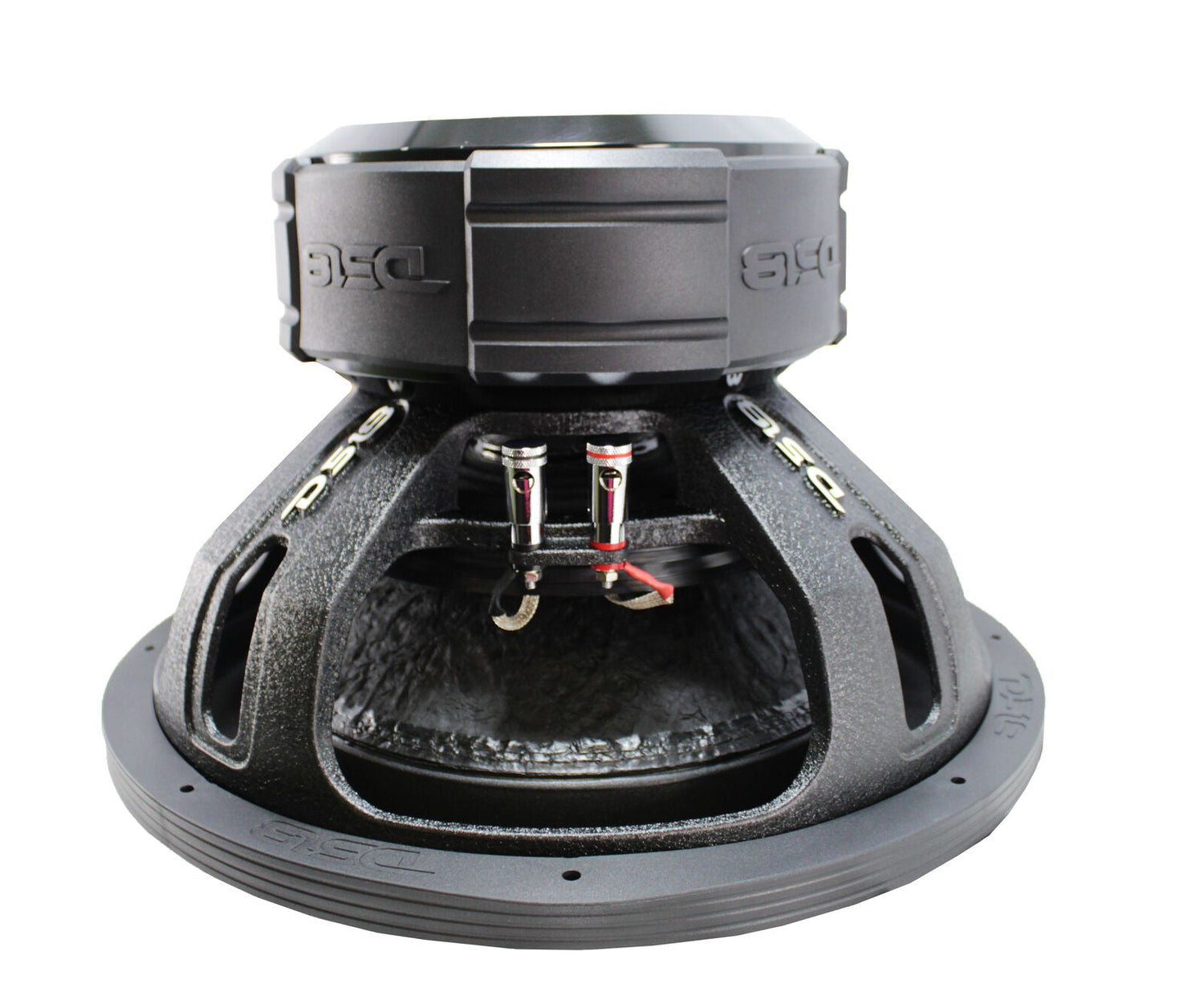

DS18 15" 4000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm EXL-XX15.4DHE

DS18 15" 4000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm EXL-XX15.4DHE

Regular price $439.99 USD
Regular price Sale price $439.99 USD
Sale Sold out
Shipping calculated at checkout.

DS18 15" 4000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm EXL-XX15.4DHE

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX15.4DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience. DS18 stands out from other brands with progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.

This Listing Includes:
(1) 15" Subwoofer

Features:
-High Excursion surround for a very high amount of xmax.
-Great power handling of 2000w RMS and 4000w max.
-Three inch black aluminum voice coil for high power handling and great efficiency.
-FS of 34.9 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

Specifications:
Nominal Impedance: 4+4 ohms
Power Handling:4000W Max
Power Handling: 2000W RMS
Sensitivity (1w/1m): 88 dB
Frequency Response: 20-1.5KHz
Recommended Lo Pass Crossover: 80 Hz

Motor Specifications:
VC Diameter: 3"
VC Former Material: Black Aluminum
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Glass Fiber
Surround Material: Foam
Basket Material: Aluminum
Basket Color/Finish: Black
Magnet Material:Ferrite
Magnet Weight: 306 Oz
Displacement Volume: 3.62L

Thiele & Small Parameters Specifications:
Equivalent Vol: Vas 29.965L
Excursion(one way): Xmax 42 mm
Free Air Resonance: Fs 35.6 Hz
Mechanical Factor: Qms 7.098
Electrical Factor: Qes 0.68
Total Factor: Qts 0.62
Moving Mass: Mms 410.638 g
Compliance: Cms 0.027 mm/N
Bl Factor: BL 19.865
VC Inductance: Le 11.25 mH
Diaphragm Area: Sd 804.25 cm?
Dc Resistance: Re 3.6 + 3.6 ohms
Efficiency Bandwidth Product: EBP 52.3

Dimensions:
Nominal Diameter:15"
Overall Diameter :15.59" / 396mm
Overall Depth: 10.24" / 260mm
Front Mount Baffle Cutout: 13.98" / 355mm
Mounting Depth: 8.86" / 225mm
Motor Diameter: 8.86"/ 225 mm
