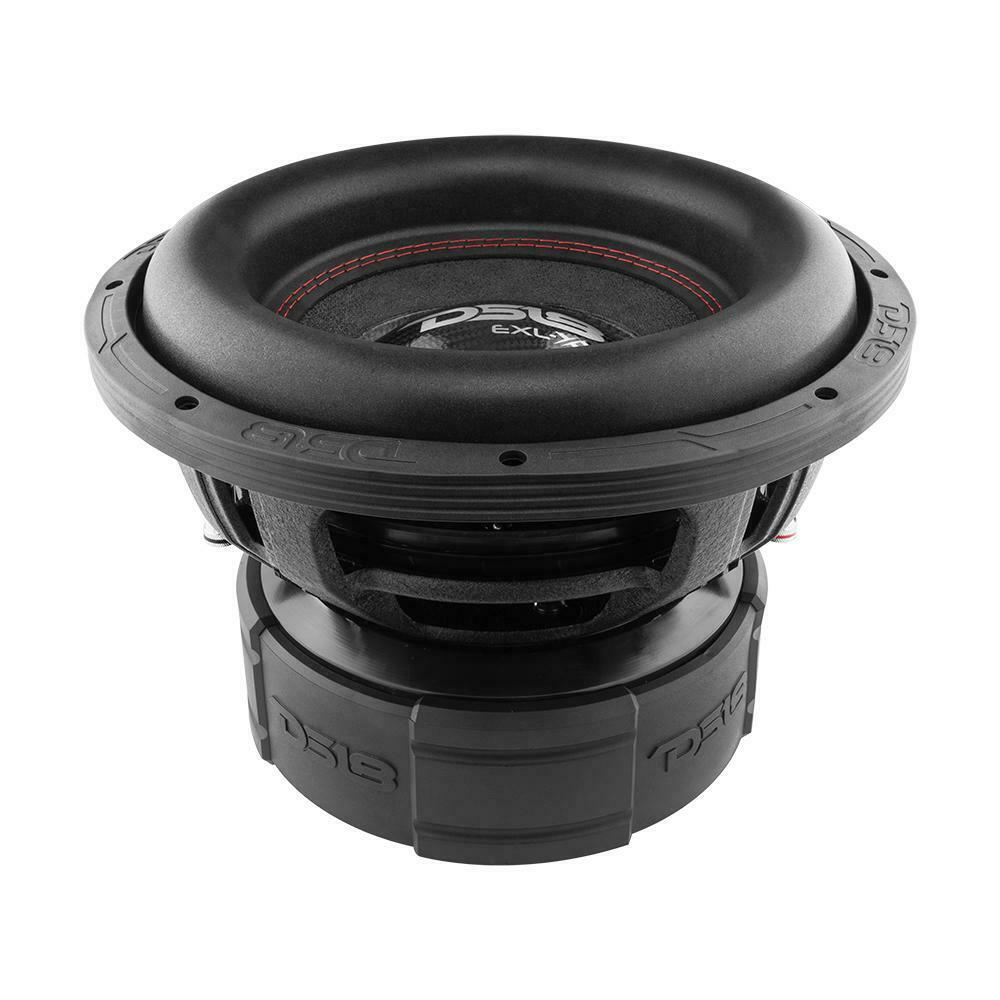

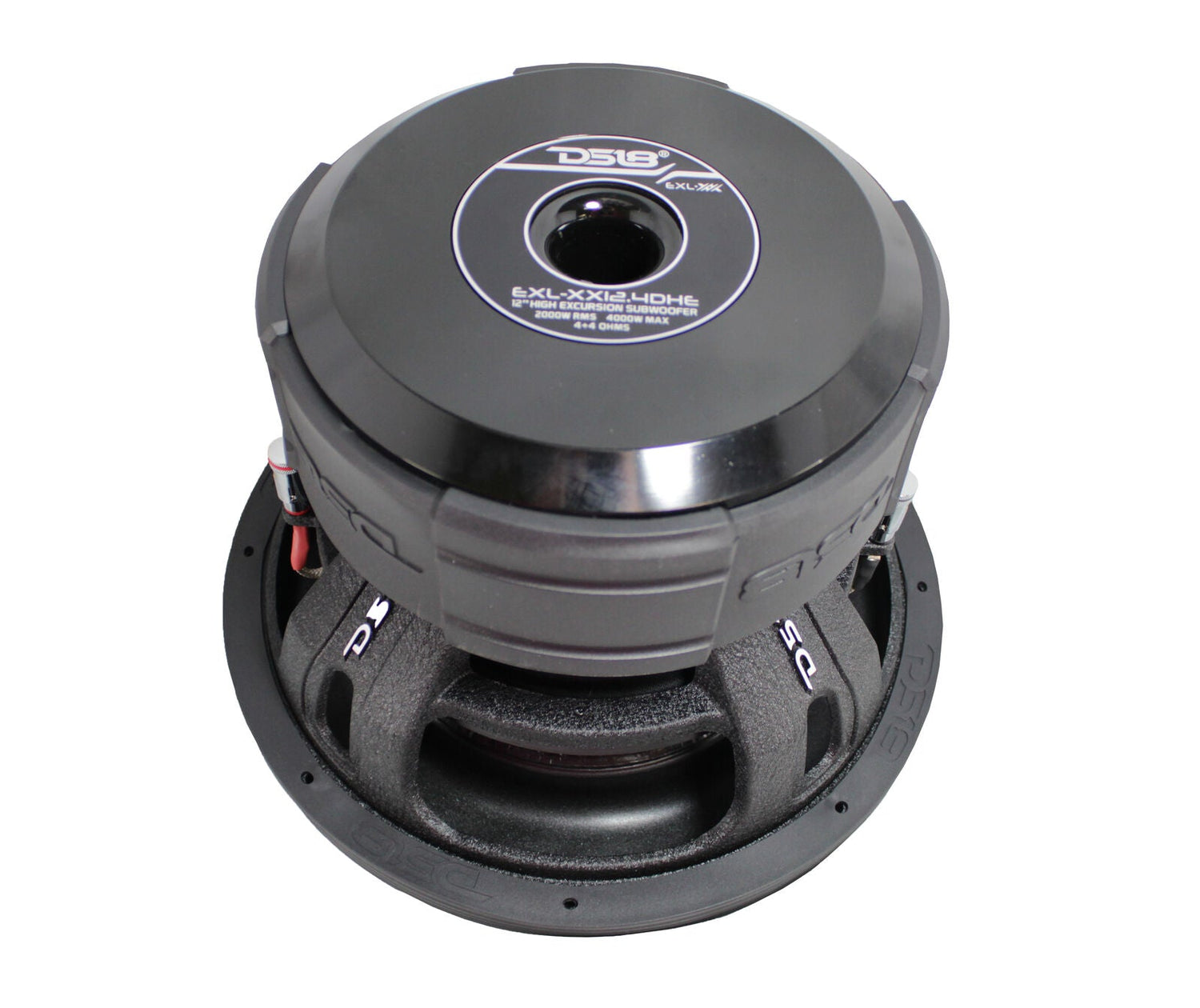

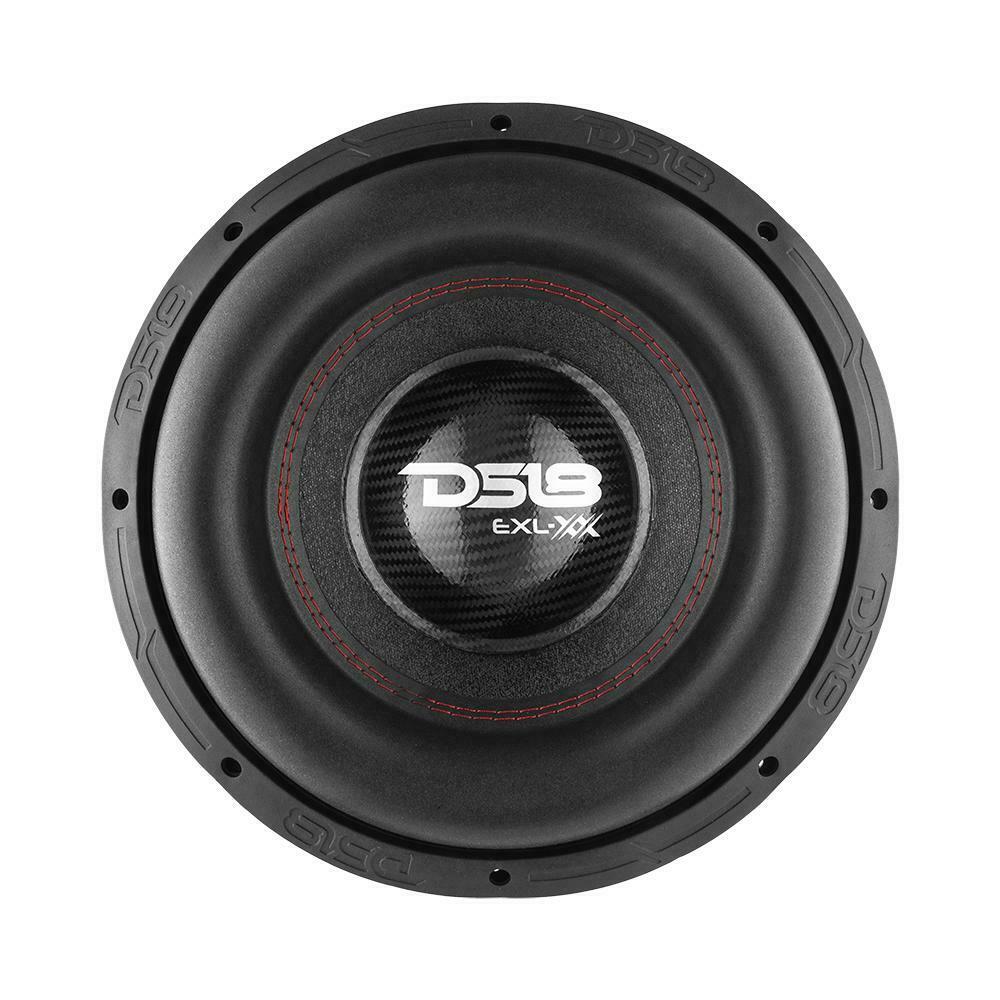

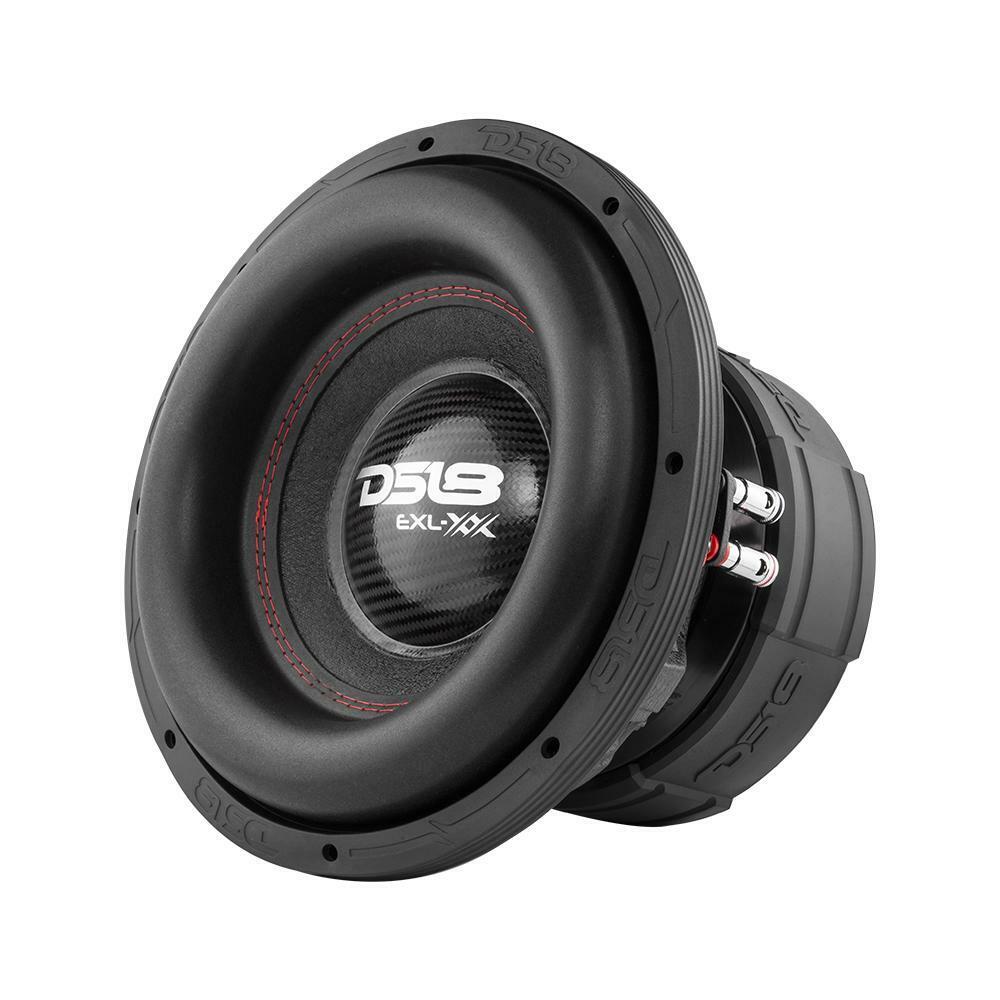

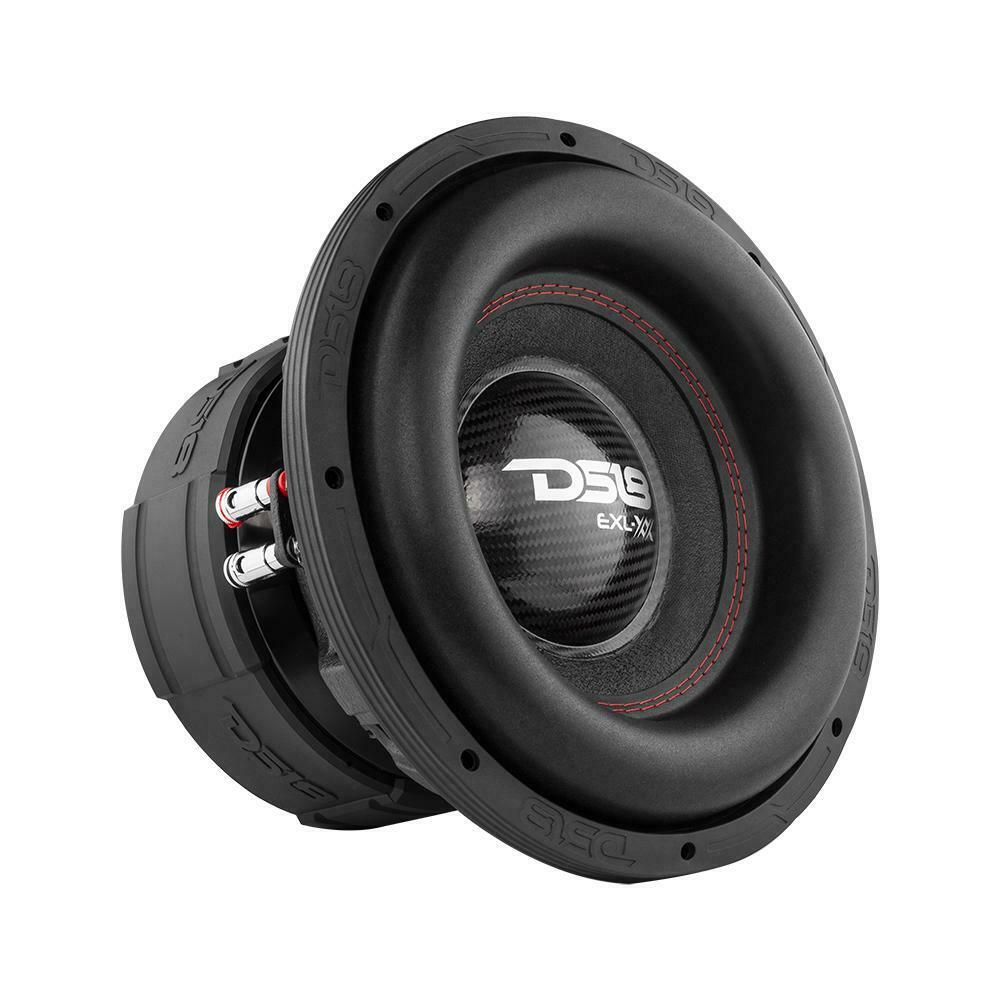

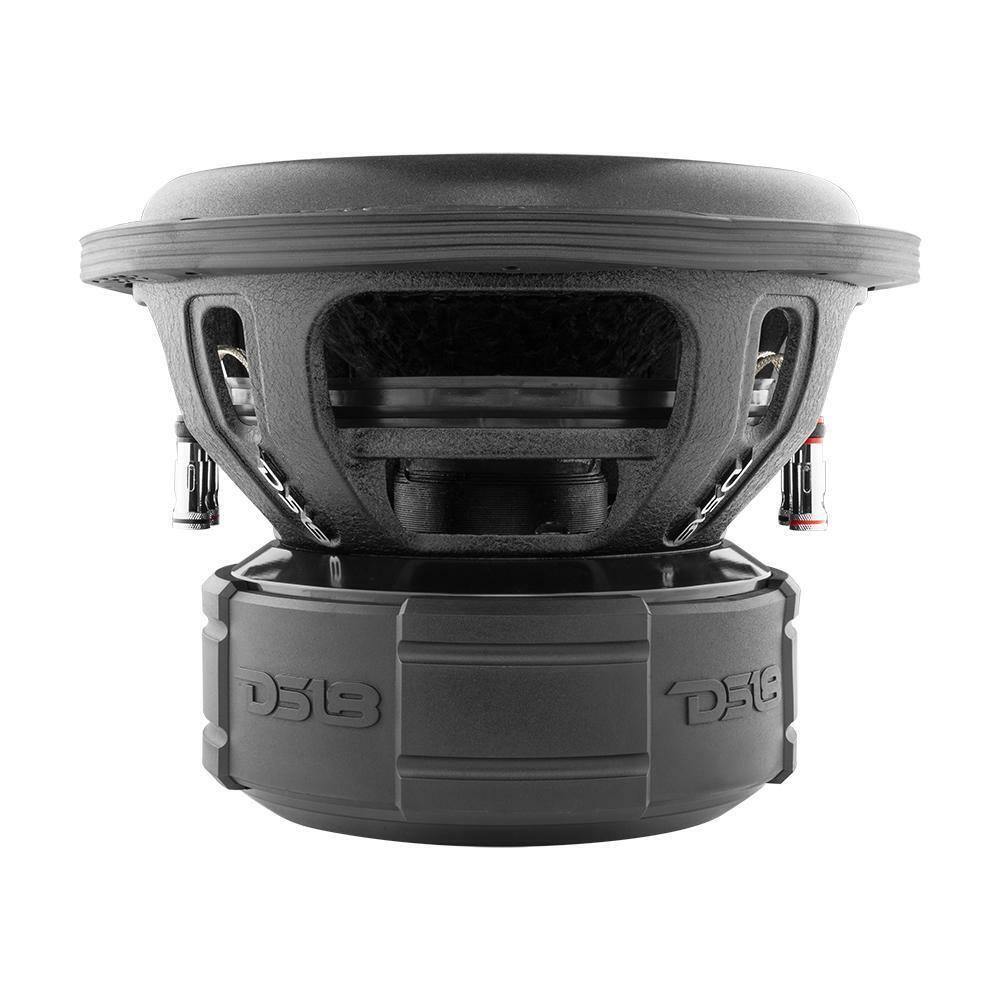

DS18 12" 4000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm EXL-XX12.4DHE

DS18 12" 4000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm EXL-XX12.4DHE

High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.4DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience. DS18 stands out from other brands with progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.

This Listing Includes:
(1) Subwoofer

Features:
-High Excursion surround for a very high amount of xmax.
-Great power handling of 2000w RMS and 4000w max.
-Three inch black aluminum voice coil for high power handling and great efficiency.
-FS of 39 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.

Specifications:
Nominal Impedance: 4+4 ohms
Power Handling:4000W Max
Power Handling: 2000W RMS
Sensitivity (1w/1m): 87 dB
Frequency Response: 20-1.3KHz
Recommended Lo Pass Crossover: 80 Hz

Motor Specifications:
VC Diameter: 3"
VC Former Material: Black Aluminum
Winding Material: CCAW
Cone Material: Paper
Dust Cap Material: Glass Fiber
Surround Material: Foam
Basket Material: Aluminum
Basket Color/Finish: Black
Magnet Material:Ferrite
Magnet Weight: 306 Oz
Displacement Volume: 3.26L

Thiele & Small Parameters Specifications:
Equivilant Vol :Vas 20.738L
Excursion (one way): Xmax 42 mm
Free Air Resonance: Fs 41.3 Hz
Mechanical Factor: Qms 4.525
Electrical Factor: Qes 0.511
Total Factor: Qts 0.459
Moving Mass: Mms 285.433g
Compliance: Cms 0.026mm/N
Bl Factor: BL 17.166
VC Inductance: Le 9.8mH
Diaphragm Area: Sd 433.74cm2
Dc Resistance: Re 3.6+3.6 ohms
Efficiency Bandwidth Product: EBP 80.8

Dimensions:
Nominal Diameter:12"
Overall Diameter :12.63" / 321mm
Overall Depth: 9.25" / 235mm
Front Mount Baffle Cutout: 11.1" / 282mm
Mounting Depth: 7.87" / 200mm
Motor Diameter: 8.89"/ 226 mm
