Diamond Audio

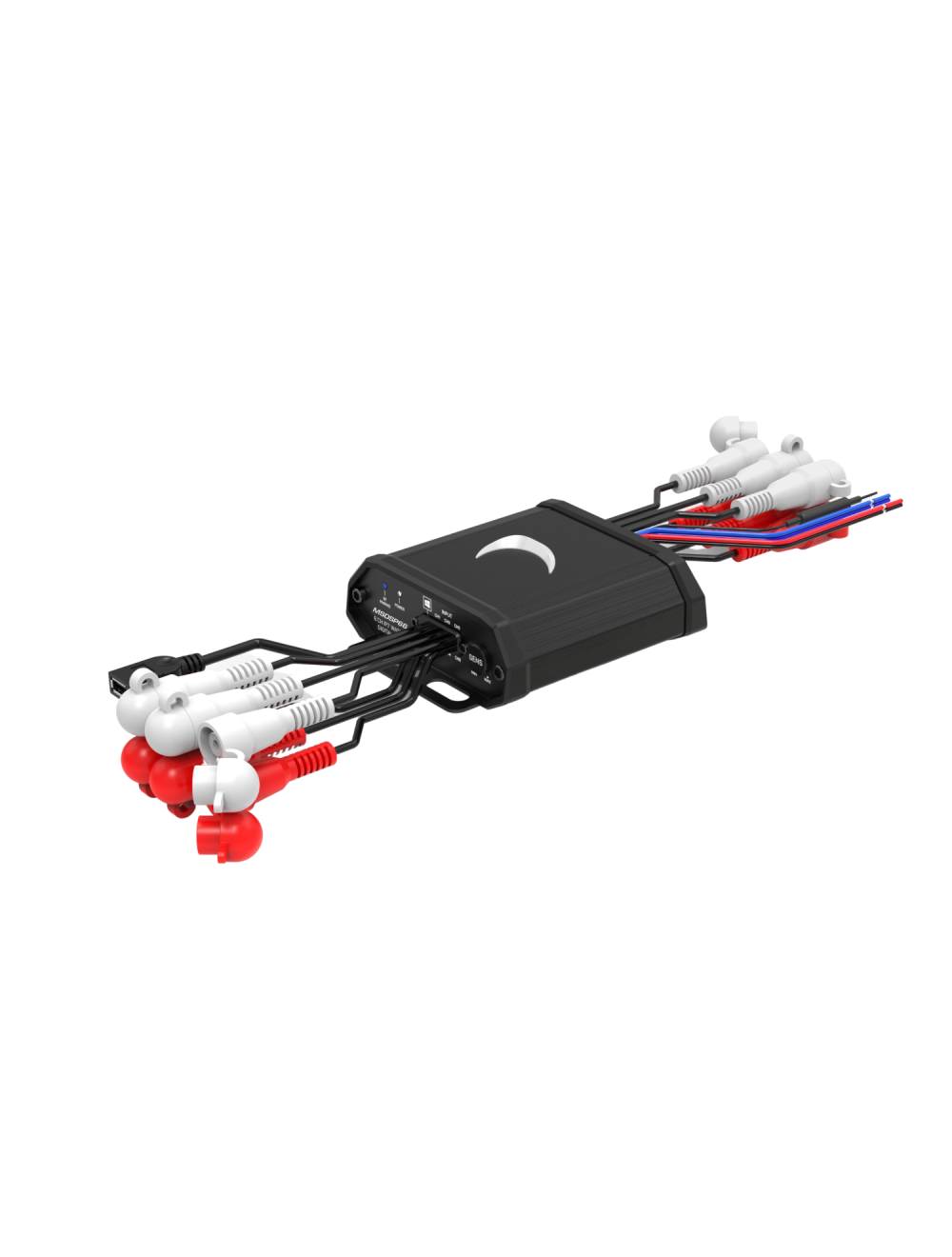

Diamond Audio MSDSP66 Processor

Diamond Audio MSDSP66 Processor

Regular price $329.99 USD
Regular price Sale price $329.99 USD
Sale Sold out
Shipping calculated at checkout.

MSDSP66 - 6 Channel Waterproof Micro Digital Signal Processor

Diamond Audio expands its Digital Signal Processor category this year by adding the very practical and easy to use all-weather MSDSP66 and MSDSP68 models. With the ability to integrate into any auto,motorcycle, boat, or powersport vehicle, making acoustical system adjustments from the touch of your fingertips couldn’t be any simpler.


  • 6-Channel (6 IN / 6 OUT) IP7 Rating Waterproof Digital Signal Processor
  • 15 Band Parametric EQ
  • Fully Adjustable Crossovers
  • Tuning Operating Software: Windows / Android / IOS
  • 6.5 Volts Max RCA Pre-Out Voltage
  • Delay Timing Alignment
  • Signal to Noise Ratio: > 98dB
  • Frequency Response: 10-25KHz
  • Channel Separation: > -72dB
  • Advanced CSR 5.0 Bluetooth Module for Music Streaming and App Control
  • on Mobile Phone
  • Wired External Antenna for Enhanced Bluetooth Signal Reception
  • Conformal Coated 4-Layers Footprint Circuit PC Board
  • Dimensions: 4.04” x 3.35” x 1.24” / 102.5 x 85.0 x 31.6 mm
  • RCA Input & Output,Power Supply Harness and PC USB Kits Included

More Information
Types 6-Channel
Parametric EQ 15 Band
Crossover Frequencies Fully Adjustable
Operating Range Windows / Android / IOS
Distortion - S/N Ratio (A weight @ 1W) > 98dB
Frequency Response 10-25KHz
Channel Separation > -72dB
Dimension - Length x Width x Height - Inches(mm) 4.04” x 3.35” x 1.24” (102.5 x 85.0 x 31.6 mm)
