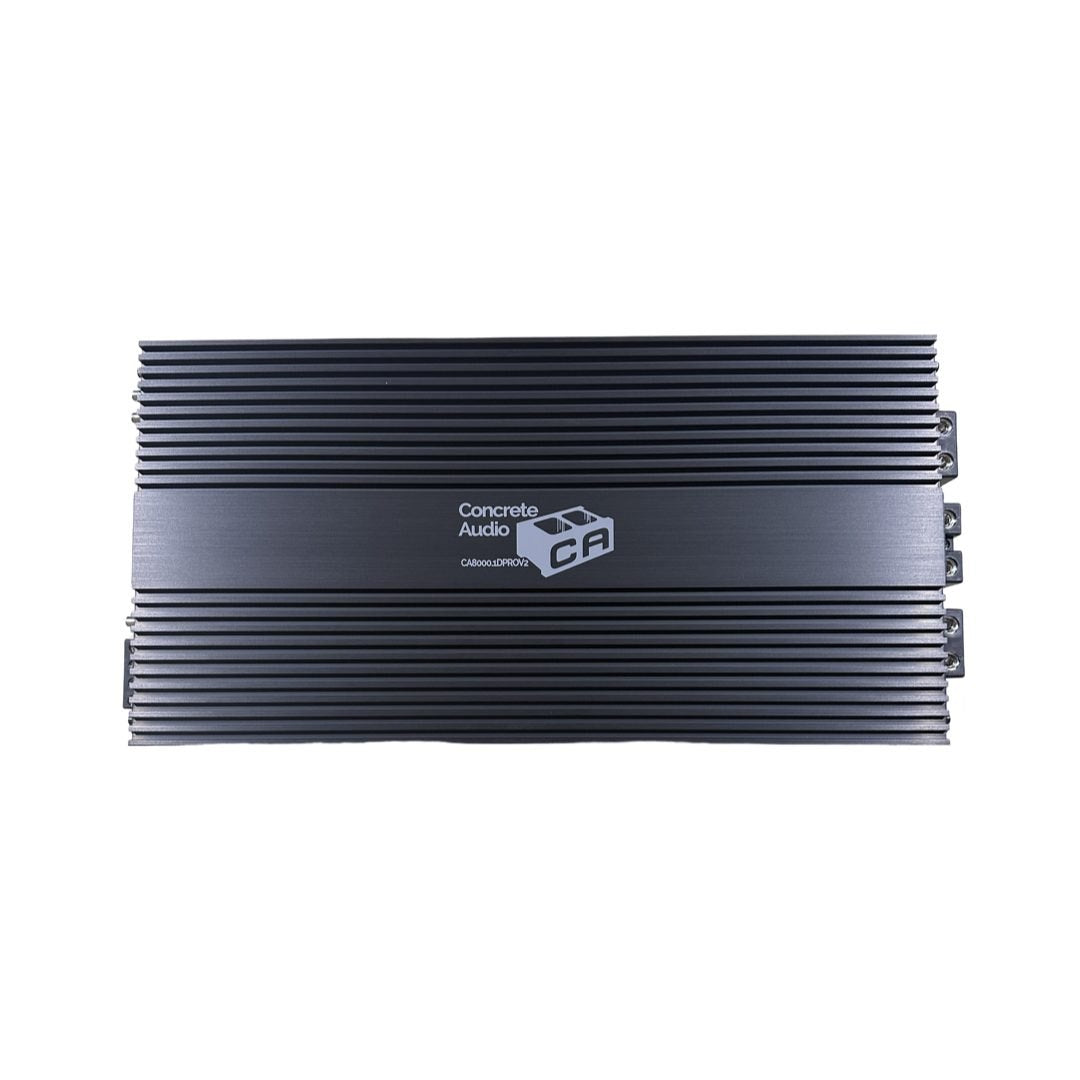

Concrete Audio CA8000.1DPROV2

CA8000.1DPROV2

Class D Mono Block Korean Board Bass Amplifier
High Efficiency Digital Monoblock
1 ohm Stable
Linkable Connection ( Strapable)

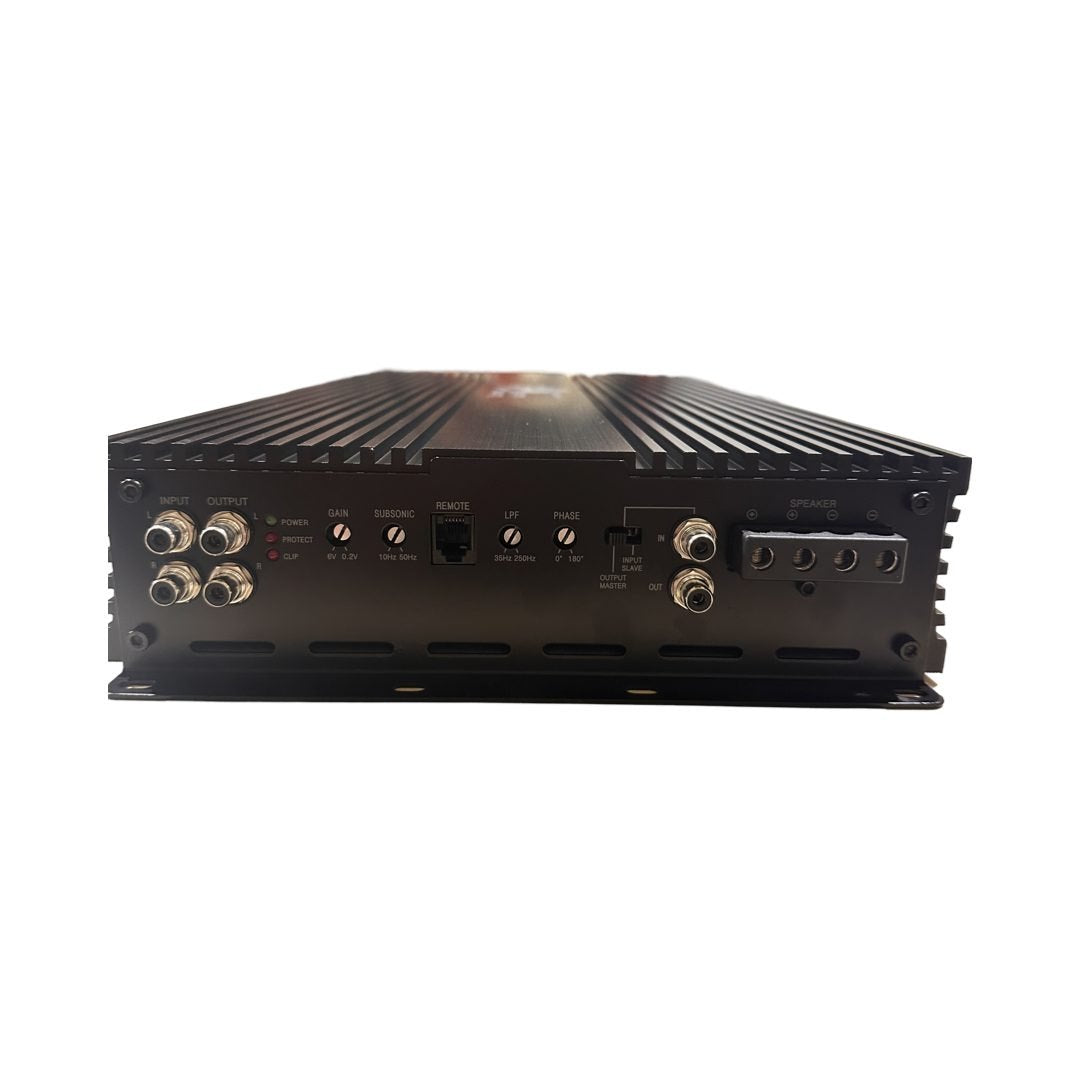

Variable Subsonic Filter
Variable Low pass Filter
Phase Control
Bass Boost remote with clip lite

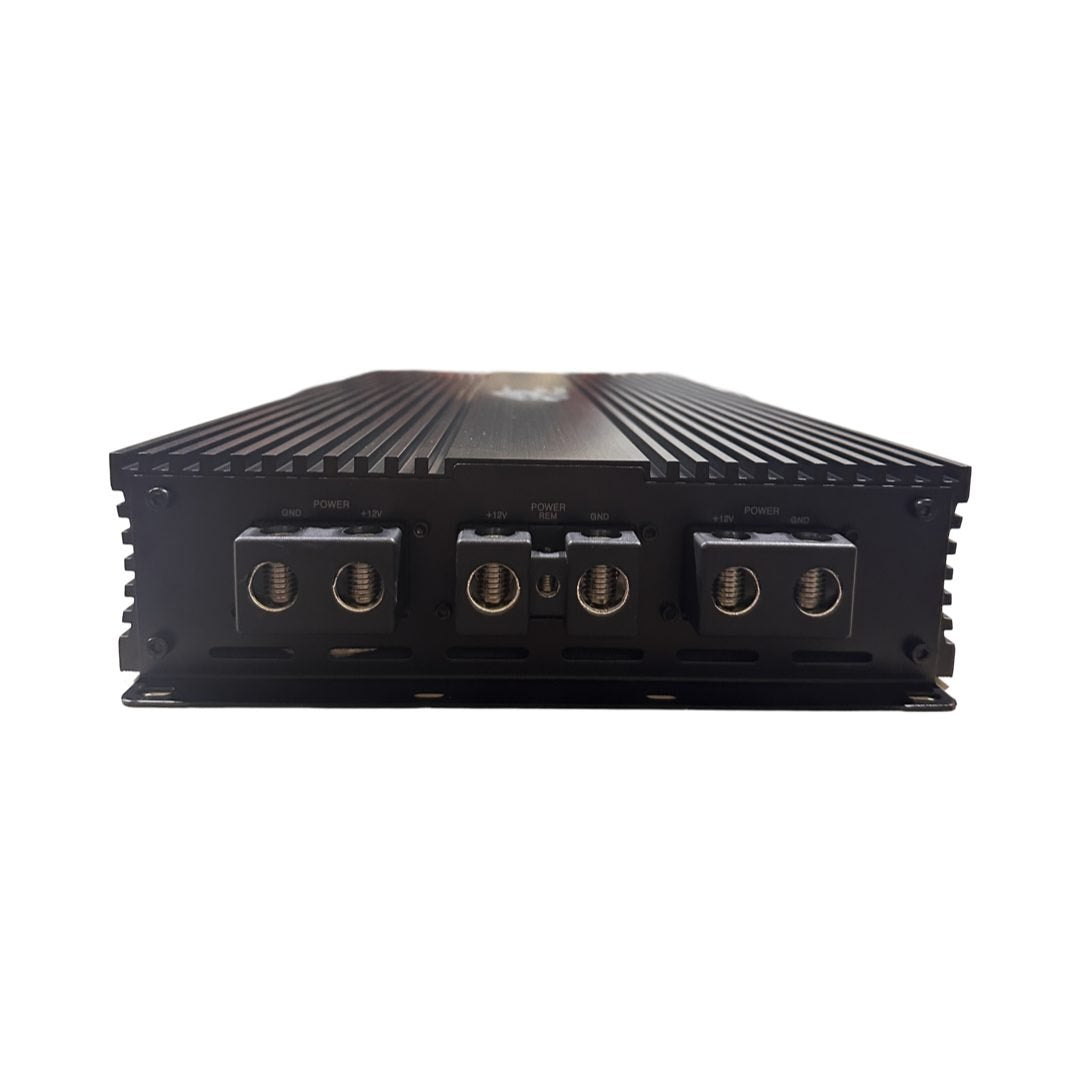

0 GA Power Wire input x 3
4 Way Protection Circuits
Double Sided Printed Circuit Board

Rated Power output
Tested by Sound Check 10,750 Watts
-RMS 2600 Watts x 1 channel @ 4 ohms
-RMS 4700 Watts x 1 channel @ 2 ohms
-RMS 8000 Watts x 1 channel @ 1 ohms
Input Sensitivity 6v-0.2v
Variable Subsonic Filter 10Hz-50Hz
Variable Low Pass Filter 35Hz-250Hz
Frequency Response 13Hz-260Hz
Signal to Noise Ratio 90<
THD @ 4 Ohm Less than 0.1%
Damping Factor 350<
Recommended external Fuse 720A (Link Connection:1440A)
Dimensions Length 19.68" X Width 10.04" X Hight 2.64"
