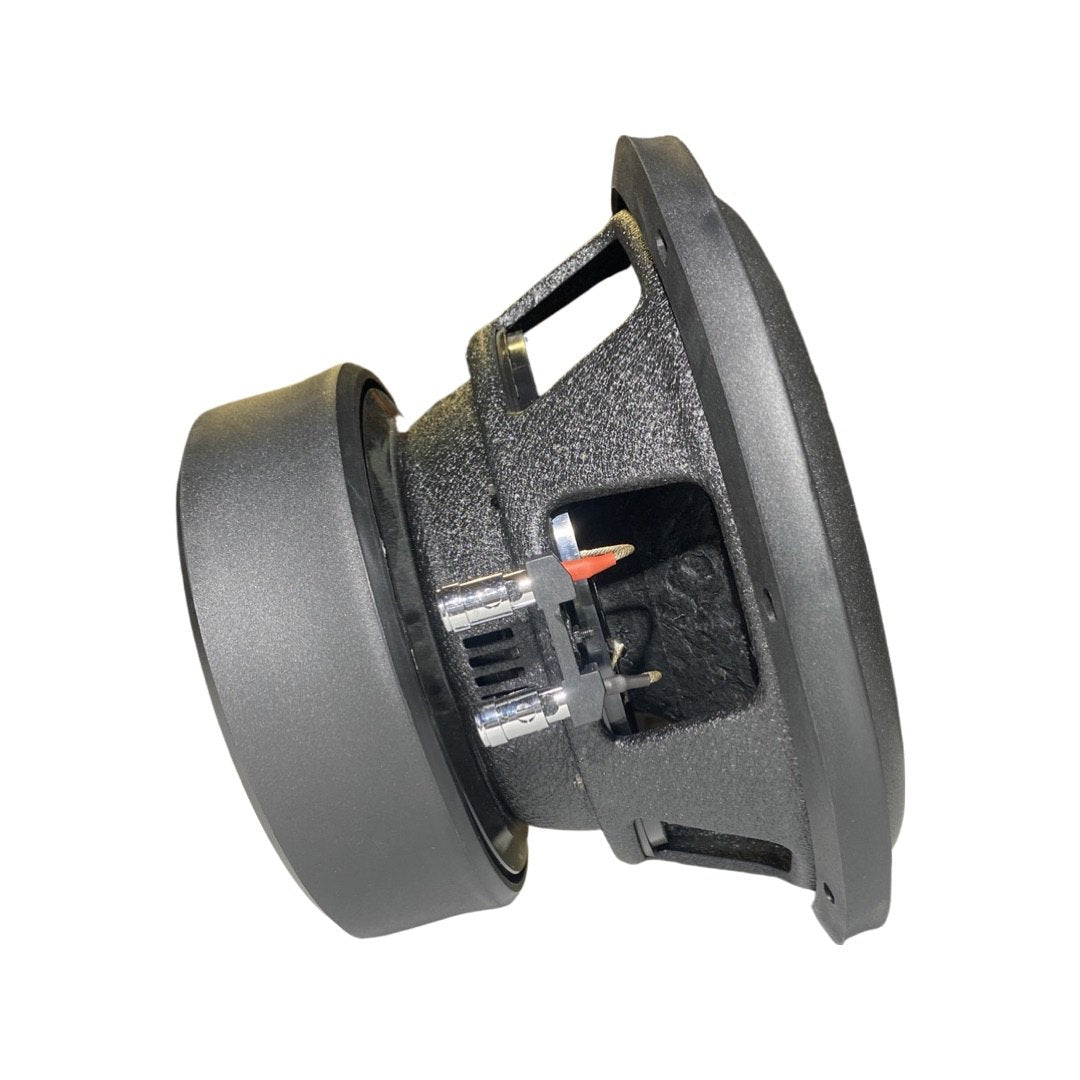

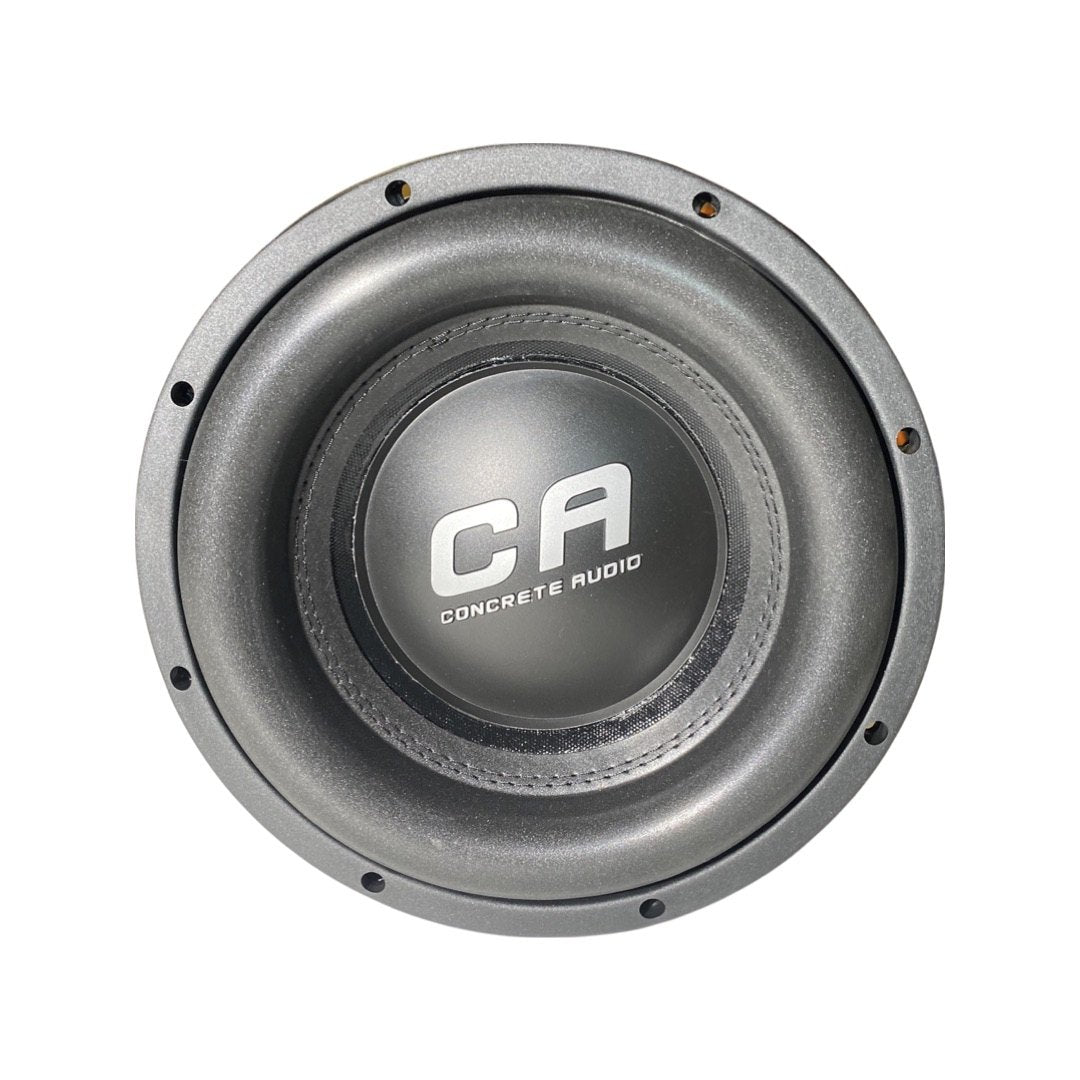

Concrete Audio C110D4 C1 Series 10″ Subwoofer

C110D4

C1 Series 10″ Subwoofer

Black finished stamped steel basket

black non-pressed paper cone

Stitched to Cone wide foam surround

woven tinsel leads on spiders

3in. 4 layer hi-temp voice coil

140 Oz. Y35 grade FEA optimized motor structure

dual 4 ohm impedance

RMS 800W

Cut out: 9″
Mounting depth: 6.5″
Outer Diameter 10 3/8″
Magnet Diameter 7 7/16″

SPL: 79.1 1W/1m
R(e): 3.792 Ohms
Q(ts): 1.7
Q(es): 2.196
Q(ms): 7.527
L(e): 0.5963 mh(10k)
M(ms): 170.4 grams
V(as): 0.2805 cu ft

Enclosure Spec’s

1.25 CUBIC FEET NET
12.5 SQUARE INCH PORT
20 INCHES DEEP
MUST ADD PORT DISPLACEMENT TO REAR CHAMBER
SPEAKER DISPLACEMENT 0.05 CUBIC FEET
MUST ADD SPEAKER DISPLACEMENT TO REAR CHAMBER
