Black Diamond Amplifier 4 Channel Full Range Class D 3200 Watts DIA-K4X

Black Diamond Amplifier 4 Channel Full Range Class D 3200 Watts DIA-K4X

Regular price $229.99 USD
Regular price Sale price $229.99 USD
Sale Sold out
Shipping calculated at checkout.
  • AMAZING POWER IN AN EFFICIENT PACKAGE - Capable of 3200 Watts Max Power you'll have all the power you need while utilizing state-of-the-art technology that requires less energy
  • High-End Mini Digital Circuit Design Latest Low-Heat. Circuit with SMC Technology

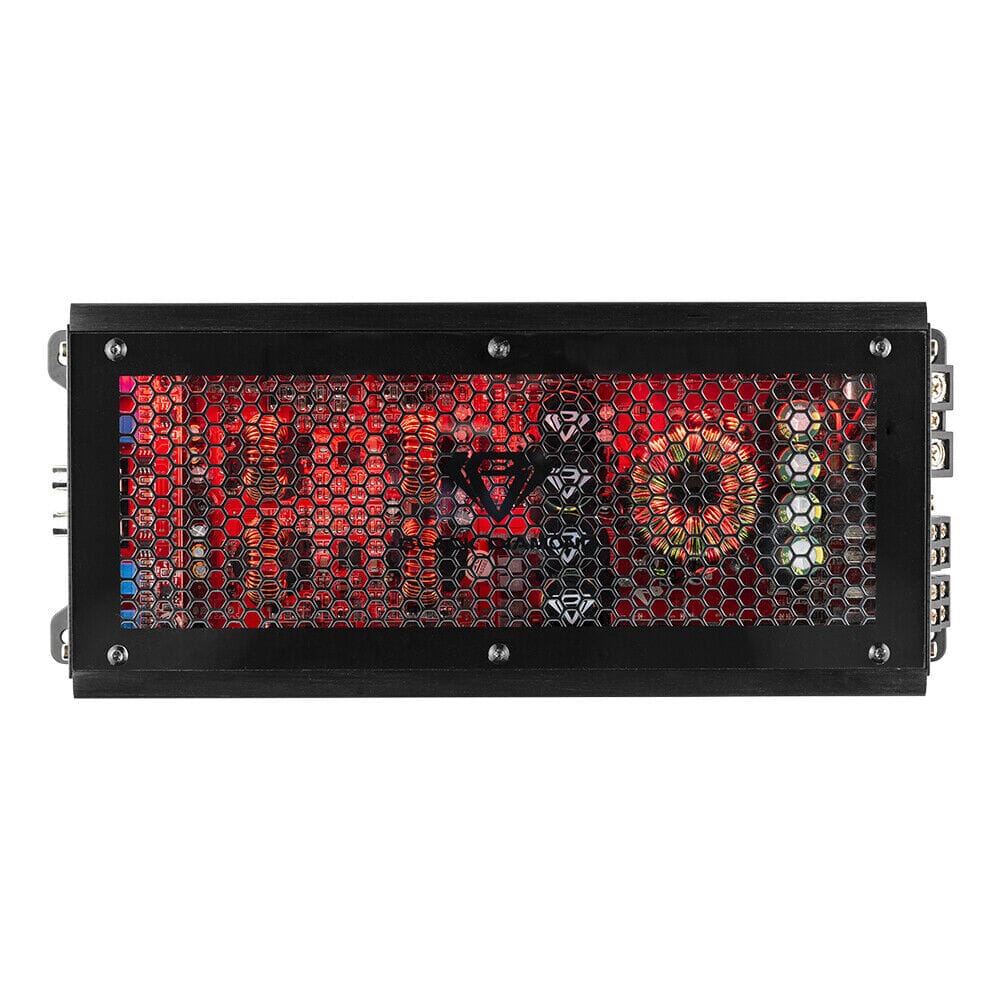

  • Acrylic Window with Red LED Lighting
  • FULL RANGE AMP - If you are looking for an amplifier that can handle the full frequency range then look no further! Wire the most powerful midranges tweeters drivers or coaxial to this full range series
  • MEASUREMENTS - Overall Length: 11.33" | Overall Width: 4.72" | Overall Height: 1.96"


Black Diamond Amplifier 4 Channel Full Range Class D 3200 Watts DIA-K4X



Capable of 3200 Watts Max Power, you'll have all the power you need while utilizing state-of-the-art technology that requires less energy. High-End Mini Digital Circuit Design Latest Low-Heat, Circuit with SMC Technology, Acrylic Window with Red LED Lighting, Adjustable Gain, Low-Pass, Bass Boost and Subsonic Filter. If you are looking for an amplifier that can handle the full frequency range, then look no further! Wire the most powerful midranges tweeters drivers or coaxial to this full range series.



This listing includes:

- (1) Black Diamond Car Audio - DIA-K4X

- (3) 40 Watt fuses

- (4) Spacers

- (4) Washers

- (4) Phillip Head Screws



POWER SPECIFICATIONS:

- Total Watts (Peak): 3200W

- RMS Power 4 ohm: 280W x 4

- RMS Power 2 ohm: 400W x 4

- RMS Power 4 ohm Bridged: 750W x 2



AUDIO SPECIFICATIONS:

- Frequency Response: 20Hz-45Khz

- Signal to Noise Ratio: >90dB

- Total Harmonic Distortion (THO): 0.01%

- Low Level input Range: 0.25-6V

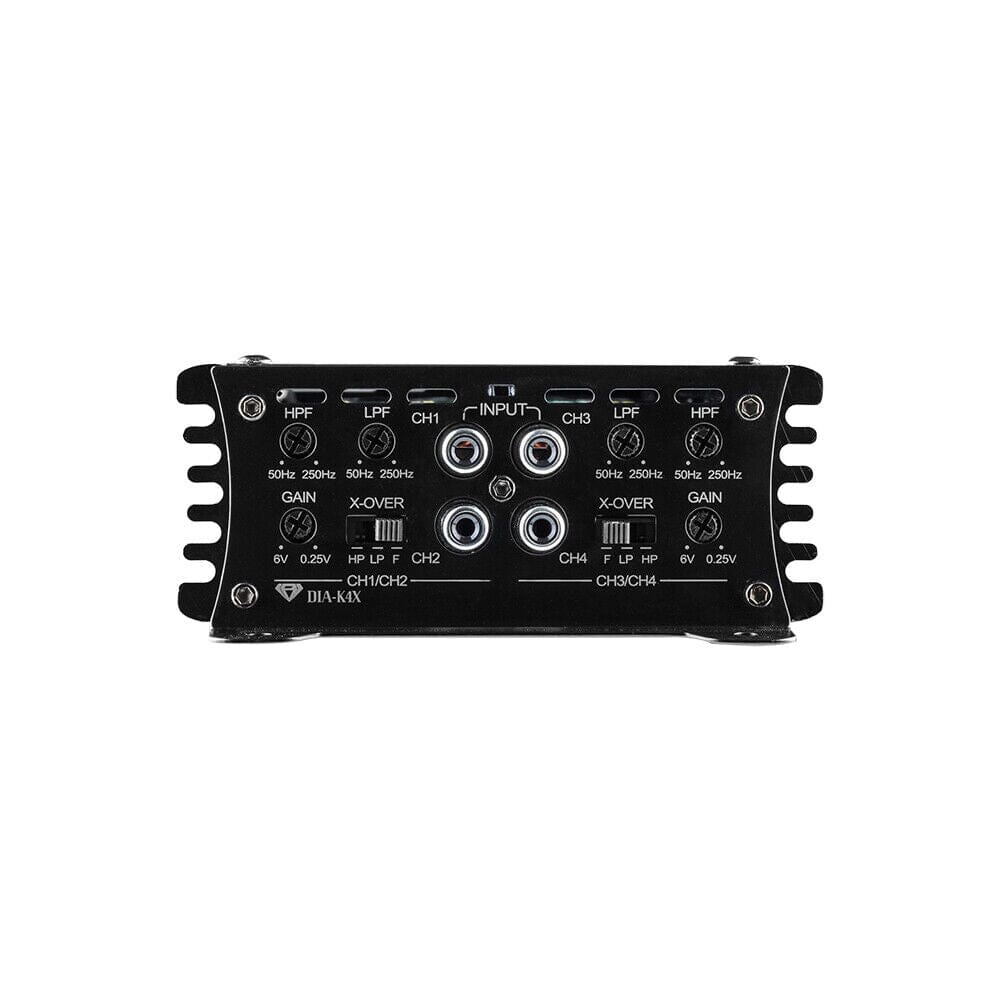

- Selectable X-Over: LPF/FlAT/HPF

- X-Over Filter Range: 50-250Hz



FEATURES:

- Amplifier Class: Digital (D)

- Amplifier Type: 4CH Full Range

- Led Indicator: Power/Protection

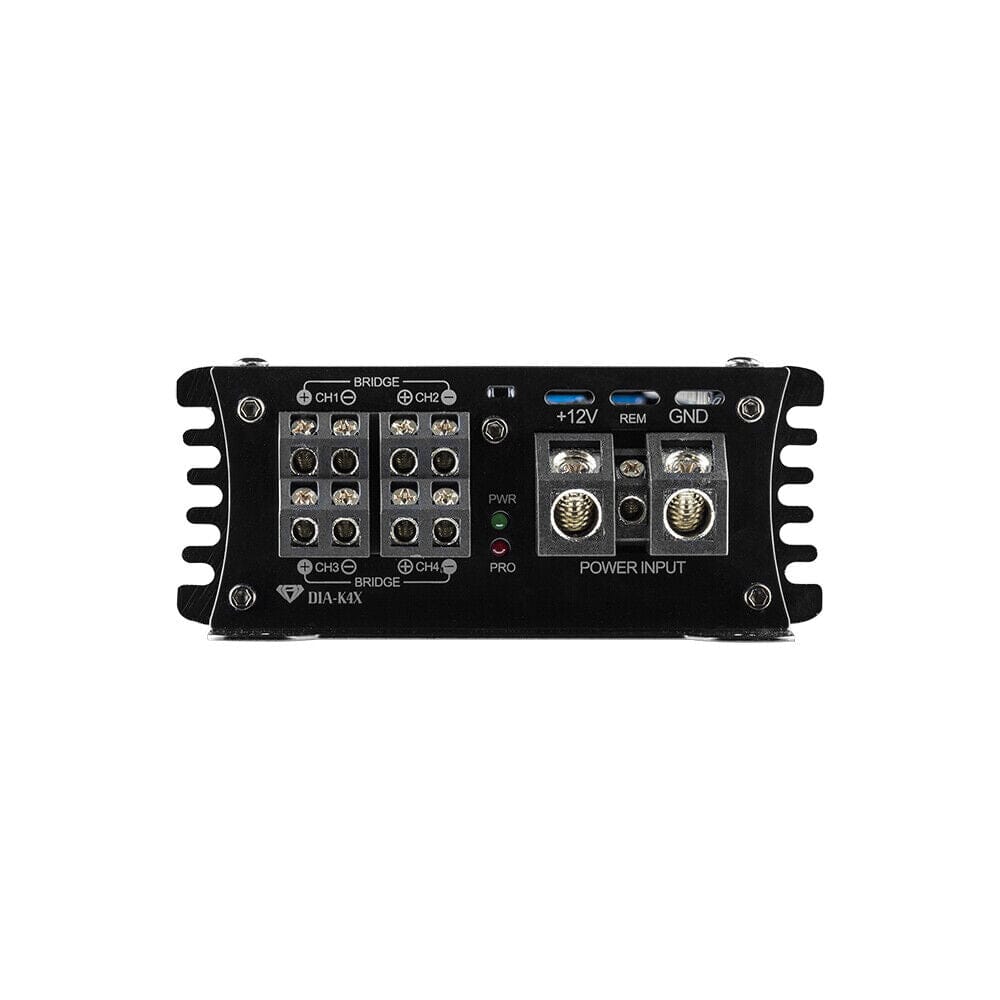

- Power Input Terminal Size: 4ga

- Fuse Size: 3x40A

- Thermal Protection: Yes

- Over-Load Protection: Yes

- DC Outlet Protection: Yes

- Short Circuit Output: Yes

- Voltage Input Protection: Yes



MEASUREMENTS:

- Overall Length: 11.33"

- Overall Width: 4.72"

- Overall Height: 1.96"

- Heatsink Length: 10.15"

- Gross Single Unit Weight: 4lbs
