Black Diamond

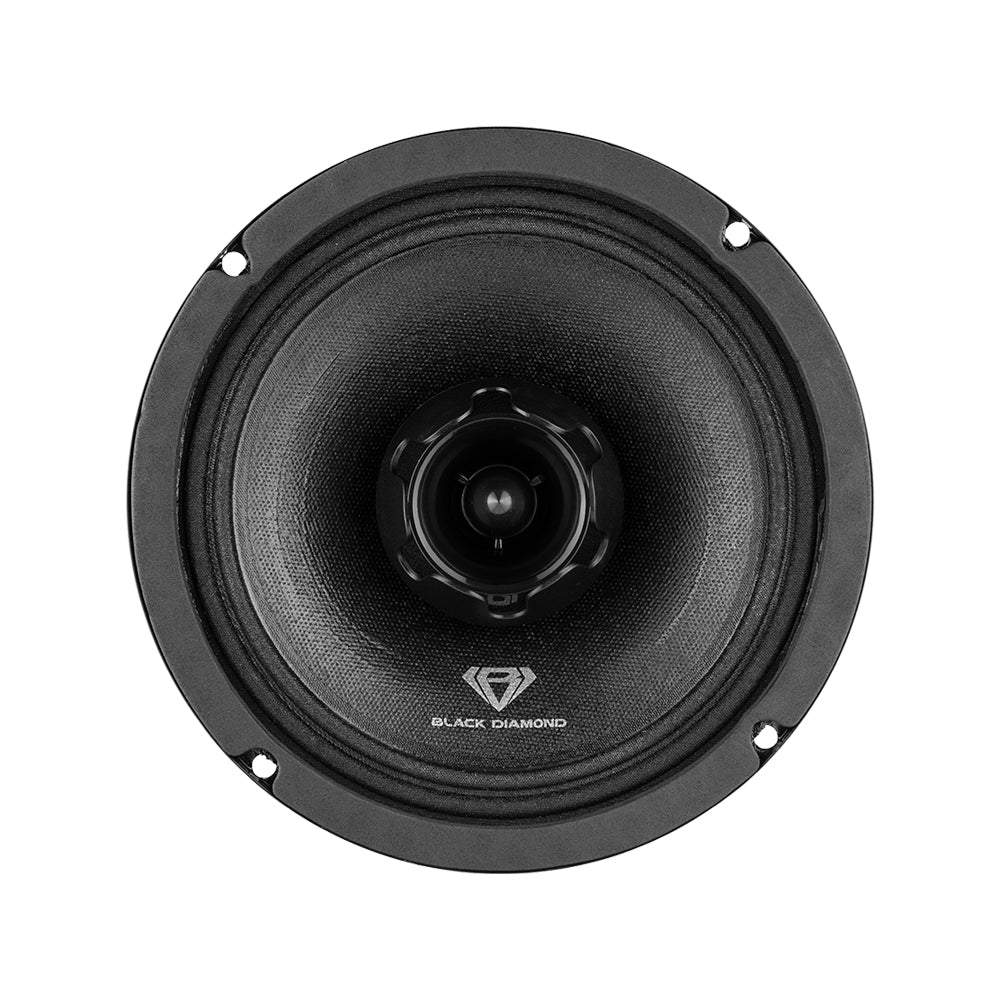

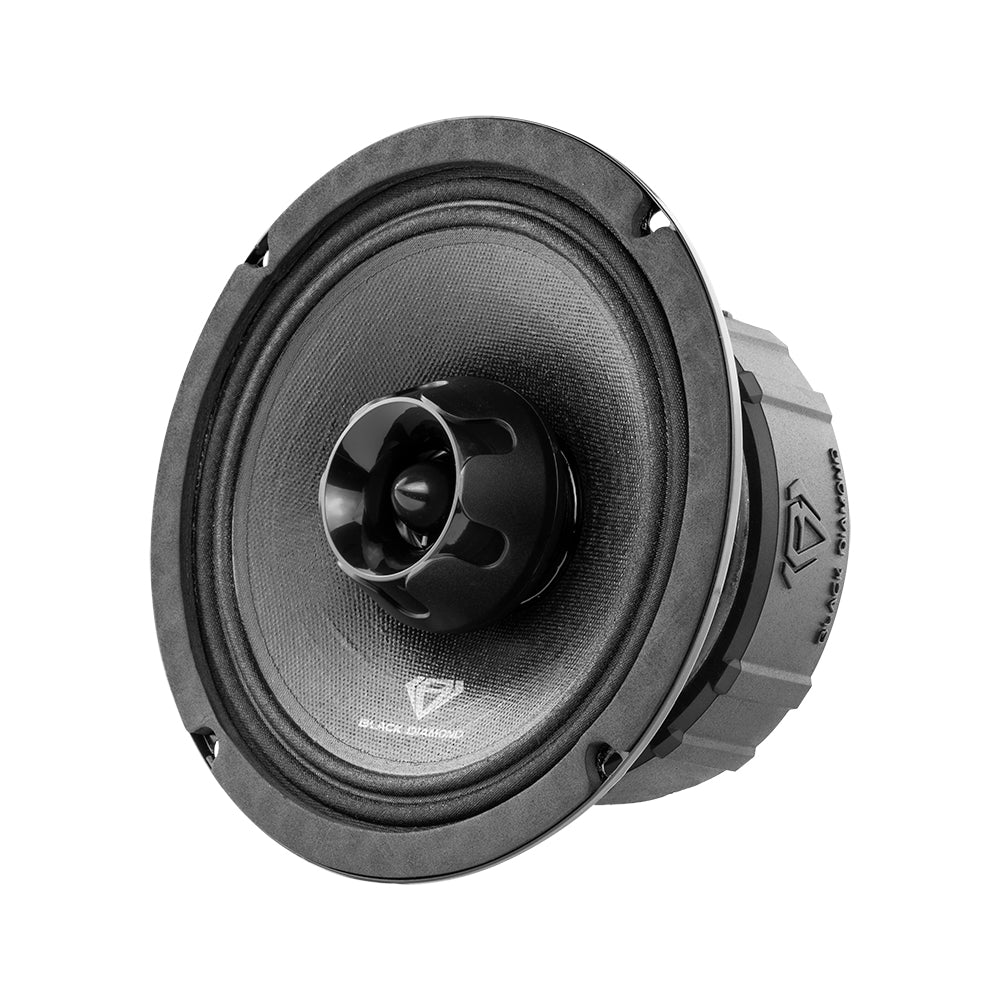

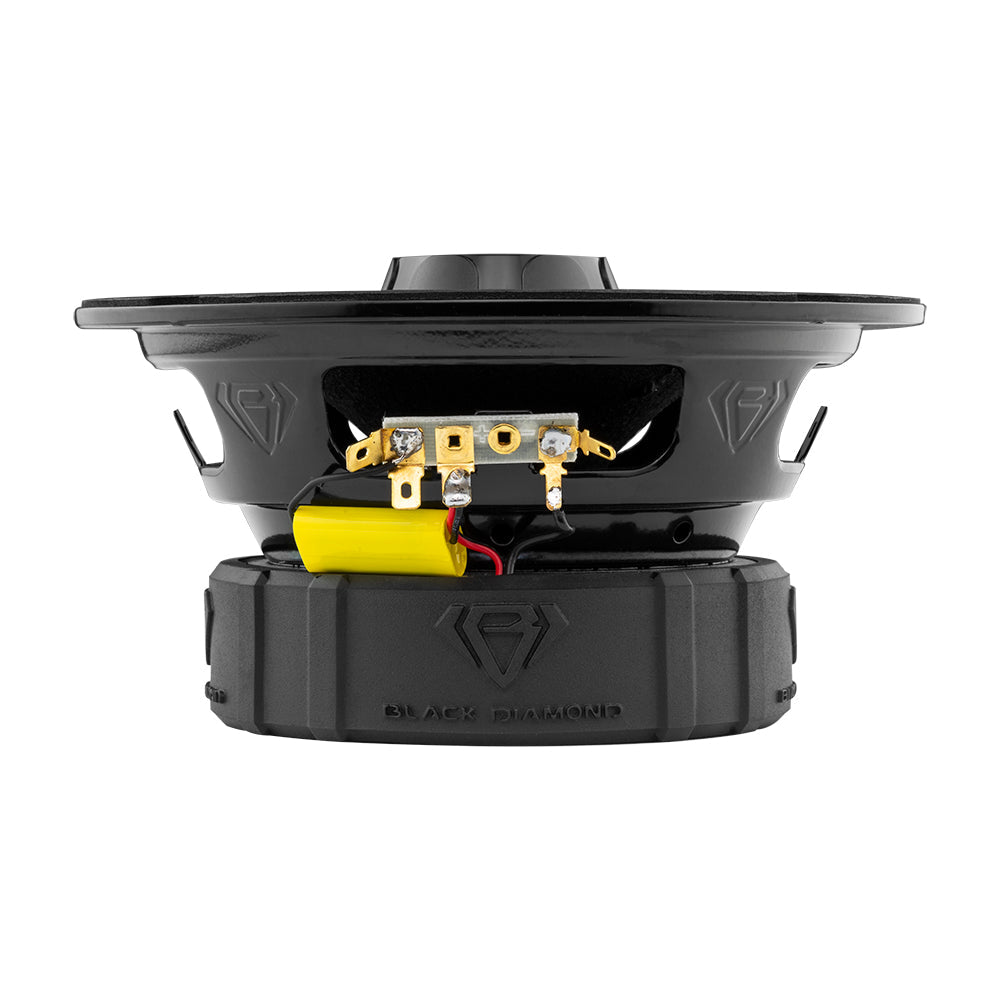

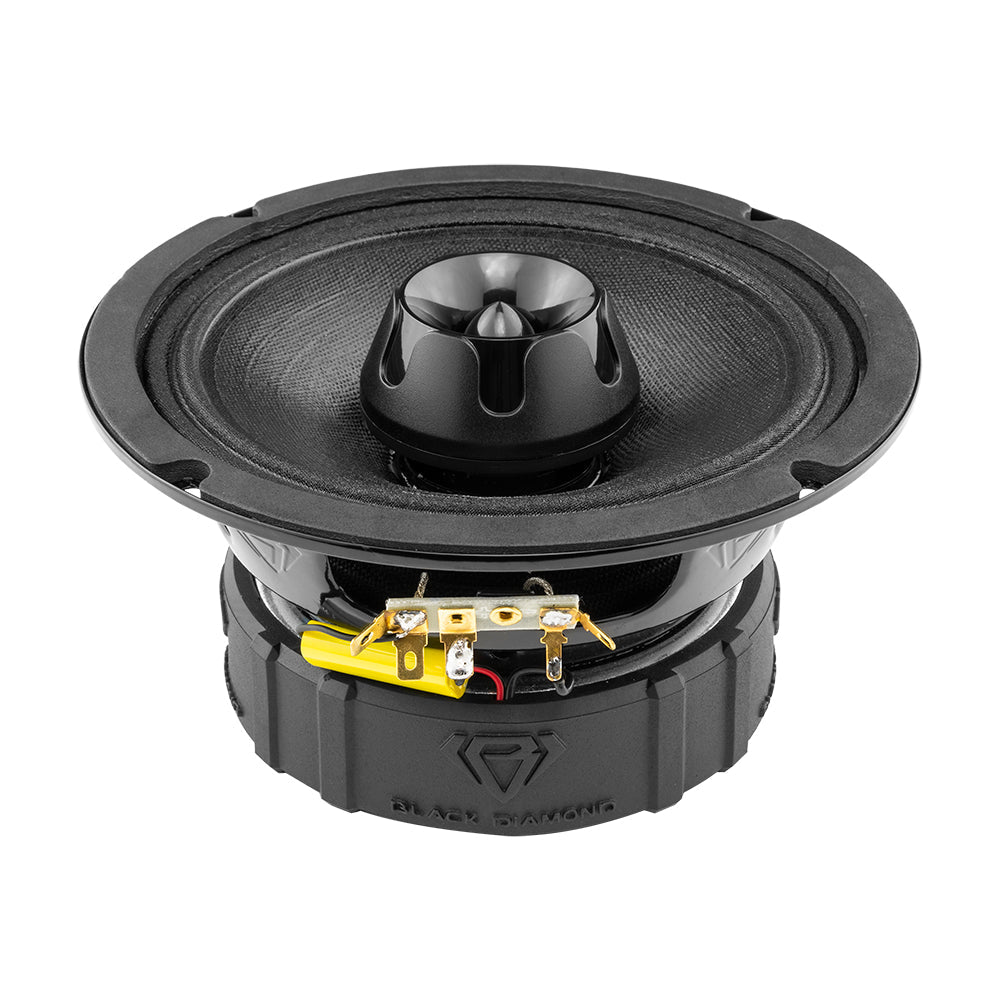

Black Diamond 6.5" 450 Watts 4-Ohm Mid-Range Speaker w/ Bullet Tweeter Built In

Black Diamond 6.5" 450 Watts 4-Ohm Mid-Range Speaker w/ Bullet Tweeter Built In

Regular price $61.99 USD
Regular price Sale price $61.99 USD
Sale Sold out
Shipping calculated at checkout.
  • High Quality Design- Black Diamond utilizes only the best materials to provide you with high quality sound you can trust
  • Single Voice Coil (SVC)- This high strength voice coil built with Kapton can handle high power applications
  • Powerful Sound- With 450W max power and 225W RMS, the DIA-XT6 provides enough power to tackle a full range of audio
  • Efficiency- The DIA-XT6 sounds great with just instrumentals, and, even better with vocals. Get the most out of your system by upgrading to a speaker that gives you everything you're missing from your stock car stereo


Black Diamond 6.5" 450 Watts 4-Ohm Mid-Range Speaker w/ Bullet Tweeter Built In


This Listing Includes:



  • (1) Black Diamond 6.5" Midrange Loudspeaker DIA-XT6


FEATURES:



  • Built-In Bullet Tweeter

  • 450 Max Watts


GENERAL SPECIFICATIONS:



  • Nominal Diameter: 6.5"

  • RMS Power Handling: 225 Watts

  • MAX Power Handling: 450 Watts

  • Nominal Impedance: 4 Ohm

  • Sensitivity: (1w/1m): 96 dB

  • Frequency Response: 95Hz-22KHz

  • Recommended Hi Pass Crossover: 120 Hz


WOOFER SPECIFICATIONS:



  • Voice Coil Diameter: 1.5 / 38.6 mm

  • Voice Coil Former Material: Kapton

  • Winding Material: CCAW

  • Cone Material: Paper

  • Surround Material: Cloth

  • Basket Material: Steel

  • Magnet Material: Ferrite

  • Magnet Weight: 27 oz


THIELE & SMALL PARAMETERS:



  • Equivalent Volume: Vas 2.917L

  • Excursion: Xmax 16mm

  • Free Air Resonance: Fs 150Hz

  • Mechanical Factor: Qms 3.906

  • Electrical Factor: Qes 0.747

  • Total Factor: Qts 0.627

  • DC Resistance: Re 3.2 Ohms


TWEETER SPECIFICATIONS



  • Voice Coil Diameter: 1"

  • Voice Coil Former Material: Kapton

  • Winding Material: CCAW

  • Diaphragm Material: Aluminum Alloy

  • Magnet Material: Neodymium (N38H)

  • Magnet Weight: 0.44 oz


MEASUREMENTS:



  • Overall Diameter : 6.6"

  • Overall Depth: 3.62"

  • Front Mount Baffle Cutout: 5.66"

  • Mounting Depth: 3.07"

  • Motor Diameter: 4.6"


Product Dimensions- LxWxH (in inches) 8" x 8" x 4"
