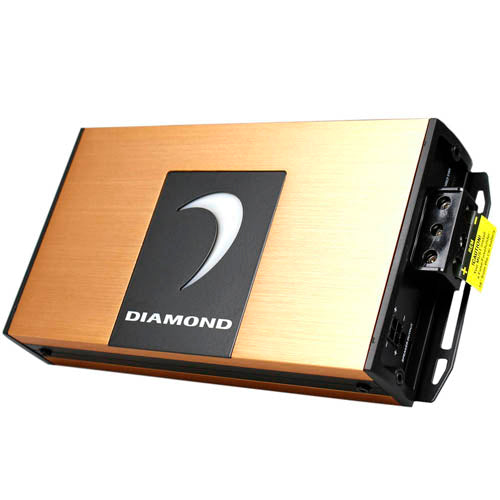

Diamond Audio Monoblock Full Range Amplifier Class D MICRO1V2

Diamond Audio Monoblock Full Range Amplifier Class D MICRO1V2

Elite sound quality and superior power in an ultra-compact chassis. The Diamond Audio Micro1v2 1 channel power amplifier sets the standard for high-end Harley specific amplifiers. Featuring ultra-efficient full range class D topology and ICAD circuit that provides superior overload protection, these compact amplifiers deliver huge power for their size. Its compact design not only has the juice to power your system but will also save you a ton of space in your car or transport whatever you need it.

Specifications

• RMS Power Rating 1 Ohm: 500 x 1
• RMS Power Rating 2 Ohm: 300 x 1
• THD: 0.5%
• Signal to Noise Ratio: >85dB
• Dampening Factor: >250
• Channel Separation: >55dB
• Overall Efficiency: >88%
• Input Sensitivity: 0.2V-10.0V
• Dimensions: 9" x 4.06" x 1.52"

Features

•UCHD aluminum alloy chassis
• Full range class D IR chipset
• DirectFET power mosfet output stage
• SMD Technology on 4 layer glass PC Board
• ICAD circuit provides superior overload protection
• Bridgeable
• Remote bass level control
• Frequency response 10 Hz - 35khz
• Variable 12db crossover
• Premium 4 gauge power connections
• Mono channel
