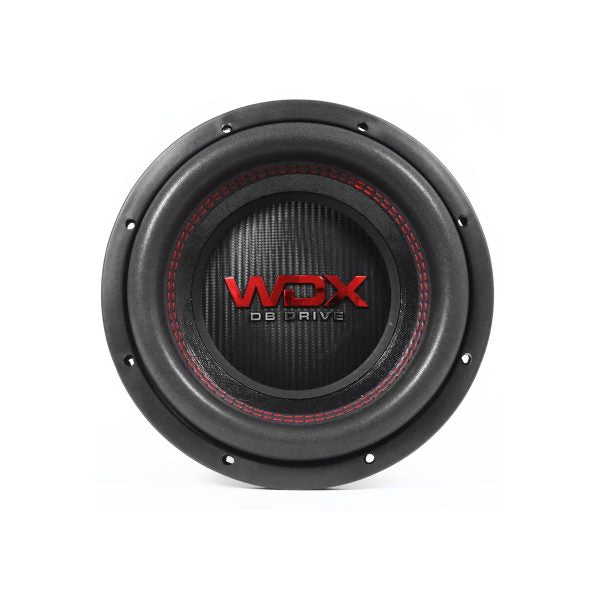

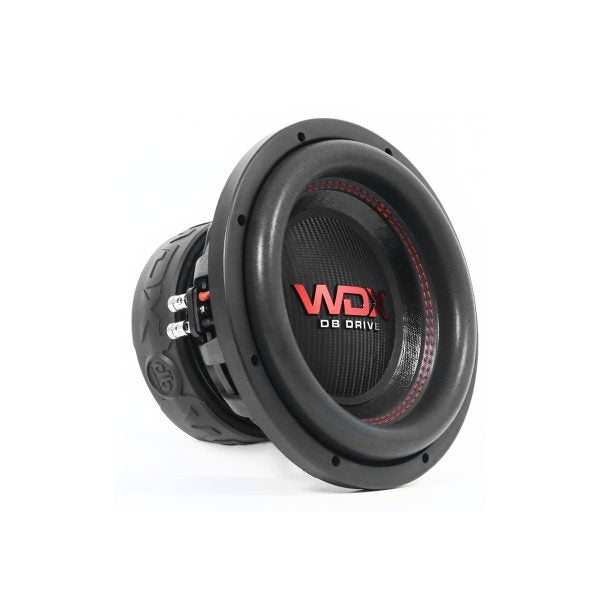

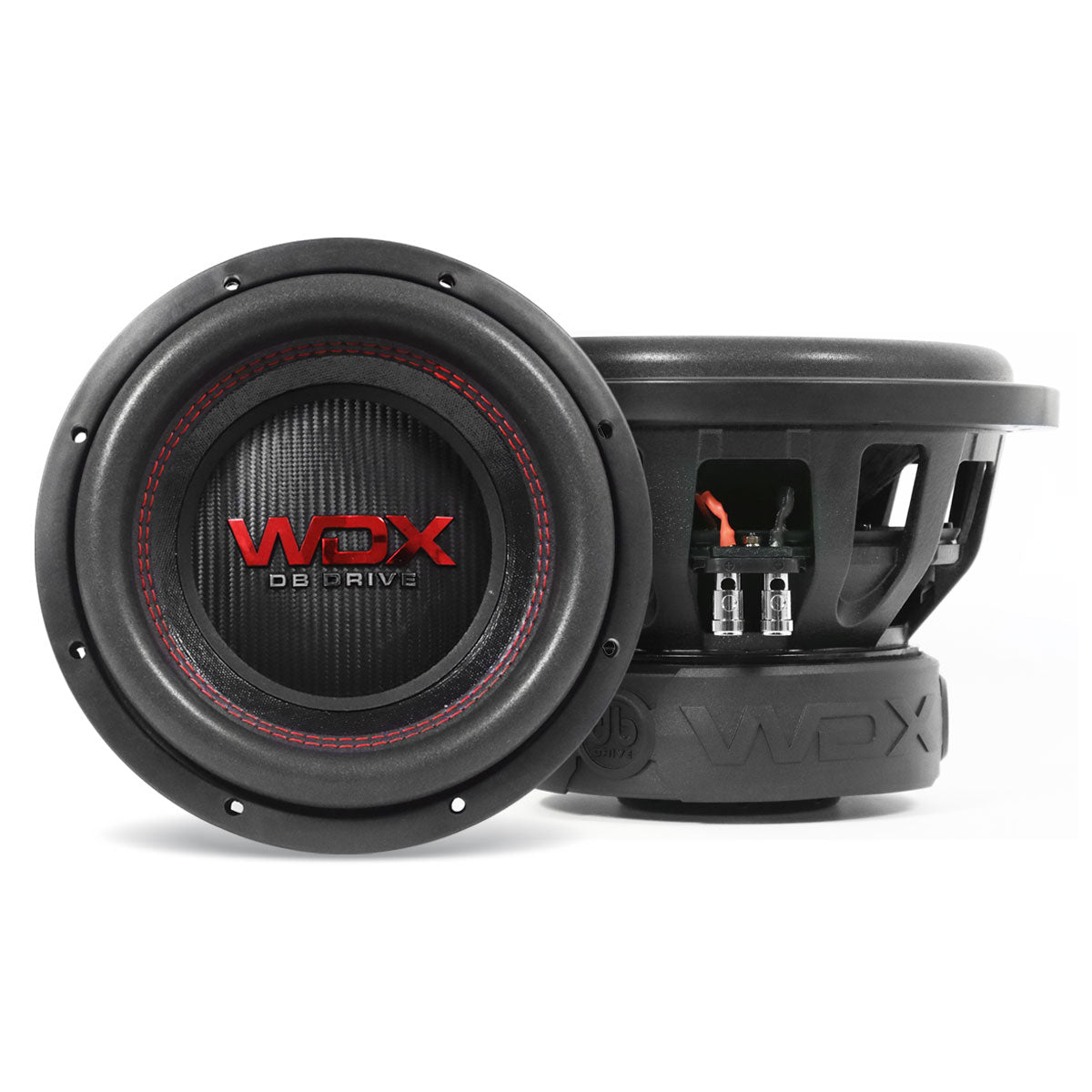

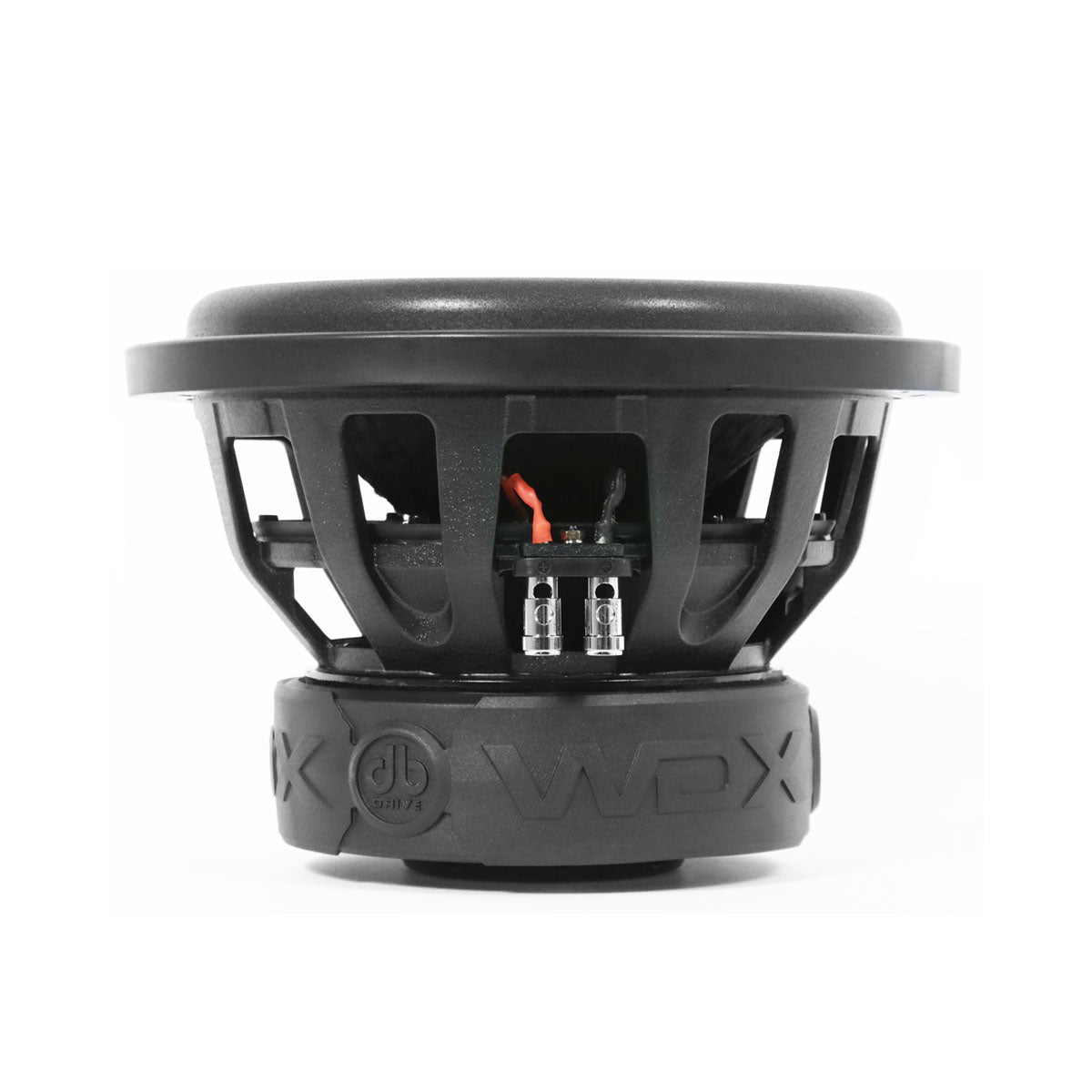

DB Drive WDX8G1.4 : 8" Dual 4-Ohm Subwoofer
DB Drive WDX8G1.4 : 8" Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
DB Drive WDX8G1.4 : 8" Dual 4-Ohm Subwoofer
Description
Description
Features
Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double-stitched foam surround and the die-cast aluminum vented basket allow maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
- 2" BASV High-Temperature Voice coil
- Non-Pressed paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
| Structure | 8" (20.3cm) Woofer |
|---|---|
| Dynamic Power Handling | 1200 Watts |
| Nominal Power Handling | 600 Watts |
| Impedance | Dual 4Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 55.71Hz |
| D.C. Voice Coil Resistance (Re) | 3.2 x 3.2Ω |
| Mechanical Quality Factor (Qms) | 6.234 |
| Electrical Quality Factor (Qes) | 0.757 |
| Total Quality Factor (Qts) | 0.675 |
| Equivalent Air Volume to Cms (Vas) | 3.519 L |
| Mass of Diaphragm/Coil (Mms) | 150.516 g |
| Force Factor (Bl) | 10.550 |
| Sound Pressure Level (SPL) | 80.9 dB |
Description
Feel the Drive with the DB Drive WDX8G1.4—Where Power Meets Precision! Experience the ultimate sound revolution with the DB Drive WDX8G1.4: 8in Woofer 4 Ohm DVC. Designed for true audiophiles, this subwoofer features a high-temperature voice coil and a non-pressed paper cone, ensuring durability and outstanding sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide unparalleled stability and performance, while the die-cast aluminum vented basket and rubber gasket trim ring enhance its rugged design. With a 120 oz. magnet and a maximum power handling of 1200 watts, this subwoofer is ready to deliver deep, powerful bass that will transform your listening experience. Whether you're pushing the limits with 600 watts of nominal power or enjoying the protective magnet cover, the WDX G1 series ensures every beat is felt, not just heard. Elevate your audio game with DB Drive—where innovation and excellence collide.
Product Manual
Product Manual PDF
