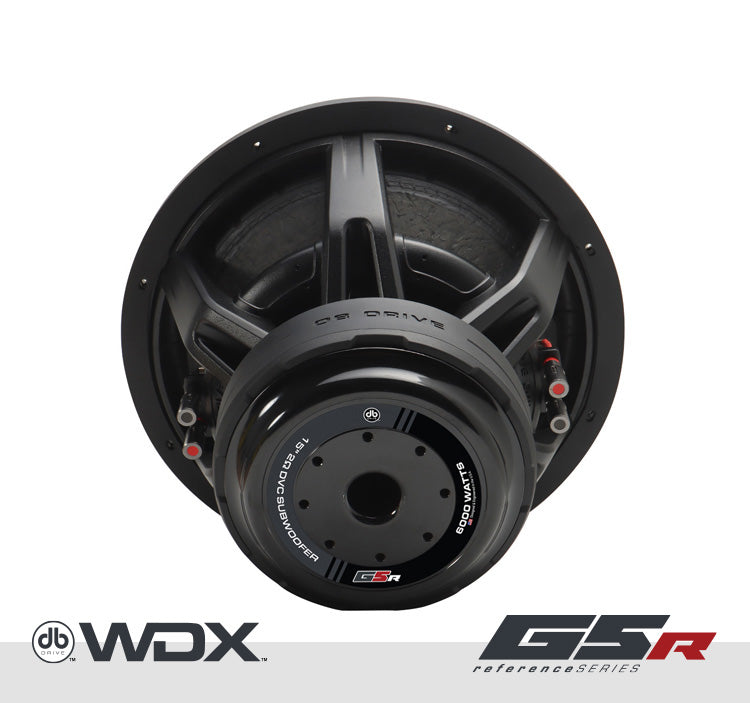

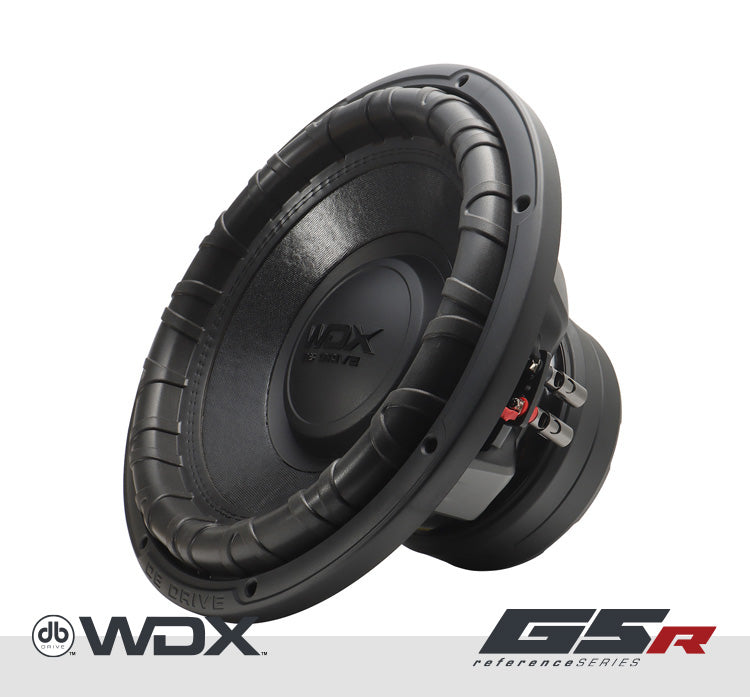

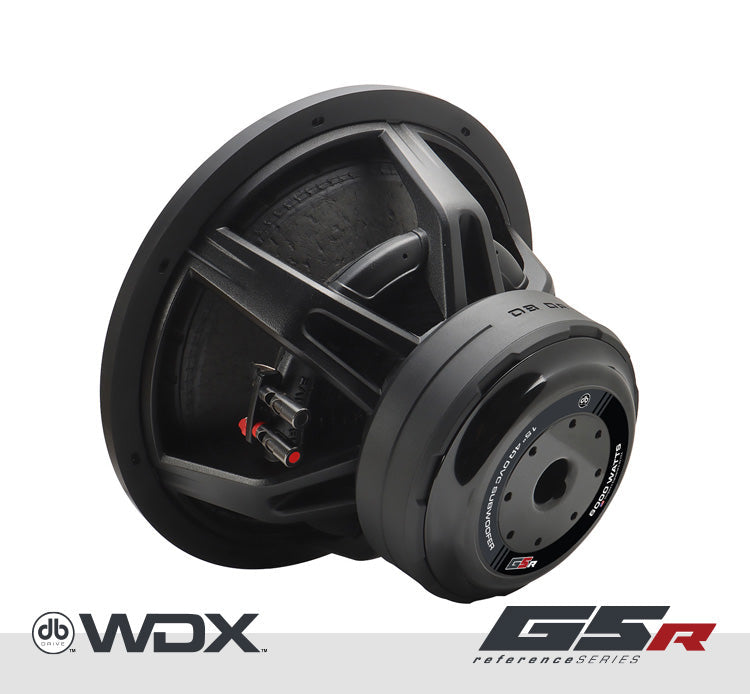

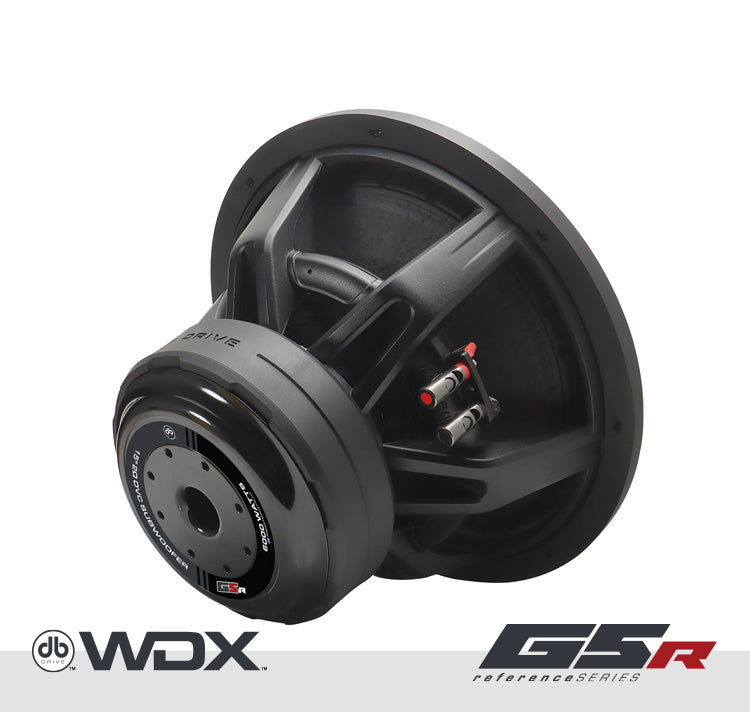

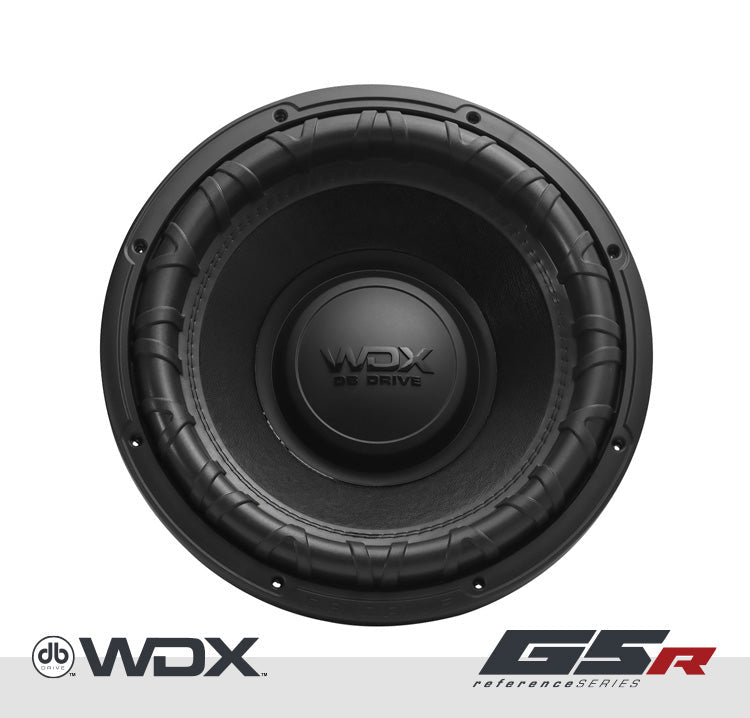

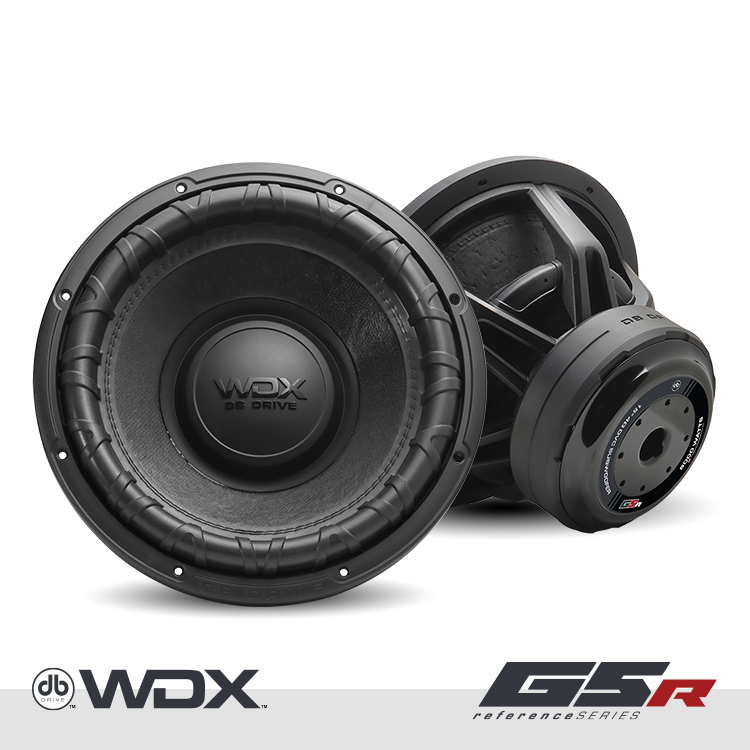

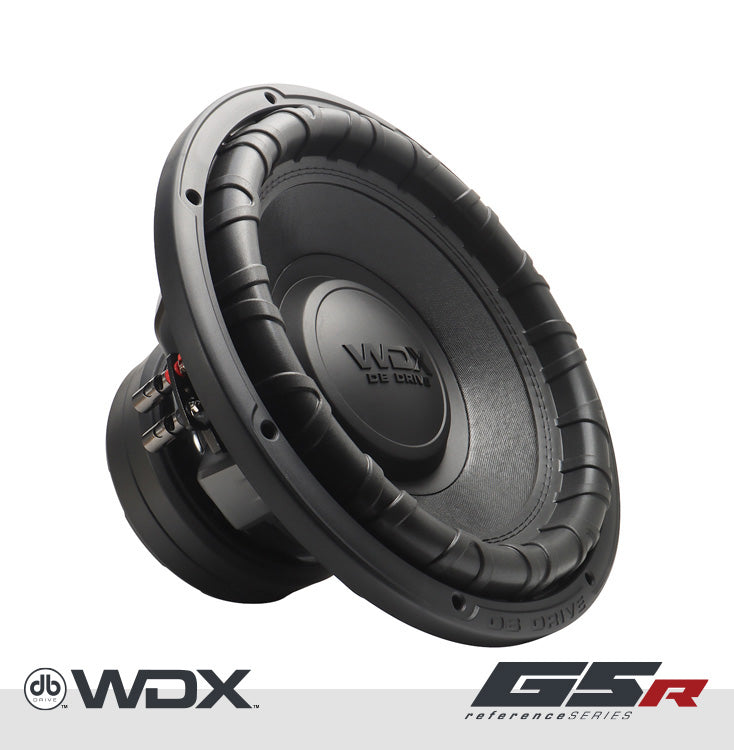

DB Drive WDX15G5R.2 : 15 in. Dual 2-Ohm Subwoofer

Features

• 3.0″ 4 layer Anodized aluminum high temperature voice coil
• Non-Pressed paper cone
• Double-stitched reinforced foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Specifications

• Dynamic Power Handling: 6000 Watts
• Nominal Power Handling: 3000 Watts
• Impedance: Dual 2Ω Voice Coil
• Resonant Frequency (fs): 28.88Hz
• D.C. Voice Coil Resistance (Re): 2 x 2Ω
• Mechanical Quality Factor (Qms): 3.84
• Electrical Quality Factor (Qes): 0.62
• Total Quality Factor (Qts): 0.54
• Equivalent Air Volume (Vas): 50.53 L
• Mechanical Compliance of Suspension (CMS): 55.010 mm/N

• Mass of Diaphragm/Coil (Mms): 552.05 g
• Force Factor (BL): 25.35

• Sound Pressure Level (SPL): 84.8 dB

Description

Designed for true bass enthusiasts, the WDX15G5R.2 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 6000 watts dynamic (3000 watts nominal) The WDX15G5R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?

Product Manual

Product Manual PDF
