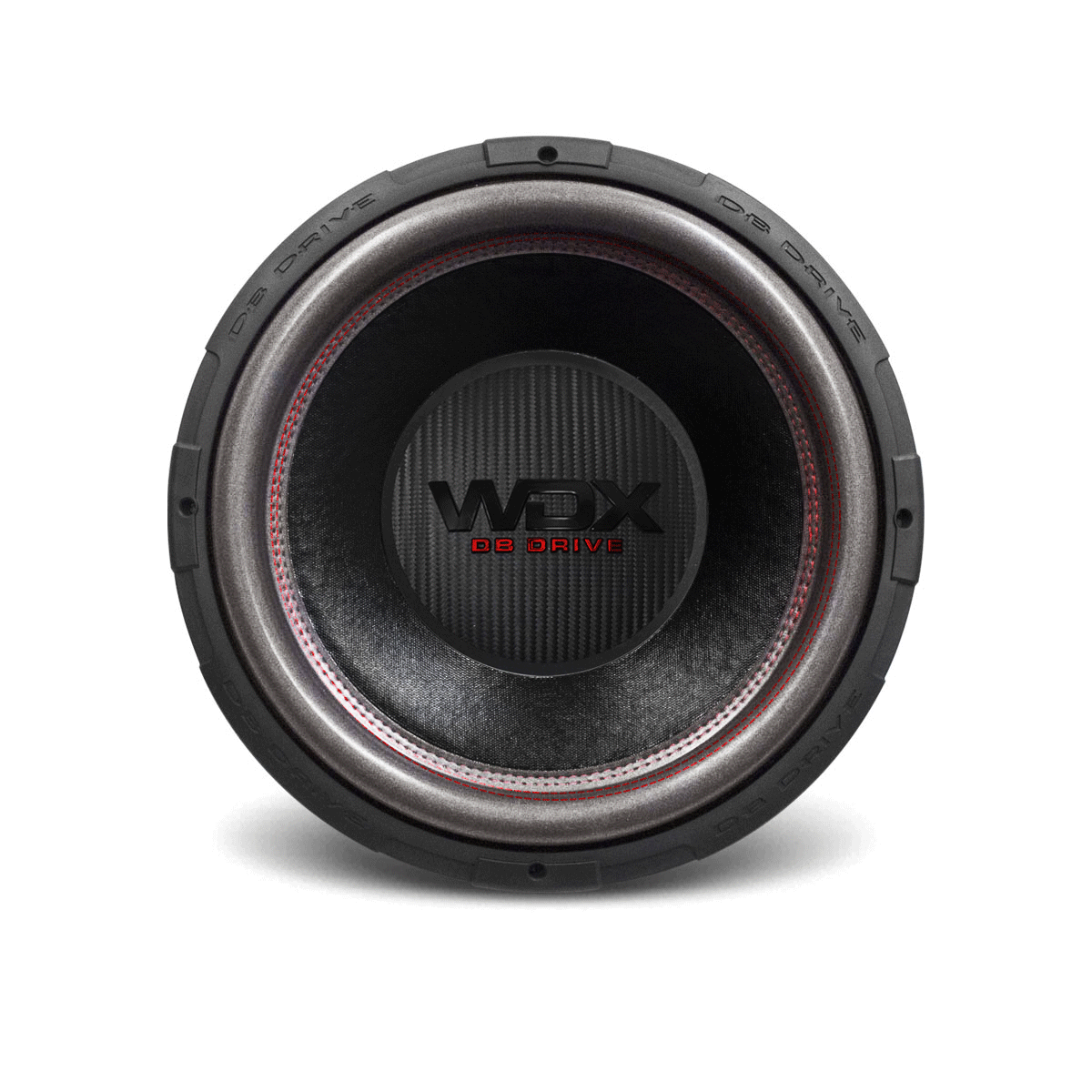

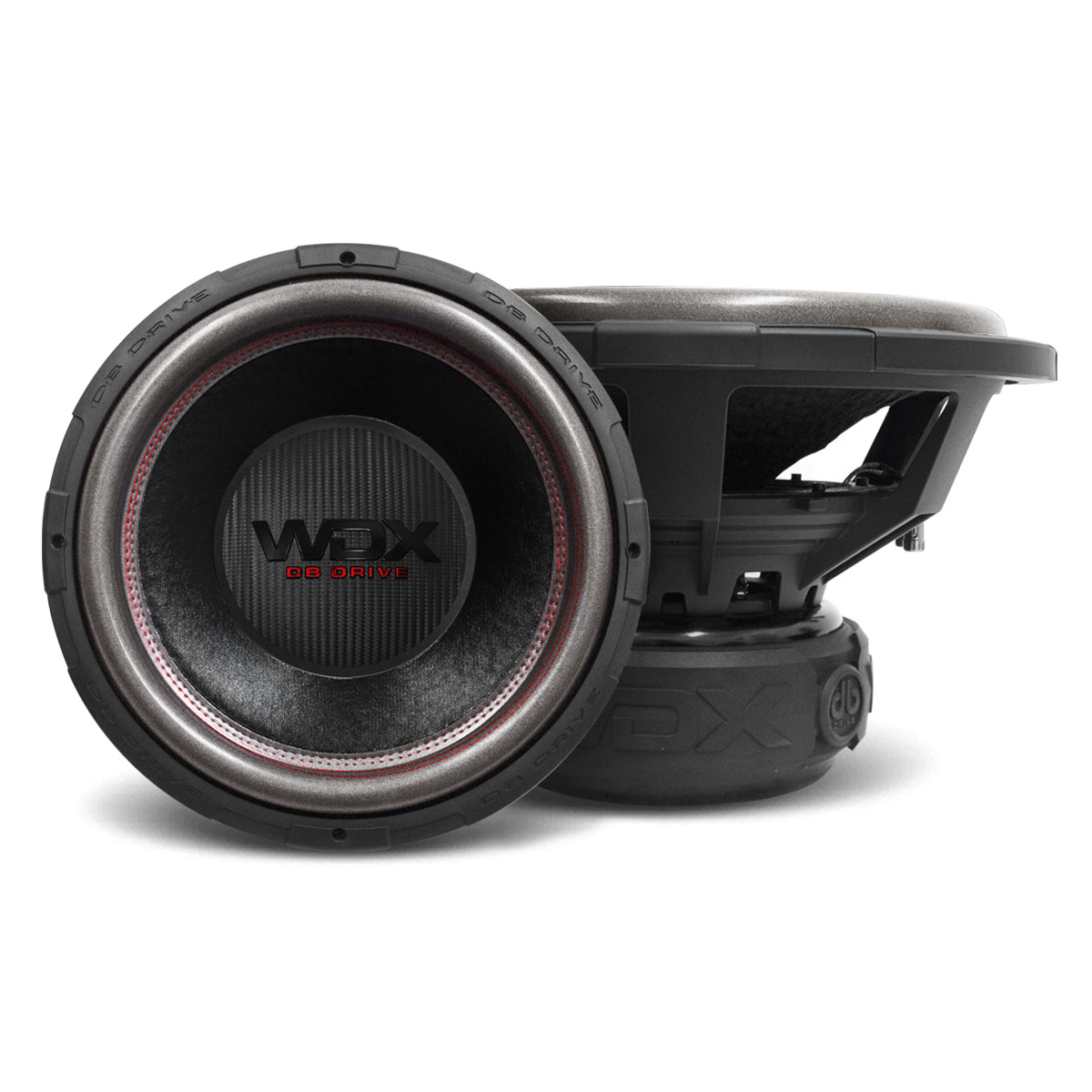

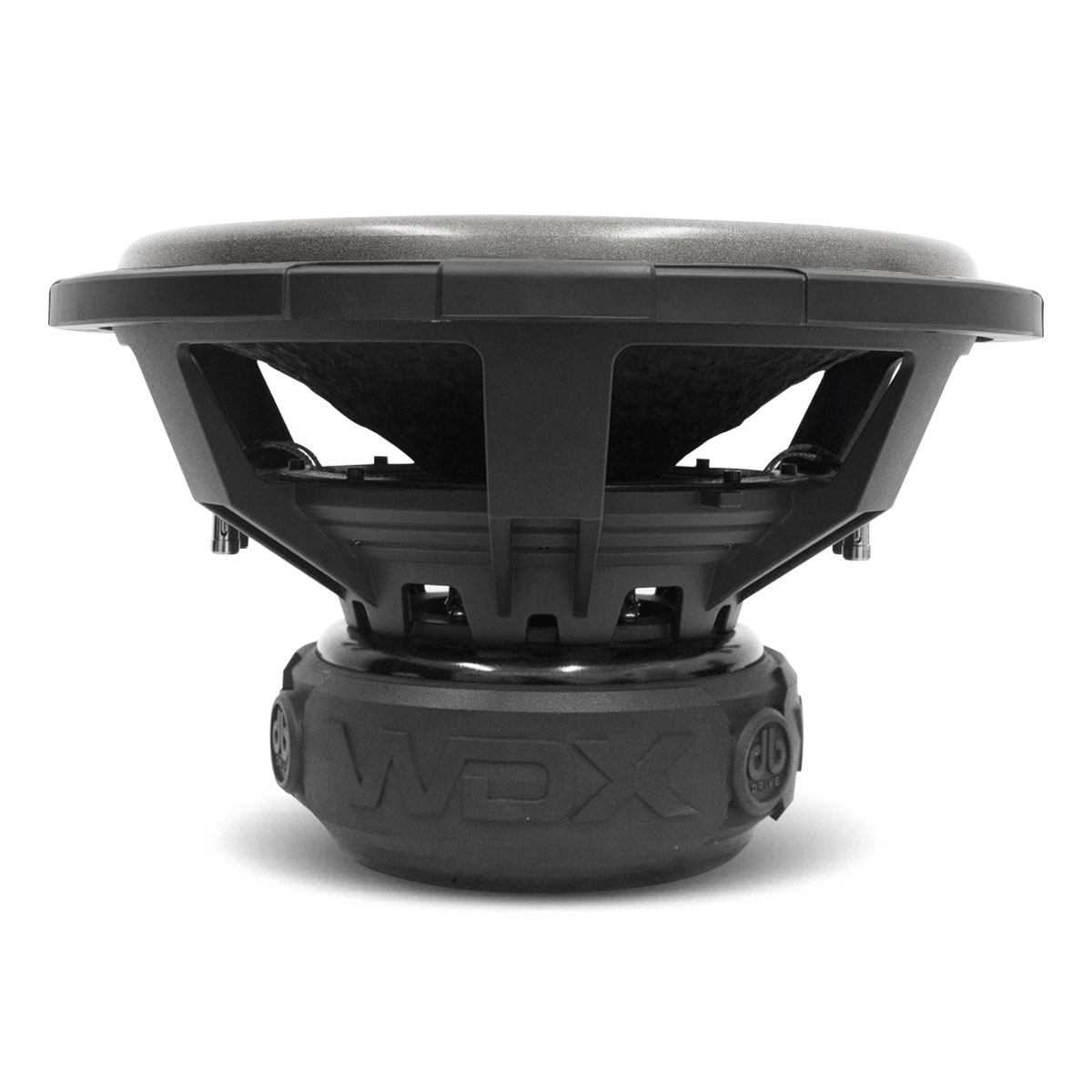

DB Drive WDX15G5.2 : 15" Dual 2-Ohm Subwoofer

Features

• 3.0" 4 layer Anodized aluminum high-temperature voice coil
• Non-pressed paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Specifications

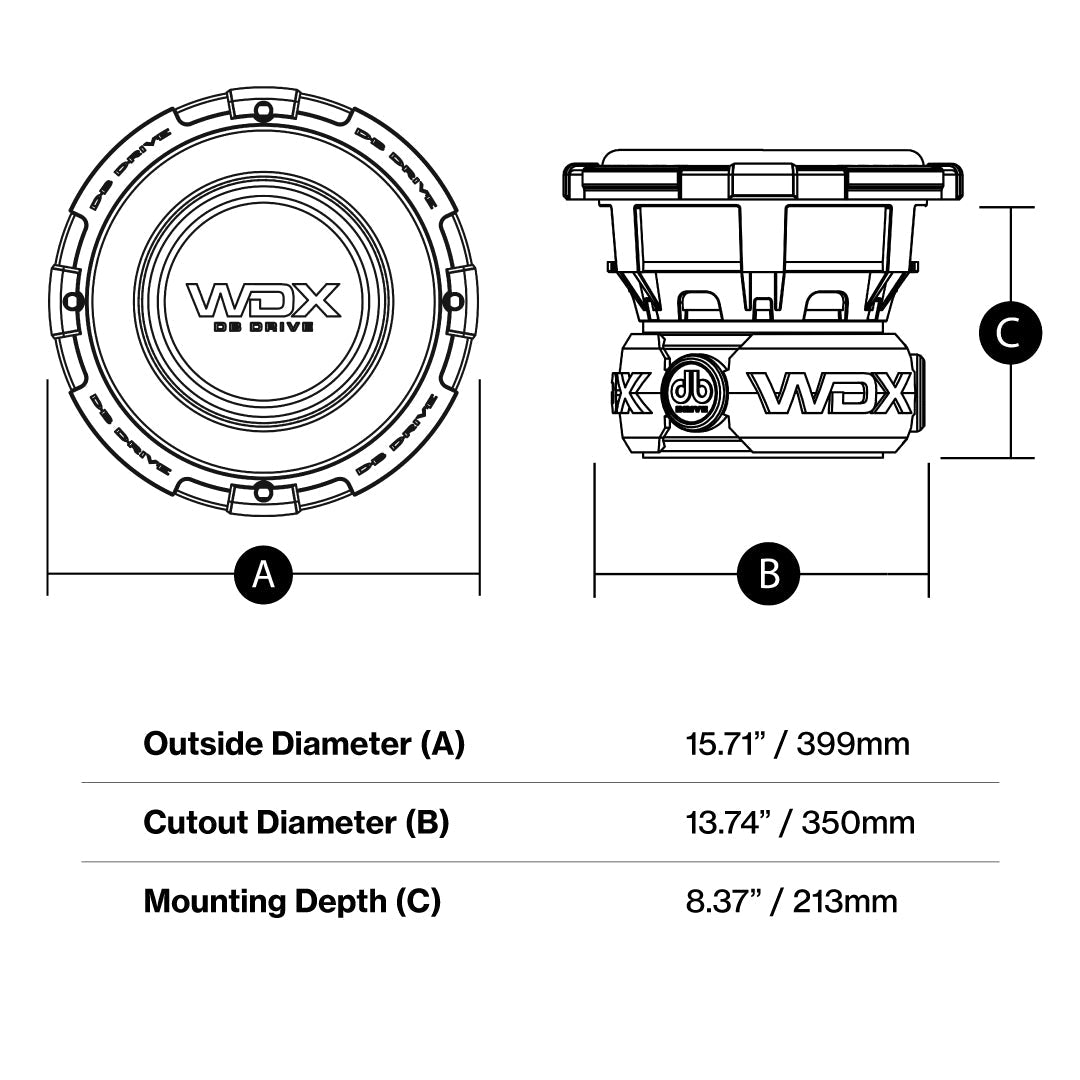

Structure	15" (38cm) Woofer
Dynamic Power Handling	6000 Watts
Nominal Power Handling	3000 Watts
Impedance	Dual 2Ω Voice Coil

Parameters

Resonant Frequency (fs)	37.92Hz
D.C. Voice Coil Resistance (Re)	2 x 2Ω
Mechanical Quality Factor (Qms)	4.18
Electrical Quality Factor (Qes)	0.659
Total Quality Factor (Qts)	0.569
Equivalent Air Volume to Cms (Vas)	44.36 L
Mass of Diaphragm/Coil (Mms)	387.93 g
Force Factor (Bl)	23.69
Sound Pressure Level (SPL)	87.5 dB

Product Manual

Product Manual PDF

Description

Feel the Thunder with the DB Drive WDX15G5.2!

Unleash the full potential of your sound system with the DB Drive WDX15G5.2: 15in Woofer 2 Ohm DVC! This powerhouse subwoofer is engineered to deliver an earth-shattering 6000 Watts of max power and 3000 Watts of nominal power, ensuring that every beat hits hard and every note resonates beautifully. Crafted with a high-temperature voice coil, non-pressed paper cone, and dual poly-cotton dampeners, it guarantees superior durability and pristine audio quality. The die-cast aluminum vented basket and large gauge compression terminals provide optimal performance and ease of installation. Whether you're a bass enthusiast or an audiophile, the DB Drive WDX15G5.2 will elevate your audio experience to new heights. Get ready to feel the thunder and transform your music journey with this top-of-the-line subwoofer!
