DB Drive | SKU:
811536032676

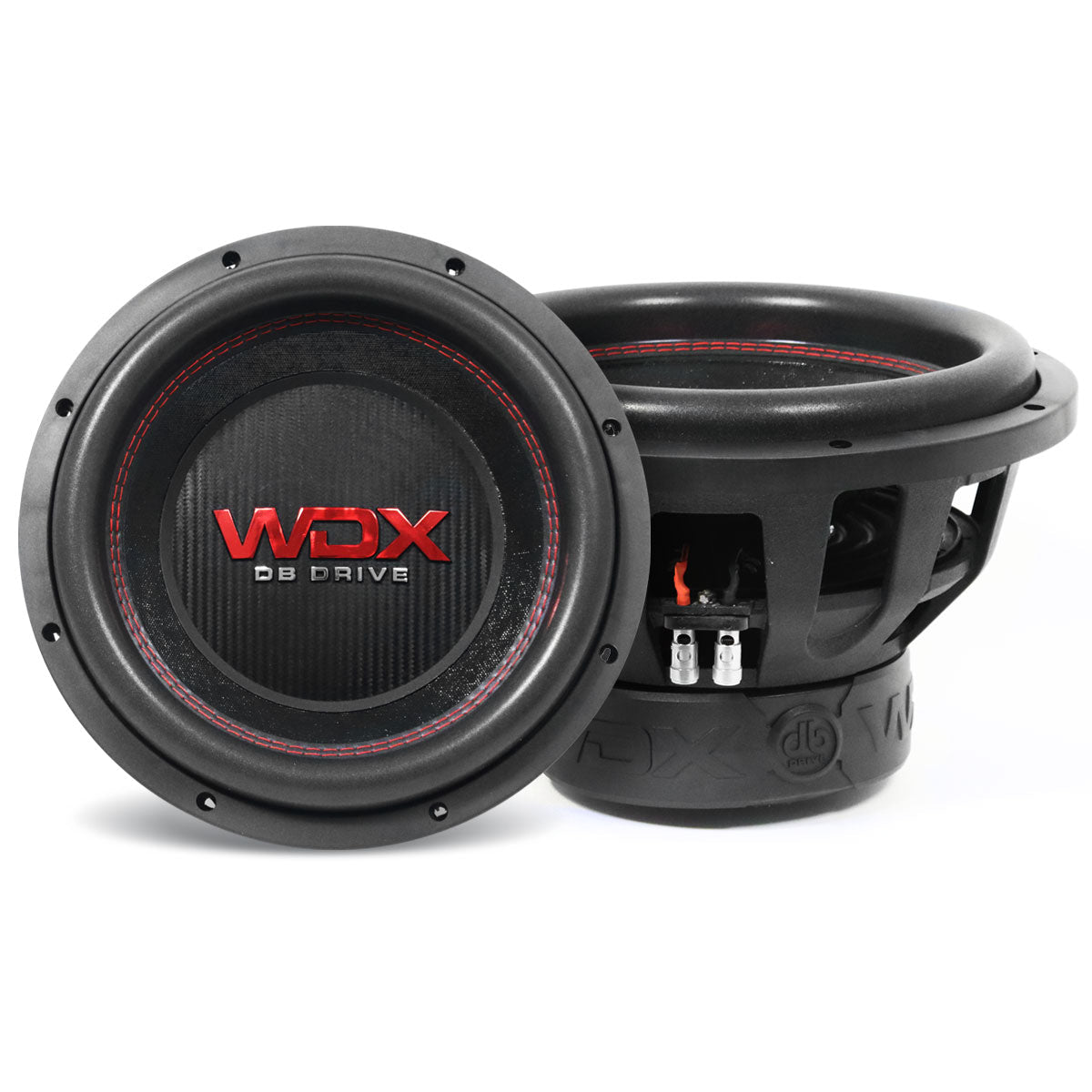

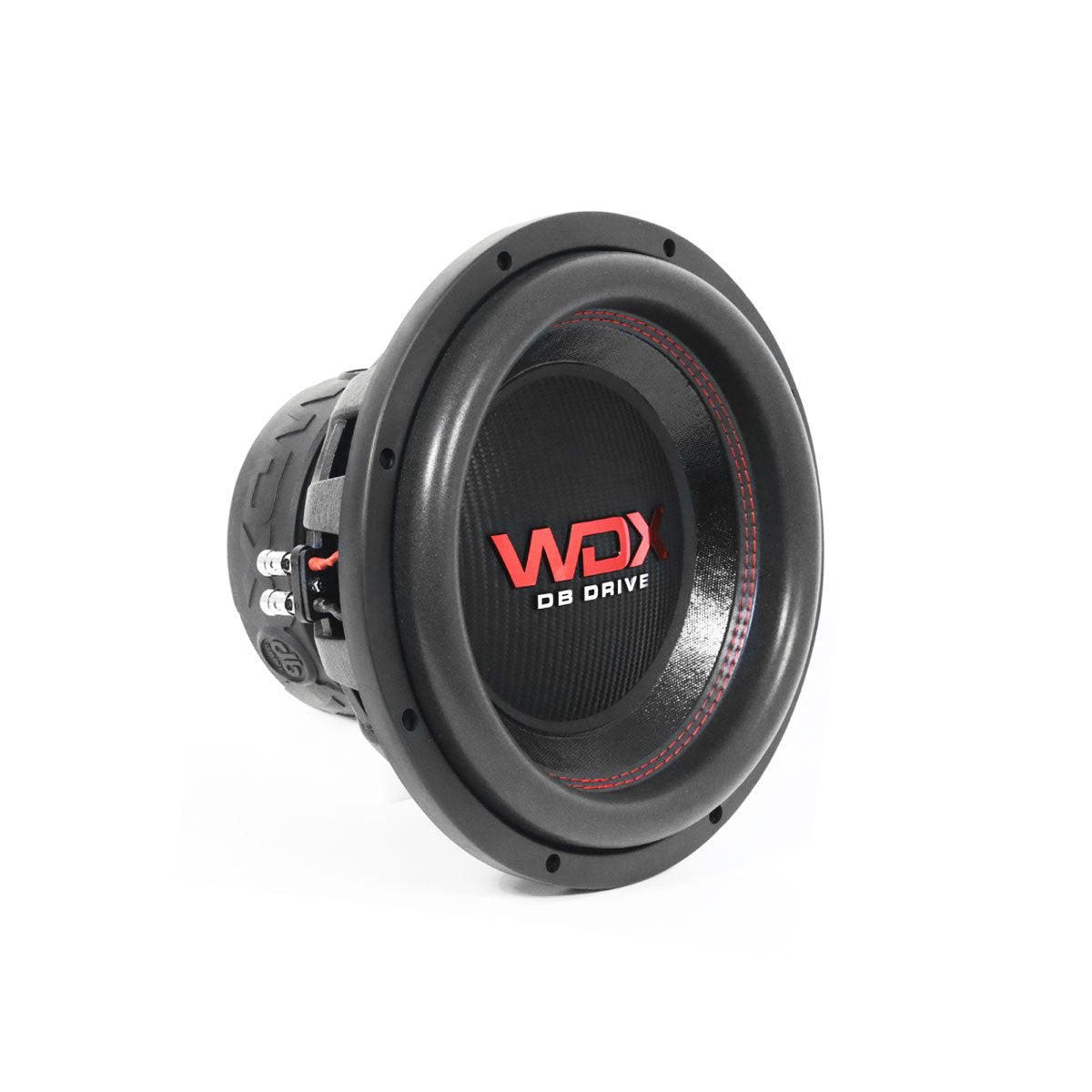

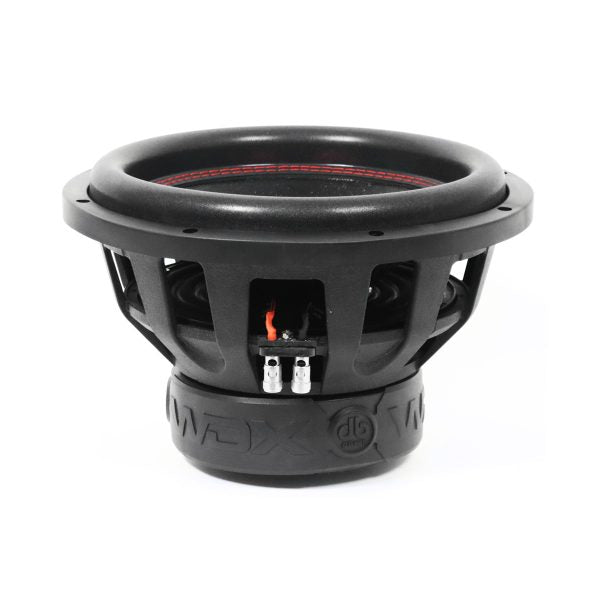

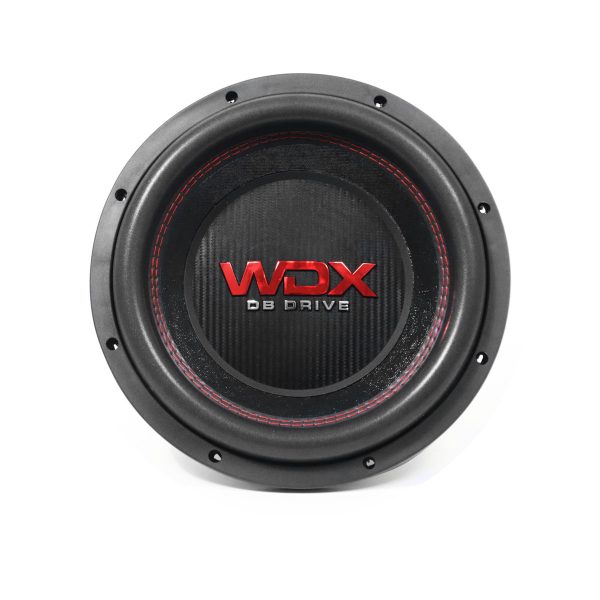

DB Drive WDX15G1.4 : 15" Dual 4-Ohm Subwoofer
$329.98
Unit price
/
Unavailable
Shipping calculated at checkout.
DB Drive WDX15G1.4 : 15" Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description
Features
- 3" BASV High-Temperature Voice coil
- Non-pressed paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
| Structure | 12" (30.48cm) Woofer |
|---|---|
| Dynamic Power Handling | 2000 Watts |
| Nominal Power Handling | 1000 Watts |
| Impedance | Dual 4Ω Voice Coil |
Parameters
| Resonant Frequency (fs) | 40.93Hz |
| D.C. Voice Coil Resistance (Re) | 3.2 x 3.2Ω |
| Mechanical Quality Factor (Qms) | 3.885 |
| Electrical Quality Factor (Qes) | 0.739 |
| Total Quality Factor (Qts) | 0.621 |
| Equivalent Air Volume to Cms (Vas) | 18.014 L |
| Mass of Diaphragm/Coil (Mms) | 335.972 g |
| Force Factor (Bl) | 13.679 |
| Sound Pressure Level (SPL) | 84.1 dB |
Description
Feel the Thunder with DB Drive's WDX G1 Subwoofers!
Unleash the power of music with the WDX15G1.4, DB Drive's pinnacle of subwoofer engineering. Designed with precision and packed with features, this 15-inch woofer boasts a high-temperature voice coil and a non-pressed paper cone, ensuring durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide unmatched stability, while the die-cast aluminum vented basket and rubber gasket trim ring guarantee flawless performance. With a massive 135 oz. magnet and large gauge compression terminals, this subwoofer delivers an earth-shattering 2000 watts of peak power. Experience the deep, rich bass and elevate your audio experience to new heights with the WDX G1 series. Transform your sound system and feel the music like never before!
Unleash the power of music with the WDX15G1.4, DB Drive's pinnacle of subwoofer engineering. Designed with precision and packed with features, this 15-inch woofer boasts a high-temperature voice coil and a non-pressed paper cone, ensuring durability and exceptional sound quality. The double-stitched foam surround and dual poly-cotton dampeners provide unmatched stability, while the die-cast aluminum vented basket and rubber gasket trim ring guarantee flawless performance. With a massive 135 oz. magnet and large gauge compression terminals, this subwoofer delivers an earth-shattering 2000 watts of peak power. Experience the deep, rich bass and elevate your audio experience to new heights with the WDX G1 series. Transform your sound system and feel the music like never before!
Product Manual
Product Manual PDF
