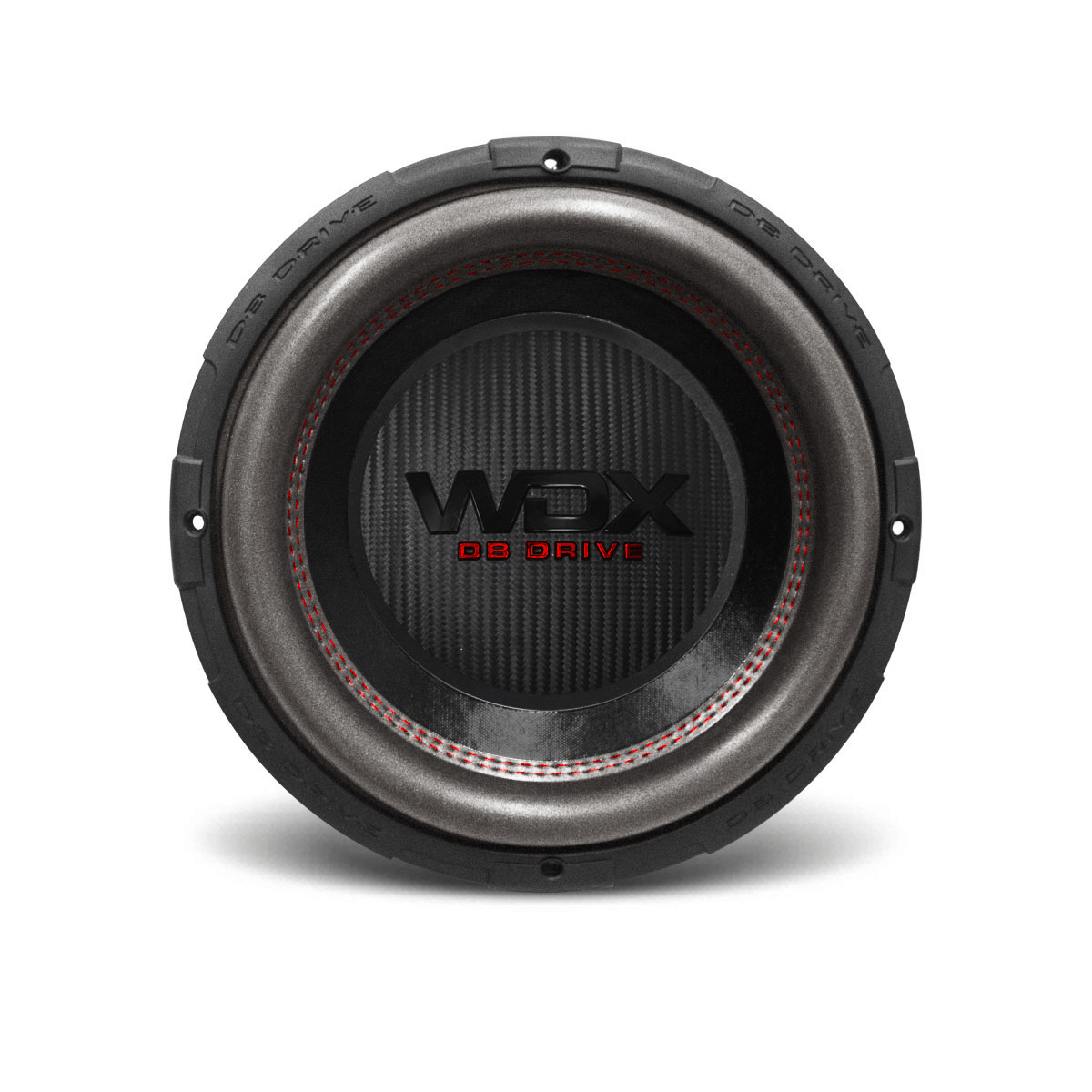

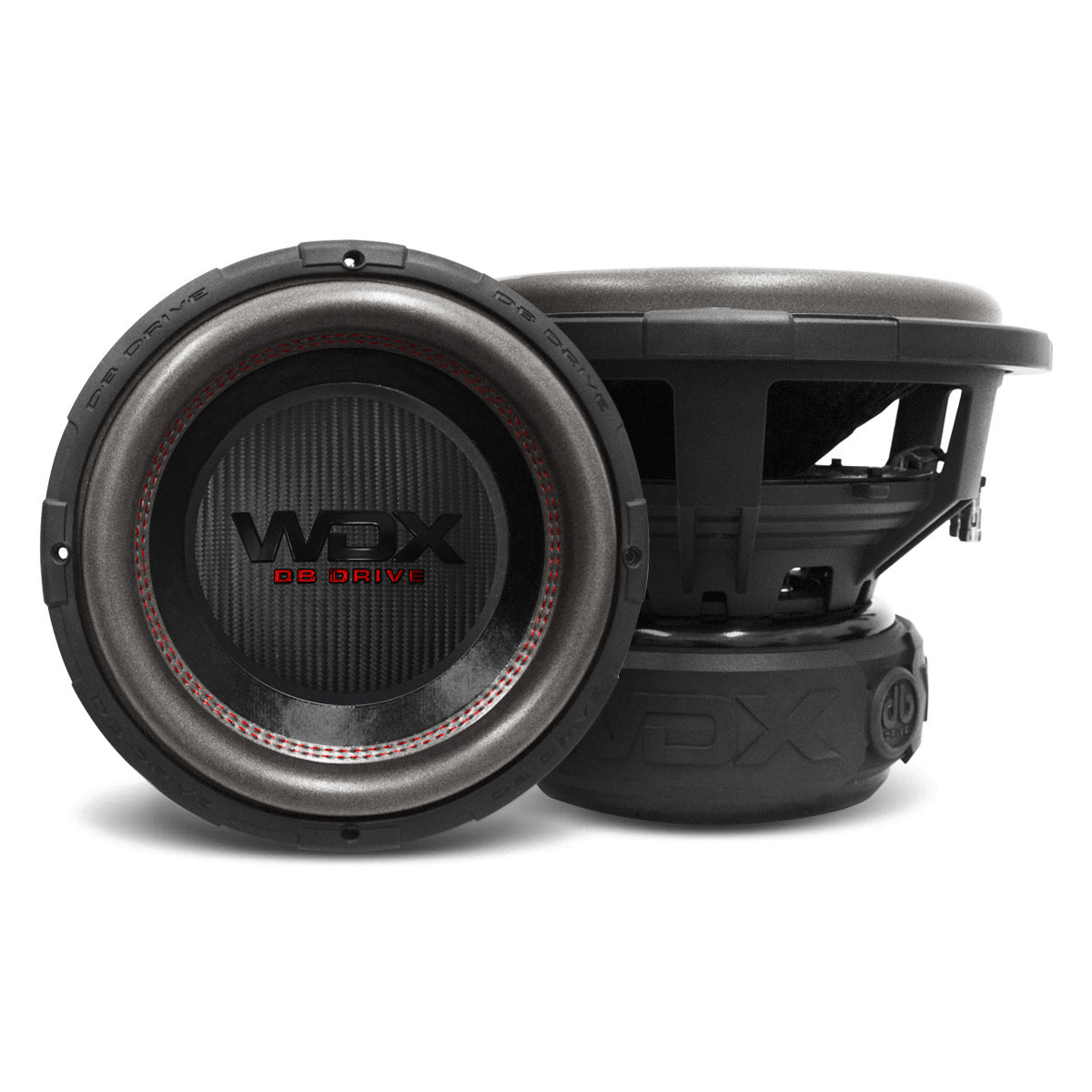

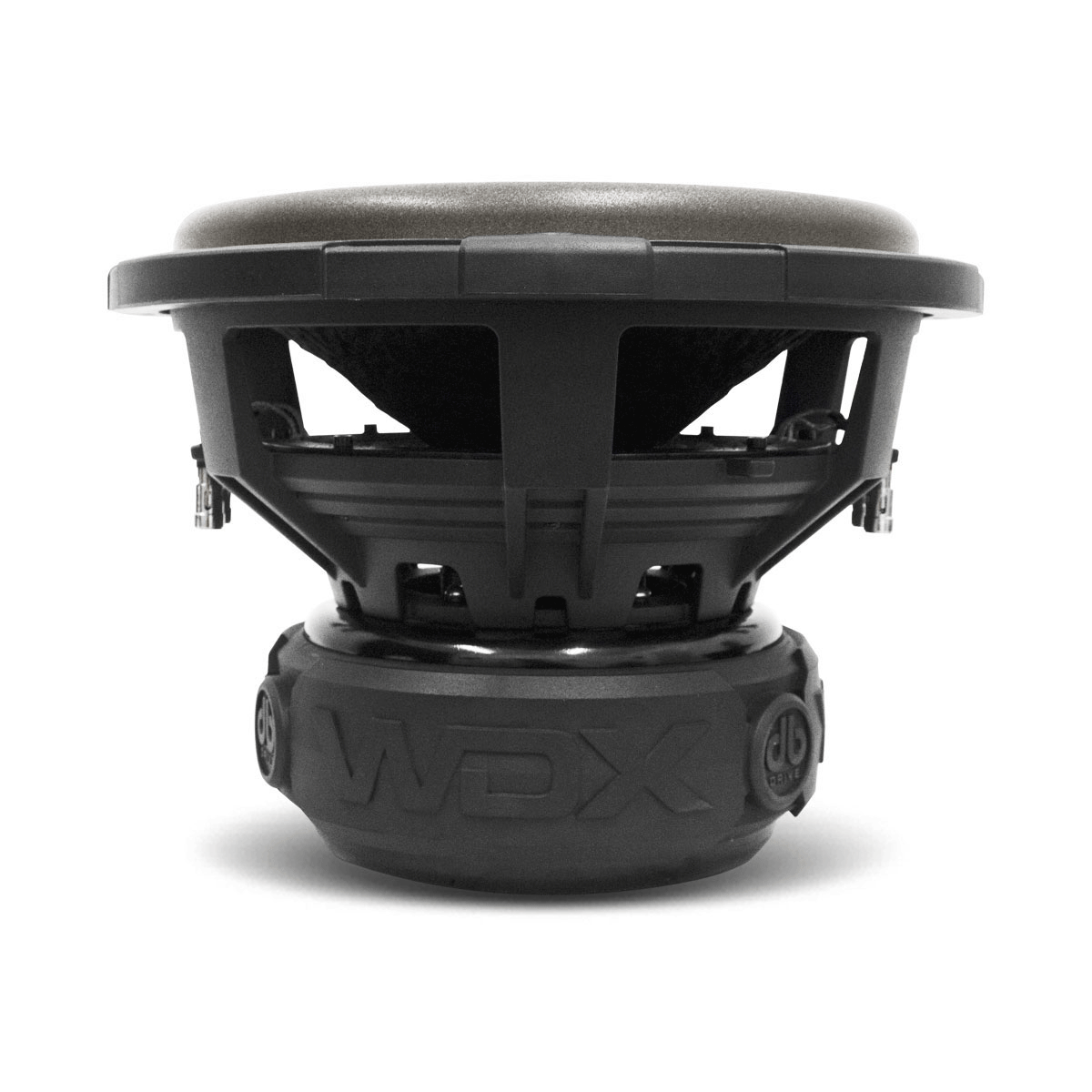

DB Drive WDX12G5.2 : 12" Dual 2-Ohm Subwoofer

Features

• 3.0" 4 layer Anodized aluminum high temperature voice coil
• Non-Pressed paper cone
• Double stitched foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover

Specifications

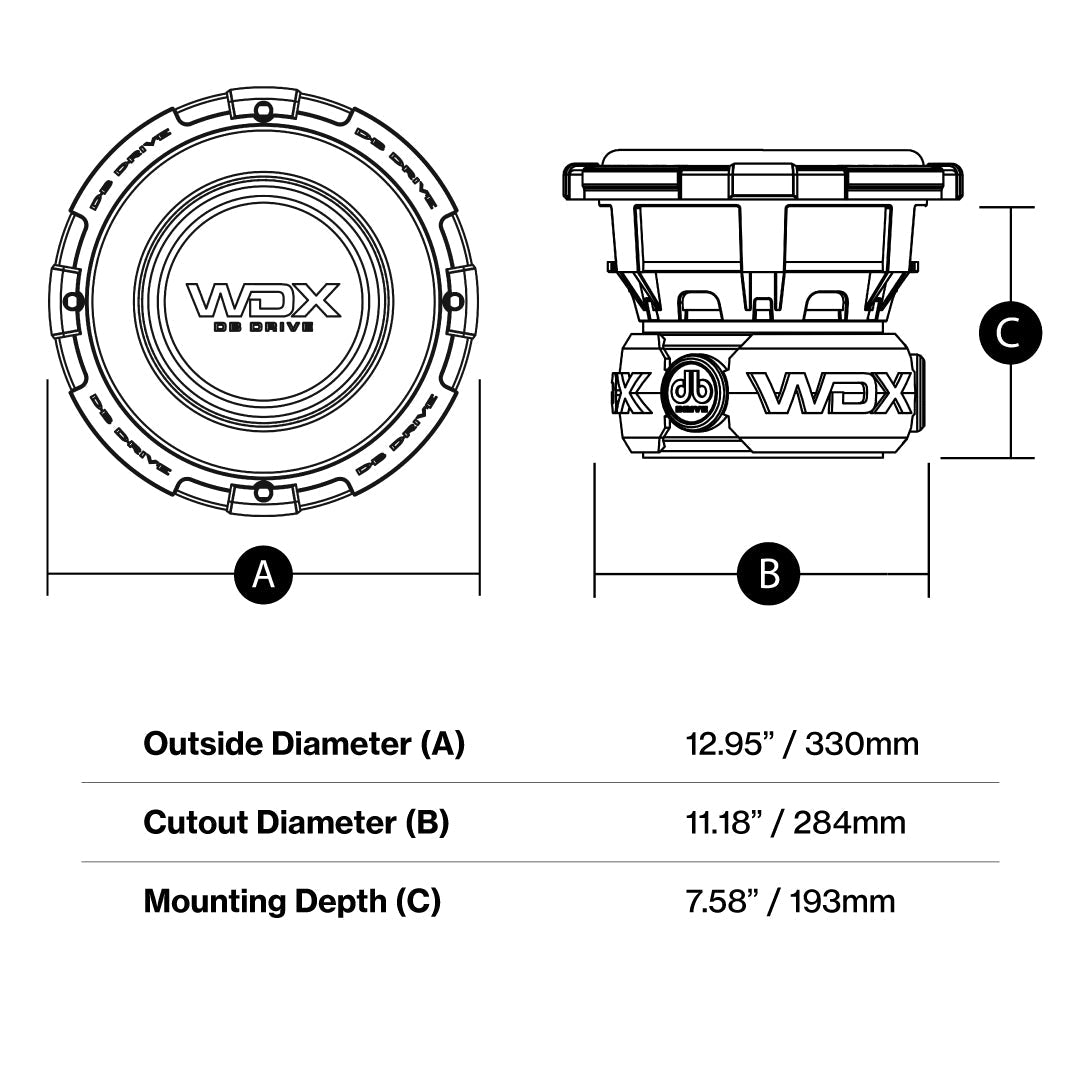

Structure	12" (30.4cm) Woofer
Dynamic Power Handling	6000 Watts
Nominal Power Handling	3000 Watts
Impedance	Dual 2Ω Voice Coil

Parameters

Resonant Frequency (fs)	38.99Hz
D.C. Voice Coil Resistance (Re)	2 x 2Ω
Mechanical Quality Factor (Qms)	4.166
Electrical Quality Factor (Qes)	0.606
Total Quality Factor (Qts)	0.529
Equivalent Air Volume to Cms (Vas)	21.01 L
Mass of Diaphragm/Coil (Mms)	317.437 kg
Force Factor (Bl)	22.649
Sound Pressure Level (SPL)	85 dB

Product Manual

Product Manual PDF

Description

Feel the bass, experience the power with DB Drive's WDX12G5.2!

Unleash the true potential of your car audio system with the DB Drive WDX12G5.2 12in Woofer. Engineered for excellence, this subwoofer features a high-temperature voice coil and non-pressed paper cone, ensuring durability and superior sound quality. The dual poly-cotton dampeners and die-cast aluminum vented basket provide exceptional stability and performance. With an impedance of Dual 2Ω and the ability to handle a staggering 6000 Watts of max power and 3000 Watts of nominal power, this subwoofer delivers deep, powerful bass that you can feel. The large gauge compression terminals and protective magnet cover add to its robust design, while the rubber gasket trim ring ensures a perfect fit. Elevate your audio experience and feel every beat with the DB Drive WDX G5 Series Subwoofers.
