DB Drive | SKU:
811536033833

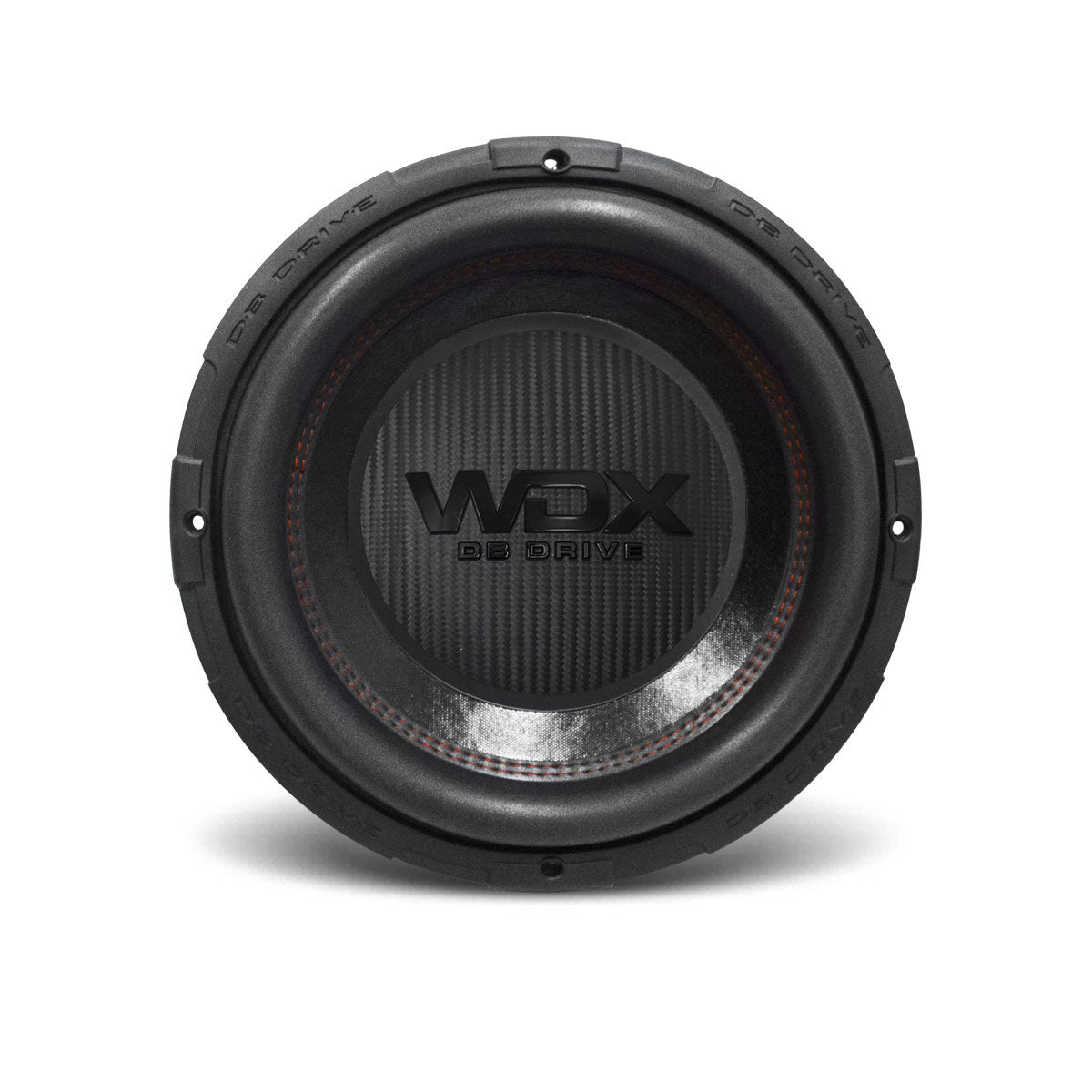

DB Drive WDX12G3.4 : 12" Dual 4-Ohm Subwoofer
$399.98
Unit price
/
Unavailable
Shipping calculated at checkout.
DB Drive WDX12G3.4 : 12" Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description
Features
- 3" 4-layer Anodized aluminum high-temperature voice coil
- Non-Pressed paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
| Structure | 18" (45cm) Woofer |
|---|---|
| Dynamic Power Handling | 6000 Watts |
| Nominal Power Handling | 3000 Watts |
| Impedance | Dual 2Ω Voice Coil |
Parameters
| Resonant Frequency (fs) | 31.56Hz |
| D.C. Voice Coil Resistance (Re) | 2 x 2Ω |
| Mechanical Quality Factor (Qms) | 4.48 |
| Electrical Quality Factor (Qes) | 0.72 |
| Total Quality Factor (Qts) | 0.62 |
| Equivalent Air Volume to Cms (Vas) | 112.68 L |
| Mass of Diaphragm/Coil (Mms) | 481.17 kg |
| Force Factor (Bl) | 23.01 |
| Sound Pressure Level (SPL) | 88.8 dB |
Product Manual
Product Manual PDF
Description
Feel the Power, Hear the Difference with DB Drive's WDX12 G3 Subwoofer!
Unleash the true potential of your car audio system with the DB Drive WDX12 G3 Dual 4-Ohm Subwoofer. Engineered with precision and packed with powerful features, this subwoofer is designed to deliver earth-shattering bass and impeccable sound quality. With a robust 4000 Watts of max power and 2000 Watts of nominal power, the WDX12 G3 ensures that every beat is felt and every note is heard. Its protective magnet cover, large gauge compression terminals, and die-cast aluminum vented basket provide durability and superior performance. The rubber gasket trim ring and dual poly-cotton dampeners guarantee longevity and resilience, while the non-pressed paper cone and high-temperature voice coil offer unmatched sound clarity. Experience the difference with the 12-inch DB Drive WDX12 G3 Subwoofer and elevate your audio experience to a whole new level.
Unleash the true potential of your car audio system with the DB Drive WDX12 G3 Dual 4-Ohm Subwoofer. Engineered with precision and packed with powerful features, this subwoofer is designed to deliver earth-shattering bass and impeccable sound quality. With a robust 4000 Watts of max power and 2000 Watts of nominal power, the WDX12 G3 ensures that every beat is felt and every note is heard. Its protective magnet cover, large gauge compression terminals, and die-cast aluminum vented basket provide durability and superior performance. The rubber gasket trim ring and dual poly-cotton dampeners guarantee longevity and resilience, while the non-pressed paper cone and high-temperature voice coil offer unmatched sound clarity. Experience the difference with the 12-inch DB Drive WDX12 G3 Subwoofer and elevate your audio experience to a whole new level.
