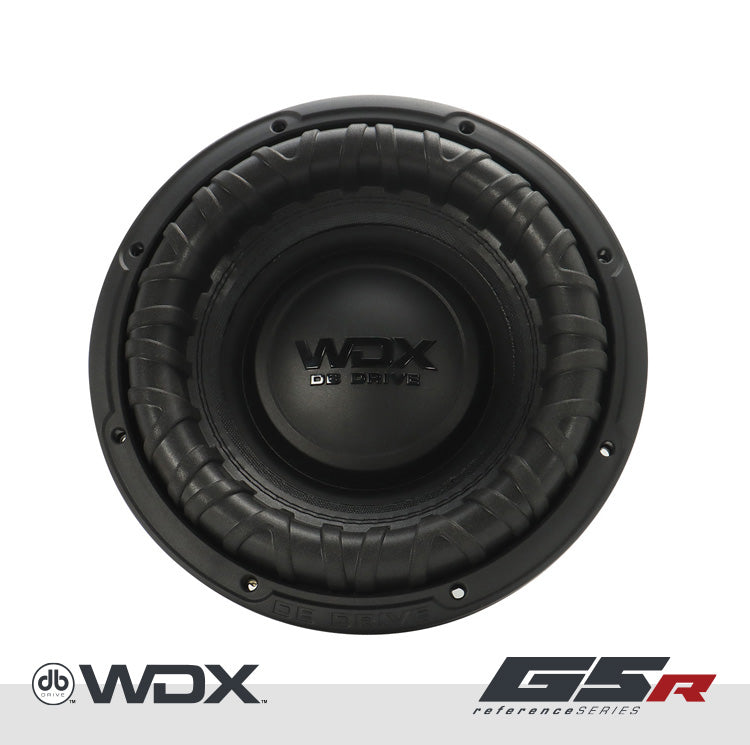

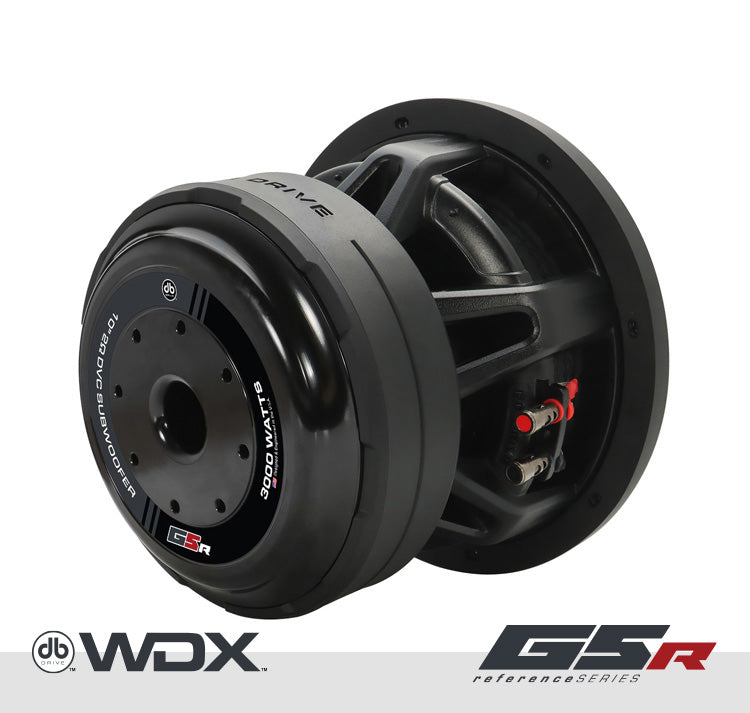

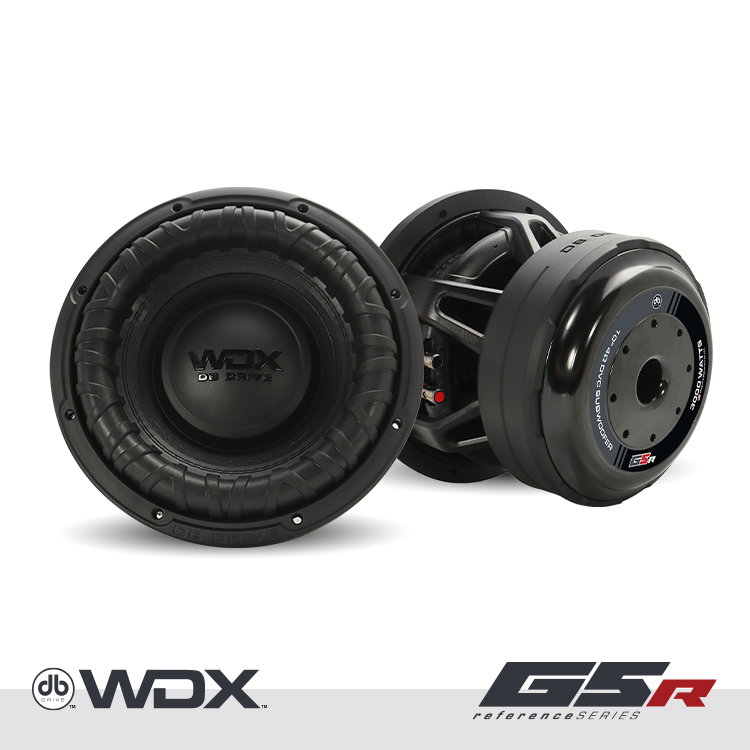

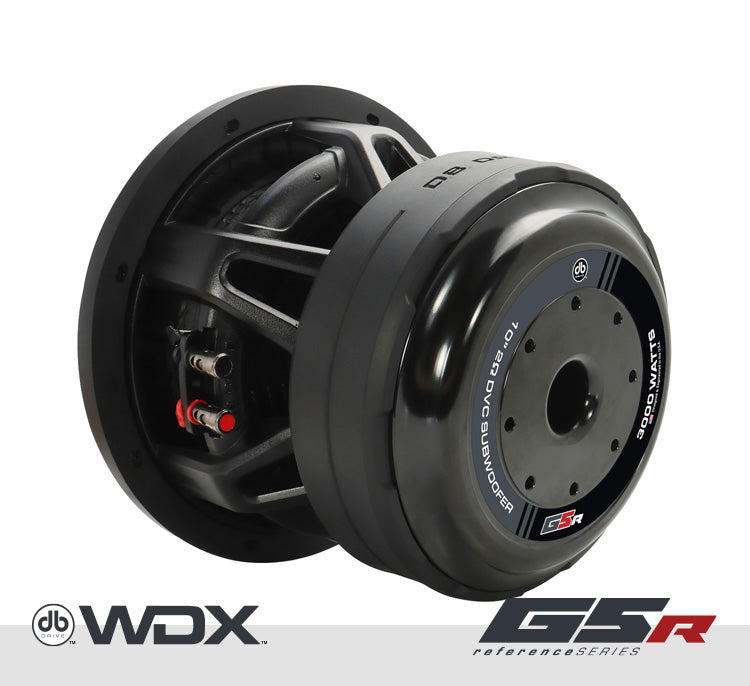

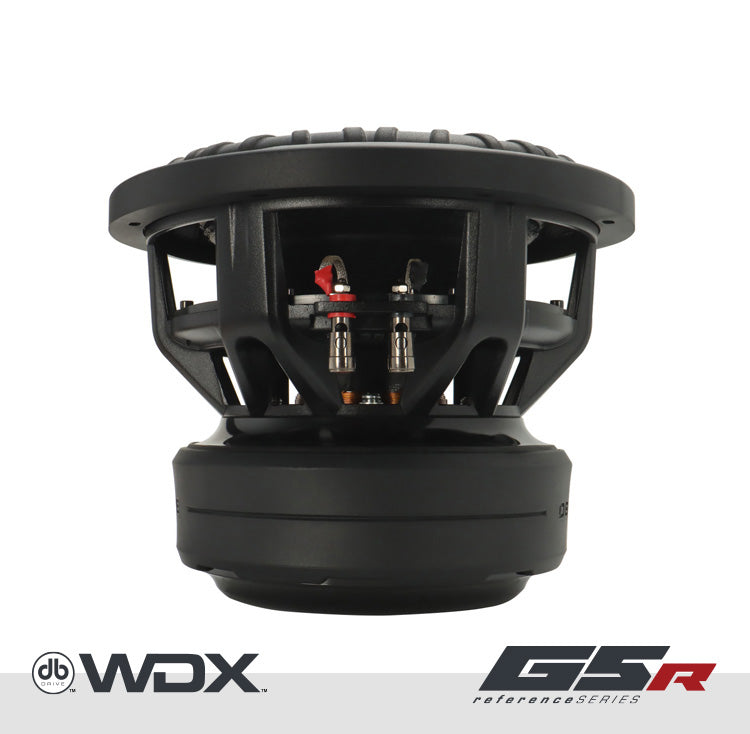

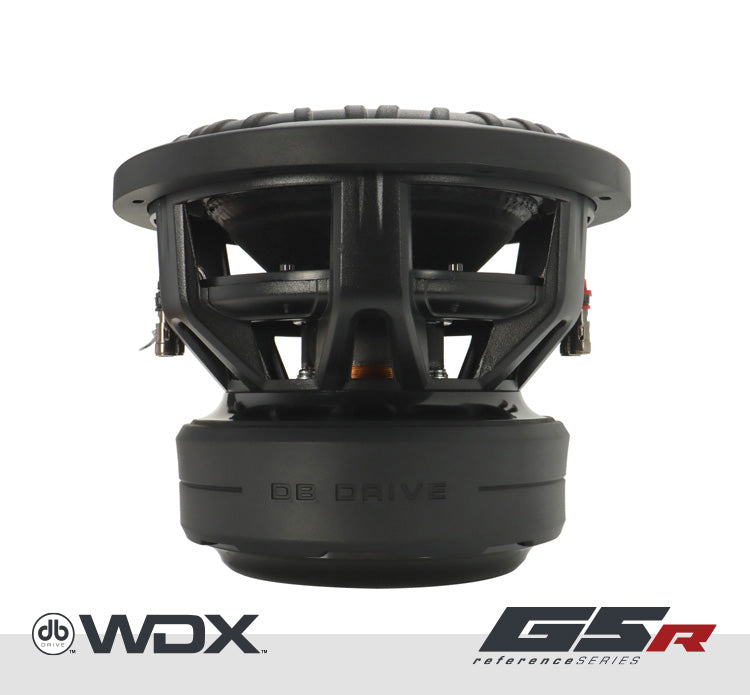

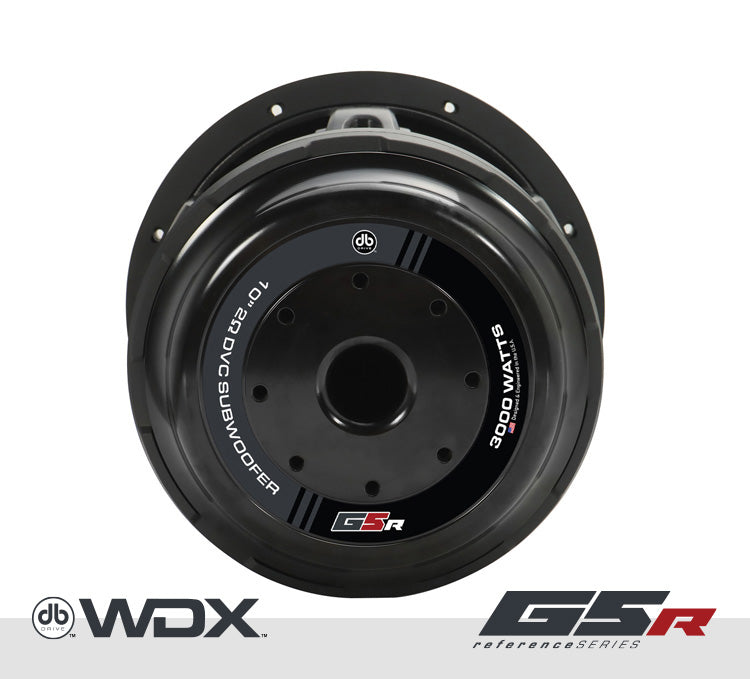

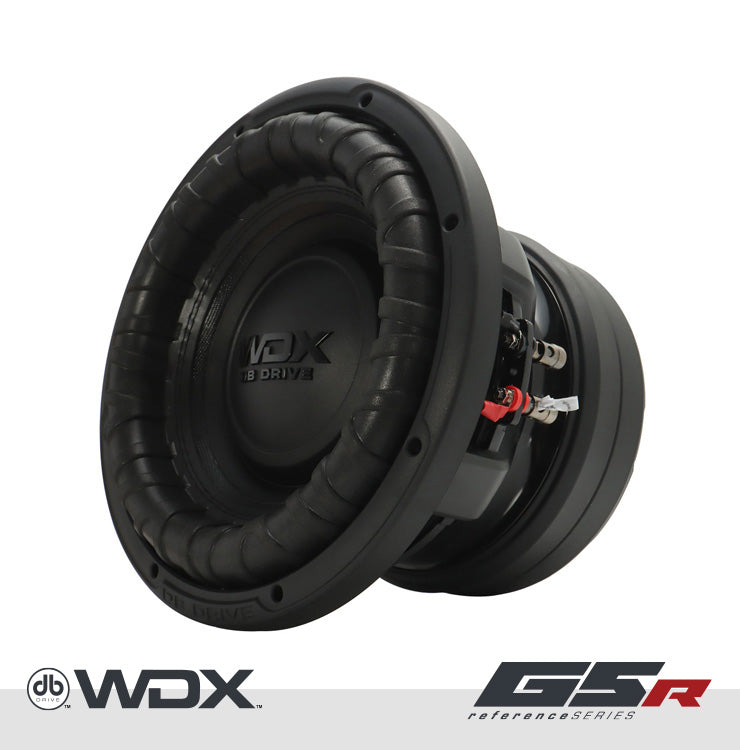

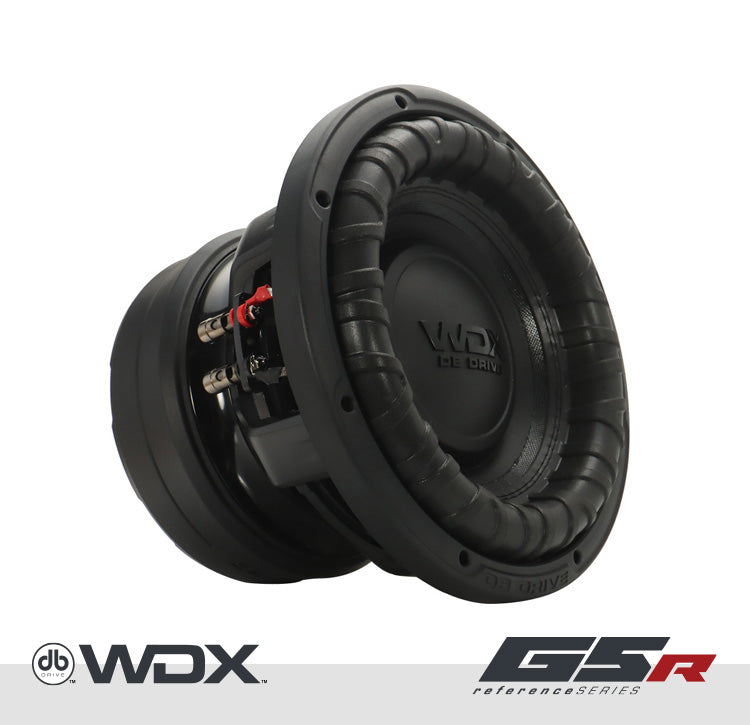

DB Drive WDX10G5R.4 : 10 in. Dual 4-Ohm Subwoofer

Features

• 3.0″ 4 layer Anodized aluminum high temperature voice coil
• Non-Pressed paper cone
• Double-stitched reinforced foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover


Specifications

• Dynamic Power Handling: 3000 Watts
• Nominal Power Handling: 1500 Watts
• Impedance: Dual 4Ω Voice Coil
• Resonant Frequency (fs): 31.398 Hz
• D.C. Voice Coil Resistance (Re): 2 x 3.2Ω
• Mechanical Quality Factor (Qms): 3.102
• Electrical Quality Factor (Qes): 0.498
• Total Quality Factor (Qts): 0.429
• Equivalent Air Volume (Vas): 13.084 L
• Mechanical Compliance of Suspension (CMS): 72.569 mm/N
• Mass of Diaphragm/Coil (Mms): 354.060 g
• Force Factor (BL): 29.960
• Sound Pressure Level (SPL): 81 dB


Description

Designed for true bass enthusiasts, the WDX10G5R.4 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 3000 watts dynamic (1500 watts nominal) The WDX10G5R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?
