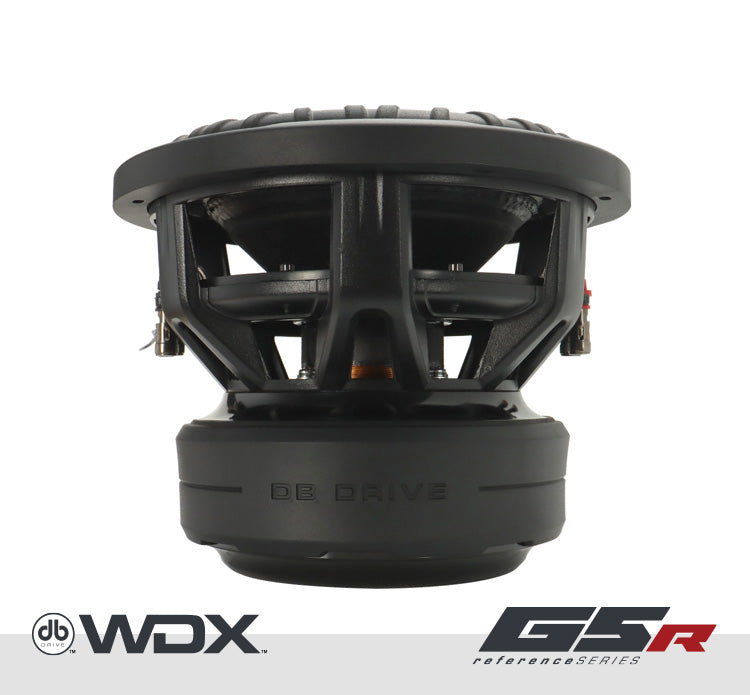

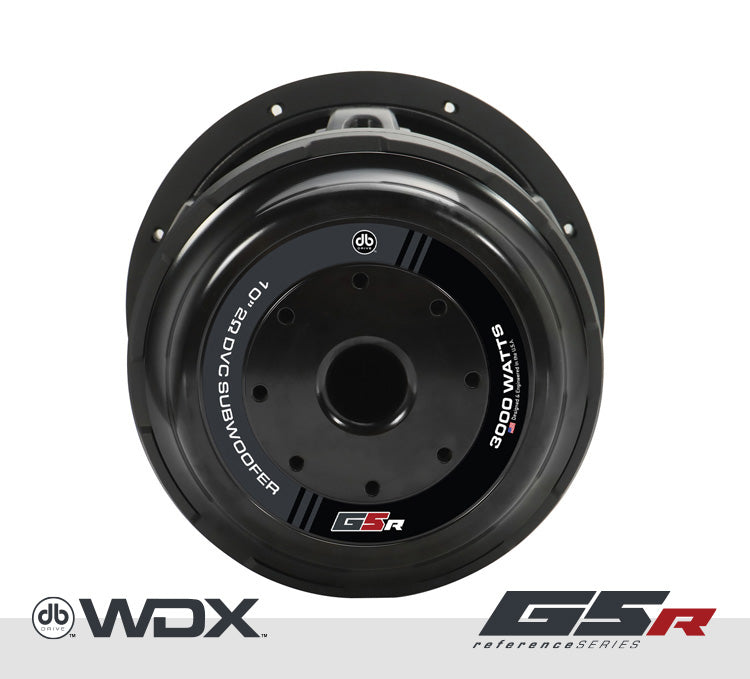

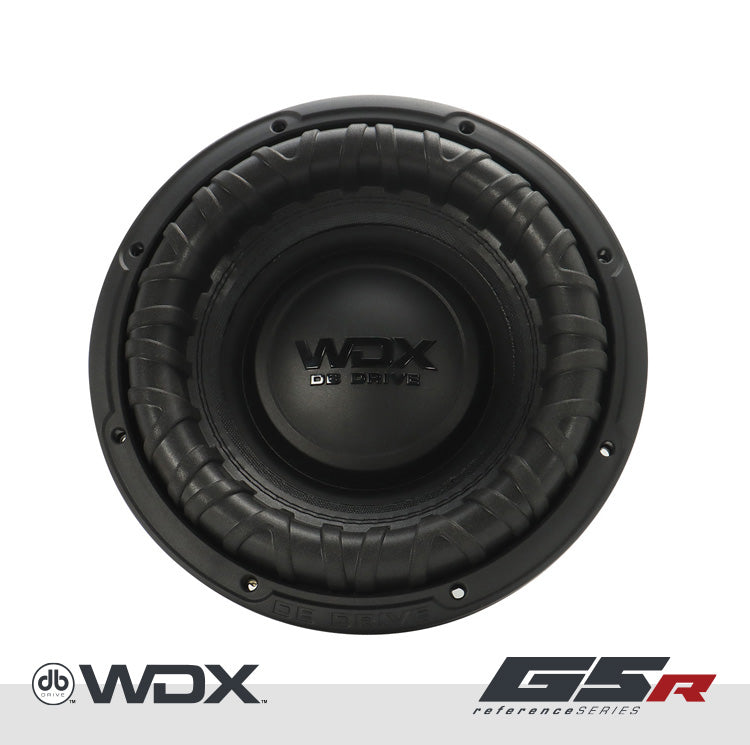

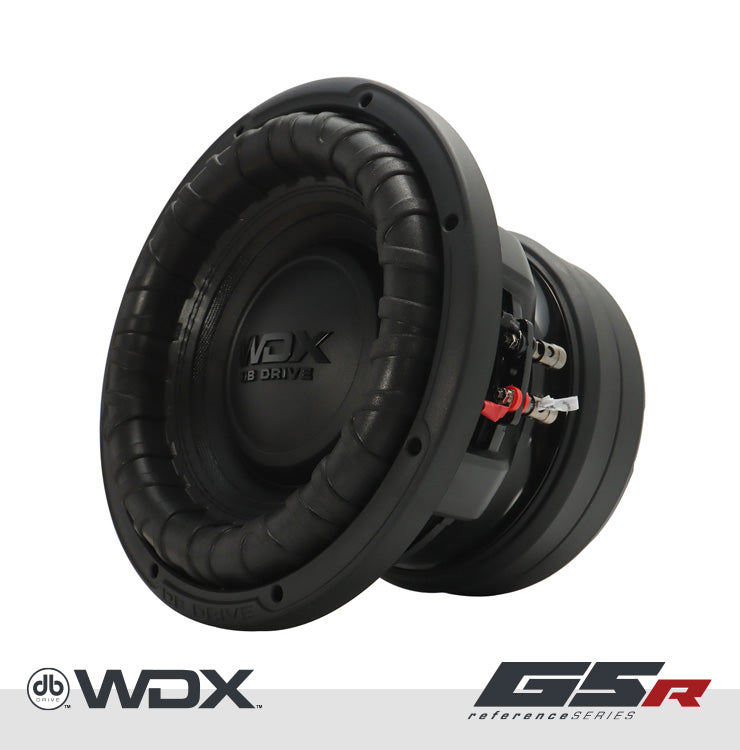

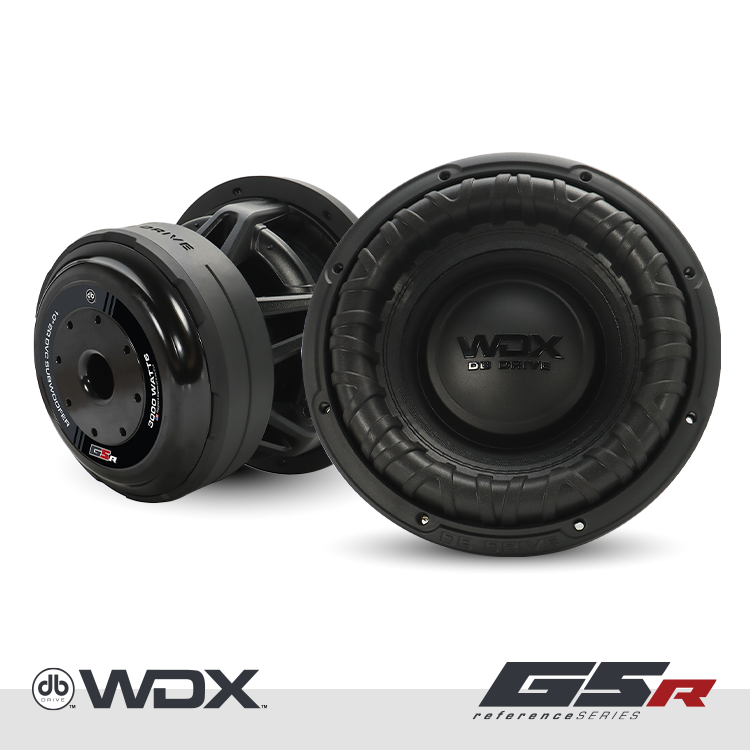

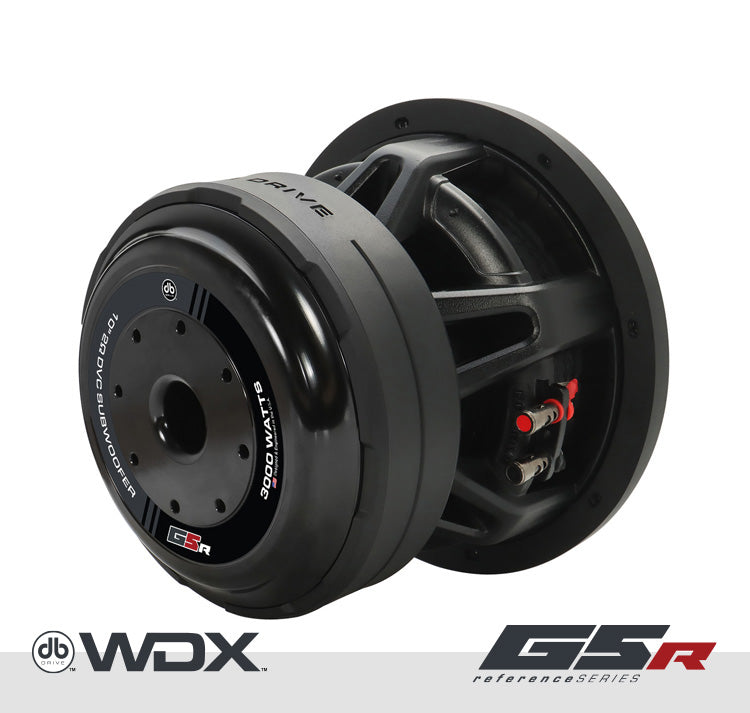

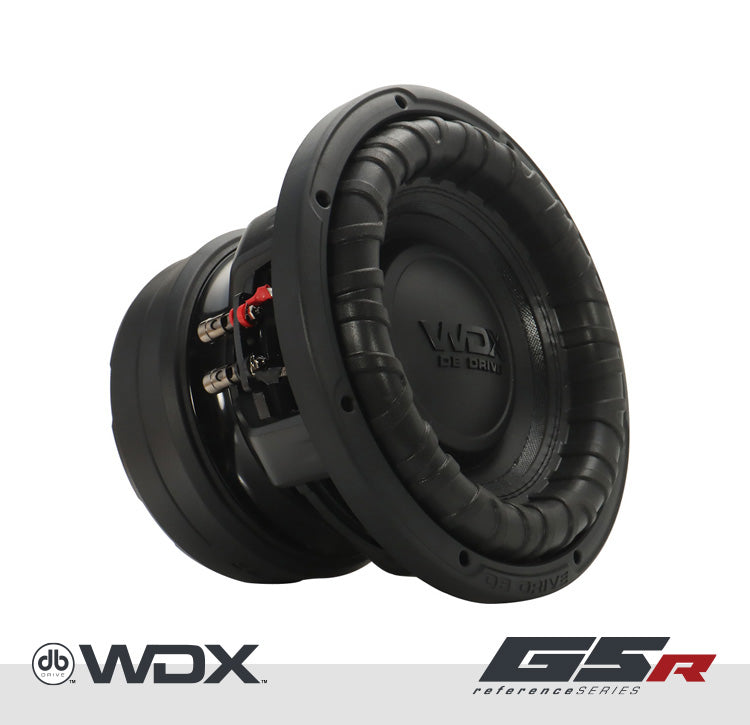

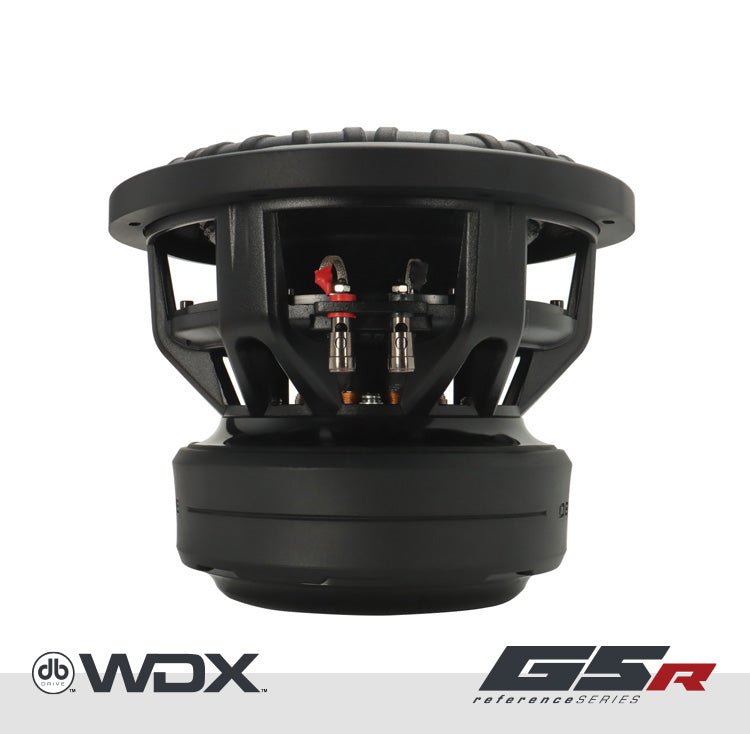

DB Drive WDX10G5R.2 : 10 in. Dual 2-Ohm Subwoofer

Features

• 3″ 4 layer Anodized aluminum high temperature voice coil
• Non-Pressed paper cone
• Double-stitched reinforced foam surround
• Dual poly-cotton dampeners
• Die-cast aluminum vented basket
• Rubber gasket trim ring
• Large gauge compression terminals
• Protective magnet cover


Specifications

• Dynamic Power Handling: 3000 Watts
• Nominal Power Handling: 1500 Watts
• Impedance: Dual 2Ω Voice Coil
• Resonant Frequency (fs): 28.505Hz
• D.C. Voice Coil Resistance (Re): 2 x 2Ω
• Mechanical Quality Factor (Qms): 2.90
• Electrical Quality Factor (Qes): 0.42
• Total Quality Factor (Qts): 0.37
• Equivalent Air Volume (Vas): 14.06 L
• Mechanical Compliance of Suspension (CMS): 77.991 mm/N
• Mass of Diaphragm/Coil (Mms): 399.73 g
• Force Factor (BL): 26.07
• Sound Pressure Level (SPL): 80.8 dB

Description

Designed for true bass enthusiasts, the WDX10G5R.2 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 300 watts dynamic (1500 watts nominal) The WDX10G5R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?
