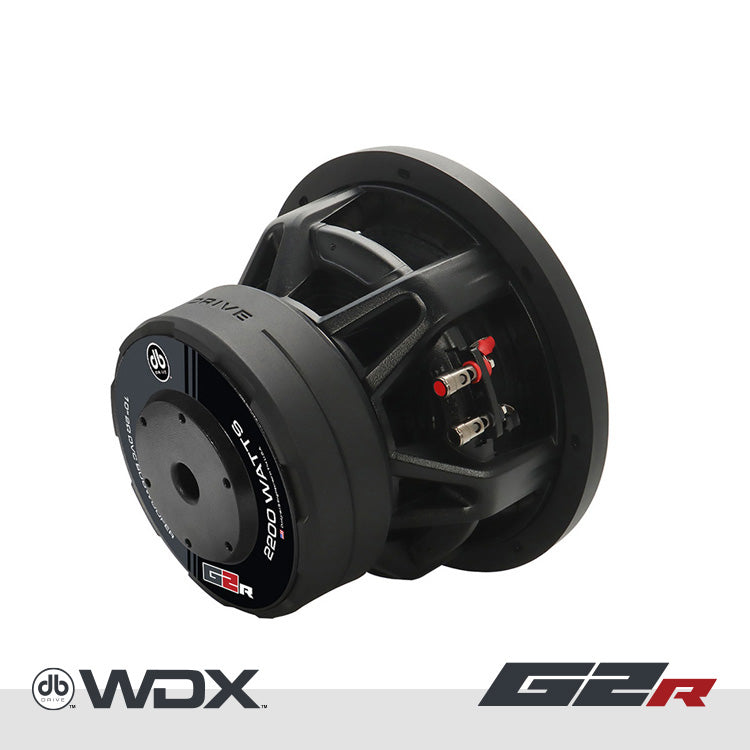

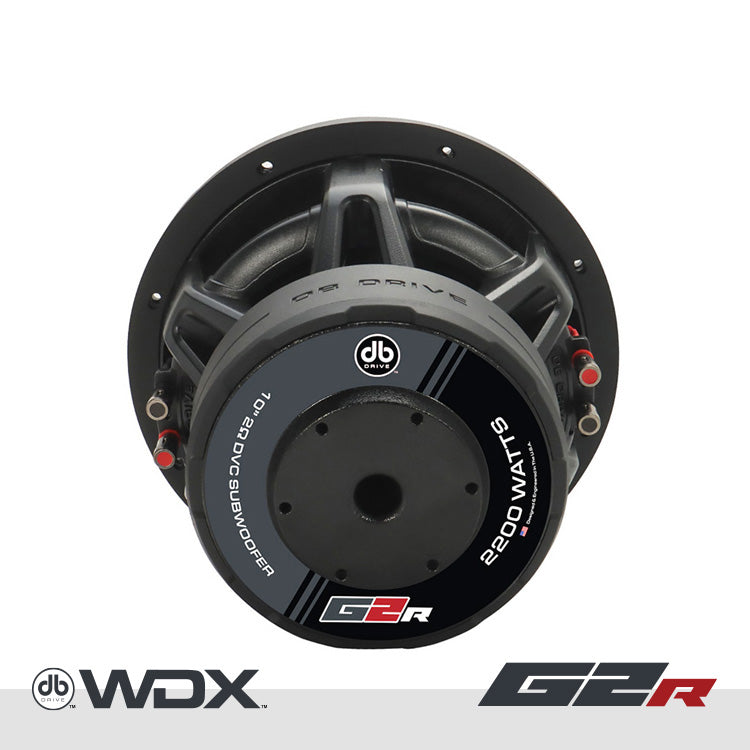

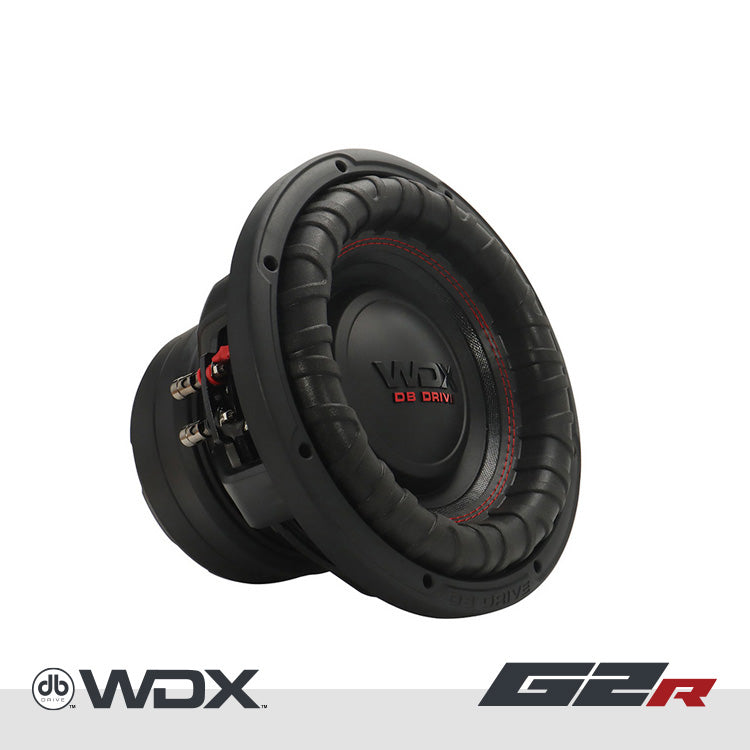

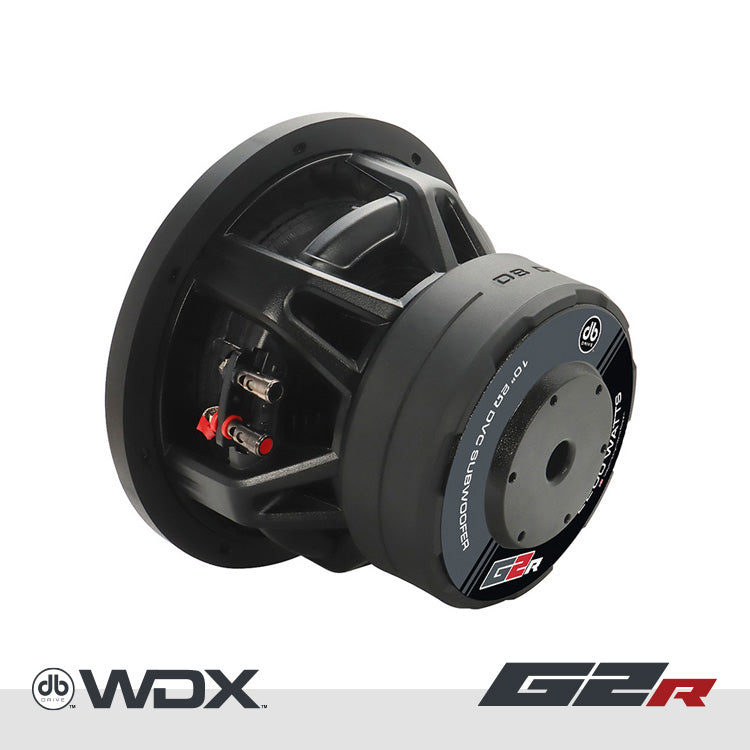

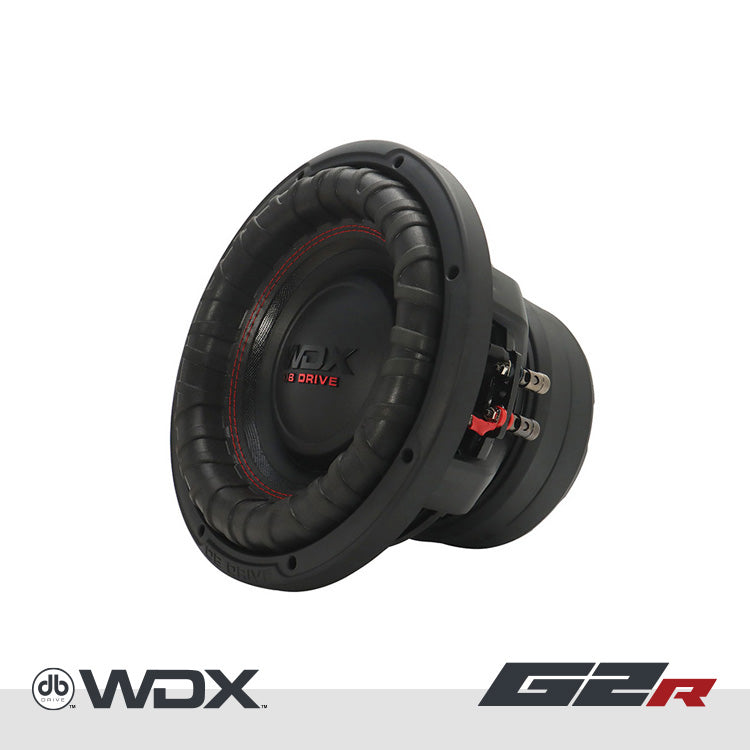

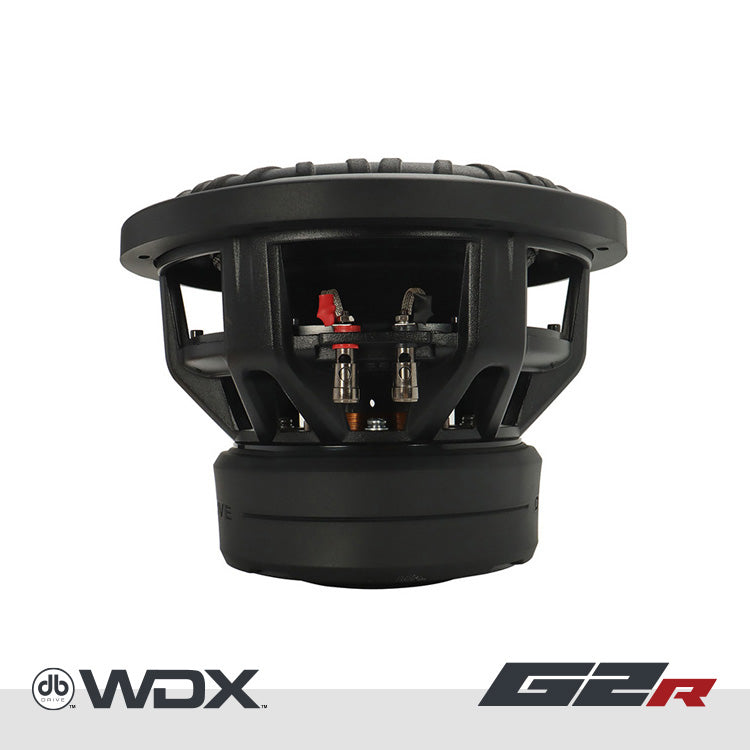

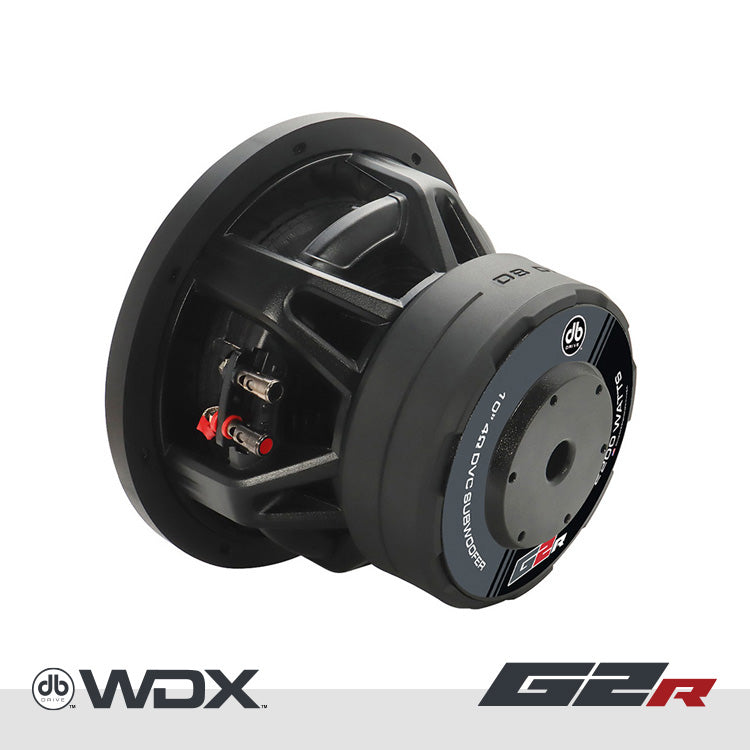

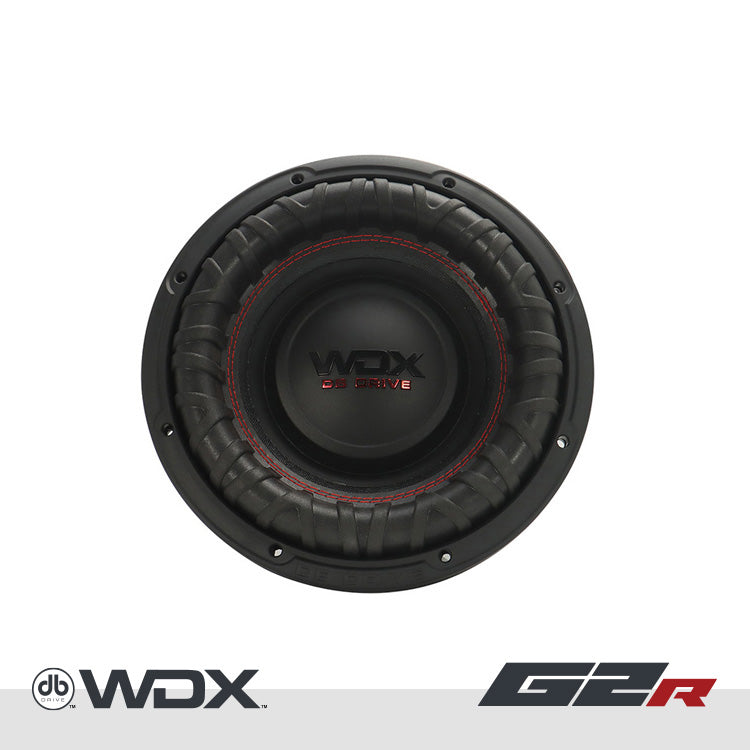

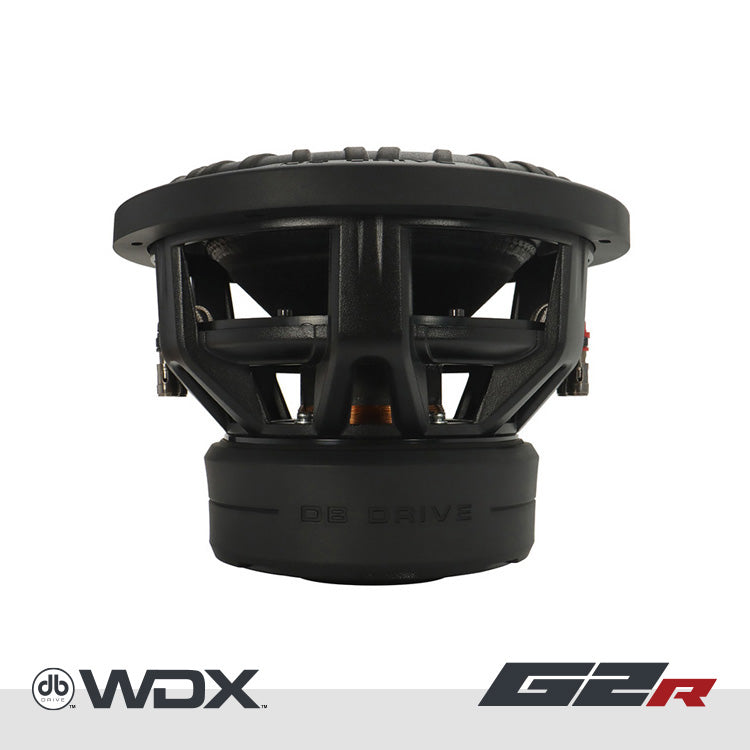

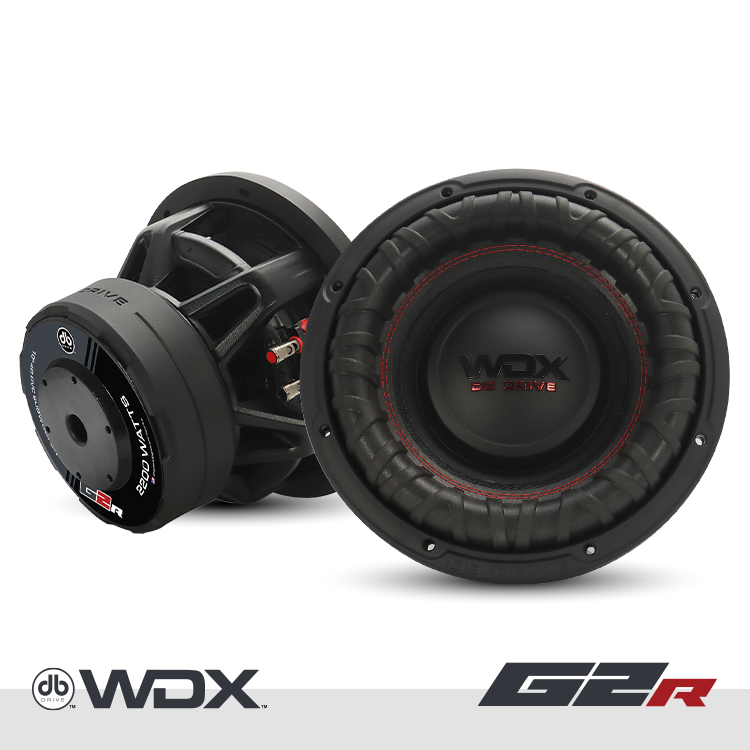

DB Drive WDX10G2R.4 : 10 in. Dual 4-Ohm Subwoofer

Features

• 3.0″ Anodized aluminum high-temperature voice coil

• Non-pressed paper cone

• Double-stitched reinforced foam surround

• Dual poly-cotton dampeners

• Die-cast aluminum vented basket

• Rubber gasket trim ring

• Large gauge compression terminals

• Protective magnet cover

Specifications

• Dynamic Power Handling:  2200 Watts

• Nominal Power Handling: 1100 Watts

• Impedance: Dual 4Ω Voice Coil

• Resonant Frequency (fs): 32.536 Hz

• D.C. Voice Coil Resistance (Re): 2 x 3.2Ω

• Mechanical Quality Factor (Qms): 3.731

• Electrical Quality Factor (Qes): 0.966

• Total Quality Factor (Qts): 0.768

• Equivalent Air Volume (Vas): 16.974 Ltr

• Mechanical Compliance of Suspension (CMS): 94.146 mm/N

• Mass of Diaphragm/Coil (Mms): 254.158 g

• Force Factor (BL): 18.551

• Sound Pressure Level (SPL): 79.7 dB


Description

Designed for true bass enthusiasts, the WDX10G2R.4 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 2200 watts dynamic (1100 watts nominal) •    The WDX10G2R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?

Product Manual

Product Manual PDF
