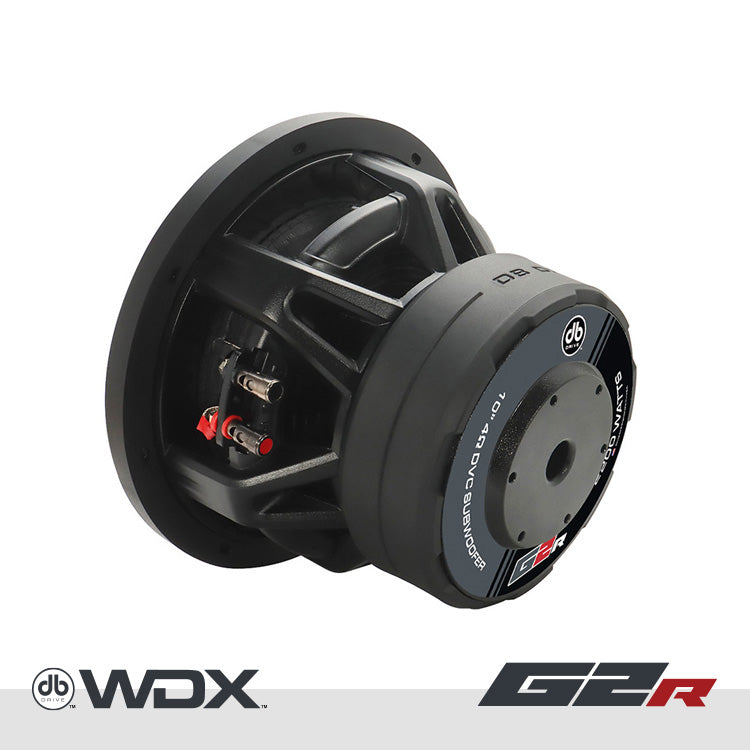

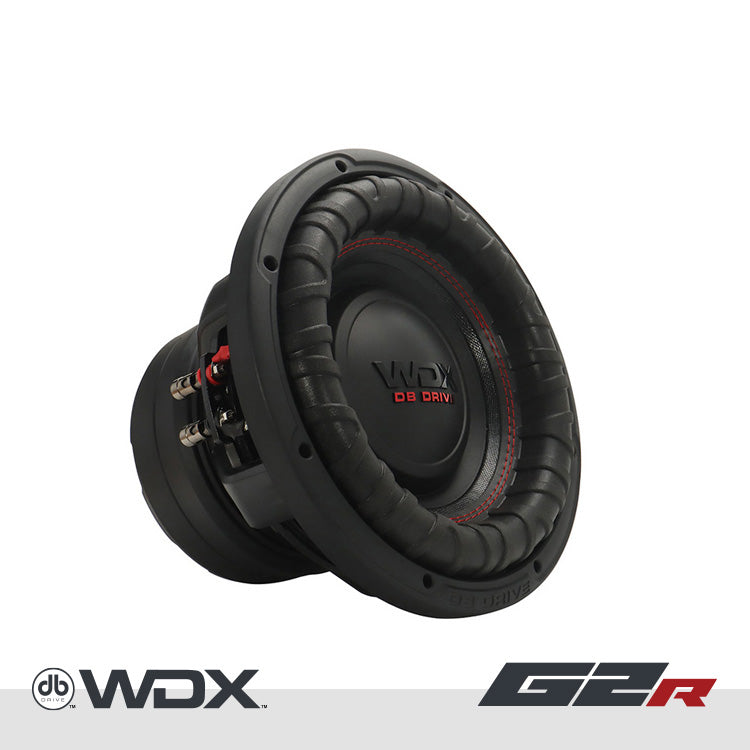

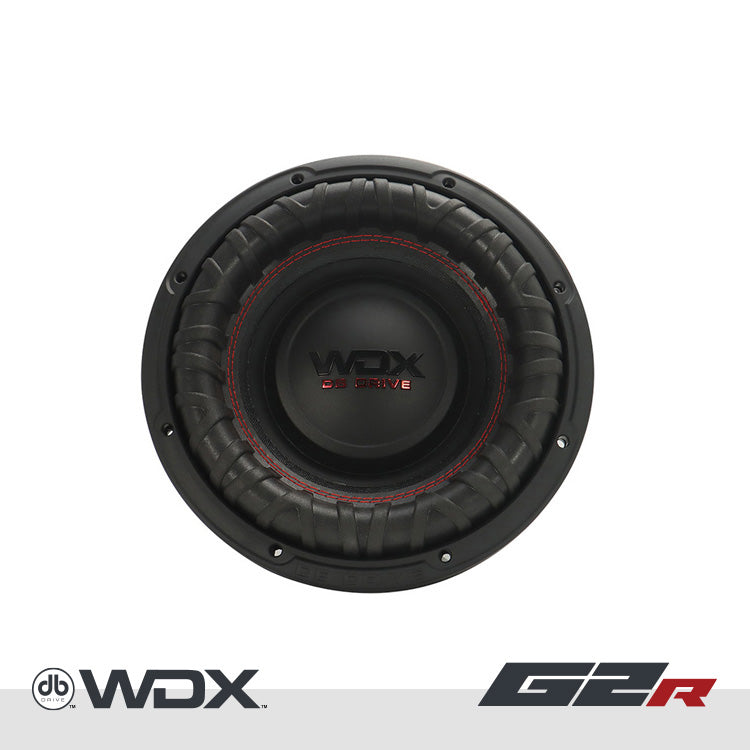

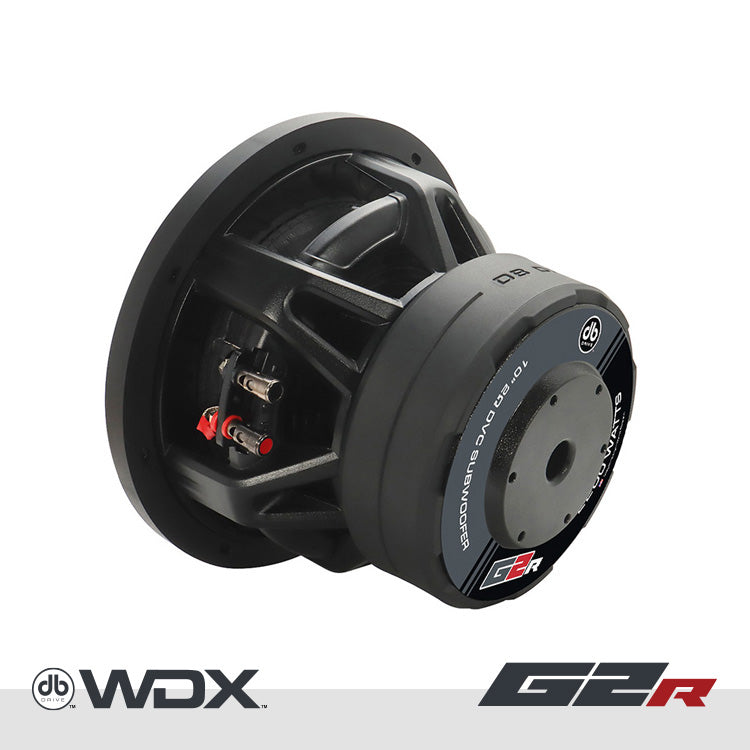

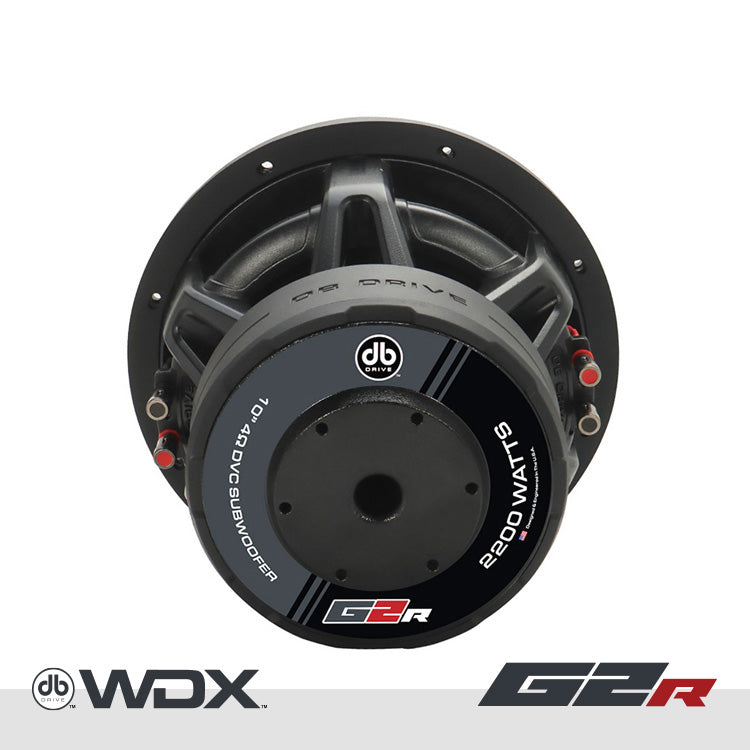

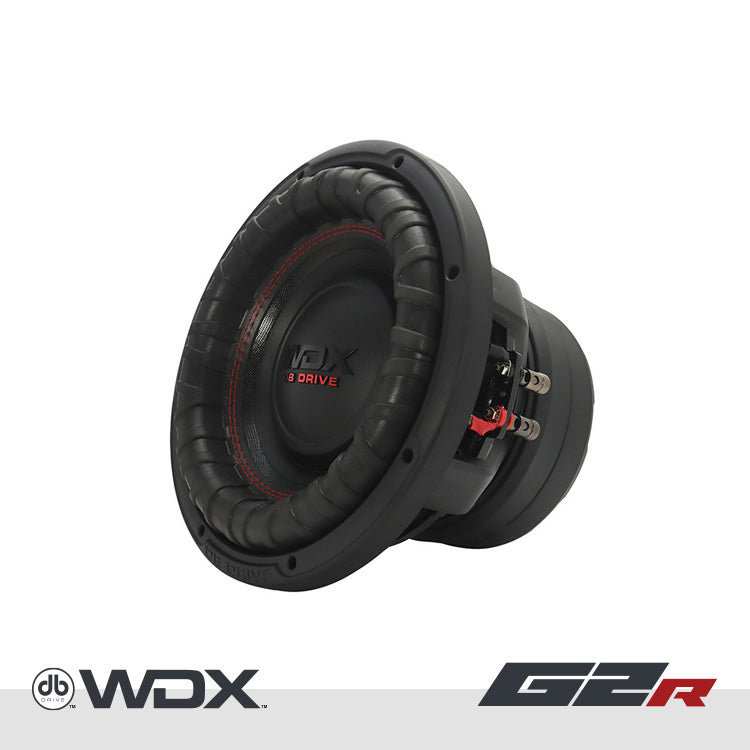

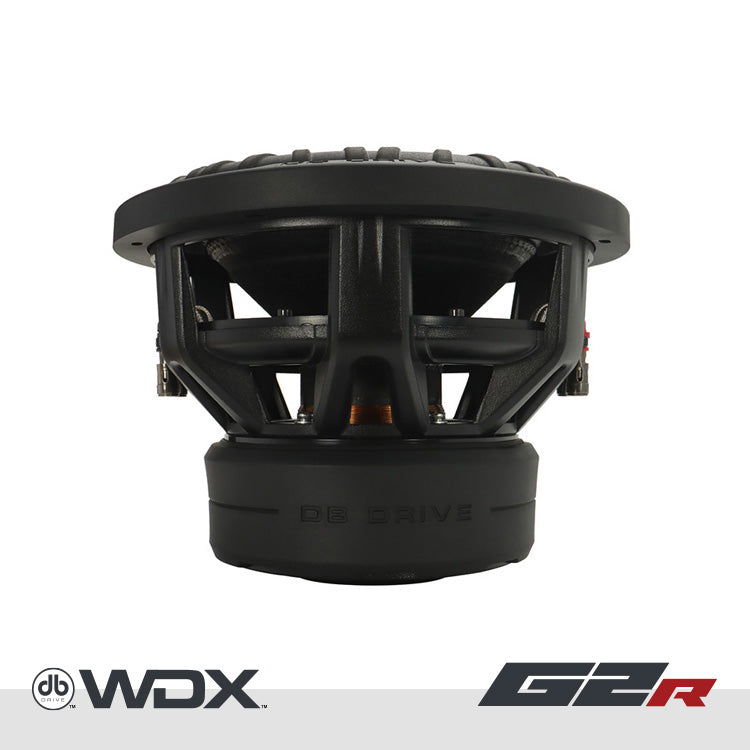

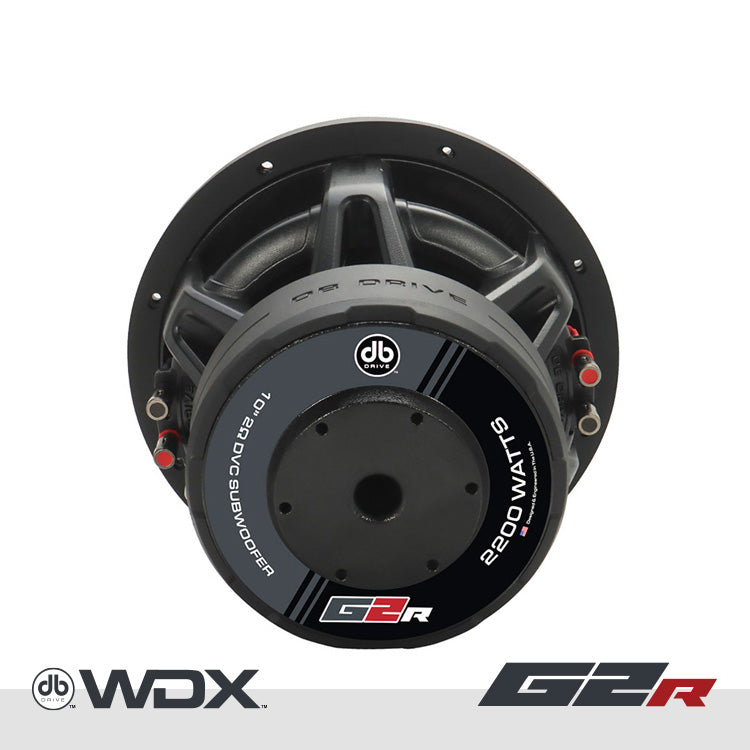

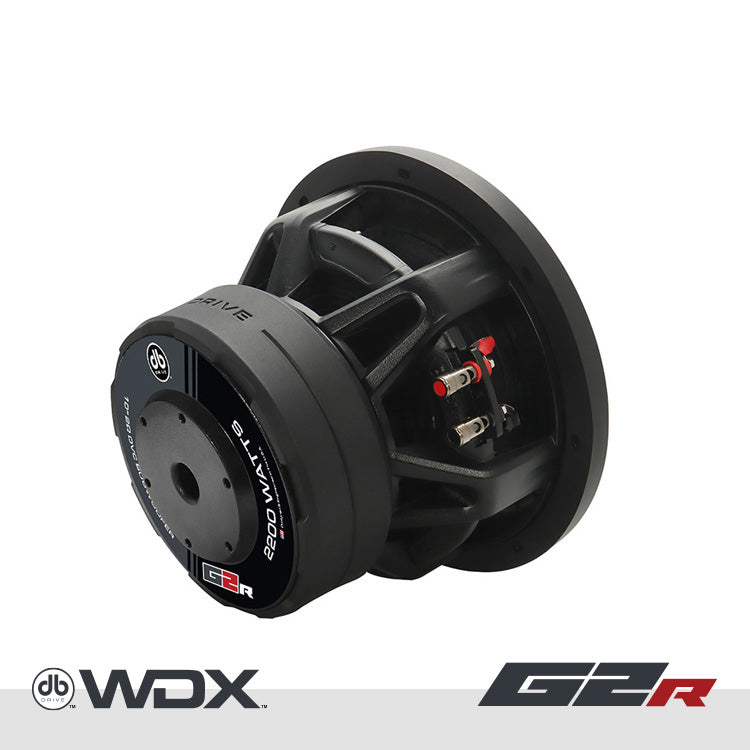

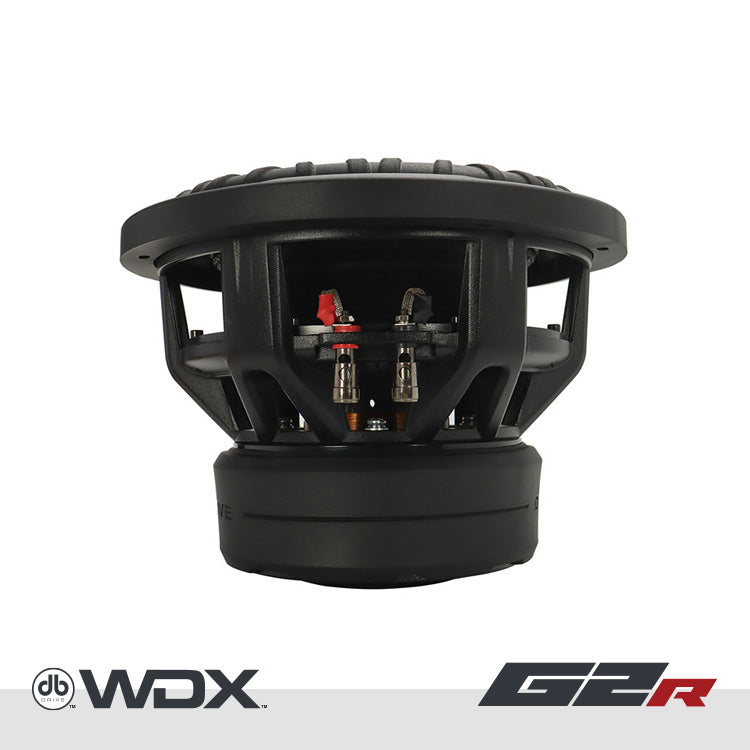

DB Drive WDX10G2R.2 : 10 in. Dual 2-Ohm Subwoofer

Features

• 3.0″ Anodized aluminum high temperature voice coil

• Non-Pressed paper cone

• Double-stitched reinforced foam surround

• Dual poly-cotton dampeners

• Die-cast aluminum vented basket

• Rubber gasket trim ring

• Large gauge compression terminals

• Protective magnet cover

Specifications

• Dynamic Power Handling:  2200 Watts

• Nominal Power Handling: 1100 Watts

• Impedance: Dual 2Ω Voice Coil

• Resonant Frequency (fs): 32.29 Hz

• D.C. Voice Coil Resistance (Re): 2 x 2Ω

• Mechanical Quality Factor (Qms): 3.70

• Electrical Quality Factor (Qes): 0.96

• Total Quality Factor (Qts): 0.76

• Equivalent Air Volume (Vas): 16.71 L

• Mechanical Compliance of Suspension (CMS): 92.670 mm/N

• Mass of Diaphragm/Coil (Mms): 262.19 g

• Force Factor (BL): 14.89

• Sound Pressure Level (SPL): 79.6 dB


Description

Introducing the WDX10G2R.2, our premium 10-inch woofer with dual 2-ohm voice coils for efficient power handling. With a high temperature voice coil, non-pressed paper cone, reinforced foam surround, and die-cast aluminum basket, experience impressive bass and clear sound at a resonant frequency of 32.29 Hz.

Product Manual

Product Manual PDF
