DB Drive | SKU:
811536036315

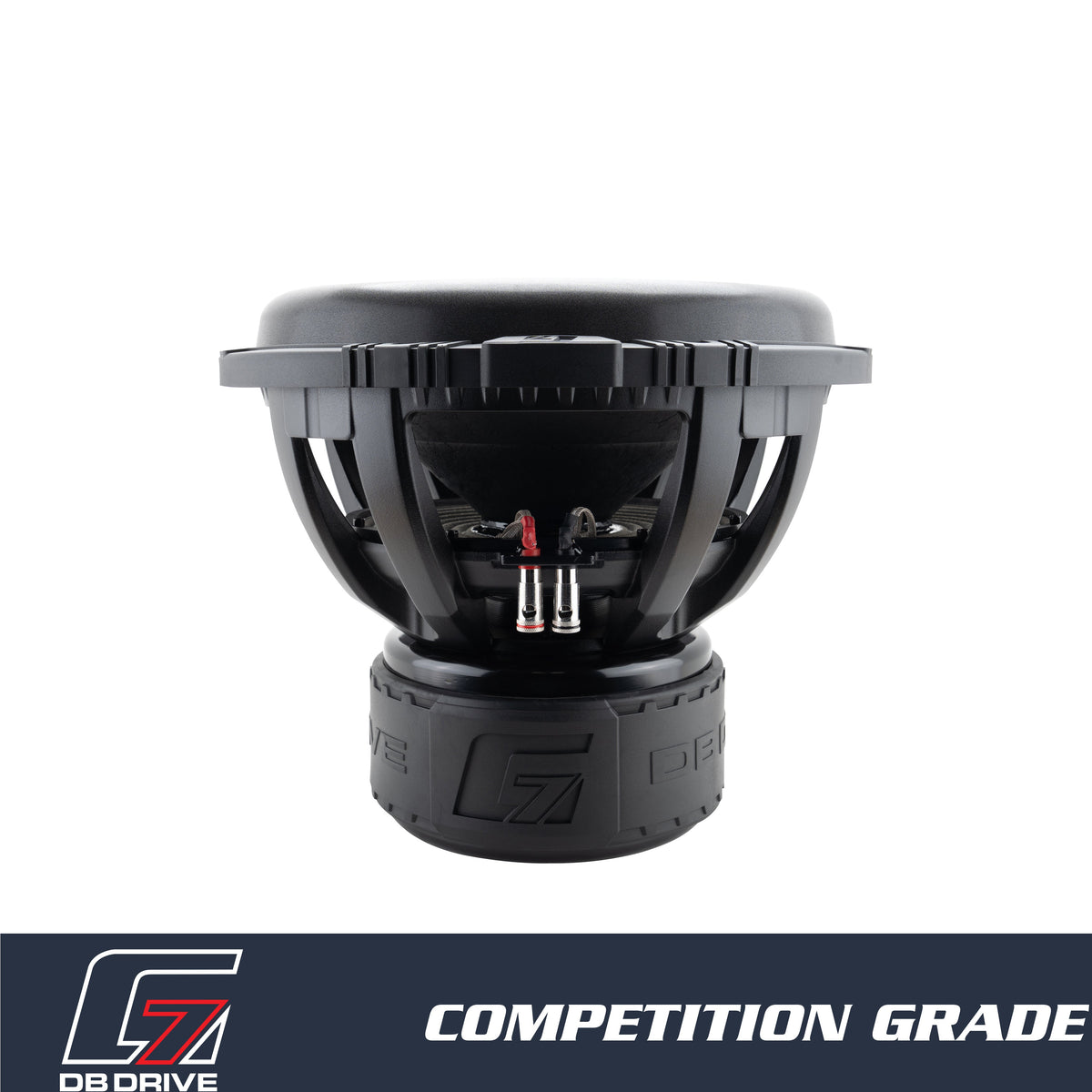

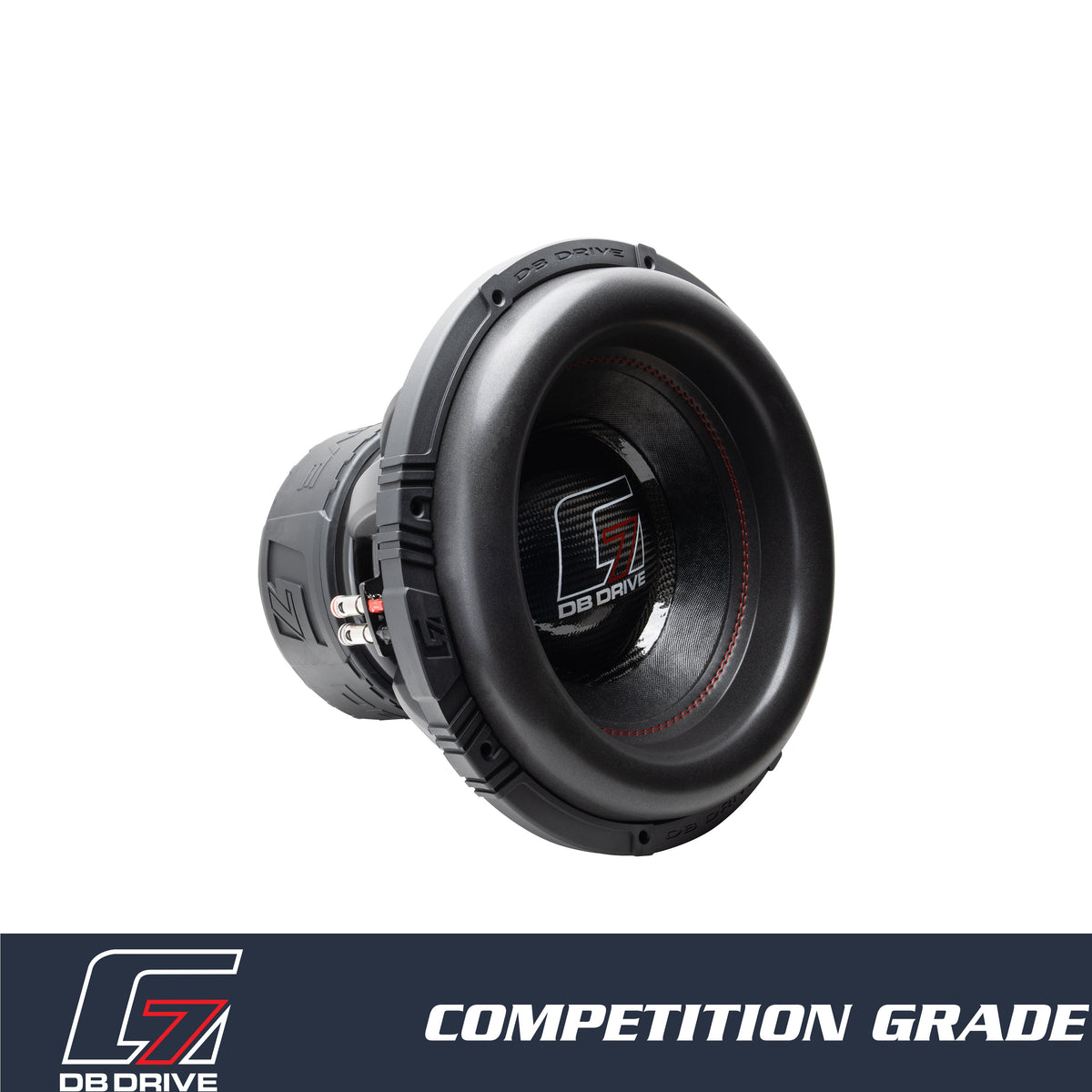

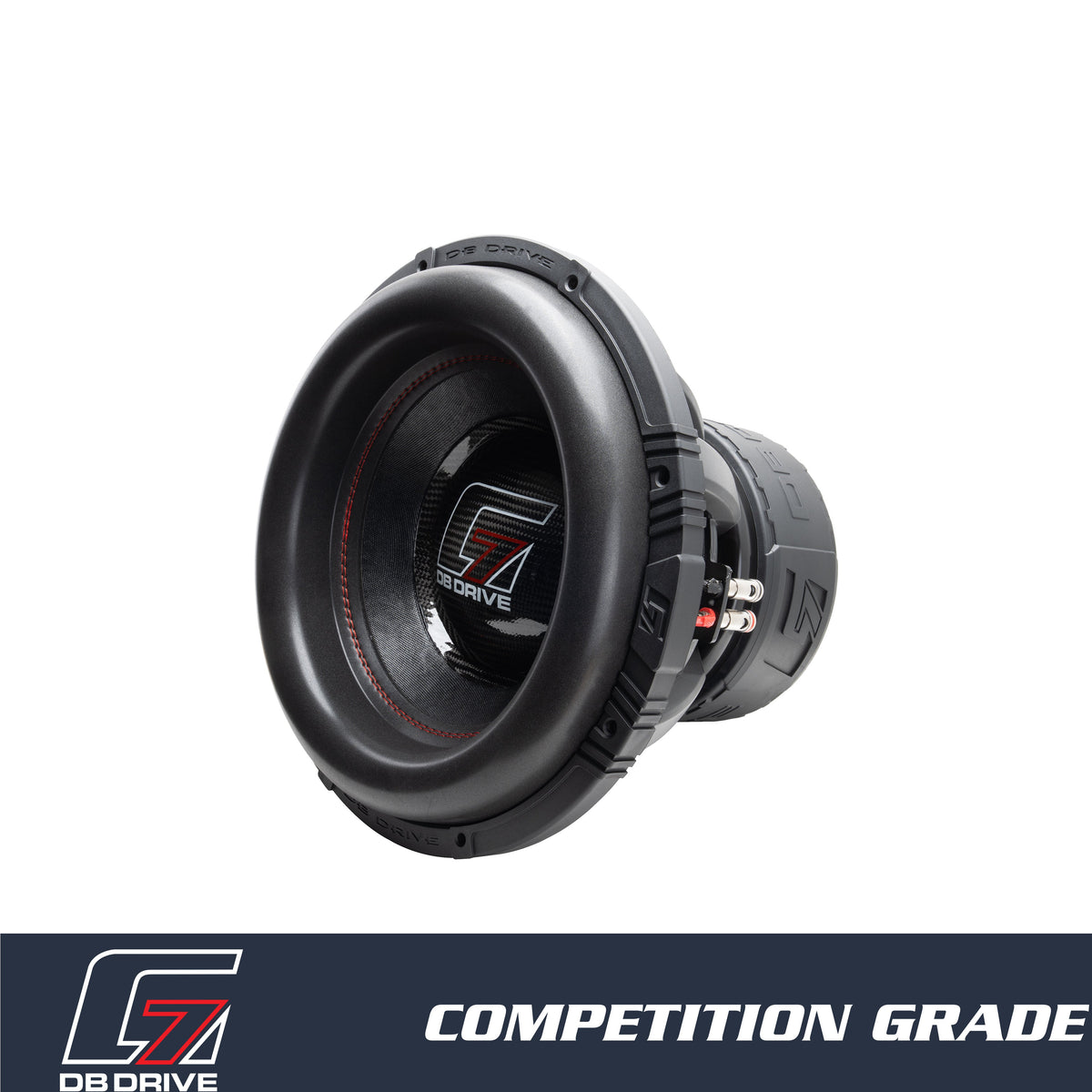

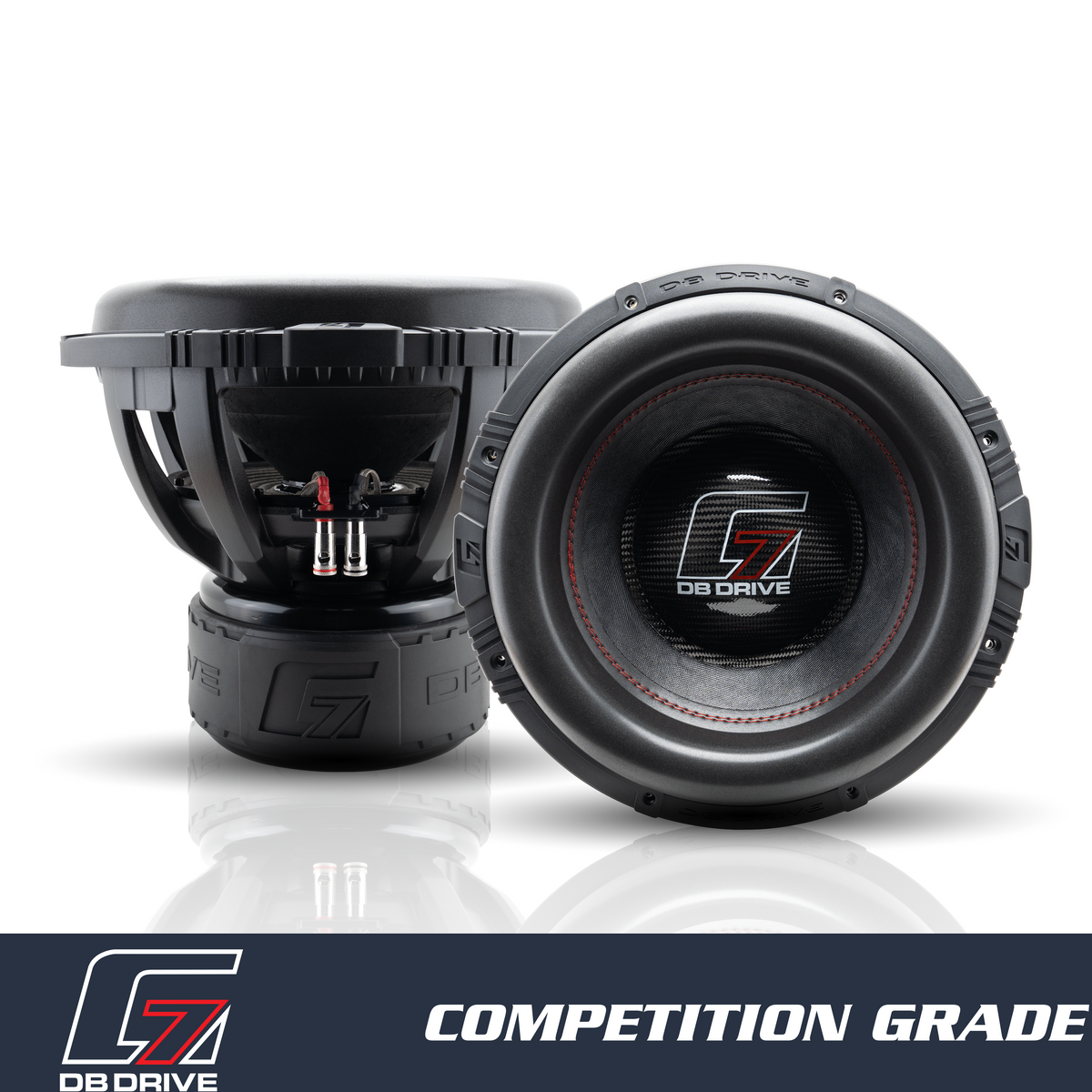

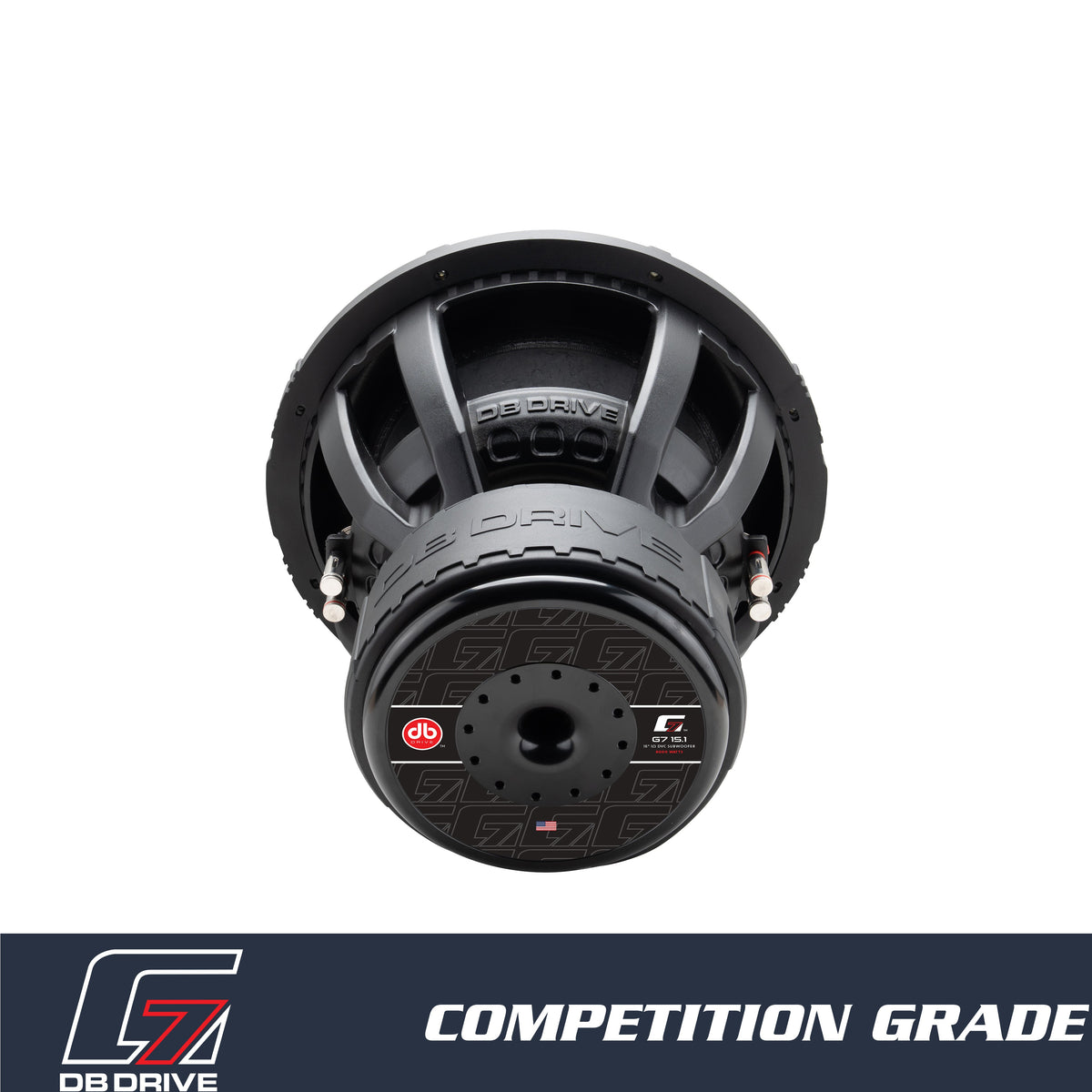

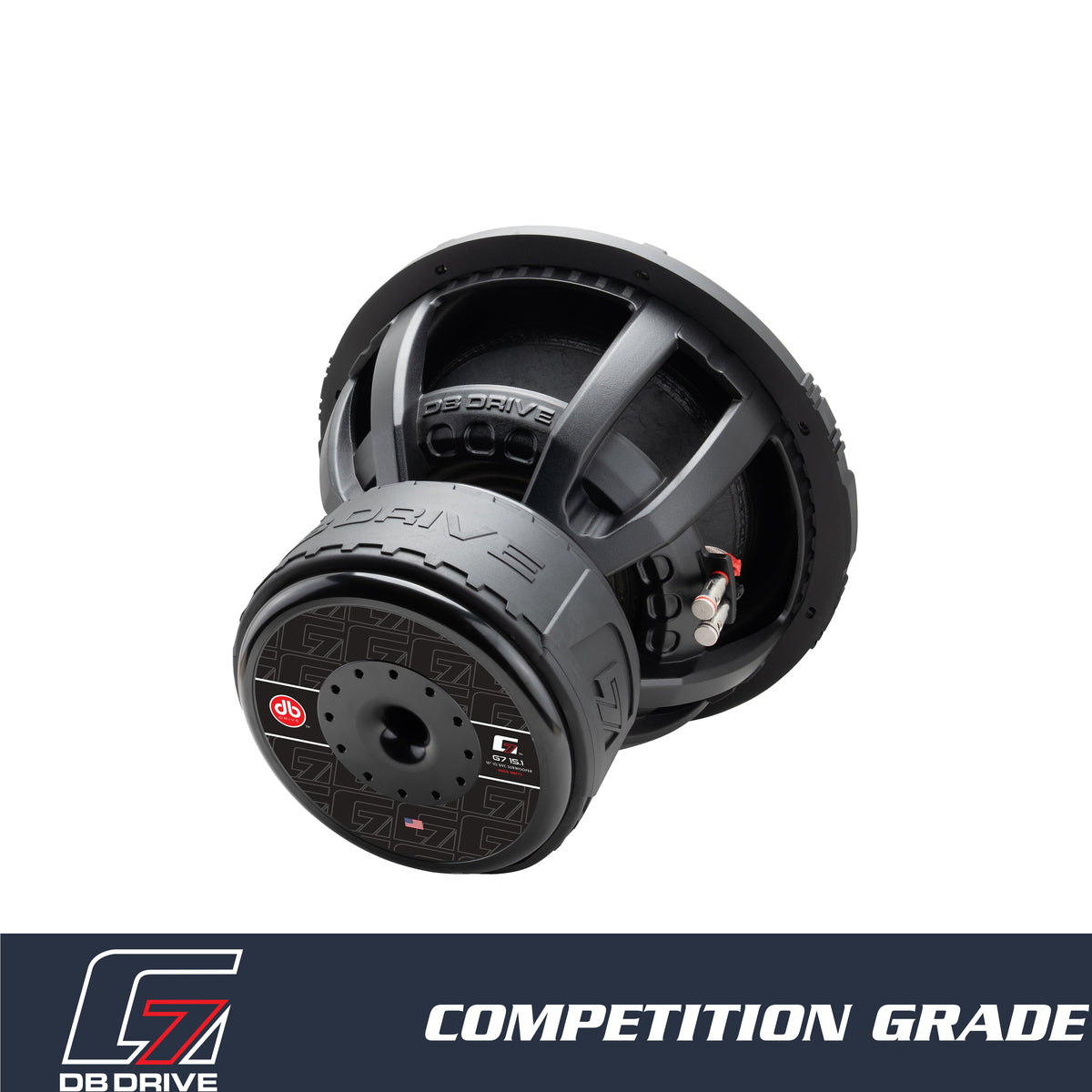

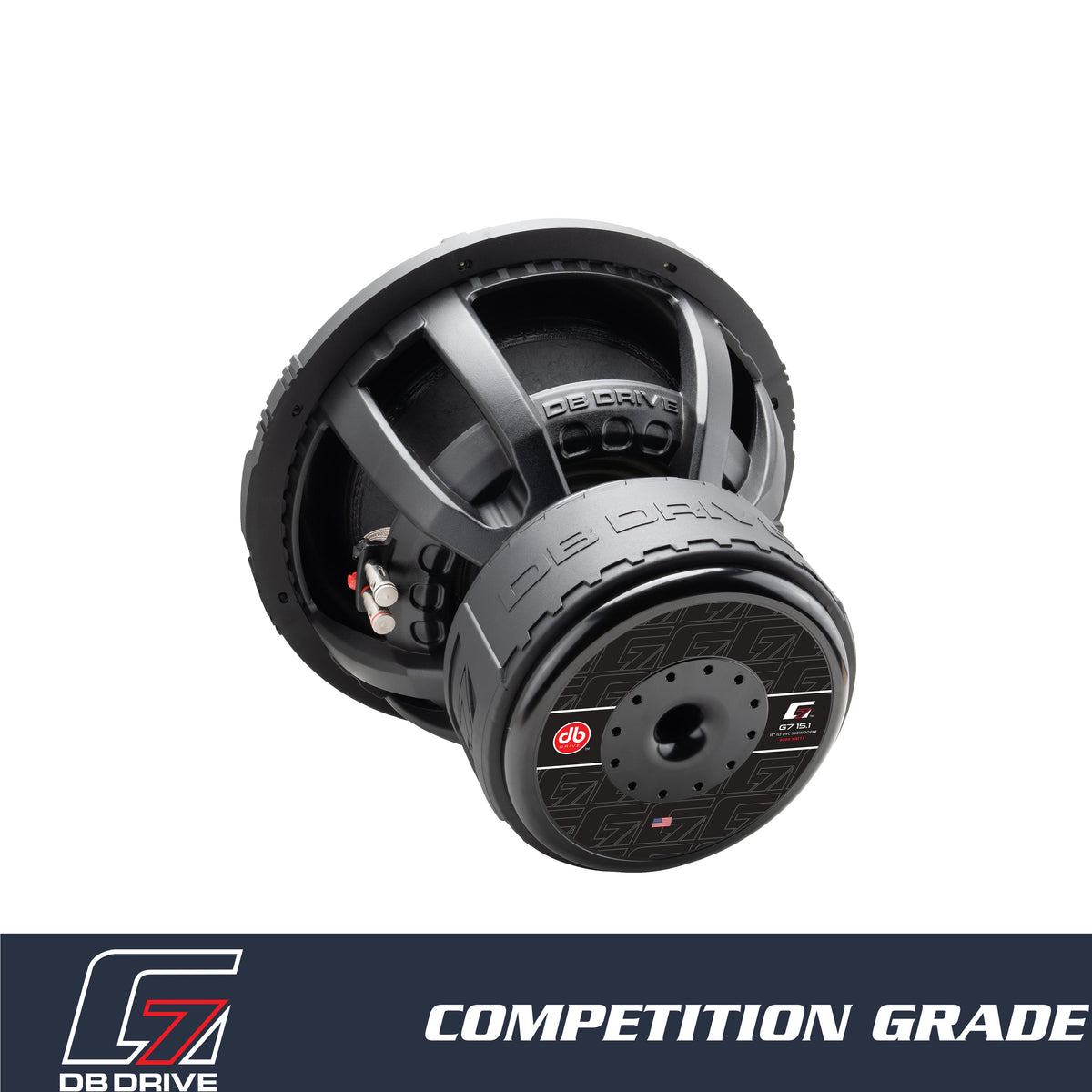

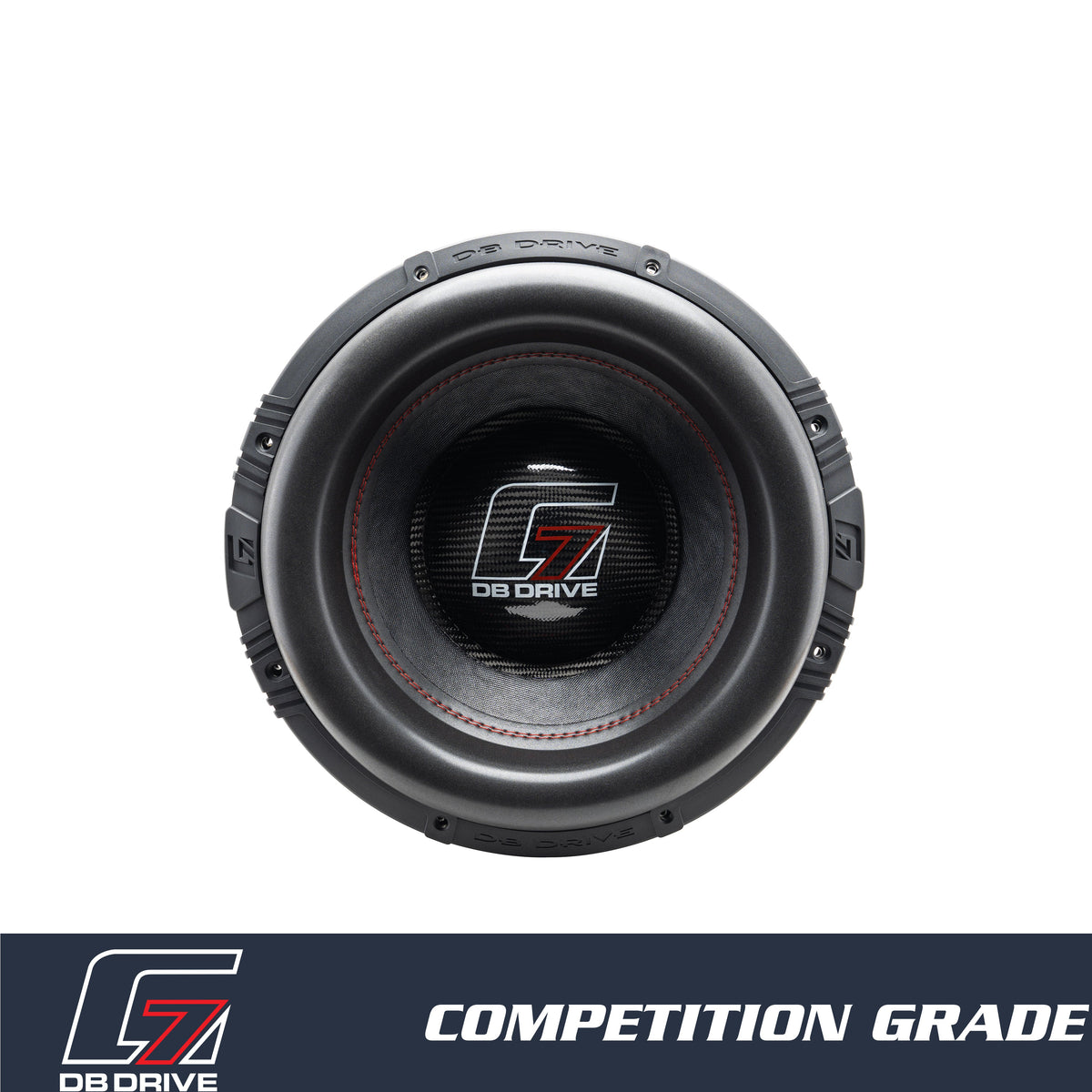

DB Drive G7 15.1 : 15" Dual 1-Ohm Subwoofer
$1,249.98
Unit price
/
Unavailable
Shipping calculated at checkout.
DB Drive G7 15.1 : 15" Dual 1-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description

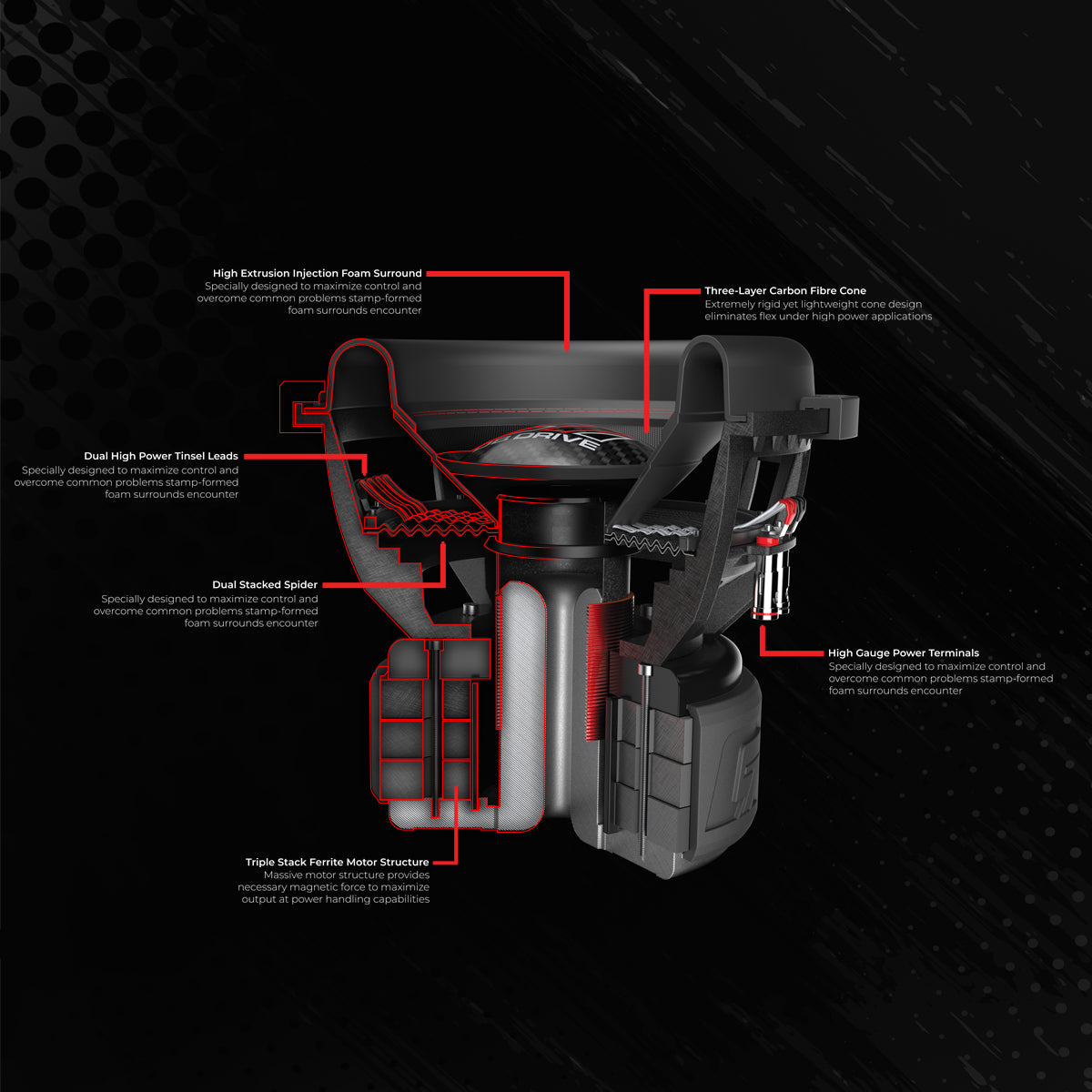

Features
- High excursion foam surround
- True Carbon fiber dust cap
- Custom Die cast Aluminum Basket
- Triple Layer Progressive dampeners
- Large Gauge push speaker terminals
- 3-inch-high temperature 4-layer voice coil
- Custom Rubber protective magnet band
- Triple stacked Y35 ferrite oxide magnet
Specifications
| Structure | 15" (38.1cm) Woofer |
|---|---|
| Dynamic Power Handling | 8000 Watts |
| Nominal Power Handling | 4000 Watts |
| Impedance | Dual 1 Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 24.512Hz |
| D.C. Voice Coil Resistance (Re) | 2 x 1Ω |
| Mechanical Quality Factor (Qms) | 2.182 |
| Electrical Quality Factor (Qes) | 0.473 |
| Total Quality Factor (Qts) | 0.389 |
| Equivalent Air Volume to Cms (Vas) | 48.507 L |
| Mass of Diaphragm/Coil (Mms) | 703.084 g |
| Force Factor (Bl) | 17.899 |
| Sound Pressure Level (SPL) | 83.7 dB |
Dimensions
Overall Diameter: 15.82"/ 402 mm
Mounting Depth: 10.78"/ 274 mm
Cutout Diameter: 13.85" 352 mm
Description
Unleash the ultimate power of bass with the G7 15.1: 15in Woofer With 1 Ohm DVC! Engineered for true audiophiles, this competition-grade subwoofer from the renowned G7 brand boasts an impressive 8000 Watts max power and a robust 4000 Watts nominal power, ensuring your music hits harder than ever. Featuring a high excursion foam surround, true carbon fiber dust cap, and a custom die-cast aluminum basket, this subwoofer is built for performance and durability. The triple layer progressive dampeners and large gauge push speaker terminals guarantee superior sound quality and reliability. With a 3-inch high-temperature 4-layer voice coil and dual 1Ω voice coils, the G7 15.1 delivers unparalleled audio clarity and depth. Its custom rubber protective magnet band and triple stacked Y35 ferrite oxide magnet enhance its durability and magnetic strength. Plus, the 8-gauge terminals ensure a secure connection. Elevate your audio experience with the G7 15.1 subwoofer and feel the difference that true power and precision can bring to your sound system.
Product Manual
Product Manual PDF
