Euphoria EWXB10D4 : 10" Dual 4-Ohm Subwoofer Black Out Edition
Euphoria EWXB10D4 : 10" Dual 4-Ohm Subwoofer Black Out Edition is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Euphoria EWXB10D4 : 10" Dual 4-Ohm Subwoofer Black Out Edition
Description
Description
Features
Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
- High Temperature Voice Coil
- 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
- 145 oz. Ceramic Ferrite Magnet
- High Grade Low Carbon Steel Top & Bottom Plate
- Design to optimize SPL Performance
- 1.5” High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Available in Dual 2Ω or Dual 4Ω Voice Coil
Specifications

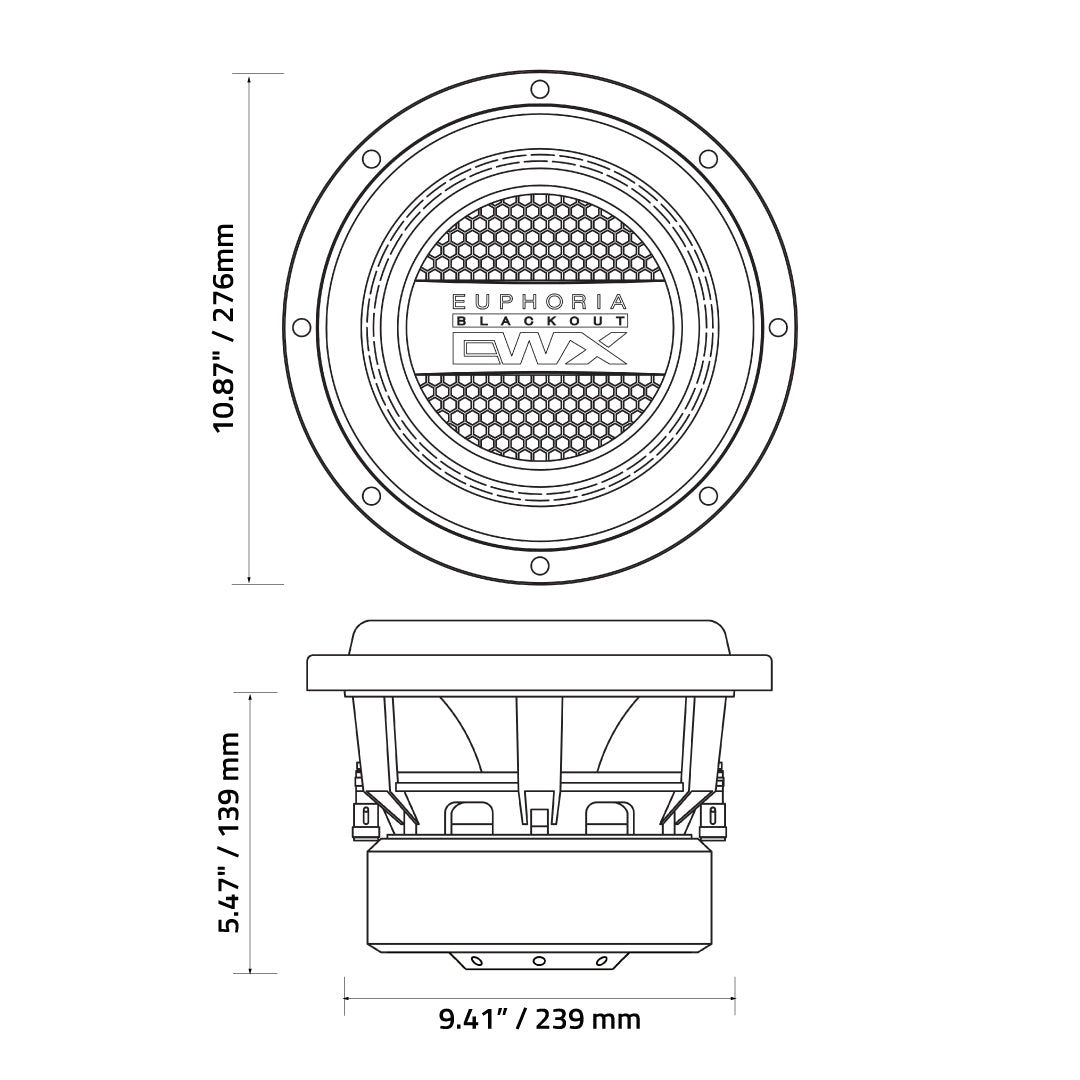

| Structure | 10” (276 mm) |
|---|---|
| Max Power | 2500 Watts |
| Nominal Power | 1000 Watts |
| Impedance | Dual 4Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 38.955 Hz |
| D.C. Voice Coil Resistance (Re) | 3.6Ω + 3.6Ω |
| Mechanical Quality Factor (Qms) | 4.566 |
| Electrical Quality Factor (Qes) | 0.896 |
| Total Quality Factor (Qts) | 0.749 |
| Equivalent Air Volume to Cms (Vas) | 23.655L |
| Force Factor (BL) | 23.609 N/A |
| Mass of Diaphragm/Coil (Mms) | 284.56 g |
| Sound Pressure Level (SPL) | 83.8 dB |
Description
Introducing the Euphoria EWXB10D4: 10in Subwoofer Black Out Edition, a true marvel designed to optimize SPL performance. This subwoofer is not just about looks; its blacked-out cosmetic design exudes sophistication and power. Equipped with a high excursion multi-layer foam surround and optimized for high-output bass, it delivers an unparalleled auditory experience. With a high-temperature voice coil and high-grade low-carbon steel top & bottom plate, durability meets performance. The 1.5” high roll foam surround and large gauge push button speaker terminals ensure seamless connectivity and superior sound. Boasting a dual 4Ω voice coil, 145 oz. magnet size, and max power of 2500 Watts, this subwoofer is engineered to impress. Whether you're a casual listener or a hardcore audiophile, the Euphoria EWXB10D4 promises to elevate your audio experience to new heights.
Product Manual
Product Manual PDF
