Euphoria | SKU:
810180462044

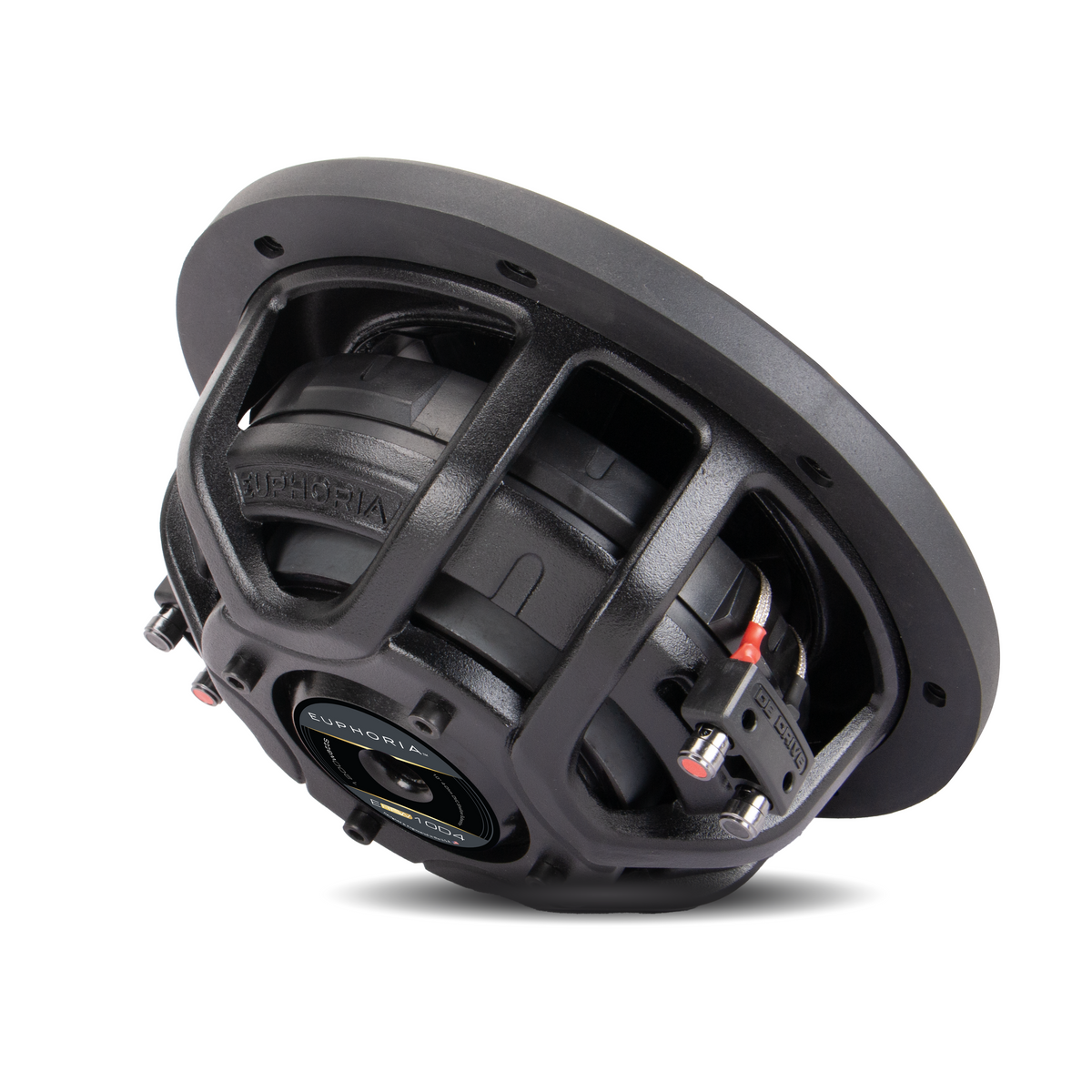

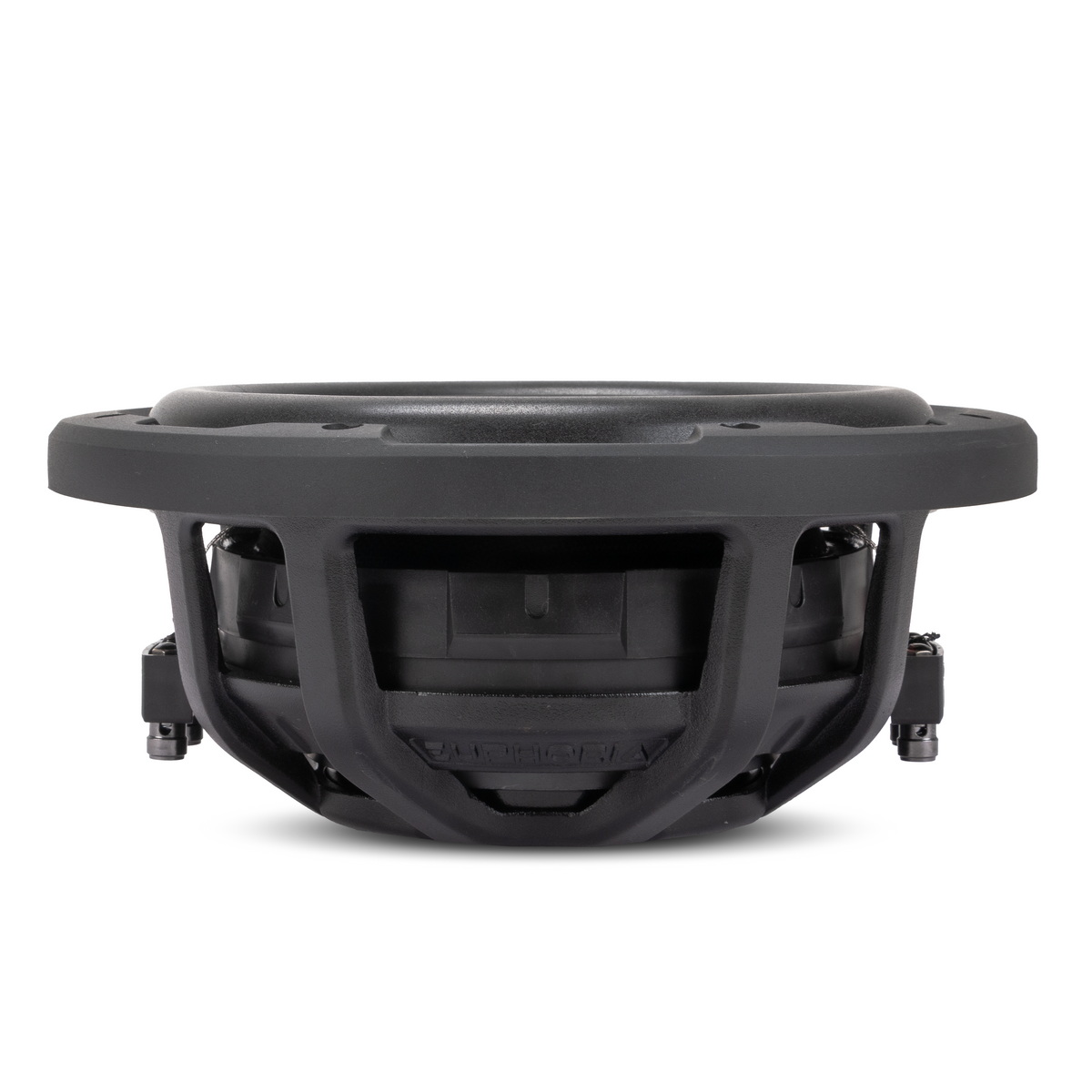

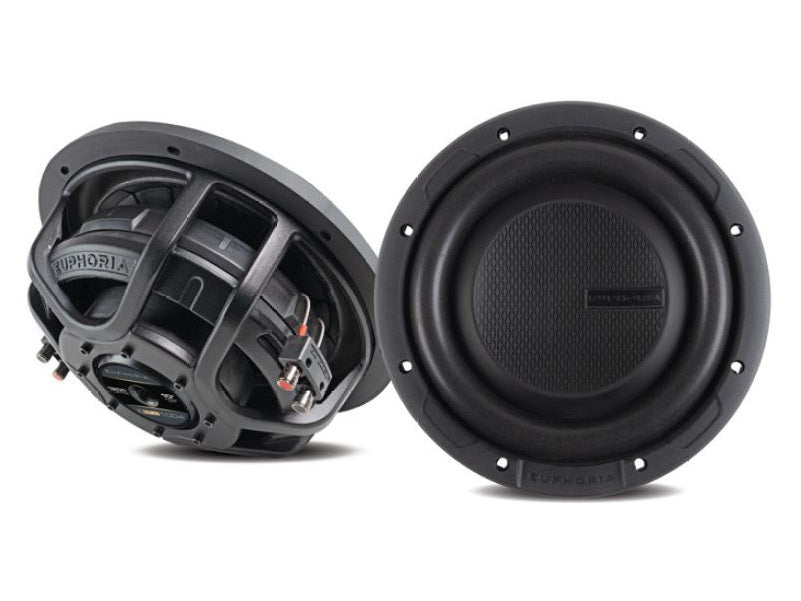

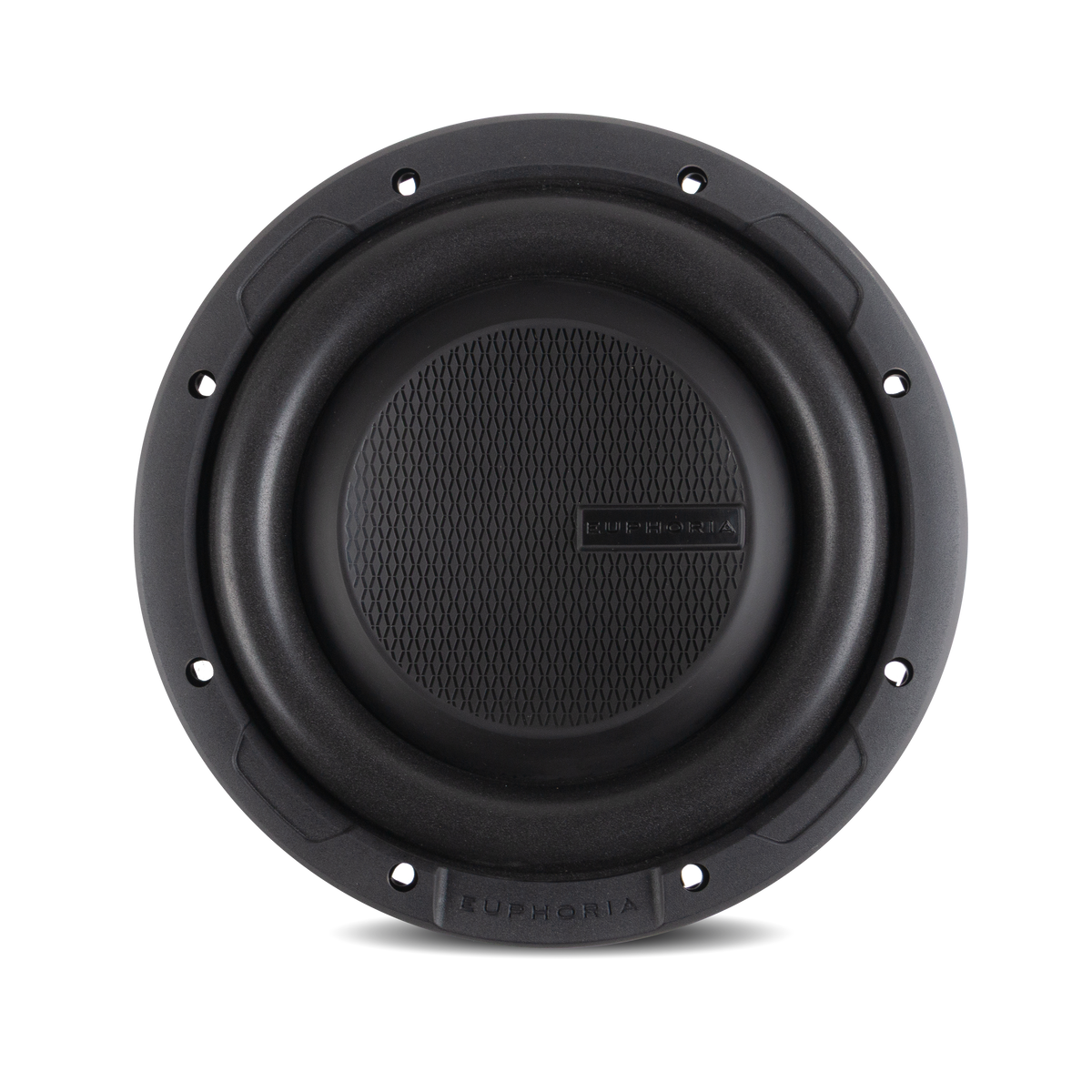

Euphoria ERFW10D4 : 10” Diecast 4 Ohm DVC Shallow Subwoofer
$299.98
Unit price
/
Unavailable
Shipping calculated at checkout.
Euphoria ERFW10D4 : 10” Diecast 4 Ohm DVC Shallow Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Euphoria ERFW10D4 : 10” Diecast 4 Ohm DVC Shallow Subwoofer
$299.98
Unit price
/
Unavailable
Description
Description
Overview
A Higher Standard of Sound. Compact subwoofer delivering controlled bass through efficient cooling and precise cone movement.
Features
▪ High Temp Voice Coil Wire Around Vented KSV Former
▪ Radial Basket Vents for Voice Coil Cooling
▪ Large Gauge Push Button Speaker Wire Terminals
▪ Proprietary Injection Molded Polypropylene Cone
▪ High Excursion Foam Surround
▪ Extended Linear Roll Progressive Dampener
▪ Stealth Gasket for Custom Mounting Applications
▪ Anti-Resonance Heavy Gauge Shallow Die-Cast basket
▪ Optimized Motor for Low Frequency Response
▪ Radial Basket Vents for Voice Coil Cooling
▪ Large Gauge Push Button Speaker Wire Terminals
▪ Proprietary Injection Molded Polypropylene Cone
▪ High Excursion Foam Surround
▪ Extended Linear Roll Progressive Dampener
▪ Stealth Gasket for Custom Mounting Applications
▪ Anti-Resonance Heavy Gauge Shallow Die-Cast basket
▪ Optimized Motor for Low Frequency Response
Specifications
▪ Nominal Power Handling: 600 Watts
▪ Peak Power Handling: 1200 Watts
▪ Impedance: Dual 4Ω Voice Coil
▪ Free Air Resonance (Fo) 32.035 Hz
▪ D.C. Voice Coil Resistance (Re): 6.400 Ω
▪ Mechanical Quality Factor (Qms): 3.968
▪ Electrical Quality Factor (Qes): 0.719
▪ Total Quality Factor (Qts): 0.609
▪ Equivalent Air Volume (Vas): 18.550 L
▪ Mass of Diaphragm/Coil (Mms): 205.825 g
▪ Force Factor (BL): 19.199 TM
▪ Sound Pressure Level (SPL): 81.2 dB
▪ Effective Diaphragm Area (Sd): 33.006m
▪ Compliance of Mechanical Suspension (Cms): 119.912 mm/N
▪ Moving Mass of Diaphragm (Mmd): 202.377 m Kg
▪ MMd: 190.000g
▪ Peak Power Handling: 1200 Watts
▪ Impedance: Dual 4Ω Voice Coil
▪ Free Air Resonance (Fo) 32.035 Hz
▪ D.C. Voice Coil Resistance (Re): 6.400 Ω
▪ Mechanical Quality Factor (Qms): 3.968
▪ Electrical Quality Factor (Qes): 0.719
▪ Total Quality Factor (Qts): 0.609
▪ Equivalent Air Volume (Vas): 18.550 L
▪ Mass of Diaphragm/Coil (Mms): 205.825 g
▪ Force Factor (BL): 19.199 TM
▪ Sound Pressure Level (SPL): 81.2 dB
▪ Effective Diaphragm Area (Sd): 33.006m
▪ Compliance of Mechanical Suspension (Cms): 119.912 mm/N
▪ Moving Mass of Diaphragm (Mmd): 202.377 m Kg
▪ MMd: 190.000g
Dimensions
▪ Overall Diameter: 10.71”/ 272 mm
▪ Mounting Depth: 3.68”/ 93.5 mm
▪ Cutout Diameter: 9.13”/ 232mm
▪ Mounting Depth: 3.68”/ 93.5 mm
▪ Cutout Diameter: 9.13”/ 232mm
Product Manual
Download Manual
