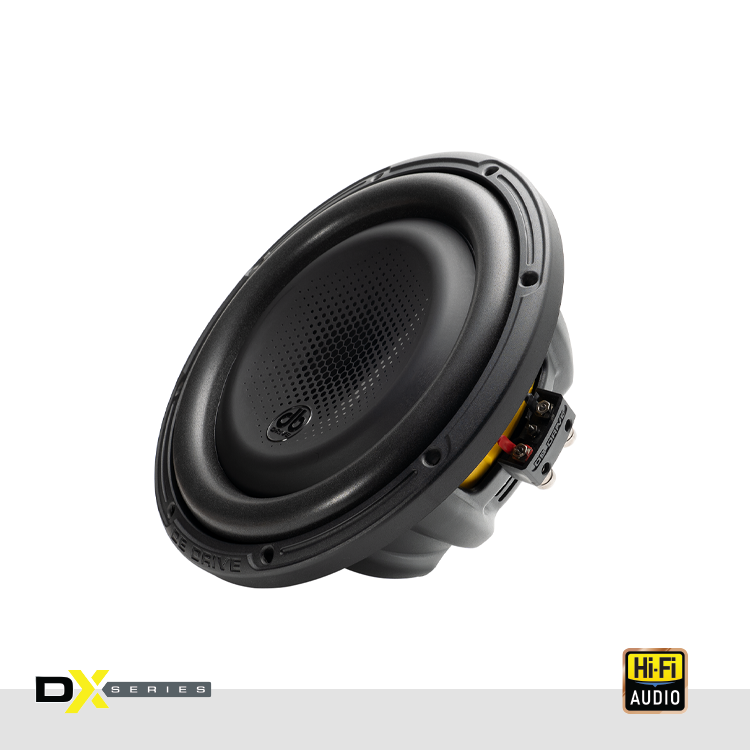

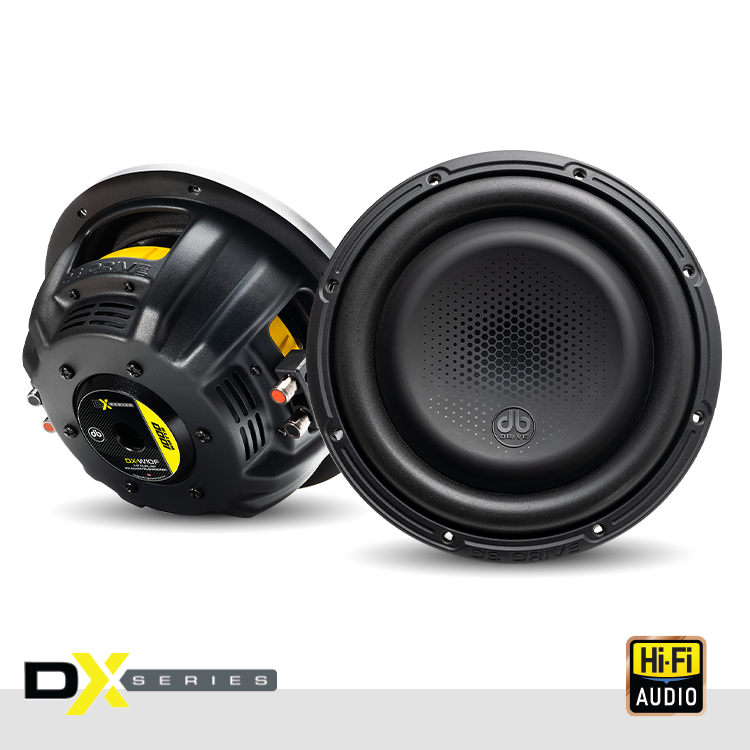

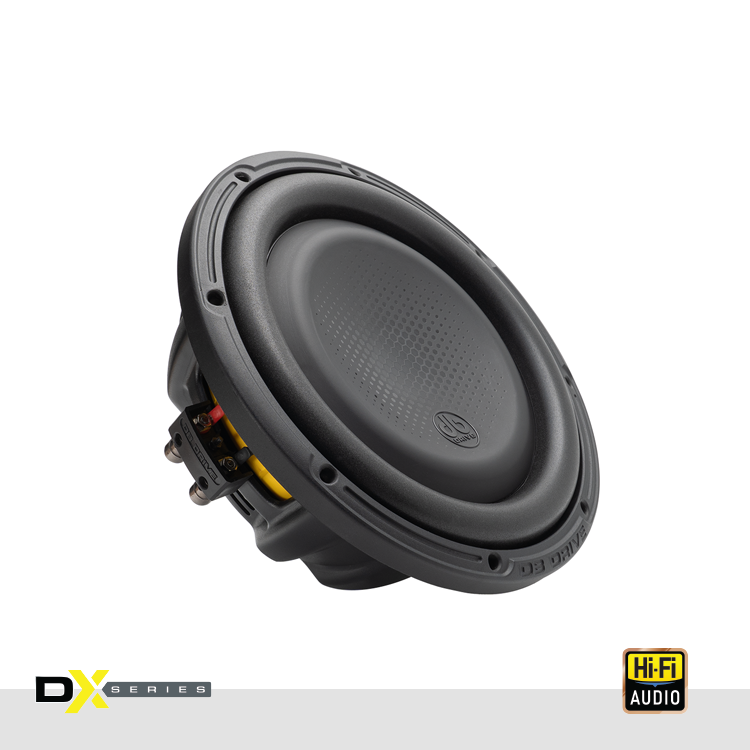

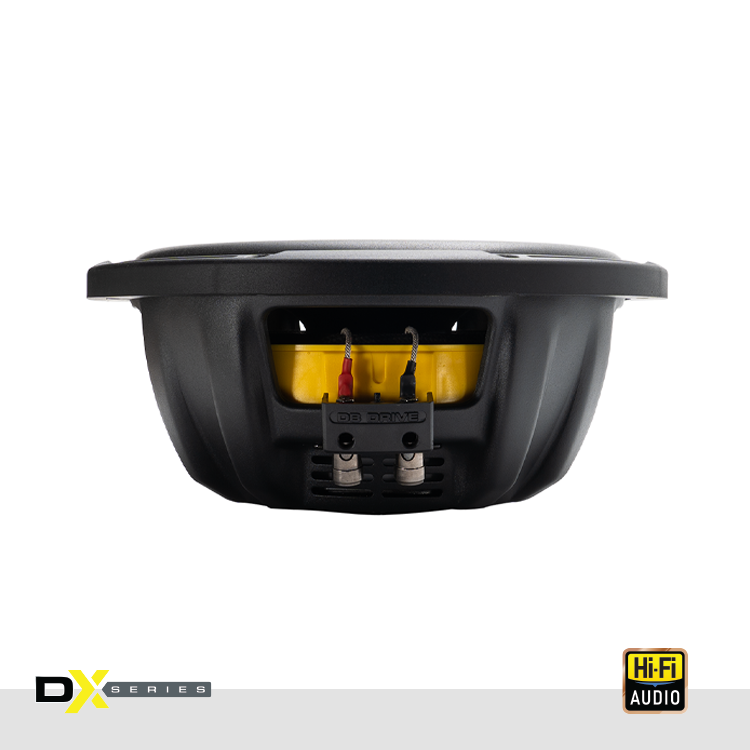

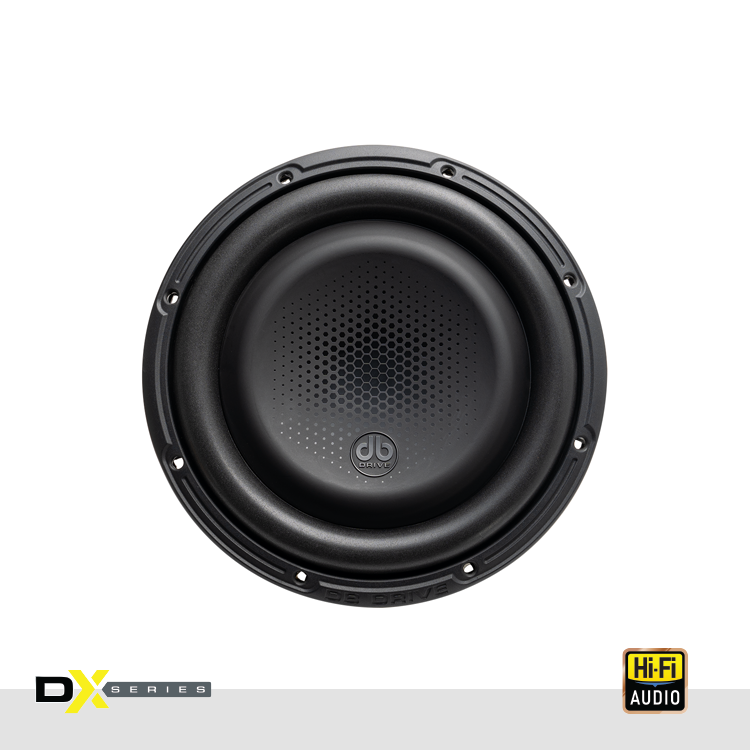

DB Drive DX-W10F : DX 10" 4-Ohm Shallow Subwoofer
DB Drive DX-W10F : DX 10" 4-Ohm Shallow Subwoofer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
Description
Description
Features
- 2.4″ (61.1mm) 8 Layer Voice Coil
- Weather Rated IMPP Cone with Rubber Surround
- Small Enclosure Optimization
- Y-35 Ferrite Oxide Magnet
- Anti-resonant stamped steel basket with radial venting
- Poly Cotton Linear dampeners
- Compression Speaker Terminals
Specifications
| DX-W10F |
| Resonant Frequency (fs): 42.756 Hz |
| Mechanical Quality Factor (Qms): 3.810 |
| Electrical Quality Factor (Qes): 1.043 |
| Total Quality Factor (Qts): 0.819 |
| Equivalent Air Volume (Vas): 22.091 L |
| Mechanical Compliance of Suspension (CMS): 140.050 mm/N |
| Mass of Diaphragm/Coil (Mms): 98.937 g |
| Force Factor (BL): 12.774 |
| Sound Pressure Level (SPL): 84.1 dB |
Description
The DX-W10F subwoofer offers superior sound quality with a powerful 1000-watt dynamic power handling and 500-watt nominal power handling. Equipped with a dual 4Ω voice coil, it delivers crisp and clear audio. Its compact design with an overall diameter of 10.50" and mounting depth of 4.16" makes it ideal for tight spaces. Upgrade your car audio system with this high-performance subwoofer.
Product Manual
Product Manual PDF
